mti 153 Cameron 3 Designer Collection Tubs

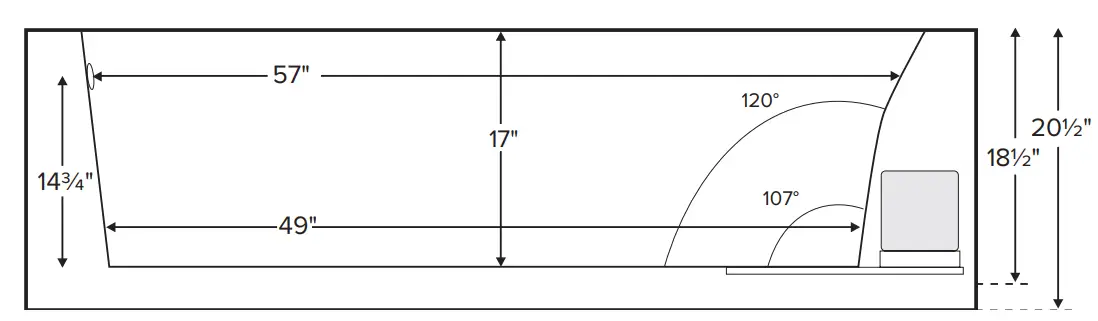

DIMENSIONS

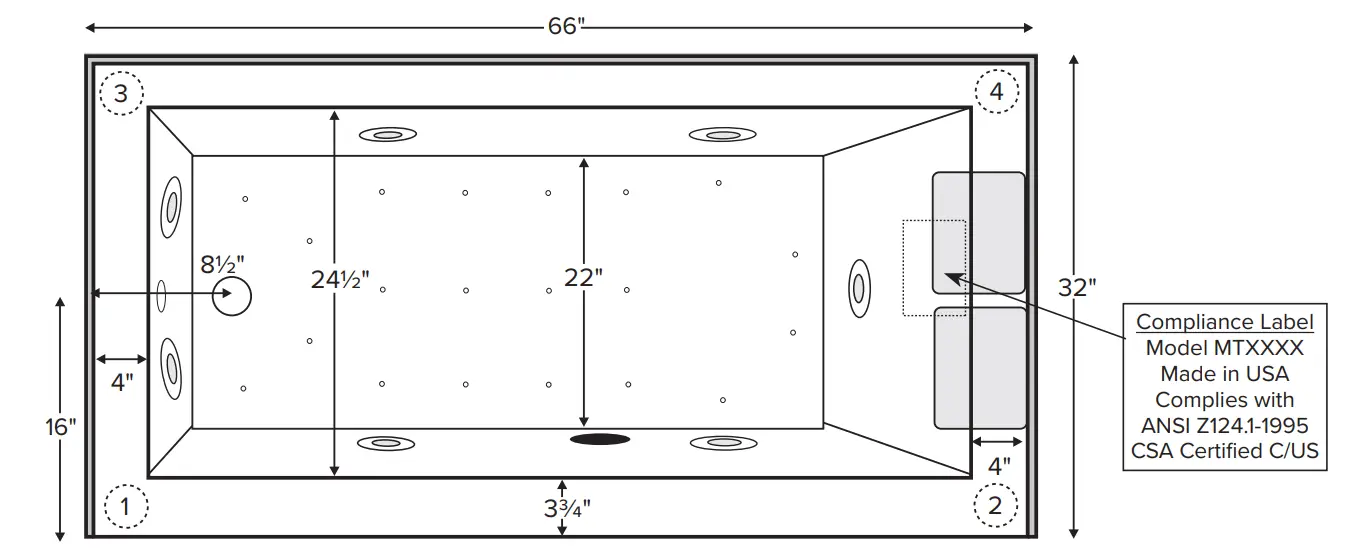

Numbered areas on tub deck represent possible locations to install cleaning systems, faucets and other fixtures.

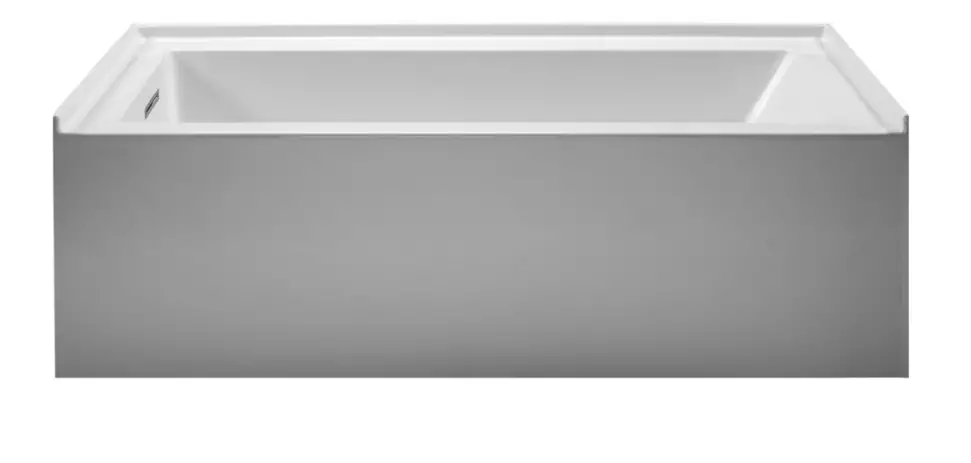

Shown with Air Massage and Ultra Whirlpool Package
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Must specify left- or right-hand drain when ordering.
- Non-removable skirt provides no access to equipment. Must have end-access for servicing.
- Radiance placed on airbath floor will affect placement of air jets.
- Use proper bedding compound to fully level and support the tub.
- Tubs equipped with an air system include a factory-installed pre-leveled foam base, negating the use of bedding compound when installed on a flat level subfloor.
- System components may extend beyond the perimeter of deck.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
- All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/A326.3 coefficient of friction and AS HB198:2014 slip tests.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Stream Bath | ½-bhp, ozone | 1-20 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 2-bhp pump x 2, inline heater, ozone | 2-20 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Air Massage w/ Stream Bath | ½-bhp pump, heated blower, ozone | 1-20 amp |
| Air Massage Elite w/ Stream Bath | ½-bhp pump, heated blower, chromatherapy, ozone | 1-20 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7 | ||
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, chromatherapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, chromatherapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details. MTI’s Customer Service Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
| Hydrotherapy Packages | Package Contents | Acrylic CXL™ Part # MSRP | DoloMatte™ Part # MSRP | ||
| Soaker | Soaking bath – no jets; features integral skirting (no front access), integral tile flange. Note: Overall tub height can be reduced by 2″ for soakers only. Must specify on order. | 5153 | $3,075 | 51530M | $3,675 |
| Stream Bath | 6 side vents, 2 end vents,1/2 bhp pump, Ozone, integral skirting (no front access), integral tile flange | SM153 | $5,620 | SM153DM | $6 ,220 |
| Microbubbles | 1microbubbles infusion port and pump; features integral skirting (no front access), integral tile flange | M153 | $6,395 | M153DM | $6 ,995 |
| Air Massage | 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | AST153 | $6,725 | AST153DM | $7,3 25 |
| Air Massag e Elite | 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting (no front access), integral tile flange, pre-leveled foam base | 153 | $8,625 | AE153DM | $9,225 |
| Stream Bath with Air Massage | 6 side vents, 2 end vents,1/2 bhp pump, Ozone, 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | ASTSM153 | ss,no | ASTSM153DM | $9,370 |
| Stream Bath with Air Massage Elite | 6 side vents, 2 endvents,1/2 bhp pump, Ozone, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting(no front access), integral tile flange, pre-leveled foam base | AESM153 | $10,870 | AESM153DM | $11,470 |
| Microbubbles with Air Massage | 1microbubbles infusion port and pump, 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | ASTM153 | $9,445 | ASTM153DM | $10,045 |
| Microbubbles with Air Massage Elite | 1microbubblesinfusionport and pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting (no front access), integral tile flange, pre-leveled foam base | AEM153 | $11,245 | AEM153DM | $11,845 |
| Standard Whirlpool | 5 point-massage jets, 2-bhp pump, integral skirting (no front access), integral tile flange | P153 | $5,440 | P153DM | $6,040 |
| Ultra Whirlpool | 7 point-massage jets, 2-bhp pump, inline heater, Ozone, integral skirting (no front access), integral tile flange | P153U | $7,435 | P153UDM | $8 ,0 35 |
| Air Massage with Standard Whirlpool | 5 point-massage jets, 2-bhp pump, 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | AW153 | $9,09 0 | AW153DM | $9,690 |
| Air Massage with Ultra Whirlpool | 7 point-massage jets, 2-bhp pump, inline heater, 20 air jets, heated air blower, Aromatherapy, Ozone, integral skirting (no front access), integral tile flange, pre-leveled foam base | AU153 | $11,085 | AU153DM | $11,685 |
| Air Massage Elite with Standard Whirlpool | 5 point-masasgejets,2-bhppump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting (no front access,) integral tile flange, pre-leveled foam base | AEAP153 | $10,990 | AEAP153DM | $11,590 |
| Air Massage Elite with Ultra Whirlpool | 7 point-massage jets, 2-bhp pump, inline heater, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, Ozone, integral skirting (no front access), integral tile flange, pre- leveled foam base | AEAP153U | $12,085 | AEAP153UDM | $12,685 |
For more information on options and accessories go to Acrylic Tub Options at mtibaths.com
| Options Must be ordered at time of purchase. |
| Standard Colors White (CWH) DoloMatte available in matte white only. Biscuit (CBS) Not available for DoloMatte |
| Quick Ship reduces lead time (QSPRI) $430 Please call for availability |
| Inline Heater maintains water temperature For Soaker or Air Baths (HTISOAK) $825 Includes a recirculating pump Cannot be combined with Microbubbles. |
| Virtual Spout high-flow integrated tub filler (FPMJ) $450 Must specify stub-out location on order. See page 1 for location options. |
| Grab Bars from $330 Selections vary. Personalization available. |
| Textured Bottom (TXTBTM) Acrylic CXL™ only $105 DoloMatte™ exceeds ANSI A137.1/A326.3 and AS HB198 slip tests |
| Accessories |
| Pillows from $180 |
| Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing |
| Teak Tub Tray Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570 |
| Hydrotherapy Equipment & Cleaning Systems Must be ordered at time of purchase. |
| Inline Heater maintains water temperature For Whirlpools or Stream Bath (HTI) $570 Uses existing pump Cannot be combined with Microbubbles. |
| Whirlpool Cleaning Systems Fill-Flush (FFSO) $590 Simple Touch (FFE) $1,020 Must specify stub-out location on order. See page 1 for location options |
| Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets. Point-Massage Jet Extra Point-Massage Jet (EJ) $315 Micro-Jet from $360 Jet styles and packages vary. Personalization available. Pump Upgrade – 3-bhp (PUMP3) $315 |
| Jet Trim Kits For Standard Whirlpool Chrome (TRC) $270, Brushed Nickel (TRBN) $725 For Ultra Whirlpool Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960 |
| Ozonator (OZONE) $515 Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK |
Installation Options Must be ordered at time of purchase.
Pre-Leveled Foam Base (PLFOAM) $295
All airbaths include a pre-leveled foam base.
| Drains & Overflow Kits | Toe Tap Rectangular Overflow must be ordered at time of purchase | |
| Cable Driven | Toe Tap | Toe Tap |
| Drain Finishes – PVC Drain Kit White/Biscuit (WOCDW) $440 Chrome (WOCD) $410 | Round Overflow – PVC Drain Kit Chrome (WOTTC) $380 Brushed Nickel (WOTTBN) $385 Polished Nickel (WOTTPN) $385 Special Finishes* (WOTTSF) $1,145 Round Overflow – Solid Brass Drain Chrome (WOTTSBC) $810 Brushed Nickel (WOTTSBBN) $810 Polished Nickel (WOTTSBPN) $810- | Rectangular Overflow – PVC Drain Kit Chrome (WOTRC) $470 Brushed Nickel (WOTRBN) $430 White (WOTRW) $525 Lift & Turn Drain Finishes – PVC Drain Kit Chrome (WOC) $185 White (WOW) $245 Brushed Nickel (WOBN) $305 |
| Slim-Line Overflow with Toe Tap Drain Must be ordered at time of purchase. | ||
| Low profile overflow is factory installed | Slim-Line Overflow with Toe Tap Drain PVC Drain | Slim-Line Overflow with Toe Tap Drain Solid Brass Drain Chrome (SLOTSBC) $930 Brushed Nickel (SLOTSBBN) $935 Polished Nickel (SLOTSBPN) $935 White (SLOTSBW) $965 |
| Overflow measures 4.5” x 1” | ions Slim-Line Overflow with Toe Tap Drain PVC Drain Chrome (SLOTC) $500 | |
| Provides a deeper soak | Chrome (SLOTC) $500 Brushed Nickel (SLOTBN) $530 | |
| Not available for commercial applications | Polished Nickel (SLOTPN) $555 White (SLOTW) $430 | |
† MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers.
To ensure best match, order as a Special Finish and submit a sample.
* Allow 2-4 weeks lead time for Special Finishes. Send sample for best match
©2022 by MTI Baths, Inc. Modification Rights Reserved 3 of 3 Rev. 07 20 2022
CSA # MTDS 153
CSA # MTDS153DM
Accessories
©2022 by MTI Baths, Inc. Modification Rights Reserved
Rev. 07 20 2022
