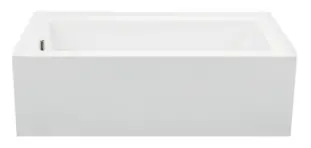

MTI BASICS 152 Cameron 2 Tubs
| model 152 | |

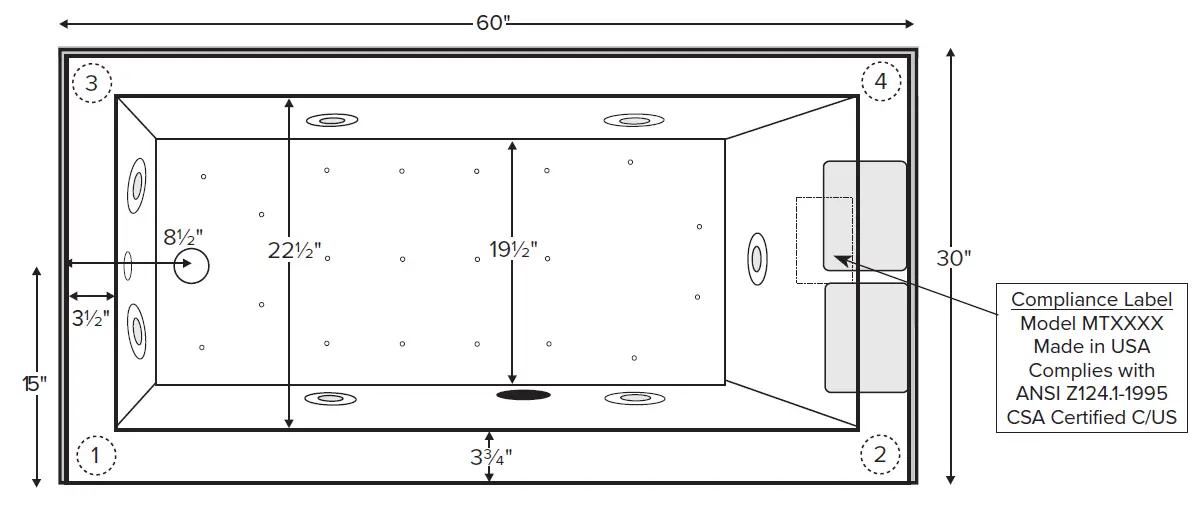

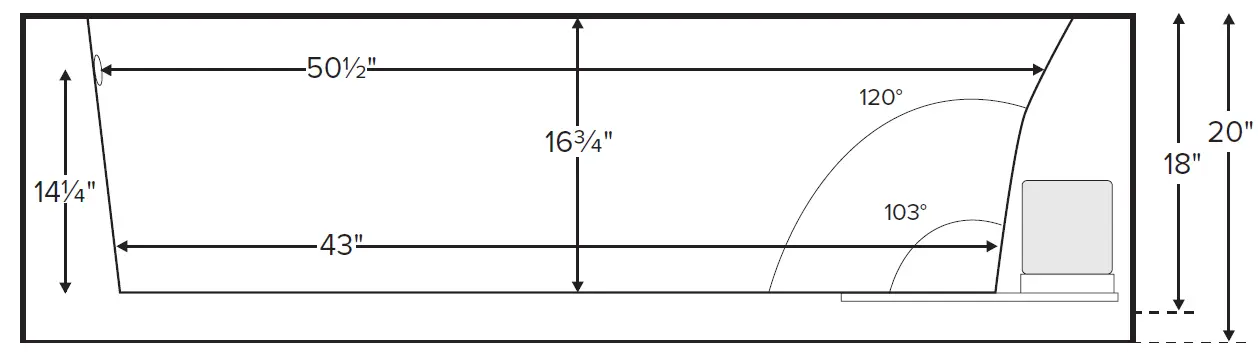

| 60″ x 30″ x 20″ | |
| ALCOVE 55 gal to overflow | |
| Acrylic CXLTM | DoloMatteTM |
| 105 lbs / 48 kg <soaker> 118 lbs / 54 kg 130 lbs / 59 kg <plumbed> 143 lbs / 65 kg | |
| Filling this tub to the maximum may require an above average size or dedicated water heater. | |
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Must specify left- or right-hand drain when ordering.
- Non-removable skirt provides no access to equipment. Must have end-access for servicing.
- Radiance placed on airbath floor will affect placement of air jets.
- Use proper bedding compound to fully level and support the tub.
- Tubs equipped with an air system include a factory-installed pre-leveled foam base, negating the use of bedding compound when installed on a flat level subfloor.
- System components may extend beyond the perimeter of deck.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
- All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/A326.3 coefficient of friction and AS HB198:2014 slip tests.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Stream Bath | ½-bhp, ozone | 1-20 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 2-bhp pump x 2, inline heater, ozone | 2-20 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Air Massage w/ Stream Bath | ½-bhp pump, heated blower, ozone | 1-20 amp |
| Air Massage Elite w/ Stream Bath | ½-bhp pump, heated blower, chromatherapy, ozone | 1-20 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7 | ||
Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information.
CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, chromatherapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, chromatherapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details. MTI’s Customer Service Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
| Hydrotherapy Packages | Package Contents | Acrylic CXL™ | DoloMatte™ | ||
| Part # | MSRP | Part # | MSRP | ||
| Soaker | Soaking bath – no jets; features integral skirting (no front access), integral tile flange. Note: Overall tub height can be reduced by 2” for soakers only. Must specify on order. | S152 | $2,845 | S152DM | $3,445 |
| Stream Bath | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, integral skirting (no front access), integral tile flange | SM152 | $5,390 | SM152DM | $5,990 |
| Microbubbles | 1 microbubbles infusion port and pump, features integral skirting (no front access), integral tile flange | M152 | $6,165 | M152DM | $6,765 |
| Air Massage | 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | AST152 | $6,495 | AST152DM | $7,095 |
| Air Massage Elite | 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting (no front access), integral tile flange, pre-leveled foam base | AE152 | $8,395 | AE152DM | $8,995 |
| Stream Bath with Air Massage | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | ASTSM152 | $8,540 | ASTSM152DM | $9,140 |
| Stream Bath with Air Massage Elite | 6 side vents, 2 end vents, 1/2 bhp pump, Ozone, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting (no front access), integral tile flange, pre-leveled foam base | AESM152 | $10,640 | AESM152DM | $11,240 |
| Microbubbles with Air Massage | 1 microbubbles infusion port and pump, 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | ASTM152 | $9,215 | ASTM152DM | $9,815 |
| Microbubbles with Air Massage Elite | 1 microbubbles infusion port and pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting (no front access), integral tile flange, pre-leveled foam base | AEM152 | $11,015 | AEM152DM | $11,615 |
| Standard Whirlpool | 5 point-massage jets, 2-bhp pump, integral skirting (no front access), integral tile flange | P152 | $5,210 | P152DM | $5,810 |
| Ultra Whirlpool | 7 point-massage jets, 2-bhp pump, inline heater, Ozone, integral skirting (no front access), integral tile flange | P152U | $7,205 | P152UDM | $7,805 |
| Air Massage with Standard Whirlpool | 5 point-massage jets, 2-bhp pump, 20 air jets, heated air blower, Aromatherapy, integral skirting (no front access), integral tile flange, pre-leveled foam base | AW152 | $8,860 | AW152DM | $9,460 |
| Air Massage with Ultra Whirlpool | 7 point-massage jets, 2-bhp pump, inline heater, 20 air jets, heated air blower, Aromatherapy, Ozone, integral skirting (no front access), integral tile flange, pre-leveled foam base | AU152 | $10,855 | AU152DM | $11,455 |
| Air Massage Elite with Standard Whirlpool | 5 point-massage jets, 2-bhp pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, integral skirting (no front access), integral tile flange, pre-leveled foam base | AEAP152 | $10,760 | AEAP152DM | $11,360 |
| Air Massage Elite with Ultra Whirlpool | 7 point-massage jets, 2-bhp pump, inline heater, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, Ozone, integral skirting (no front access), integral tile flange, pre- leveled foam base | AEAP152U | $11,855 | AEAP152UDM | $12,455 |
Options Must be ordered at time of purchase.
| Options Must be ordered at time of purchase. |
| Standard Colors White (CWH) DoloMatte available in matte white only. Biscuit (CBS) Not available for DoloMatte. |
| Quick Ship reduces lead time (QSPRI) $430 Please call for availability |
| Inline Heater maintains water temperature For Soaker or Air Baths (HTISOAK) $825 Includes a recirculating pump Cannot be combined with Microbubbles. |
| Virtual Spout high-flow integrated tub filler (FPMJ) $450 Must specify stub-out location on order. See page 1 for location options. |
| Grab Bars from $330 Selections vary. Personalization available. |
| Textured Bottom (TXTBTM) AcrylicCXL™only$105 DoloMatte™ exceeds ANSI A137.1/A326.3 and AS HB198 slip tests. |
| Accessories |
| Pillows from $180 |
| Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing. |
| Teak Tub Tray Slatted (TK-TRAY1) $500 Solid (TK-TRAY2) $570 |
Hydrotherapy Equipment & Cleaning Systems
Must be ordered at time of purchase.
| Inline Heater maintains water temperature For Whirlpools or Stream Bath (HTI) $570 Uses existing pump Cannot be combined with Microbubbles. |
| Whirlpool Cleaning Systems Fill-Flush (FFSO) $590 Simple Touch (FFE) $1,020 Must specify stub-out location on order. See page 1 for location options. |
| Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets. Point-Massage Jet Extra Point-Massage Jet (EJ) $315 Micro-Jet from $360 Jet styles and packages vary. Personalization available. Pump Upgrade – 3-bhp (PUMP3) $315 |
| Jet Trim Kits For Standard Whirlpool Chrome (TRC) $270, Brushed Nickel (TRBN) $725 For Ultra Whirlpool Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960 |
| Ozonator (OZONE) $515 Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK. |
Installation Options Must be ordered at time of purchase.
Pre-Leveled Foam Base (PLFOAM) $295 All airbaths include a pre-leveled foam base.
Drains & Overflow Kits
Cable Driven
Drain Finishes – PVC Drain Kit
- White/Biscuit (WOCDW) $440
- Chrome (WOCD) $410
- Brushed Nickel (WOCDBN) $490
- Polished Nickel (WOCDPN) $540
- Oil-Rubbed Bronze† (WOCDOR) $550
- Polished Brass (WOCDBR) $690
- Special Finishes* (WOCDSF) $1,135
- MTI does not offer a brass body cable drain kit.
Toe Tap
Round Overflow – PVC Drain Kit
- Chrome (WOTTC) $380
- Brushed Nickel (WOTTBN) $385
- Polished Nickel (WOTTPN) $385
- Special Finishes* (WOTTSF) $1,145
- Round Overflow – Solid Brass Drain
- Chrome (WOTTSBC) $810
- Brushed Nickel (WOTTSBBN) $810
- Polished Nickel (WOTTSBPN) $810
Toe Tap
- Rectangular Overflow – PVC Drain Kit
- Chrome (WOTRC) $470
- Brushed Nickel (WOTRBN) $430
- White (WOTRW) $525
Lift & Turn
- Drain Finishes – PVC Drain Kit
- Chrome (WOC) $185
- White (WOW) $245
- Brushed Nickel (WOBN) $305
Slim-Line Overflow with Toe Tap Drain Must be ordered at time of purchase
• Low profile overflow is factory installed
• Overflow measures 4.5” x 1”
• Provides a deeper soak
• Not available for commercial applications
Slim-Line Overflow with Toe Tap Drain
PVC Drain
- Chrome (SLOTC) $500
- Brushed Nickel (SLOTBN) $530
- Polished Nickel (SLOTPN) $555
- White (SLOTW) $430
Slim-Line Overflow with Toe Tap Drain
Solid Brass Drain
- Chrome (SLOTSBC) $930
- Brushed Nickel (SLOTSBBN) $935
- Polished Nickel (SLOTSBPN) $935
- White (SLOTSBW) $965
