You must install a 30mA Residual-current device (RCD)

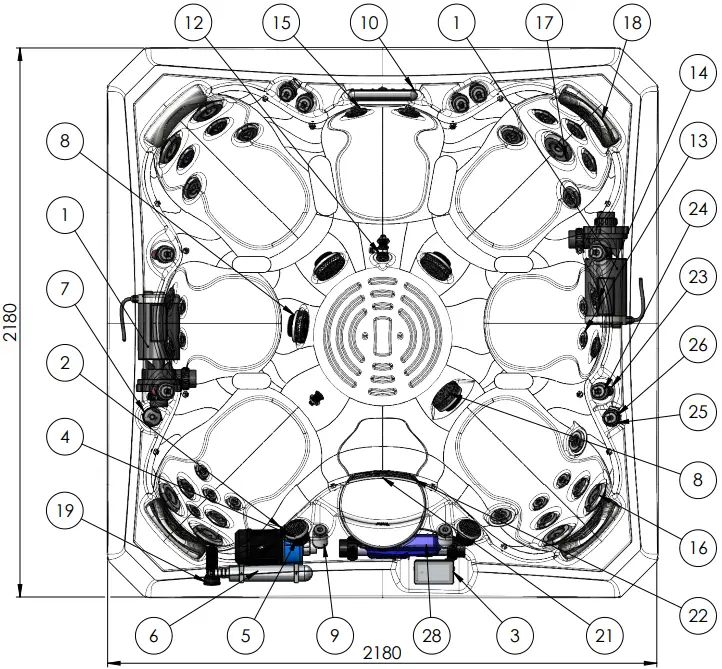

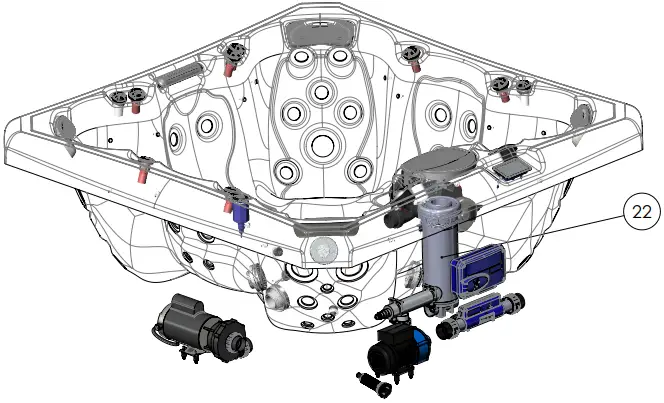

| Item | Item number | IFS designation | Db |
| 1 | ACM0734 | Spa Pump 3 HP – One Speed 60 Hz | 2 |
| 2 | ACM0902 | Circulation pump WTC50M 250 W 60Hz | 1 |
| 3 | ACM0912 | Control Panel – IN.K1000 V2 | 1 |
| 4 | ACM0874 | Speaker 3″ (2 way) | 2 |
| 5 | ACM0875 | Grille for speaker 3″ (2 way) | 2 |
| 6 | ACM0893 | UV-C Stainless steel house set 60Hz | 1 |
| 7 | AM00744 | Aromatherapy house | 1 |
| 8 | ABE0409 | Suction 2″ with nut | 4 |
| 9 | AKU2101 | Fountain laminar V2 | 2 |
| 10 | AKU1916 | Waterfall 276x51x48 | 1 |
| 11 | AJ00247 | Jet water ciculation self-leveling | 2 |
| 12 | AJ00169 | Jet – 20 SB – Ozone 90° | 1 |
| 13 | AJ00214 | Jet 2″ – transparent 1 Hole transparent V3 Wellis | 10 |
| 14 | AJ00216 | Jet 3″ – transparent 1 Hole V3 Wellis | 13 |
| 15 | AJ00217 | Jet 3″ – transparent 1 Hole Rotation transparent V3 Wellis | 10 |
| 16 | AJ00218 | Jet 5″ – transparent 1 Hole transparent V3 Wellis | 6 |
| 17 | AJ00219 | Jet 5″ – transparent 1 Hole rotational transparent V3 Wellis | 1 |
| 18 | AF00061 | Pillow 300x126x54 white ribbed | 4 |
| 19 | AKU0084 | Water Drain – 20 RB V2 | 1 |
| 20 | AKU1830 | Filter house for floating 50 sqf filters | 1 |
| 21 | AKU1832 | Filter House – Skimmer Cover round | 1 |
| 22 | AKU1842 | Skimmer house with Wellis logo | 1 |
| 23 | AKU1892 | Air Regulator – house led lighted V2 | 7 |
| 24 | AKU1895 | Air regulator grip Wellis V2 | 7 |
| 25 | AKU1893 | On-Off tap house 33 transparent V2 | 2 |
| 26 | AKU1896 | On-off tap grip Wellis V2 | 2 |
| 27 | ASE0079 | Spring Clamp | 2 |
| 28 | ACM0926 | Heating 1-4 kW Gecko IN.YJ control | 1 |
| 29 | ACM0953 | Control box In.YJ-3 60Hz V3 | 1 |
Product family: USA Line
| flow rate liter/min: | 2130 |
| 1 person ~75 kg Water disp.: | 290 kg |
| Minimum water: | 1090 liter |
| Sheet name: PARIS DELUXE (Elbrus 2018) | Projection |  | |
| File name: FJ_WM00574_ENG_USA_PARIS DELUXE (Elbrus 2018) medence USA | |||

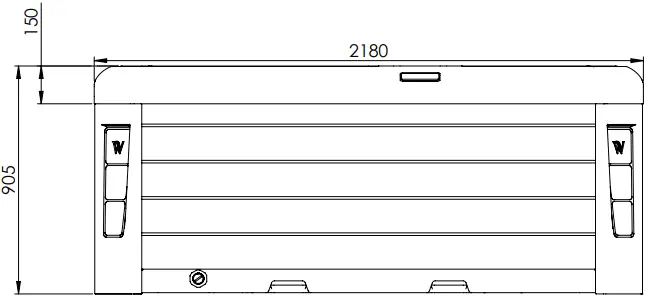

| Dimension SPA: 2180x2180x900 mm | El. nds: 240 V – 37A – 60Hz | ||
| Weight of the SPA: 300 kg | Raklap 2200x950x145 – AE00362 | Control box: GECKO YE-3+K1000 | |
| Rim height:140 mm | Approved by:Losteiner Sándor | Pr. No: P-10000 Fe. No:F | Number:WM00574 | C | |
| Created: 2020. 03. 24. | Drawer: losteiner.sandor – 2020. 03. 24. 16:01:55 | A3 | M 1:15 | ||
