USER’S
MANUAL VER. 1
C34SST-BOARD
Rev. 1
FEBRUARY 2022

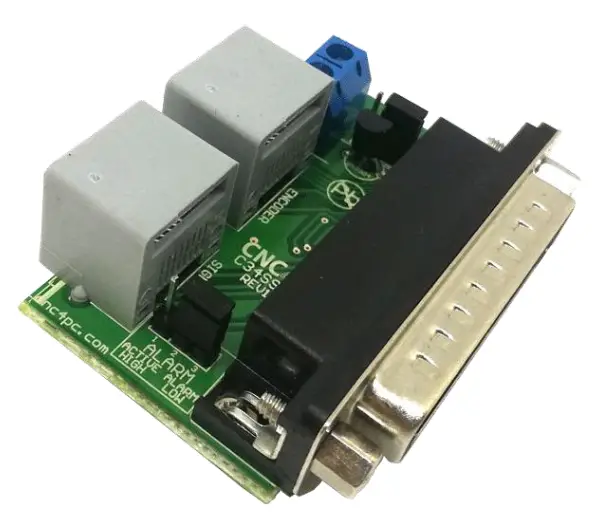

OVERVIEW
This board interface is used for the connection between C82, C76, M16D, C62 C86MASSO, C86ACORN and the SST-ECLIPSE, Model E5xx
FEATURES
- DB25 MALE connector for Driver Connection.
- RJ45 Connector for Axis.
- Encoder Output.
- Select Jumper for Hard Enable or Soft Enable.
- Select Jumper active Low and active High
- Terminals for external drive enable push button.
BOARD DESCRIPTION
JUMPER TO SELECT THE ENABLE

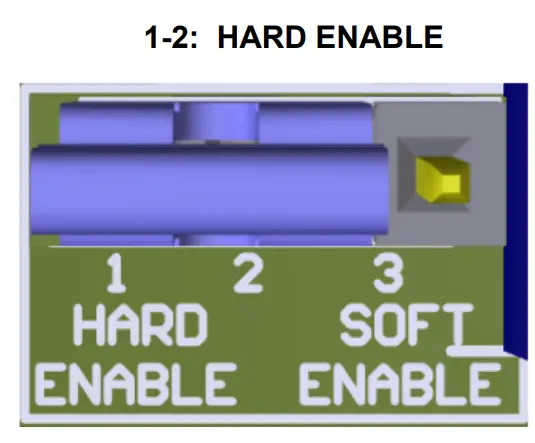

Use Hardware Enable to keep the driver enabled all the time.
Set of jumpers as shown in the image.

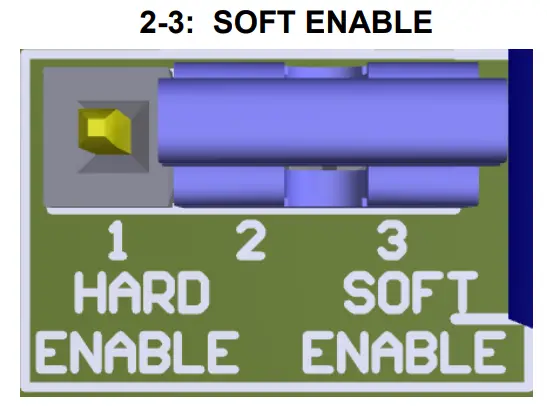

Use Software Enable to keep the driver active only while the system is active. Set of jumpers as shown in the image.

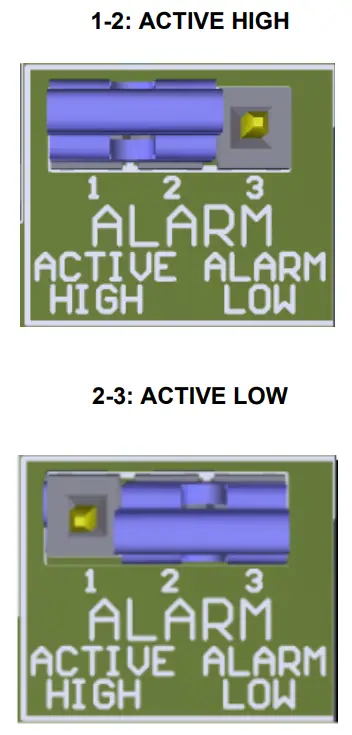

4.1 Jumper alarm to select active low and active high.
WIRING SAMPLE

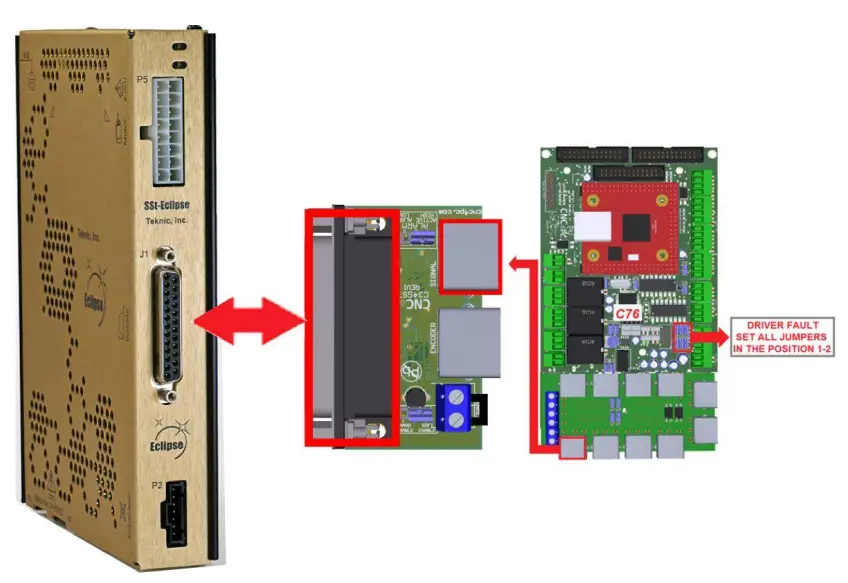

5.1 Diagram of connection with input signals and C76.
SSt- Eclipse , Model E 545
PINOUT
| SSt-Eclipse E5xx SERIES SERVO DRIVE AND C34SST CONNECTION | ||
| DB25 MALE PIN | FUNCTION | RJ45 PIN |
| 20 | + 5V | 8 |
| 21,7 | COM- / GND | 4 |
| 15 | ALARM * | 5 |
| 4 | ENABLE | 5 |
| 8 | DIR-F | 6 |
| 6 | STEP+ | 2 |
Note:
* Servo ON and Alarm signals are related to the RJ45 pin 5 of the C34SST board, but they are not connected directly to this pin.
RJ45 for Encoder
| DB25 MALE PIN | RJ45 PIN | FUNCTION |
| 23 | 3 | Z- |
| 11 | 4 | Z+ |
| 25 | 5 | A- |
| 13 | 6 | A+ |
| 24 | 7 | B- |
| 12 | 8 | B+ |
DIMENSION

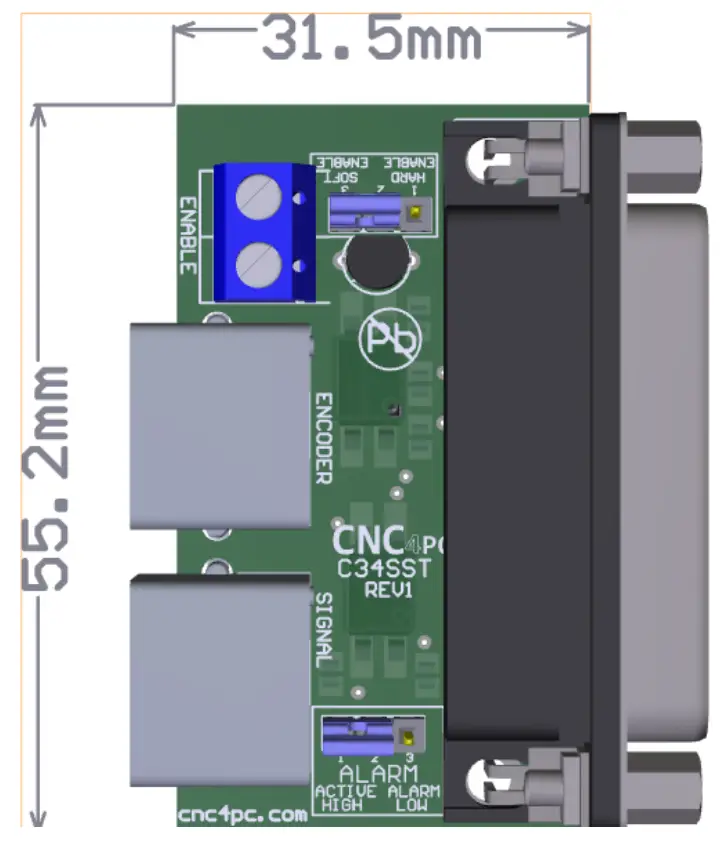

All dimensions are in Millimeters.
DISCLAIMER
Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan is liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
