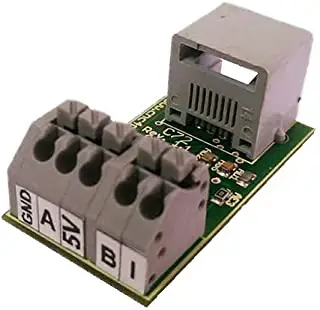

CNC4PC C72 Differential Line Driver
OVERVIEW
This board converts single ended signals to differential signals.
FEATURES
- Converts single ended A, B and Index channel lines to Differential A, _A, B, _B, Index, _Index lines.
- RJ45 connectors for easy connection with standard Patch cables.
- High noise immunity of incoming lines from the Board.
- Push-Lock connections for all terminals.

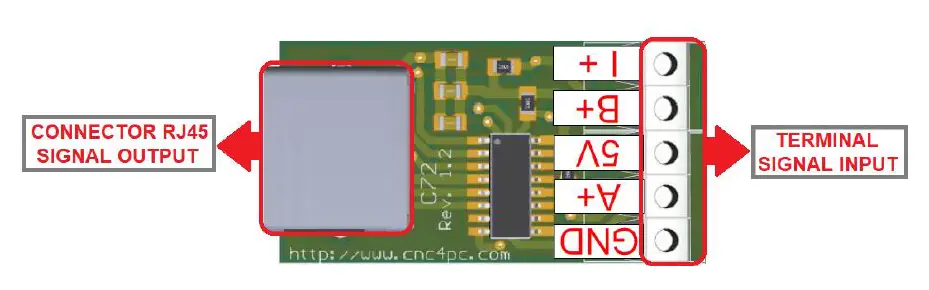

BOARD DESCRIPTION

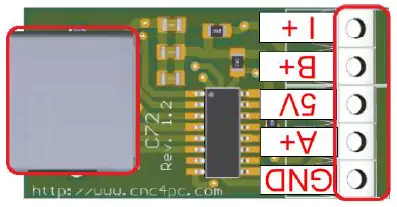

PINOUT
Connector RJ45
| RJ45 Signal Output | |
| RJ45 PIN | Function |
| 1 | GND |
| 2 | 5V |
| 3 | Index – |
| 4 | Index + |
| 5 | A Channel – |
| 6 | A Channel + |
| 7 | B Channel – |
| 8 | B Channel + |
Terminal
| TERMINAL SIGNAL INPUT | |
| Terminal PIN | Function |
| 1 | GND |
| 2 | A Channel |
| 3 | 5V |
| 4 | B Channel |
| 5 | I Index |

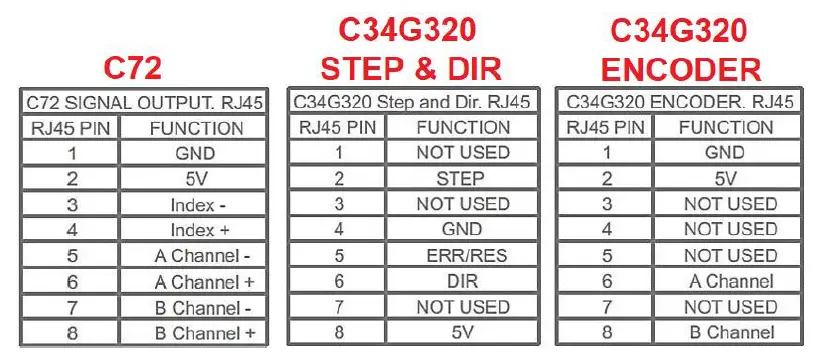

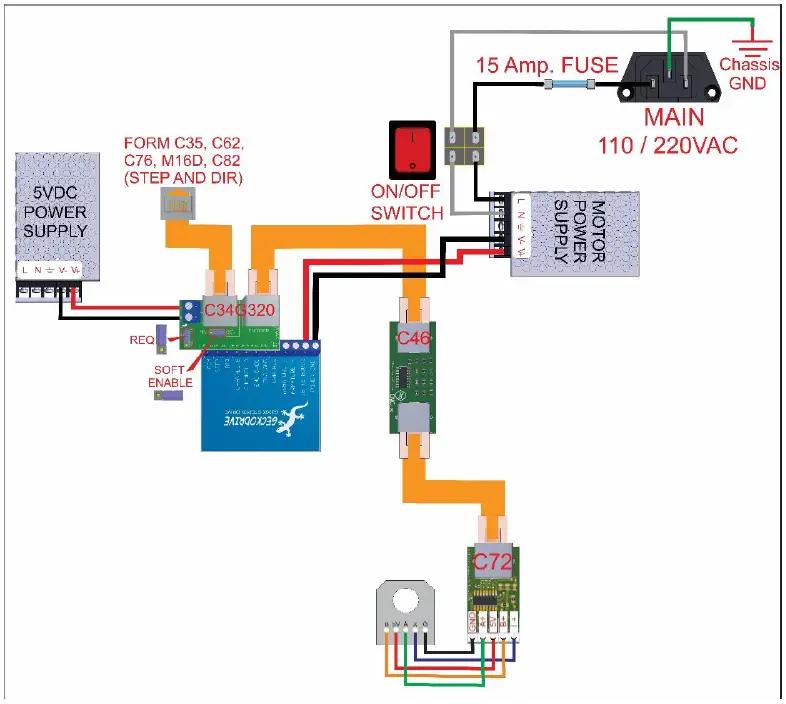

WIRING DIAGRAMS

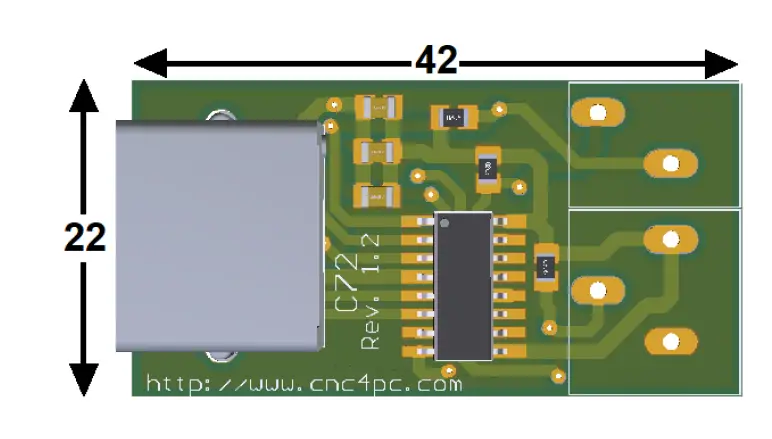

DIMENSIONS
All dimensions are in Millimeters.
DISCLAIMER:
Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
