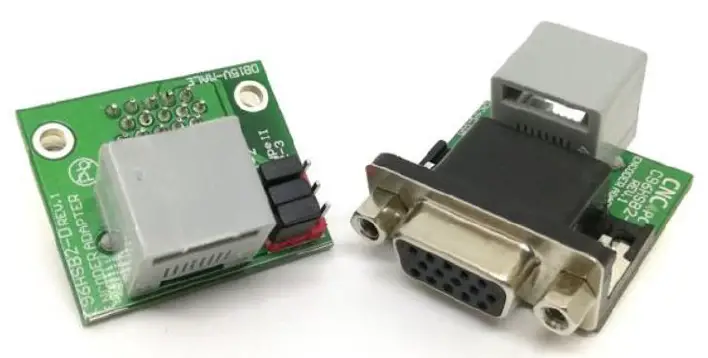

CNC4PC C96HSB2 Special Function Boards
OVERVIEW
This board allows easy wiring of the encoder cables for the closed loop steppers and implementing them on the CNC4PC control boxes with RJ45 pass-through connectors.
FEATURES
- Allows plugging one board to the driver, and the other to the cable coming out of the motor, then using an Ethernet Cable to extend the cable as long as needed.
- Can be used with the pass-through RJ45 connectors on the CNC4PC Panels.
- Works with CAT5/6 cables.
DESCRIPTION

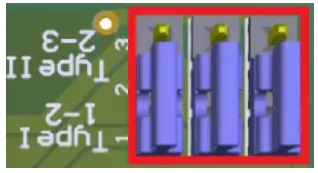

JUMPER TO SELECT COMPATIBILITY WITH DRIVER
Compatibles Drivers:
- ES-DH2306
- KL-110-80H

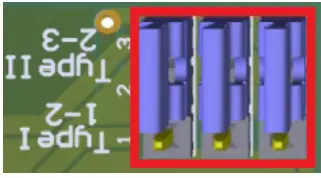

2-3 TYPE II
Compatibles Drivers:
- KL-6060D
- KL-11008
WARNING: Not setting the jumper correctly can cause damage to drivers. If you have doubts on the driver you are using, open a support ticket and provide information on the driver you are planning on using: https://www.cnc4pc.com/contact
PINOUT
| C96HSB2-M | |
| DB15-FEMALE | RJ45 |
| 3 | 1 |
| 13 | 2 |
| 11 | 5 |
| 1 | 6 |
| 12 | 7 |
| 2 | 8 |
| TYPE I (1-2) | |
| C96HSB2-D | |
| DB15-MALE | RJ45 |
| 3 | 1 |
| 11 | 2 |
| 2 | 5 |
| 1 | 6 |
| 12 | 7 |
| 13 | 8
|
| TYPE II (2-3) | |
| C96HSB2-D | |
| DB15-MALE | RJ45 |
| 3 | 1 |
| 13 | 2 |
| 11 | 5 |
| 1 | 6 |
| 12 | 7 |
| 2 | 8 |

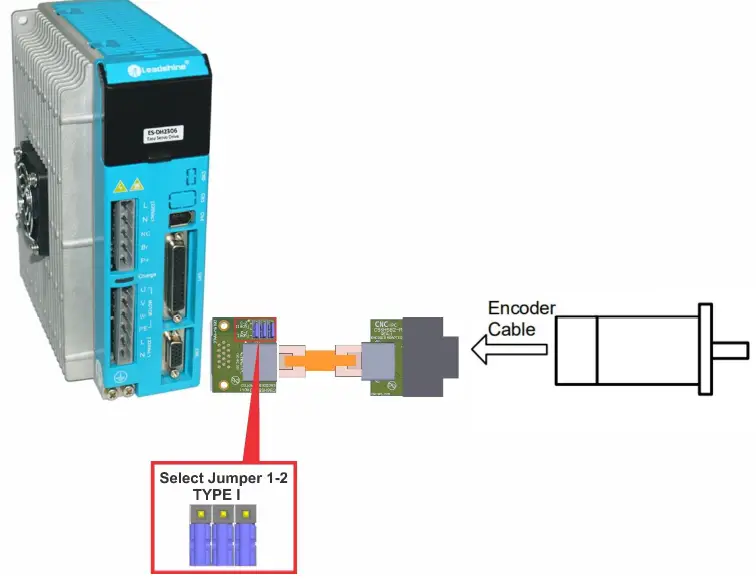

WIRING SAMPLE
Disclaimer:
Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan is liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause.
