MBOC6060 Bathworks
Instruction Manual
MBOC6060 Bathworks
MBOC6060

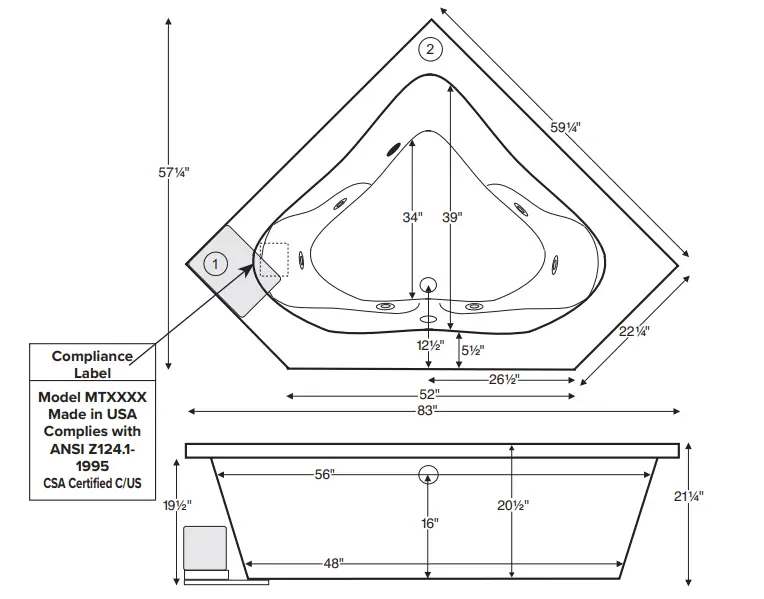

59.25” x 59.25” x 21.25”
Installation: Drop-In
Material: Acrylic
Plumbed Weight: 125 lbs / 57 kg
Soaker Weight: 100 lbs / 45 kg
Average Fill: 44 gal to above jet level
Maximum Fill: 85 gal to overflow
| Package | Package Content | Part # |
| Soaker | Soaking bath – No jets. Includes textured bottom. | MBSOC6060 |
| Air Bath | 12 air jets, heated air blower, pre-leveled foam base and textured bottom. Pre-leveled foam base increases overall tub height 2”-3” | MBAOC6060 |
| Whirlpool | 6 point-massage jets, 1-bhp pump and textured bottom | MBWOC6060 |

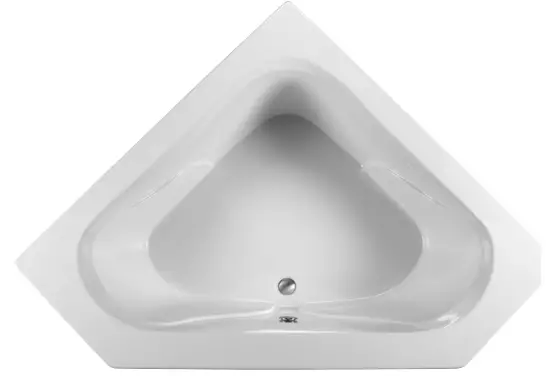

Shown with Whirlpool Package
Options Must be ordered at time of purchase.
Standard White (no charge)
Color Upgrade: Biscuit (MTISCOLOR)
Quick Ship/Priority
Soaker & Whirlpool (QSHIPMTIS)
Airbath (QSHIPMTISA)
Inline Heater
For Whirlpool (HTRMTIS) uses existing pump
For Soaker & Air Bath (MBHTI SOAK) heater with recirculating pump
Accessories
Lift and Turn Drain & Overflow
Chrome (MBWOC), White (MBWOW),
Brushed Nickel (MBWOBN)
Pillows
Soft Pillow
White (MBPSW) Black (MBPSB)
Roll-Up Pilow
Light Aqua (MBPRUC) Black (MBRUB)
Installation Options. Must be ordered at time of purchase.
Tile Flange
2 sides for corner tubs
Factory-Installed rigid ABS (MBTFKC)
Integral (MBTIF)
Pre-Leveled Foam Base
5’ Tubs (MBPLFOAM)
All airbaths include a pre-leveled foam base.
Pre-Leveled Frame and Foam Base
Corner Tubs (MBPLFC)
Pre-Leveled Frame and
Foam Base with Skirting
ACrylic Euro-Style Skirt with Removable Panels
Corner Tubs (MBFSKAC5)
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Soaker with Optional Inline Heater | 1/2-bhp pump, inline heater | 1-15 amp |
| Whirlpool or Air Bath | 1-bhp pump | 1-15 amp |
| Whirlpool with Optional Inline Heater | 1-bhp pump, inline heater | 1-20 amp |
| Air Bath with Optional Inline Heater | heated blower,’/2-bhp pump, inline heater | 2-15 amp |
NOTE: Filling this tub to the maximum may require an above average size or dedicated water heater.
CSA Certified C/US; ANSI Z124.1 and ANSI 112.19.7
©2021 by MTI Baths, Inc. Modification Rights Reserved.
