mti MBRR6630E Air Bathtub
INFORMATION
- Installation: Drop-In
- Material: Acrylic
- Plumbed Weight: 140 lbs / 64 kg
- Soaker Weight: 115 lbs / 52 kg
- Average Fill: 30 gal to above jet level
- Maximum Fill: 80 gal to overflow
| Package Package Content Part # | ||
| Soaker | Soaking bath – No jets. Includes textured bottom. | MBSRR6630E |
| Air Bath | 12 air jets, heated air blower, pre-leveled foam base and textured bottom. Pre-leveled foam base increases overall tub height 2”-3” | MBARR6630E |
| Whirlpool | 6 point-massage jets, 1-bhp pump and textured bottom | MBWRR6630E |

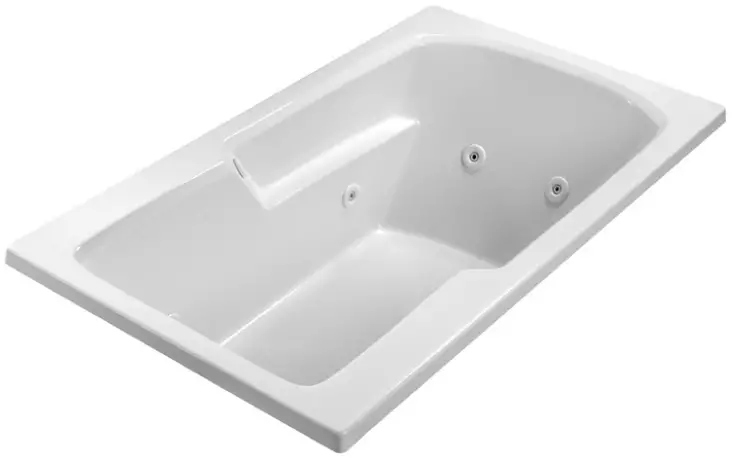

Shown with Whirlpool Package
Important Ordering and Installation Information
- Before ordering or installing, consider access to equipment.
- Always measure tub on-site before building tub deck.
- Use proper bedding compound to fully level and support the tub.
- Tubs equipped with an air system or factory-installed pre-leveled foam base are designed to install directly onto a flat-level subfloor.
- Tub height is increasd up to 3” when equipped with a factory-installed foam base.
- Location of all therapy components is predetermined and cannot be changed.
- Options listed cannot be combined with Designer Collection options.
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
Options Must be ordered at time of purchase.
- Standard White (no charge)
Color Upgrade: Biscuit (MTISCOLOR) - Quick Ship / Priority
- Soaker & Whirlpool (QSHIPMTIS)
- Airbath (QSHIPMTISA)
- Inline Heater
- For Whirlpool (HTRMTIS) uses existing pump
- For Soaker & Air Bath (MBHTI SOAK) heater with recirculating pump
Accessories
- Lift and Turn Drain & Overflow
Chrome (MBWOC), White (MBWOW), Brushed Nickel (MBWOBN) - Pillows
- Soft Pillow
- White (MBPSW) Black (MBPSB)
- Roll-Up Pilow
- Light Aqua (MBPRUC) Black (MBRUB)
Installation Options
Must be ordered at time of purchase.
- Tile Flange
- Factory-Installed rigid ABS
3 sides (MBTFK3), 2 sides (MBTFK2),
1 side (MBTFK1)
Must specify flange location(s) on order.
- Factory-Installed rigid ABS
- Pre-Leveled Foam Base
- 5’ Tubs (MBPLFOAM)
5.5’ & 6’ Tubs (MBPLFOAM2)
All airbaths include a pre-leveled foam base.
- 5’ Tubs (MBPLFOAM)
- Pre-Leveled Frame and Foam Base with Skirting
- Raised Fixed Panel
5’ Tubs (MBFSKAO5), 5.5’ Tubs (MBFSKAO55),
6’ Tubs (MBFSKAO6) - Raised Removable Panels
5’ Tubs (MBFSKAR5), 5.5’ Tubs (MBFSKAR55),
6’ Tubs (MBFSKAR6)
- Raised Fixed Panel
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Soaker with Optional Inline Heater | ½-bhp pump, inline heater | 1-15 amp |
| Whirlpool or Air Bath | 1-bhp pump | 1-15 amp |
| Whirlpool with Optional Inline Heater | 1-bhp pump, inline heater | 1-20 amp |
| Air Bath with Optional Inline Heater | heated blower, ½-bhp pump, inline heater | 2-15 amp |
CSA Certified C/US; ANSI Z124.1 and ANSI 112.19.7
NOTE: Filling this tub to the maximum may require an above average size or dedicated water heater.
