Baths 42 Acrylic CXL Sun Bath
Instructions
Features textured bottom.

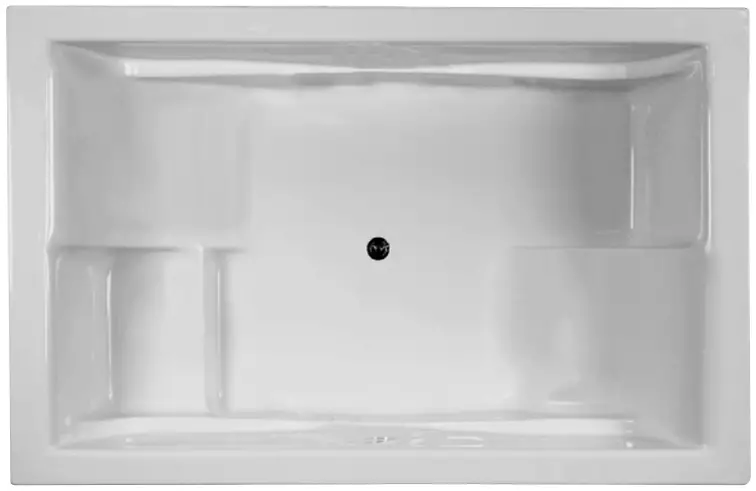

42 Acrylic CXL Sun Bath
Designer CollectionTubs
Banera del Sol
model 42

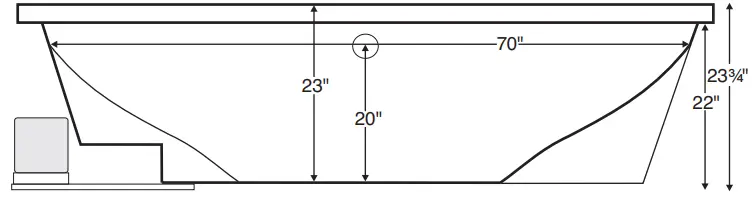

83.5″ x 54″ x 23.75″
DROP-IN (cannot be undermounted)
195 gal to overflow
Acrylic CXL™
200 lbs / 91 kg soaker
300 lbs / 136 kg plumbed
Filling this tub to the maximum may require an above average size or dedicated water heater.

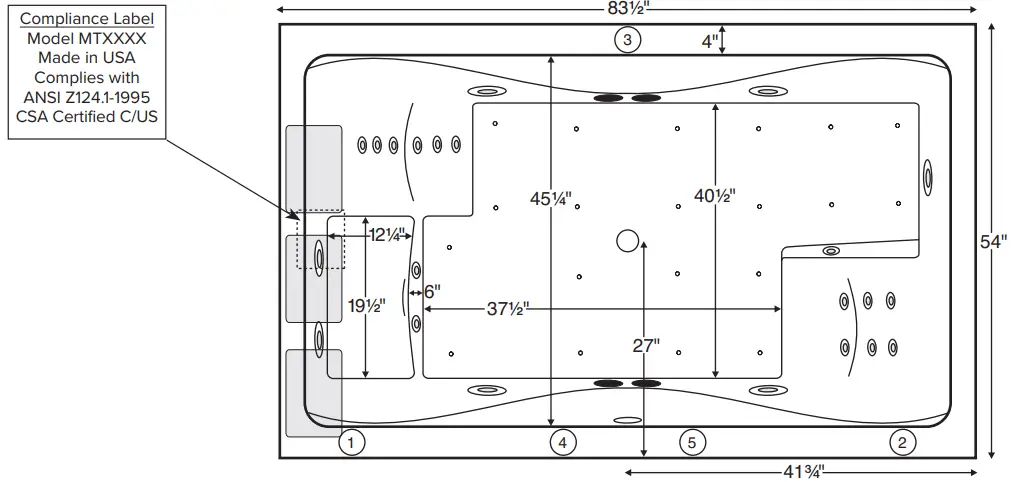

Numbered areas on tub deck represent possible locations to install cleaning systems, faucets and other fixtures. Shown with Air Massage and Ultra Whirlpool Package.
IMPORTANT: Air baths and tubs with a pre-leveled foam base or frame system add 2-3″ to overall tub height.
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Add proper bedding compound to fully level and support bottom of tub.
- When equipped with an air bath package, pre-leveled foam base or frame system, overall tub height is increased by approx. 2-3” and is designed to install on a flat, level subfloor.
- Radiance placed on airbath floor will affect placement of air jets.
- System components may extend beyond the perimeter of deck.
- Please measure tub on-site before building tub decking.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
- All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/A326.3 coefficient of friction and AS HB198:2014 slip tests.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 2-bhp pump x 2, inline heater, ozone | 2-20 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information. CSA Certified C/US; B45.5/IAPMO ANSI Z124.1 and ANSI 112.19.7 | ||
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, chromatherapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, chromatherapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details.
MTI’s Customer Service Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
- Aromatherapy is eliminated for undermount applications
- Air Baths, Pre-Leveled Foam Base or Frame Systems increase overall height by 2-3″.
Banera del Sol model 42 83.5″ x 54″ x 23.75″
| Hydrotherapy Packages | Package Contents | Part # | MSRP |
| Soaker | Soaking bath – no jets, textured bottom | S42 | $4,365 |
| Microbubbles | 1 microbubbles infusion port and pump, textured bottom | M42 | $7,685 |
| Air Massage | 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base, textured bottom | AST42 | $8,015 |
| Air Massage Elite | 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting using 4 lights, Spa Mode, pre-leveled foam base, textured bottom | AE42 | $9,915 |
| Microbubbles with Air Massage | 1 microbubbles infusion port and pump, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base, textured bottom | ASTM42 | $10,735 |
| Microbubbles with Air Massage Elite | 1 microbubbles infusion port and pump, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting, Spa Mode, pre-leveled foam base, textured bottom | AEM42 | $12,535 |
| Standard Whirlpool | 6 point-massage jets, 2-bhp pump, inline heater, textured bottom | P42 | $7,220 |
| Ultra Whirlpool | 7 point-massage jets, 15 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, Chromatherapy LED lighting using 4 lights, Ozone, textured bottom | P42U | $9,900 |
| Air Massage with Standard Whirlpool | 6 point-massage jets, 2-bhp pump, inline heater, 20 air jets, heated air blower, Aromatherapy, pre-leveled foam base, textured bottom | AW42 | $10,870 |
| Air Massage with Ultra Whirlpool | 7 point-massage jets, 15 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, Chromatherapy LED lighting using 4 lights, 20 air jets, heated air blower, Aromatherapy, Ozone, pre-leveled foam base, textured bottom | AU42 | $13,550 |
| Air Massage Elite with Standard Whirlpool | 6 point-massage jets, 2-bhp pump, inline heater, 30 air jets, heated air blower, Aromatherapy, Chromatherapy LED lighting using 4 lights, Spa Mode, pre-leveled foam base, textured bottom | AEAP42 | $12,770 |
| Air Massage Elite with Ultra Whirlpool | 7 point-massage jets, 15 micro-jets with Tsubo massage, 2 2-bhp pumps, inline heater, Chromatherapy LED lighting using 4 lights, 30 air jets, heated air blower, Aromatherapy, Ozone, Spa Mode, pre-leveled foam base, textured bottom | AEAP42U | $14,550 |
For more information on options and accessories go to Acrylic Tub Options at mtibaths.com
| Options Must be ordered at time of purchase. |
| Standard Colors White (CWH) DoloMatte available in matte white only. Biscuit (CBS) Not available for DoloMatte. |
| Quick Ship reduces lead time (QSPRI) $430 Please call for availability |
| Inline Heater maintains water temperature For Soaker or Air Baths (HTISOAK) $825 Includes a recirculating pump Cannot be combined with Microbubbles. |
| Virtual Spout high-flow integrated tub filler (FPMJ) $450 Must specify stub-out location on order. See page 1 for location options. |
| Grab Bars from $330 Selections vary. Personalization available. |
| Accessories |
| Pillows from $180 |
| Teak Bath Mat (TKMAT3018) $815 Custom sizes also available. Contact MTI for details and pricing. |
| Hydrotherapy Equipment & Cleaning Systems Must be ordered at time of purchase. |
| Inline Heater maintains water temperature For Whirlpools or Stream Bath (HTI) $570 Uses existing pump Cannot be combined with Microbubbles. |
| Whirlpool Cleaning Systems Fill-Flush (FFSO) $590 Simple Touch (FFE) $1,020 Must specify stub-out location on order. See page 1 for location options. |
| Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets. Point-Massage Jet Extra Point-Massage Jet (EJ) $315 Micro-Jet from $360 Jet styles and packages vary. Personalization available. Pump Upgrade – 3-bhp (PUMP3) $315 |
| Jet Trim Kits For Standard Whirlpool Chrome (TRC) $270, Brushed Nickel (TRBN) $725 For Ultra Whirlpool Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960 |
| Ozonator (OZONE) $515 Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK. |
Installation Options Must be ordered at time of purchase.
Pre-Leveled Foam Base (PLFOAM) $295
All airbaths include a pre-leveled foam base.
Pre-Leveled Frame and Foam Base (PLF) $740
Pre-Leveled Frame and Foam Base with Skirting (Acrylic CXL™ tubs only)
For pricing and details go to mtibaths.com
Tile Flange
Factory-Installed on 3 sides – rigid ABS (TFK3) $200
Field Install Kit – includes rigid ABS & adhesive (TFKNI) $185
IMPORTANT: Must specify flange location(s) on order of Factory-Installed Flange.
Not available with optional Low-Profile Rim.
Drains & Overflow Kits
Cable Driven
Drain Finishes – PVC Drain Kit
White/Bone/Biscuit (WOCDW) $440
Chrome (WOCD) $410
Brushed Nickel (WOCDBN) $490
Polished Nickel (WOCDPN) $540
Oil-Rubbed Bronze† (WOCDOR) $550
Polished Brass (WOCDBR) $690
Special Finishes* (WOCDSF) $1,135
MTI does not offer a brass body cable drain kit.
Lift & Turn
Drain Finishes – PVC Drain Kit
Chrome (WOC) $185
White (WOW) $245
Brushed Nickel (WOBN) $305
Toe Tap
Round Overflow – PVC Drain Kit
Chrome (WOTTC) $380
Brushed Nickel (WOTTBN) $385
Polished Nickel (WOTTPN) $385
Special Finishes* (WOTTSF) $1,145
Round Overflow – Solid Brass Drain
Chrome (WOTTSBC) $810
Brushed Nickel (WOTTSBBN) $810
Polished Nickel (WOTTSBPN) $810
Rectangular Overflow – PVC Drain Kit
Chrome (WOTRC) $470
Brushed Nickel (WOTRBN) $430
White (WOTRW) $525
Slim-Line Overflow with Toe Tap Drain Must be ordered at time of purchase.
- Low profile overflow is factory installed
- Overflow measures 4.5” x 1”
- Provides a deeper soak
- Not available for commercial applications
Slim-Line Overflow with Toe Tap Drain
PVC Drain
Chrome (SLOTC) $500
Brushed Nickel (SLOTBN) $530
Polished Nickel (SLOTPN) $555
White (SLOTW) $430
Slim-Line Overflow with Toe Tap Drain
Solid Brass Drain
Chrome (SLOTSBC) $930
Brushed Nickel (SLOTSBBN) $935
Polished Nickel (SLOTSBPN) $935
White (SLOTSBW) $965
† MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers.
To ensure best match, order as a Special Finish and submit a sample.
* Allow 2-4 weeks lead time for Special Finishes.
Send sample for best match.
RECOMMENDED SENSORY THERAPIES
Chromatherapy
(LE) $800 underwater lighting
2 LED lights included
Audiotherapy
(STEREOBT) $1,390 2 transducers
with bluetooth and amplifier
(BTREMOTE) $600 bluetooth remote
(STEREOH202) $1,575 4 transducers
amplifier not included
Thermaltherapy
(RAD100) $1,595 Radiance®
2 heated zones included
(HTISOAK) $825
©2022 by MTI Baths, Inc.
Modification Rights Reserved
