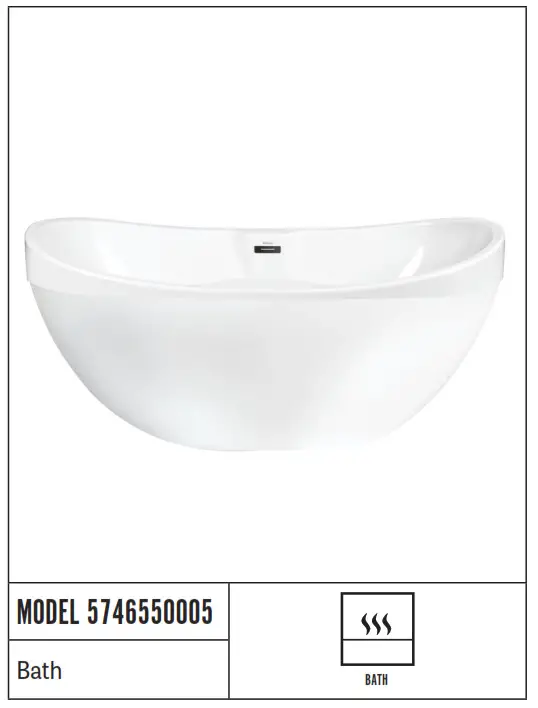

5746550005 Whitley Freestanding Baths 35-in W x 70-in L White
Instruction Manu
FEATURES
- High gloss, easy-to-clean acrylic with fiberglass reinforcement
- Standard bathtub provides a simple and relaxing soak
- Oval model with center drain
- Waste and Overflow included, chrome finish
- Adjustable pre-leveled legs for easy installation
- Flat deck on wall side for mounting the faucet or opt for a wall or floor mounted faucet
- Spacious bathing well designed for two-person comfort
- 10-year limited warranty on acrylic
- Installation: Freestanding
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5746550003 | 70″ x 35″ x 26-1/2″ Oval Whitley™ freestanding bathtub, chrome drain. |  |
SPECIFICATIONS
| MATERIAL | Acrylic, fiberglass reinforced |
| CONSTRUCTION | Two-piece design; bathtub and skirt |
| DRAIN FINISH | Chrome |
| SOAKING DEPTH | 14-1/4″ |
| WATER CAPACITY | 52 gal. (max) |
| FLOOR LOADING WEIGHT | 47 lbs. sq.ft. |
| SHIPPING WEIGHT | Model 5746550003 – 130 lbs. (59 kg) |
| WARRANTY | Acrylic – 10-Year |

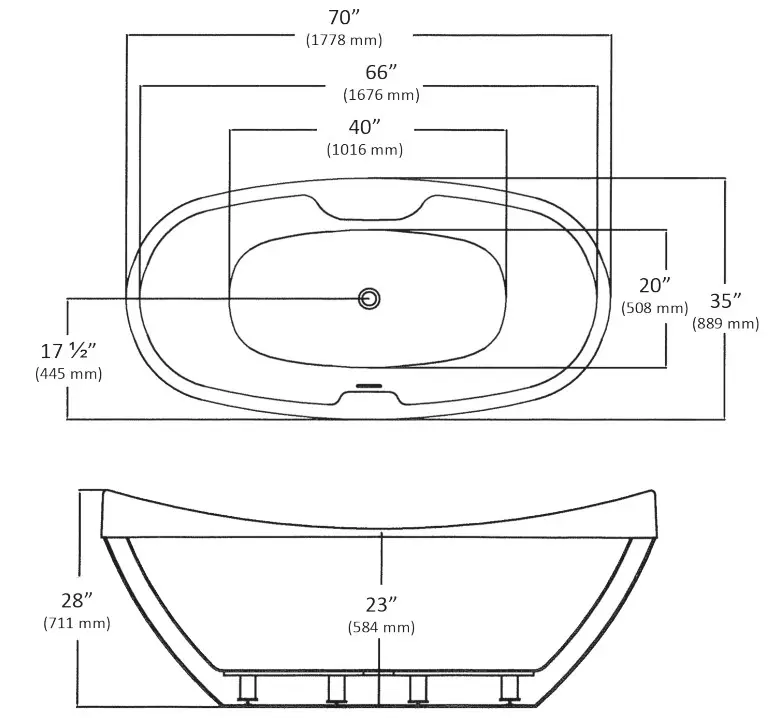

TECHNICAL INFORMATION
NOTES:
- Measurements may vary 1/4″ (+/-)
- These dimensions are nominal and subject to change without notice. 3. Installation templates are provided with unit.

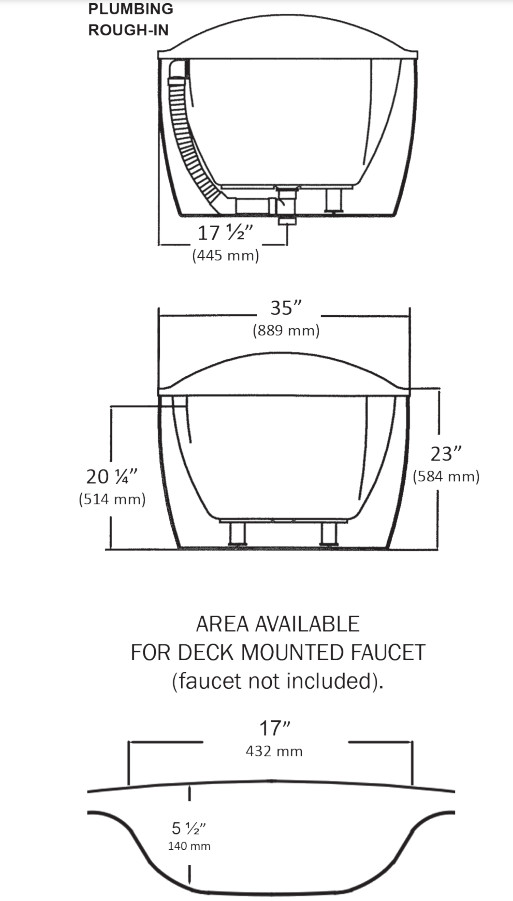

PLUMBING ROU-IN
Mansfield Plumbing Products, LLC
Customer Service Toll Free 877-850-3060
Fax 419-938-6234
www.mansfieldplumbing.com
Email: [email protected]
©2022 Mansfield Plumbing Products, LLC
Rev. 05/22
