Laney 3 Air Massage
Instruction Manual
Designer CollectionTubs

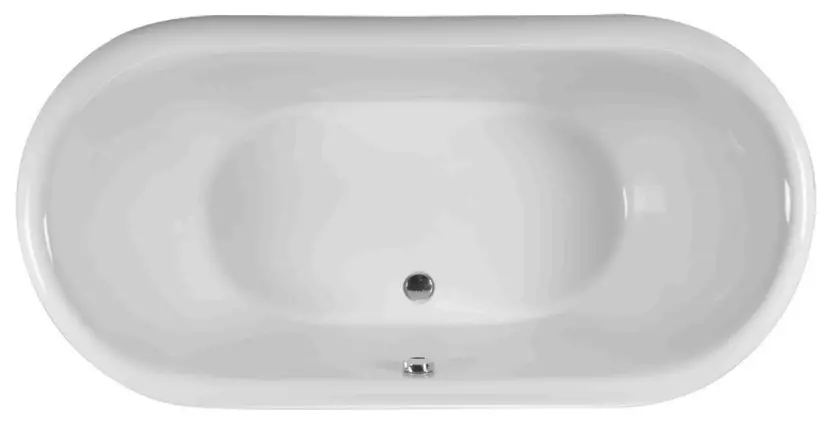

Laney 3
model 215
72″ x 33.75″ x 21.5″
DROP-IN (cannot be undermounted)
Not recommended as a tub / shower combination
77 gal to overflow
Acrylic CXL™ DoloMatte™
88 lbs / 40 kg <soaker> 99 lbs / 45 kg
110 lbs / 50 kg <plumbed> 121 lbs / 55 kg
Filling this tub to the maximum may require an above average size or dedicated water heater.
215 Laney 3 Air Massage

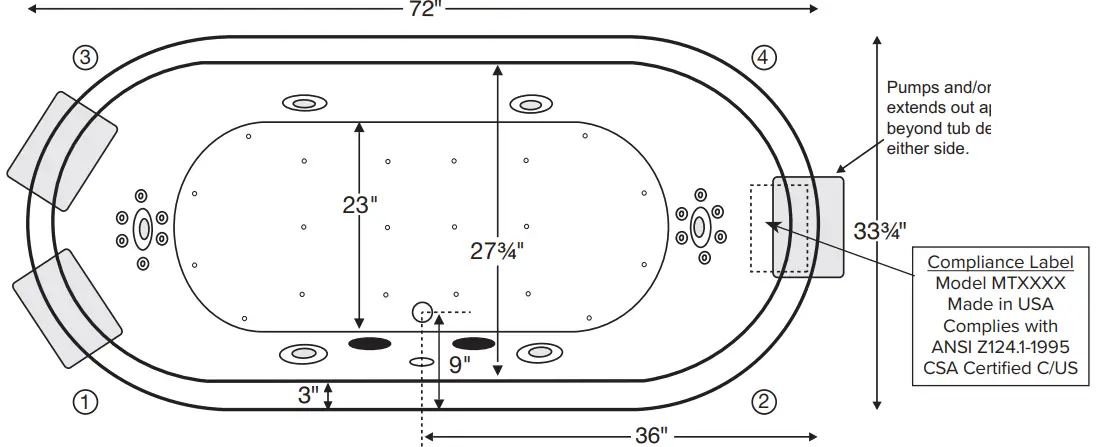

Numbered areas represent possible locations to install cleaning systems, faucets and other fixtures.
Shown with Air Massage and Ultra Whirlpool Package.
IMPORTANT:
Air baths and tubs with a pre-leveled foam base or frame system add 2-3″ to overall tub height.
IMPORTANT ORDERING & INSTALLATION INFORMATION
- Before ordering or installing, please consider future access to equipment.
- Add proper bedding compound to fully level and support bottom of tub.
- When equipped with an air bath package, pre-leveled foam base or frame system, overalltub height is increased by approx. 2-3” and is designed to install on a flat, level subfloor.
- Radiance placed on airbath floor will affect placement of air jets.
- System components may extend beyond the perimeter of deck.
- Please measure tub on-site before building tub decking.
- Advise MTI when planning to use a glass enclosure. Relocation of controls may be necessary.
- Suction and control locations may vary.
- All tubs are compliant with ASTM C 1028-07 coefficient of friction. DoloMatte meets ANSI A137.1/A326.3 coefficient of friction and AS HB198:2014 slip tests.
ELECTRICAL COMPONENTS & SPECIFICATIONS
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Standard Whirlpool | 2-bhp pump | 1-15 amp |
| Stream Bath | 1/2-bhp, ozone | 1-20 amp |
| Microbubbles | Microbubbles pump | 1-15 amp |
| Ultra Whirlpool | 2-bhp pump x 2, inline heater, ozone | 2-20 amp |
| Air Massage | heated blower | 1-15 amp |
| Air Massage Elite | heated blower, chromatherapy | 1-15 amp |
| Air Massage w/ Stream Bath | 1/2-bhp pump, heated blower, ozone | 1-20 amp |
| Air Massage Elite w/ Stream Bath | 1/2-bhp pump, heated blower, chromatherapy, ozone | 1-20 amp |
| Electrical requirements may change with the addition of optional therapy components. See specific option details or installation information, CSA Certified CMS; B45.5/IAPMO ANSI Z1241 and ANSI 112.19.7 | ||
CSA # MTDS- 215
CSA # MTDS- 215DM
| Hydrotherapy Package | Components Included | GFCI / 110V |
| Microbubbles with Air | Microbubbles pump, heated blower | 1-20 amp |
| Microbubbles with Air Elite | Microbubbles pump, heated blower, chromatherapy | 2-15 amp |
| Air with Whirlpool | 2-bhp pump, heated blower | 2-15 amp |
| Air with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, ozone | 2-20 amp |
| Air Elite with Whirlpool | 2-bhp pump, heated blower, chromatherapy | 2-15 amp |
| Air Elite with Ultra Whirlpool | 2-bhp pump x 2, inline heater, heated blower, chromatherapy, ozone | 2-20 amp |
See the Installation & Operation Manual for more details.
MTI’s Customer Service Monday-Friday 8am-6pm EST 800-783-8827 or [email protected]
- Before discarding tub crate, check for accessories that may be packaged inside.
- All product measurements are +1/2”.
- Specifications and configurations are subject to change without notice.
- Measurements herein supersede all others published prior to publication date below.
- Aromatherapy is eliminated for undermount applications
- Air Baths, Pre-Leveled Foam Base or Frame Systems increase overall height by 2-3″.
| Hydrotherapy Packages | Package Contents | Acrylic C:XL Part # | MSRP | Doh:Mate’ Part # | MSRP |
| Soaker | Soaking bath – no jets | 5215 | $3,175 | 5,215 DM | $3,775 |
| Stream Bath | 6 side vents. 2 end vents. 1/2 bhp pump, Ozone | SM215 | $5,720 | SM215DM | $6,320 |
| Microbubbles | 1 microbubbles infusion port and pump | M215 | $6,495 | M215DM | $7,095 |
| Air Massage | 20 air jets, heated air blower. pre-leveled foam base | AST215 | $6,825 | AST1I5DM | $7,425 |
| Air Massage Elite | 30 air jets. heated air blower. Chromatherapy LED lighting. Spa Mode. pre-leveled foam base | AE215 | $8,725 | AE215DM | $9,325 |
| Stream Bath with Air Massage | 6 side vents. 2 end vents. 1/2 bhp pump. Ozone. 20 air jets. heated air blower. pre-leveled foam base | ASTSM215 | $8,870 | ASTSM215DM | $9,470 |
| Stream Bath with Air Massage Elite | 6 side vents. 2 end vents. 1/2 bhp pump. Ozone. 30 air jets, heated air blower. Chromatherapy LED lighting. Spa Mode. pre-leveled foam base | AESM215 | $10,970 | AESM215DM | $11,570 |
| Microbubbles with Air Massage | 1 microbubbles infusion port and pump. 20 air jets. heated air blower. pre-leveled foam base | ASTM215 | $9,545 | ASTM215DM | $10,145 |
| Microbubbles with Air Massage Elite | 1 microbubbles infusion port and pump. 30 air jets. heated air blower. Chromatherapy LED lighting. Spa Mode. pre-leveled foam base | AEM215 | $11,345 | AEM215DM | $11,945 |
| Standard Whirlpool | 6 point-massage jets. 2-bhp pump | P215 | $5,540 | P215DM | %am) |
| Ultra Whirlpool | 6 point-massage jets. 12 micro-jets with Tsubo massage. 2 2-bhp pumps, inline heater. Ozone | P215U | $7,535 | P215UDM | $8,135 |
| Air Massage with Standard Whirlpool | 6 point-massage jets. 2-bhp pump. 20 air jets, heated air blower, pre-leveled foam base | AW215 | $5,190 | AW215DM | $9,790 |
| Air Massage with Ultra Whirlpool | 6 point-massage jets. 12 micro-jets with Tsubo massage. 2 2-bhp pumps, inline heater. 20 air jets. heated air blower. Ozone, pre-leveled foam base | AU215 | $11,185 | AU215DM | $11,785 |
| Air Massage Elite with Standard Whirlpool | 6 point-massage jets. 2-bhp pump. 30 air jets, heated air blower. Chromatherapy LED lighting, Spa Mode. pre-leveled foam base | AEAP215 | $11,090 | AEAP215DM | $11,690 |
| Air Massage Elite with Ultra Whirlpool | 6 point-massage jets. 12 micro-jets with Tsubo massage, 2 2-bhp pumps. inline heater. 30 air jets. heated air blower. Ozone. Chromatherapy LED lighting. Spa Mode. pre-leveled foam base | AEAP215U | $000,12. | AEAP21S0DM | $12,785 |
RECOMMENDED SENSORY THERAPIES
Chromatherapy
(LE) $800 underwater lighting
2 LED lights included
Audiotherapy
(STEREOBT) $1,390 2 transducers with bluetooth and amplifier
(BTREMOTE) $600 bluetooth remote
(STEREOH202) $1,575 4 transducers amplifier not included
Thermaltherapy
(RAD100) $1,595 Radiance® 2 heated zones included
(HTISOAK) $825
For more information on options and accessories go to Acrylic Tub Options at mtibaths.com
Options Must be ordered at time of purchase.
Standard Colors White (CWH) DoloMatte available in matte white only.
Biscuit (CBS) Not available for DoloMatte.
Quick Ship reduces lead time (QSPRI) $430
Please call for availability
Inline Heater maintains water temperature
For Soaker or Air Baths (HTISOAK) $825
Includes a recirculating pump
Cannot be combined with Microbubbles.
Virtual Spout high-flow integrated tub filler (FPMJ) $450
Must specify stub-out location on order. See page 1 for location options.
Grab Bars from $330
Selections vary. Personalization available.
Textured Bottom (TXTBTM) Acrylic CXL™ only $105
DoloMatte™ exceeds ANSI A137.1/A326.3 and AS HB198 slip tests.
Accessories
Pillows from $180
Teak Bath Mat (TKMAT3018) $815
Custom sizes also available. Contact MTI for details and pricing.
Hydrotherapy Equipment & Cleaning Systems Must be ordered at time of purchase.
Inline Heater maintains water temperature
For Whirlpools or Stream Bath (HTI) $570
Uses existing pump
Cannot be combined with Microbubbles.
Whirlpool Cleaning Systems
Fill-Flush (FFSO) $590
Simple Touch (FFE) $1,020
Must specify stub-out location on order. See page 1 for location options.
Whirlpool Jets Pump upgrade may be advisable for optimal performance when adding jets.
Point-Massage Jet
Extra Point-Massage Jet (EJ) $315
Micro-Jet from $360
Jet styles and packages vary. Personalization available.
Pump Upgrade – 3-bhp (PUMP3) $315
Jet Trim Kits
For Standard Whirlpool
Chrome (TRC) $270, Brushed Nickel (TRBN) $725
For Ultra Whirlpool
Chrome (TRCU) $370, Brushed Nickel (TRBNU) $960
Ozonator (OZONE) $515
Cannot be added to soakers or airbaths without combination hydrotherapy package or HTISOAK.
Installation Options Must be ordered at time of purchase.
Pre-Leveled Foam Base (PLFOAM) $295
All airbaths include a pre-leveled foam base.
Drains & Overflow Kits
Toe Tap Rectangular Overflow must be ordered at time of purchase
| Cable Driven Drain Finishes – PVC Drain Kit White/Biscuit (WOCDW) $440 Chrome (WOCD) $410 Brushed Nickel (WOCDBN) $490 Polished Nickel (WOCDPN) $540 Oil-Rubbed Bronze† (WOCDOR) $550 Polished Brass (WOCDBR) $690 Special Finishes* (WOCDSF) $1,135 MTI does not offer a brass body cable drain kit. | Toe Tap Round Overflow – PVC Drain Kit Chrome (WOTTC) $380 Brushed Nickel (WOTTBN) $385 Polished Nickel (WOTTPN) $385 Special Finishes* (WOTTSF) $1,145 Round Overflow – Solid Brass Drain Chrome (WOTTSBC) $810 Brushed Nickel (WOTTSBBN) $810 Polished Nickel (WOTTSBPN) $810 | Toe Tap Rectangular Overflow – PVC Drain Kit Chrome (WOTRC) $470 Brushed Nickel (WOTRBN) $430 White (WOTRW) $525 Lift & Turn Drain Finishes – PVC Drain Kit Chrome (WOC) $185 White (WOW) $245 Brushed Nickel (WOBN) $305 |
Slim-Line Overflow with Toe Tap Drain Must be ordered at time of purchase.
- Low profile overflow is factory installed
- Overflow measures 4.5” x 1”
- Provides a deeper soak
- Not available for commercial applications
Slim-Line Overflow with Toe Tap Drain
PVC Drain
Chrome (SLOTC) $500
Brushed Nickel (SLOTBN) $530
Polished Nickel (SLOTPN) $555
White (SLOTW) $430
Slim-Line Overflow with Toe Tap Drain
Solid Brass Drain
Chrome (SLOTSBC) $930
Brushed Nickel (SLOTSBBN) $935
Polished Nickel (SLOTSBPN) $935
White (SLOTSBW) $965
† MTI has selected an oil-rubbed bronze finish that is compatible with Delta and many other manufacturers.
To ensure best match, order as a Special Finish and submit a sample.
Rev. 07 20 2022
* Allow 2-4 weeks lead time for Special Finishes.
Send sample for best match.
Rev. 07 20 2022
©2022 by MTI Baths, Inc. Modification Rights Reserved
