AERIS
GAMING PC CASE
USER MANUAL
TECHNICAL SPECIFICATIONS

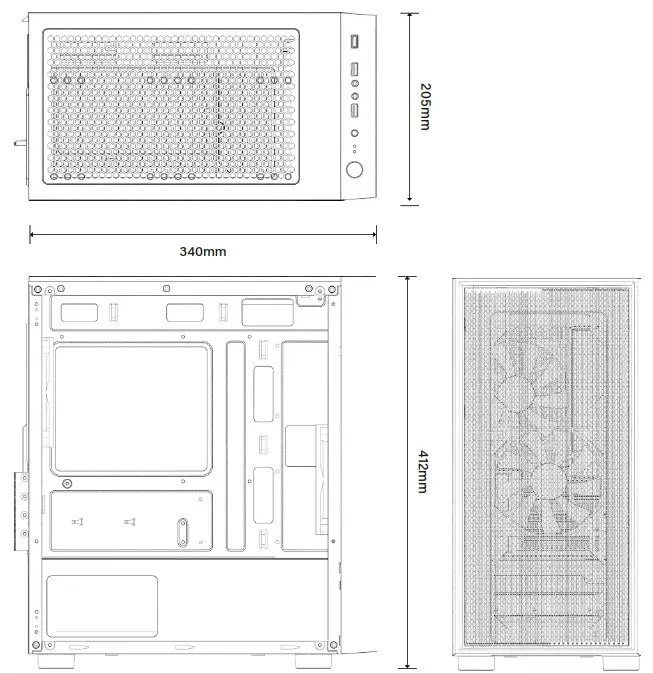

| MODEL | AERIS |
| DIMENSIONS (L x W x H) | 340mm x 205mm x 412mm |
| WEIGHT | 4,9Kg |
| MATERIAL | Steel 0,6mm SPCC, tempered glass |
| FANS LOCATION | Front: 3x 120mm (1x RGB included) |
| Rear: 1x 120mm (1x RGB included) | |
| Top: 2x 120mm | |
| WATER COOLING | Front: up to 240mm radiator |
| Top: up to 240mm radiator | |
| Rear: up to 120mm radiator | |
| DRIVE BAYS | 2x 2,5″ + 2x 3,5″/2,5″ |
| EXPANSION SLOTS | x4 |
| FRONT I/O | USB 3.0 x1 |
| USB 2.0 x2 | |
| Headphone/Microfone x1 | |
| Power | |
| Reset/LED | |
| DUST FILTER | 1x Top (Magnetic) |
| 1x Bottom | |
| MOTHERBOARD TYPE | MicroATX, ITX |
| POWER SUPPLY | ATX up to 180mm (not included) bottom position |
| VGA (GPU) | Up to 330mm (not included) |
| CPU COOLER | Up to 170mm (not included) |
PC CASE GENERAL DIAGRAM
| 1 Magnetic dust filter 2 Side tempered glass 3 Front mesh panel 4 120mm RGB fan | 5 PSU enclosure bay 6 Front panel I/O 7 PCI expansion bays |

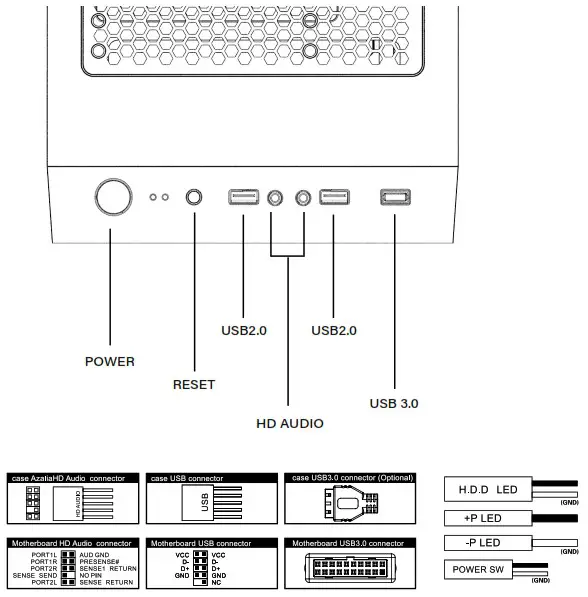

FRONT PANEL I/O AND MOTHERBOARD CONNECTORS

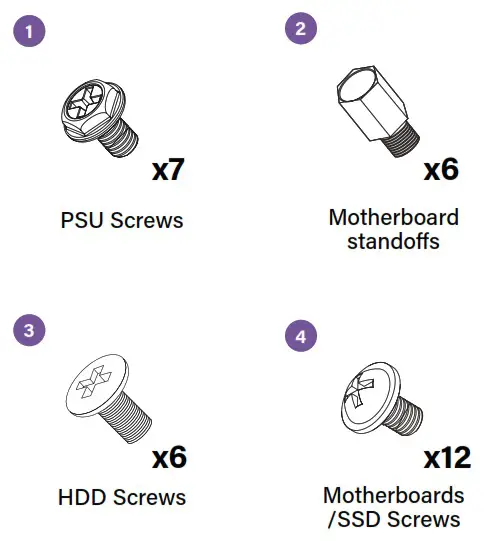

ACCESORY BAG

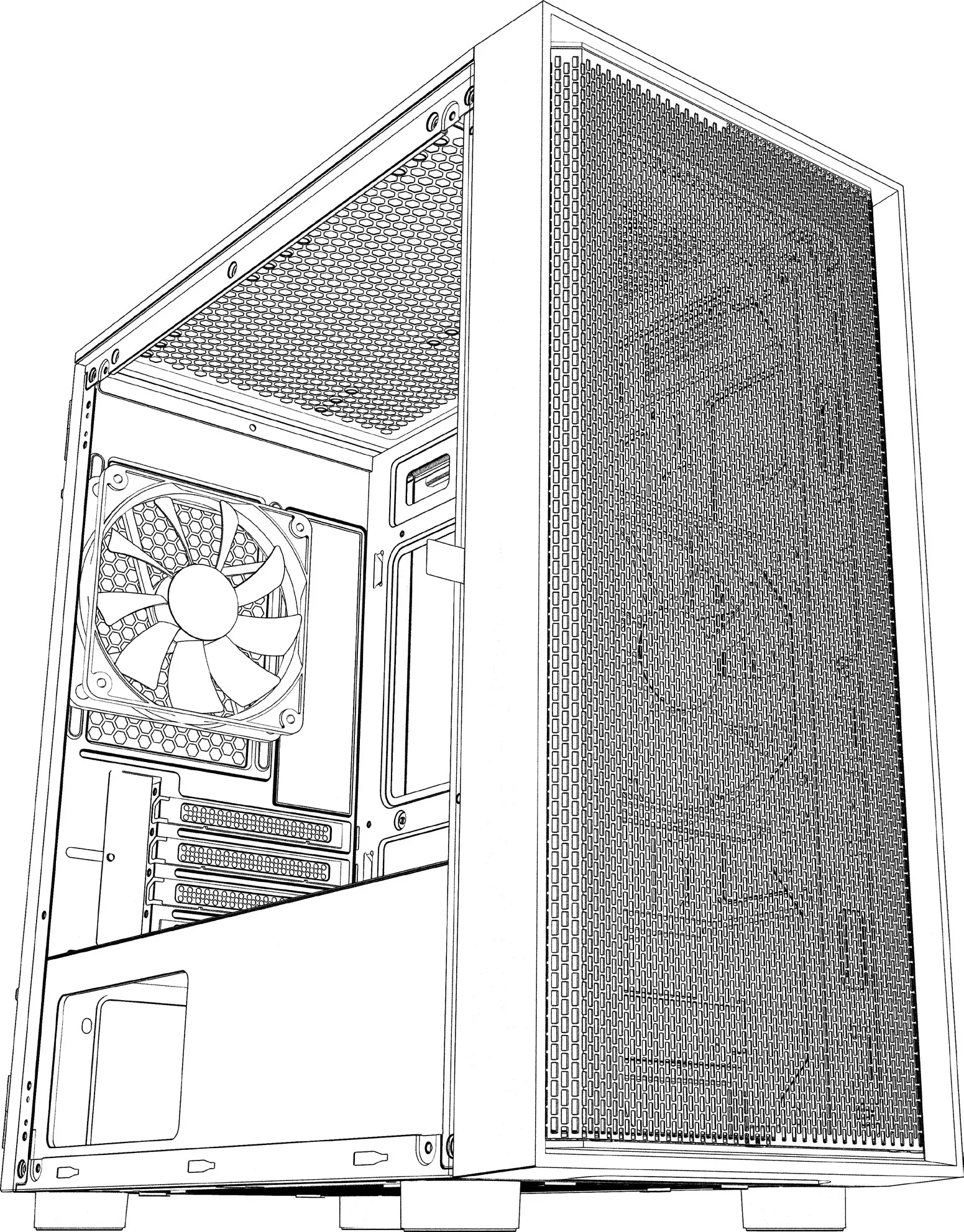

BASIC INSTALLATION
A Disassemble the side panel and the front panel
B Install the power supply
C Install the motherboard
D Install HDD/SSD
E Install GPU and expansión slot (PCI)
F Install fan and radiator (optional)

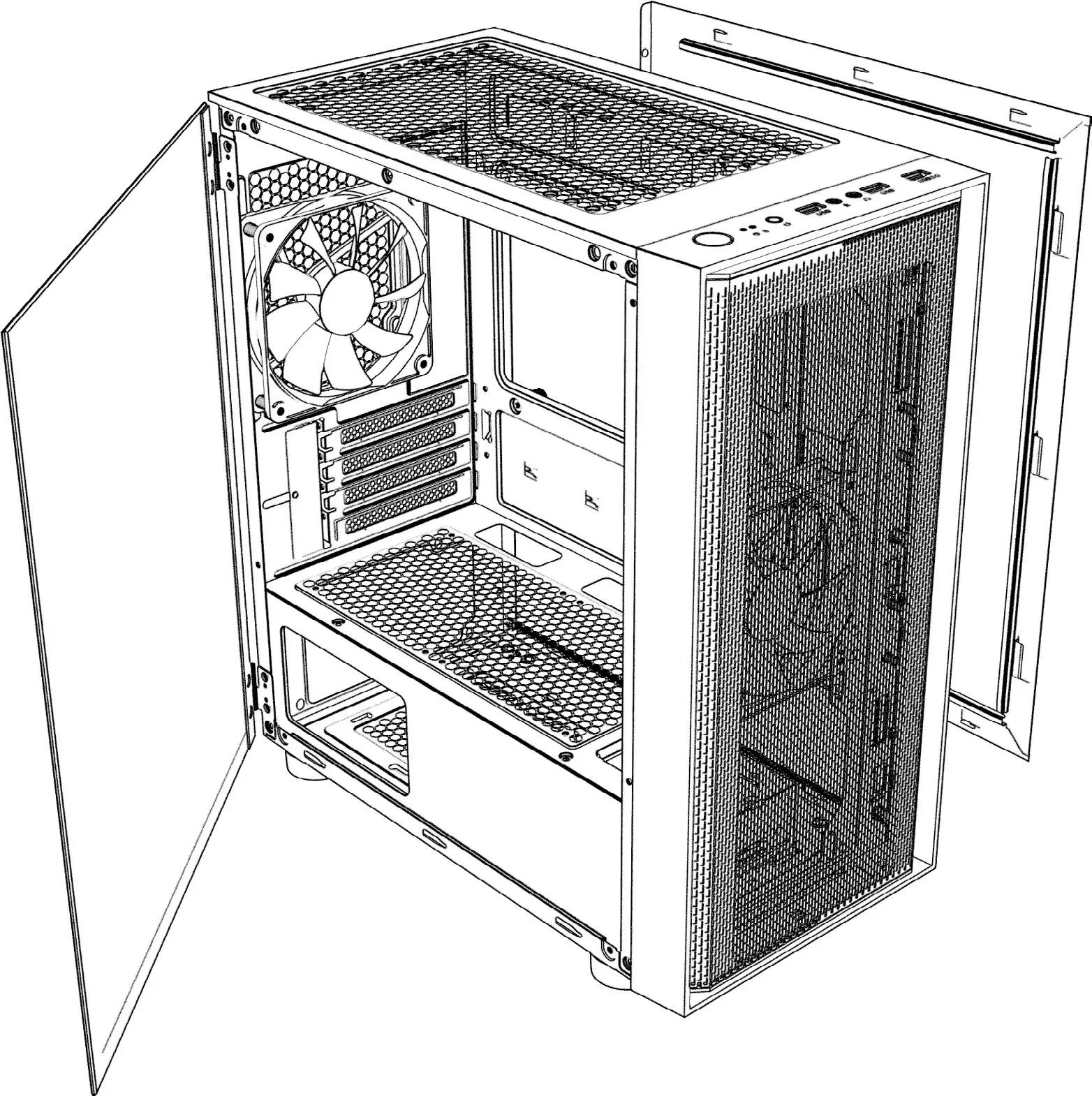

A Disassemble the side panel and the front panel
Take out the screws before dissasembling side panel
Remove the side panels before dissasembling the front panel
Special atention to the tempered glass side panel. Handle with care
Open the side panel glass to 90° and then lift up to take out the hinges
B Install the power supply

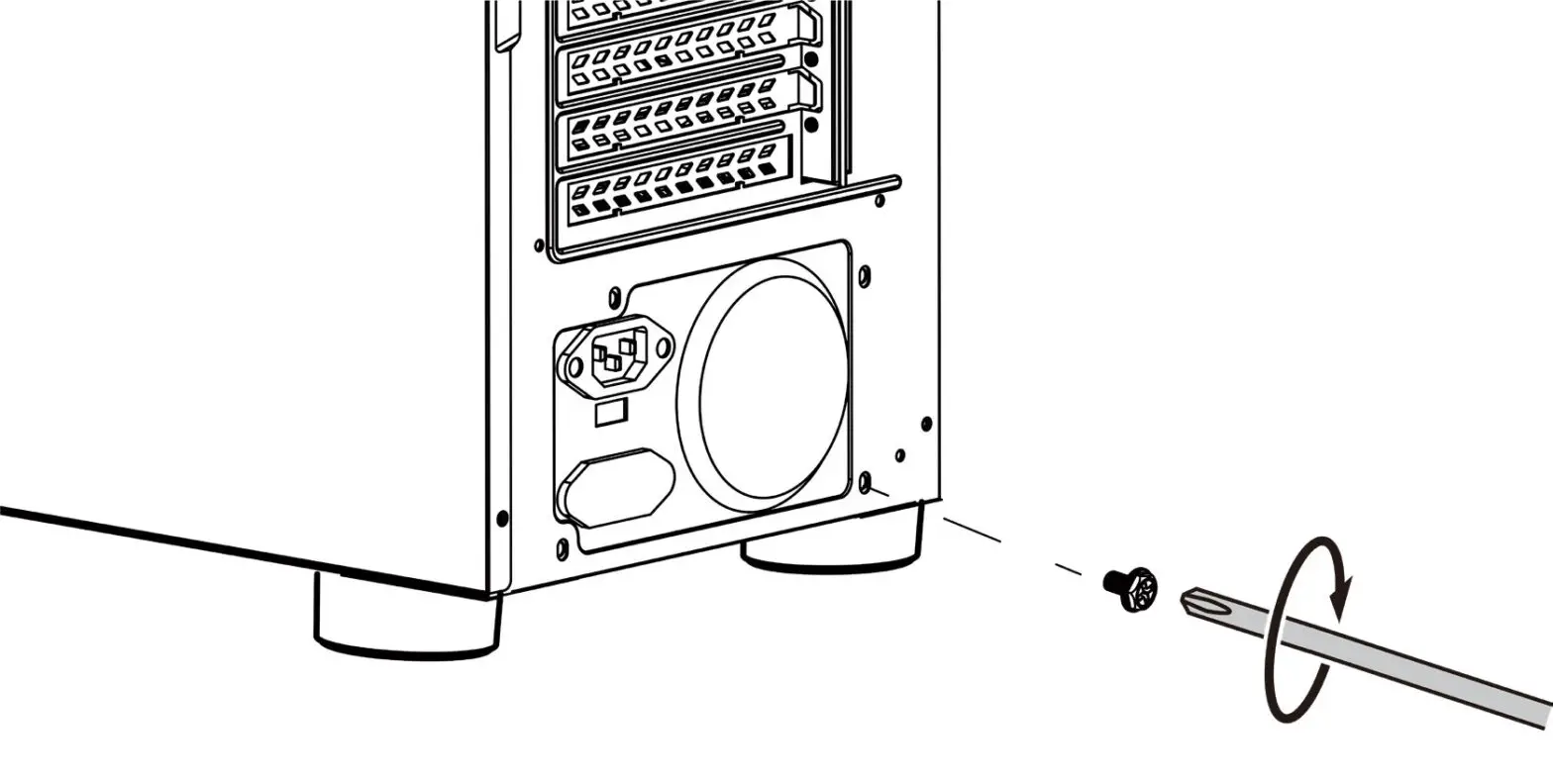

Make sure the screw holes for PSU and the PC case are alligned before screwing

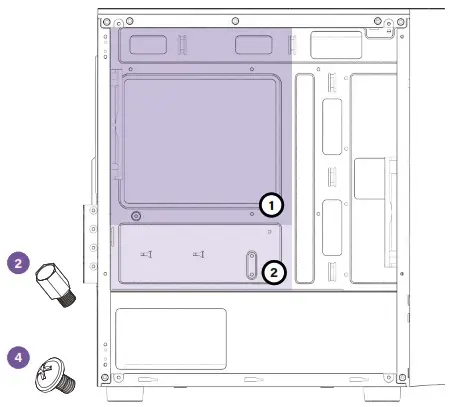

C Install the motherboard
1 Mini-ITX
2 Micro-ATX
Make sure that the motherboard aims at the copper cylinder and install the standoffs (No.2) before screwing in with the No.4 screws.

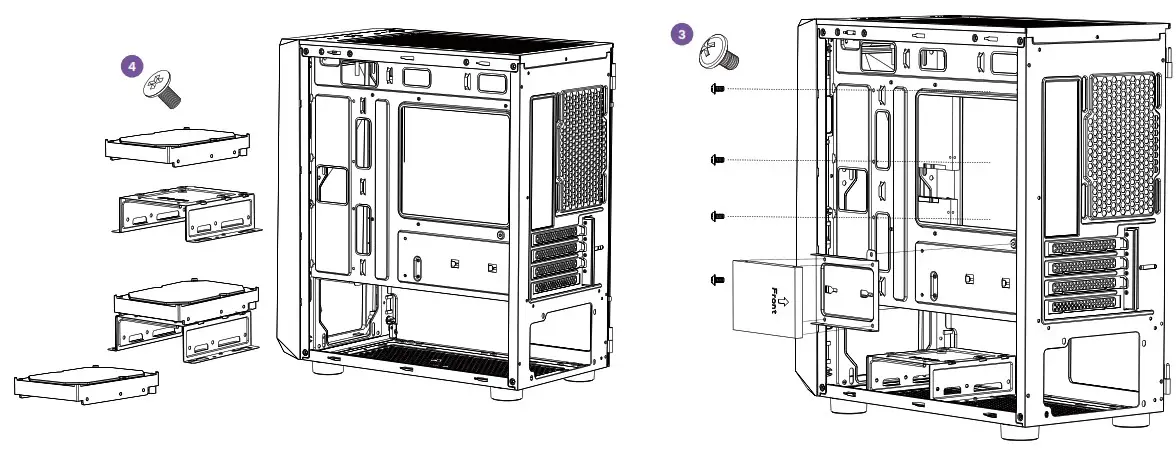

D Install HDD/SSD
Take off the hard disk enclosure for both HDD and SSD and install it with No.3/4 screws
E Install GPU and expansión slot (PCI)

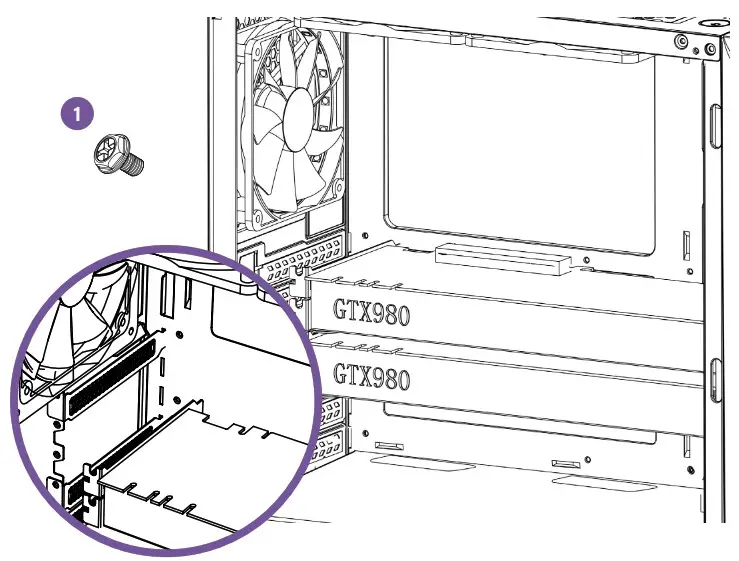

Remove the bafle marked in the picture, make sure the VGA card aims at the motherboard slot and then fix VGA card and case with No.1 screw.

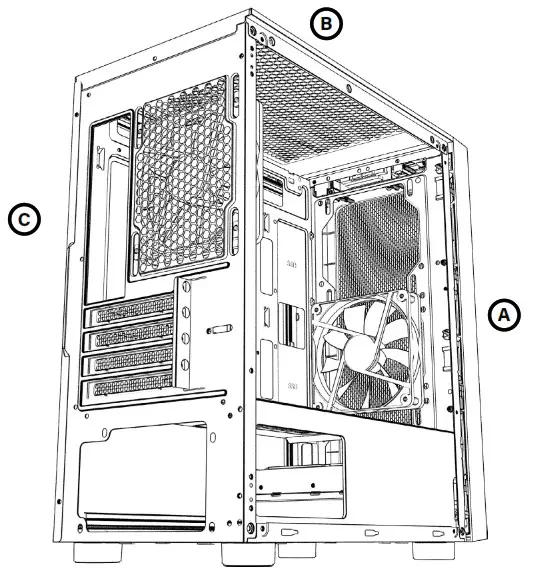

F Install fan and radiator (optional)
| A FRONT | Fans → 3x 120mm → 2x 140mm Radiator up to 240mm |
| B TOP | Fans → 2x 120mm →2x 140mm Radiator up to 240mm |
| C REAR | Fans → 1x 120mm Radiator up to 120mm |
