Installation guide
XS4 One High Security

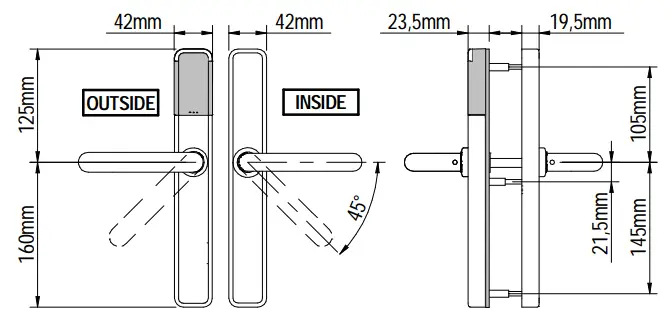

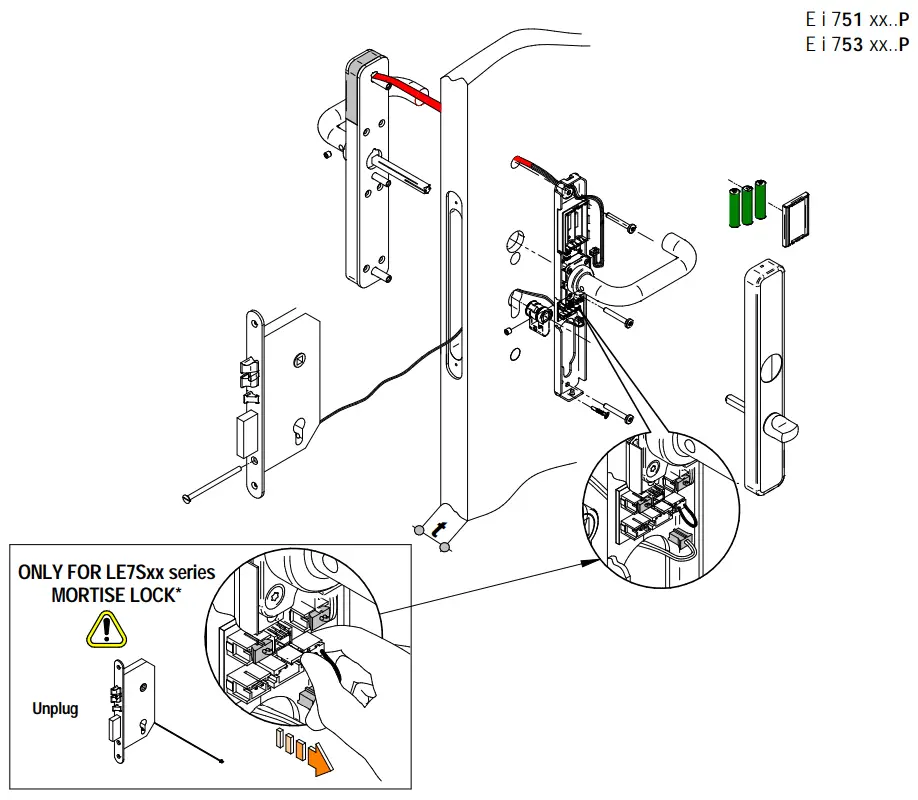

E I 750 xx..P series (1)
E I 751 xx..P
E i 753 xx..P

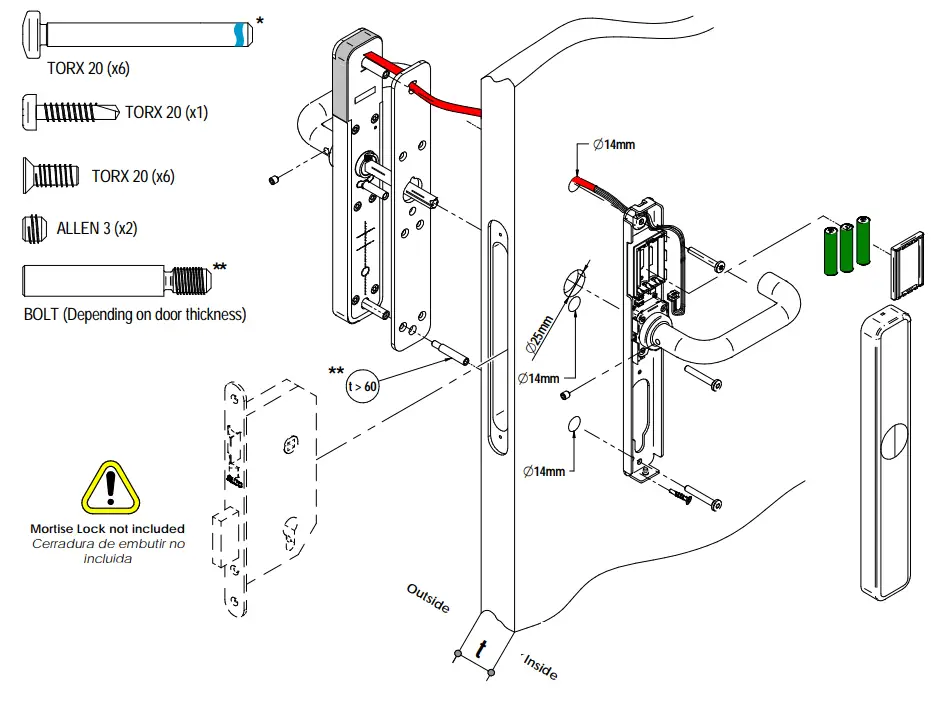

- PAS24 Standard complies only with 44mm and 54mm certified doors.
* For door thickness > 60mm 6 screws are supplied, but only 3 must be installed. Make sure to select the correct length (see page 3).
SALTO recommends the use of a mortise lock, with a maximum of 4º pre-turn.

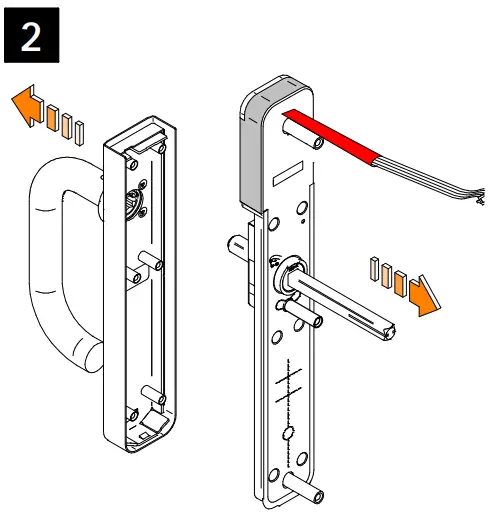

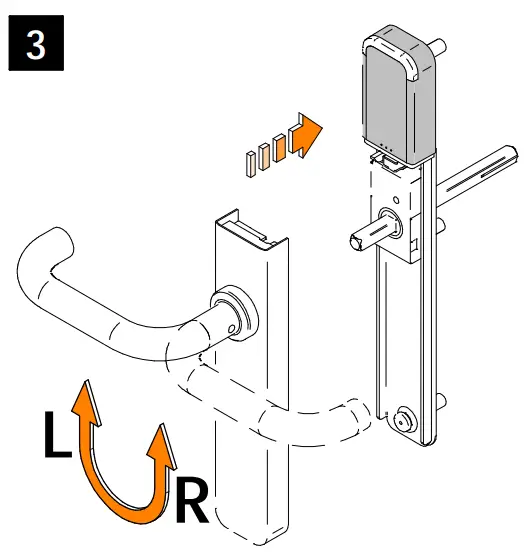

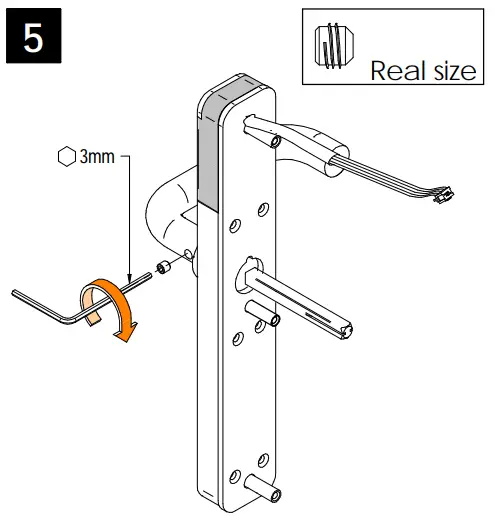

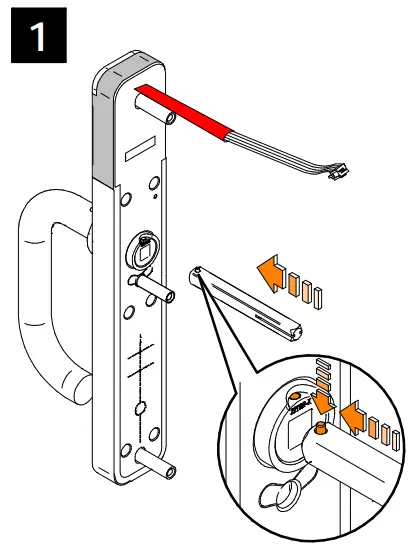

Select handing
 |  |  |
 |  |

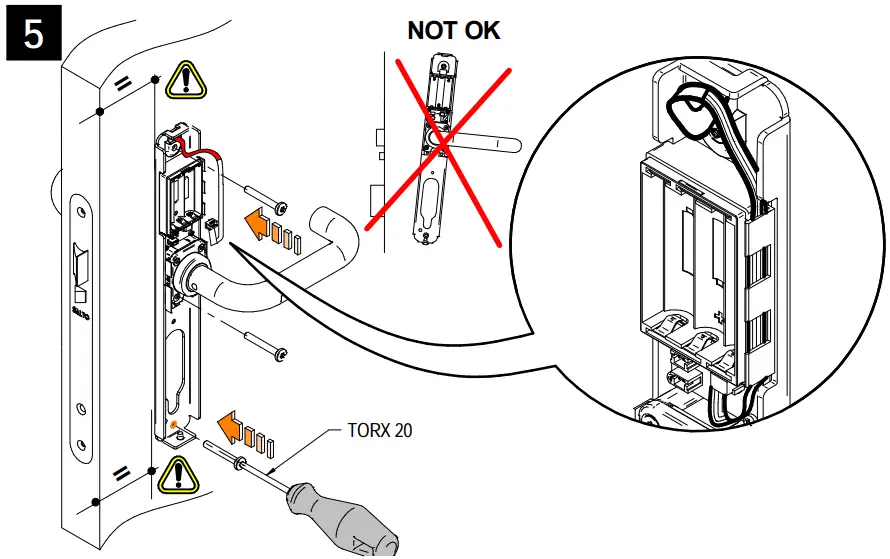

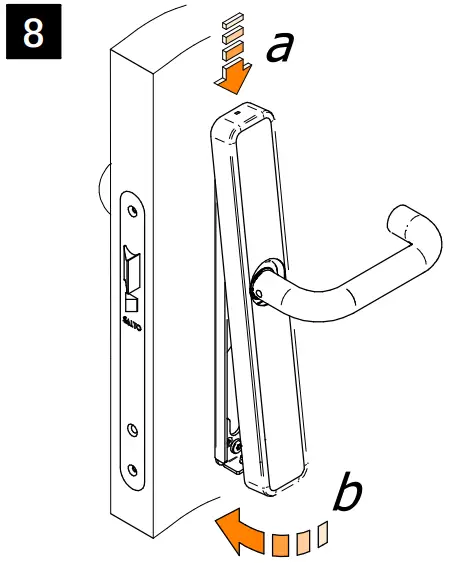

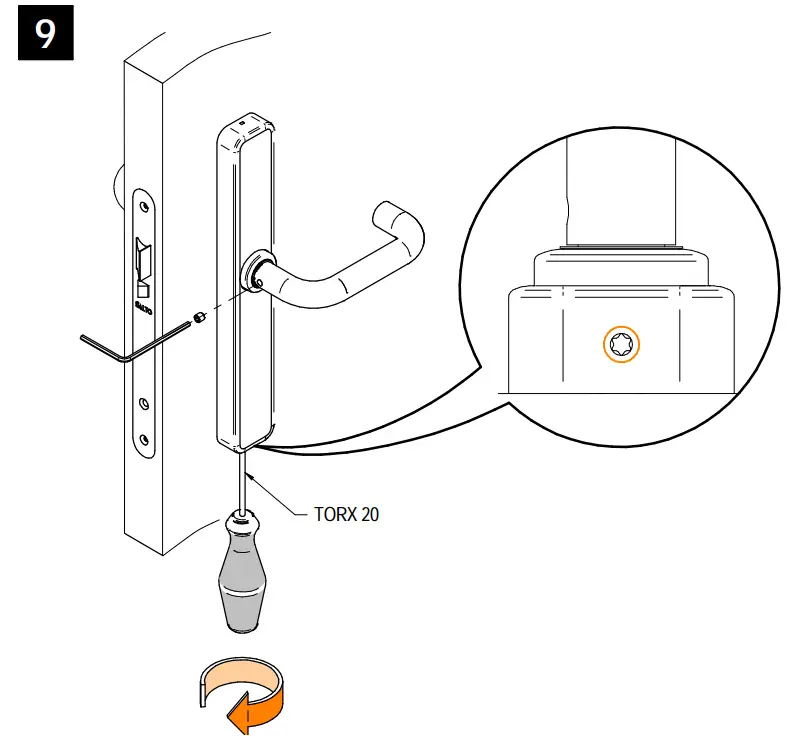

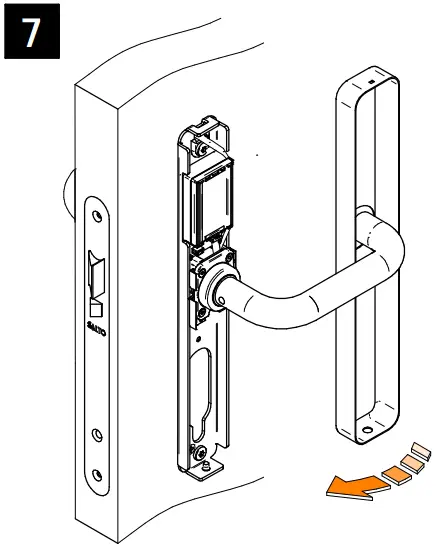

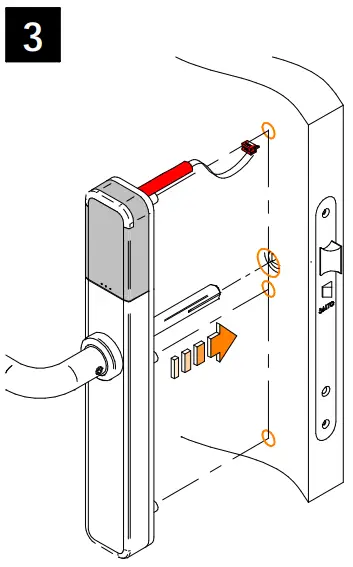

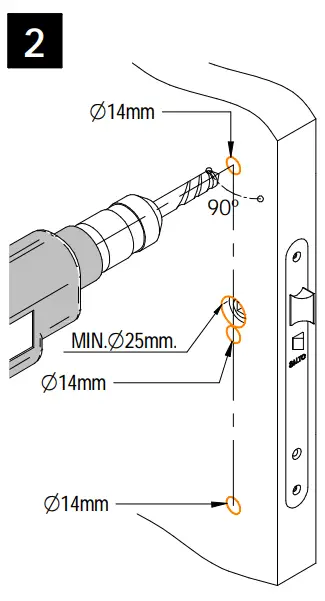

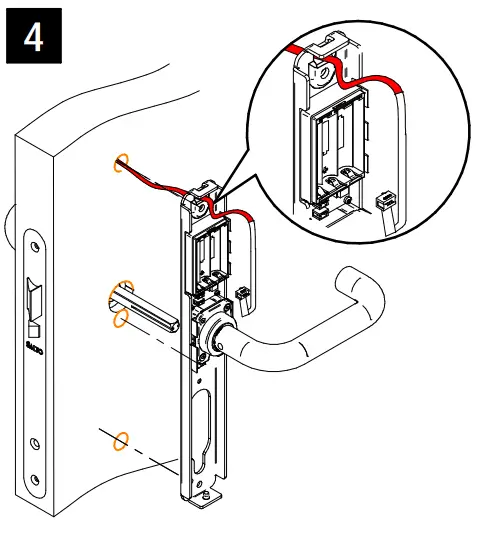

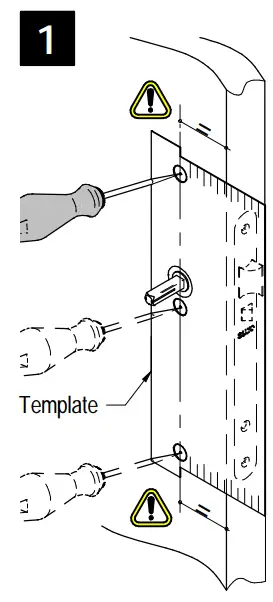

Installation
 |  |
 |  |
 |  |
 |  |
 |
 |  |

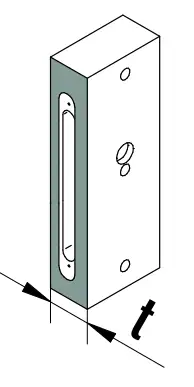

t | SCREWS BAG |
| 32mm ÷ 47mm | S2 |
| 45mm ÷ 60mm | S4 |
| 60mm ÷ 68mm | S1 |
| 68mm ÷ 75mm | S2 |
| 75mm ÷ 83mm | S3 |
| 83mm ÷ 90mm | S4 |
| 90mm ÷ 98mm | 51 |
| 98mm ÷ 105mm | S2 |
| 105mm ÷ 113mm | S3 |
| L 113mm ÷ 120mm | S4 |
TO FIX CLOCKWISE
AT THIS POINT DO NOT CLOSE THE DOOR PROGRAM THE LOCK FIRST
(*) XS4 One + LE7Sxx PAS24 testing pending
All contents are current at the time of publication.
SALTO Systems S.L. reserves the right to change the availability of any item in this catalog, its design, construction, and/or materials.
225583-ED1. 01/12/2020
