SALTO XS4 Access Control Reader
PARTS

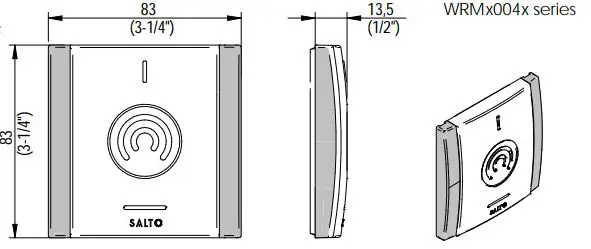

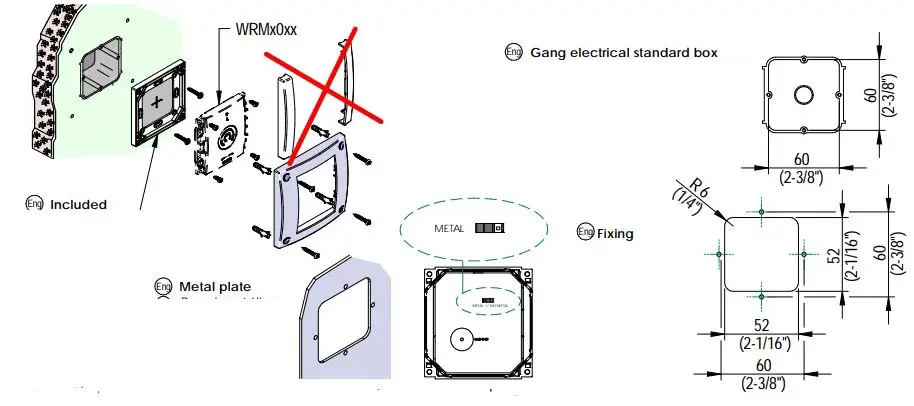

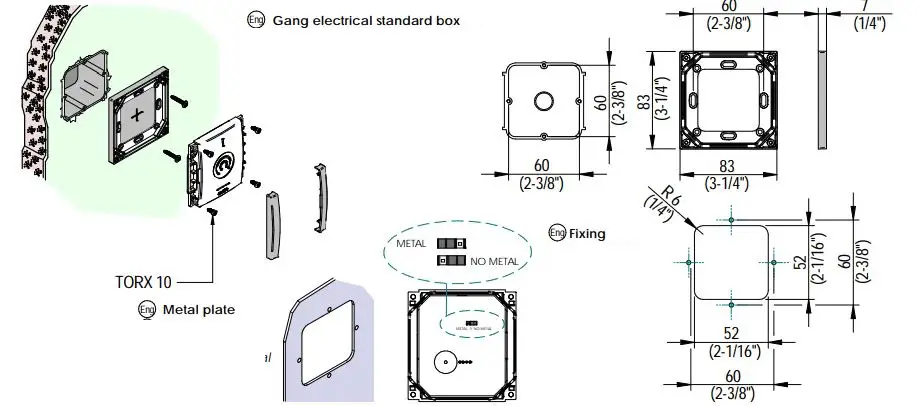

Installation
- Gang electrical standard box
- Metal plate
- Fixing

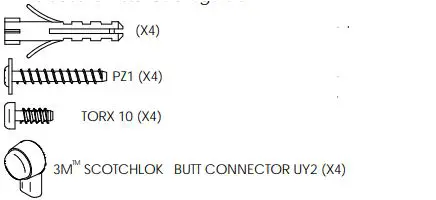

- Included
- Metal plate
- Gang electrical standard box
- Fixing

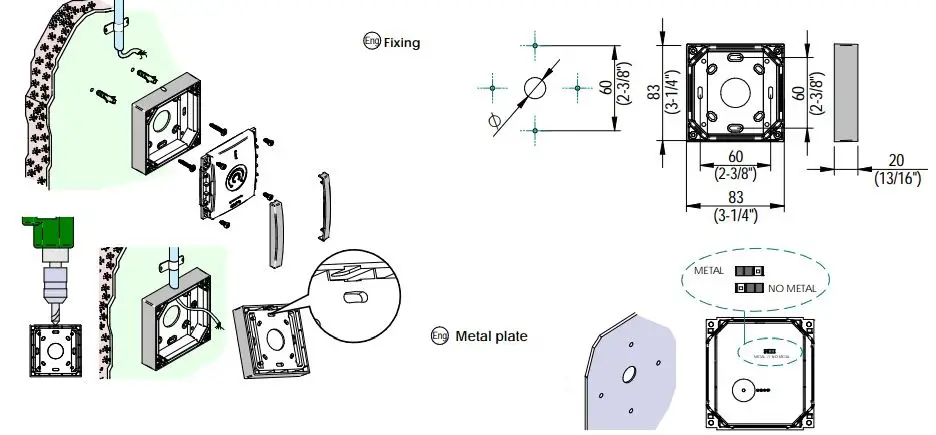

Surface mounting installation with WRMBH1 base
- Fixing
- Metal plate
Surface mounting installation with WRMFHAV base
- Fixing
- Included
- Metal plate

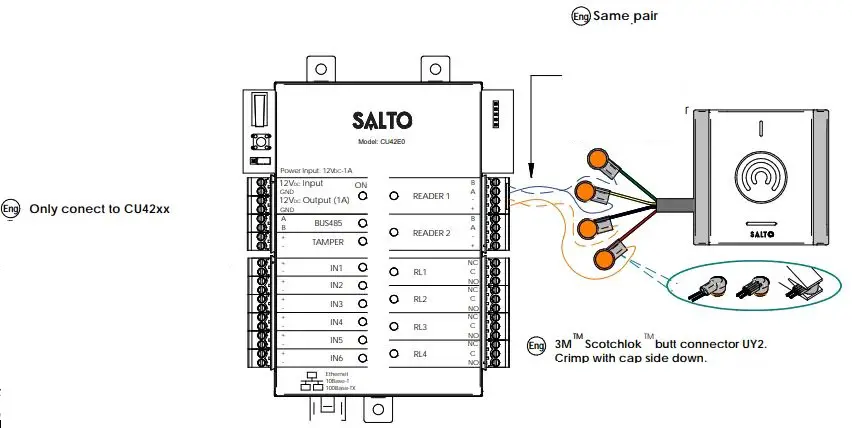

Installation example
- Only conect to CU42xx
- Same pair
- 3M Scotchlok butt connector UY2. Crimp with cap side down.

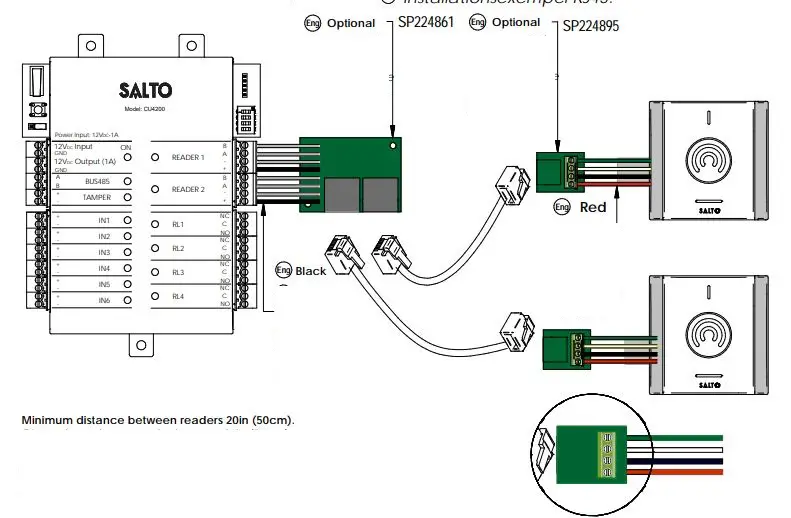

Cable connection
installation example with RJ45
Minimum distance between readers 20in (50cm).
Electrical characteristics
Operation conditions
| Min | Max Unit | |
| Temperature | ‐35 | 66 ºC |
| Humidity | 35 | 85 % |
RF characteristics
| Min | Cen. | Max | Unit | |
| RFID frequency | 13.56 | Mhz | ||
| Bluetooth Smart frequency | 2.4 | 2.445 | 2.483 | Ghz |
Cable type and max. distances
| Cable type Reader |
| UTP Cat5e 2 pairs 100m AWG24 |
| UTP Cat5e 4 pairs 250m AWG24 + SP224861/SP224895 |
| Twisted pairs 400m AWG18 Note 2 |
SIGNALLING
| Signal | Light | Time (sec) | Buzzer | Time (sec) |
| Card Rejection | Red | 1 | High pitched 50/50 | 1 |
| Privacy or emergency status | Red 5x(50/50×3+off300) | 3 | High pitched 5x(50/50×3 + off 300) | 3 |
| Standard opening | Green | 1 | Low pitched | 0,3 |
| Standard locking | Red | 0,5 | Low pitched | 0,2 |
| Open plus office | Green 400/200 | 2,4 | High pitched/Low pitched 400/200 | 2,4 |
| CLR Button | Orange | Cont. | High pitched | Cont. |
| Reset | Orange 50/100 | 450 msg | Low pitched 50/100 | 450 msg |
