SALTO WRDx0A4 Series Wall Reader Keypad Entry System Installation Guide

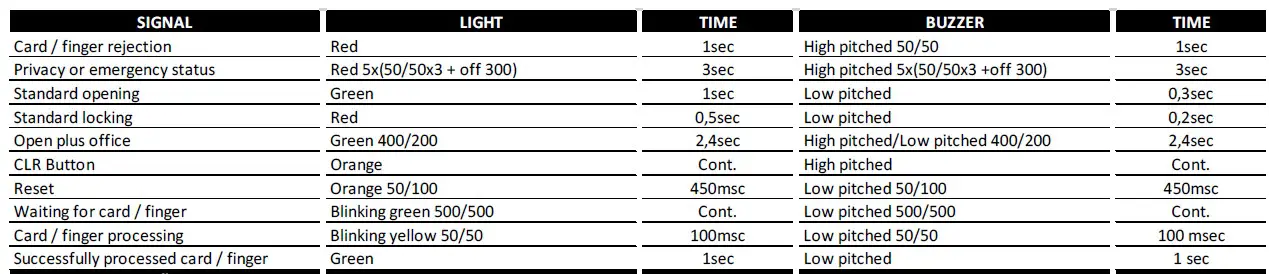

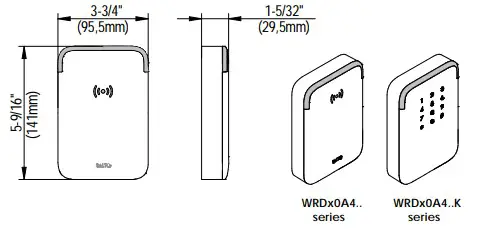

Card reader installation guide

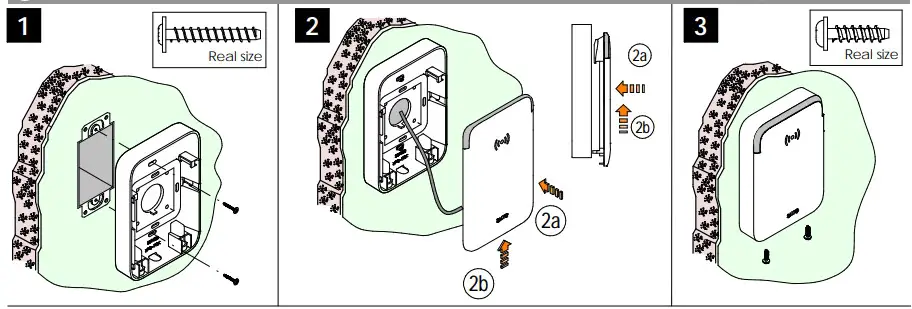

installation

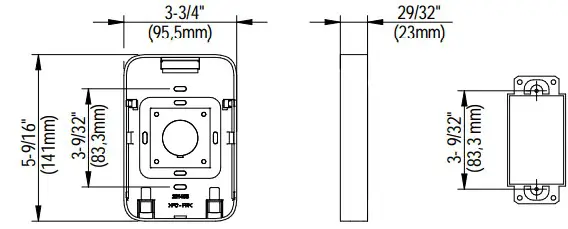

GANG ELECTRICAL STANDARD BOX
Electrical characteristics
Operation conditions
| Min. | Max. Unit | ||
| Temperature WRD0B – WRD0S – WRD0BK | -35 -31 | +66 °C +150 °F | |
| Temperature WRD0J – WRD0GK – WRD0JK | -25 | +66 | °C |
| -13 | +150 | °F | |
| Temperature WRD0BF – WRD0JF | -20 | +66 | °C |
| -4 | +150 | °F | |
| Humidity | 35 | 85 % | |
RF characteristics
| Min | Cen. | Max | Unit |
| RFID frequency Bluetooth Smart 2.4 frequency | 13.56 2.445 | 2.4835 | Mhz Ghz |
Power Consumption Note 1
| Min | Max | Unit |
| Reader | 150 | mA |
| Reader+Keyboard | 250 | mA |
| Reader+Keyboard+Fingerprint | 300 | mA |
Note 1: Installer must take this data into account to dimension the CU42xx power supply.
Readers only for use with the SALTO Control Units.

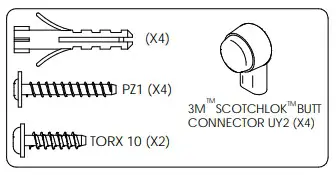

Note 2: Not use with Scotchlok butt connector UY2 SALTO recommends to use one cable per wall reader
Cable type and max. Distances
| Cable type | Reader | Reader Keypad | Reader Keypad Fingerpint |
| UTP Cat5e 2 pairs AWG24 | 328ft 100m | 196ft 60m | 164ft 50m |
| UTP Cat5e 4 pairs AWG24 SP224861/SP224895 | 820ft 250m | 492ft 150m | 328ft 100m |
| Twisted pairs AWG18 Note2 | 1312ft 400m | 918ft 280m | 756ft 200m |
Note: UL tested at 24 AWG at 100m.

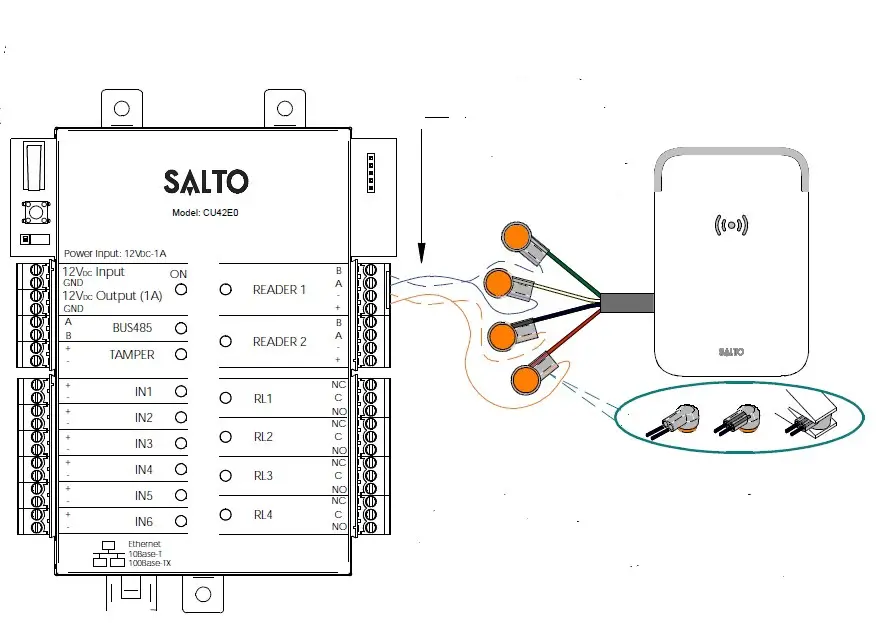

Installation example: CU42xx:
Cable connection
| Eng | Esp | Fra | Deu | Ned | Sve | |
| B A
| Green Yellow Black | Verde Amarillo Negro | Vert Jaune Noir | Grün Gelb Schwarz | Groen Geel Zwart | Grön Gul Svart |
| +V | Red | Rojo | Rouge | Rot | Rood | Röd |

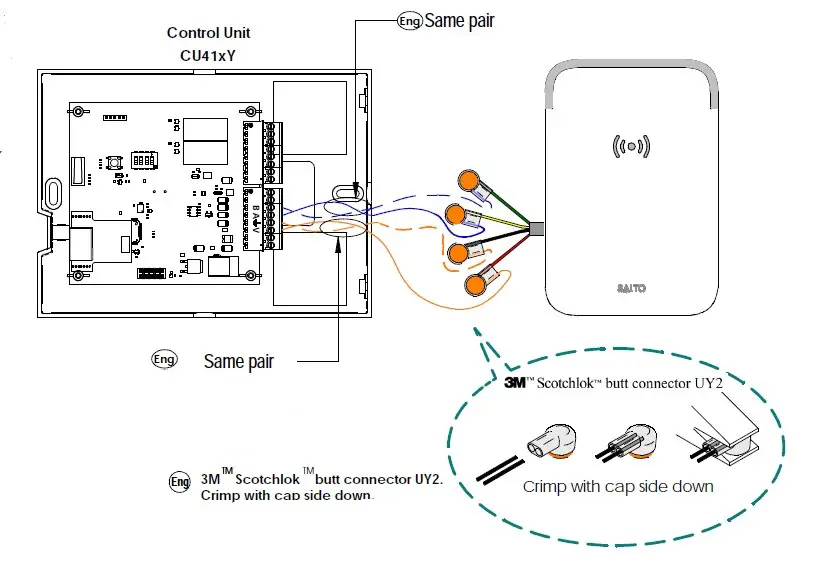

Installation example CU42xx with RJ45:
Minimum distance between readers 20in (50cm).
UL Statements
Tested by UL with Mifare (DESFIRE, ULTRALIGHT C) and HID iCLASS RFID communication, and with Mobile APP (JustIN Movile version 2.x) through Bluetooth version 4.2. Minimum Operating System version for Android: 4.3 or later and for iOS: 10.0 or later. Ameans of verification shall be employed by the user to enable access to the wireless electronic device such as a PIN or biometric feature.
The wireless electronic device is not capable of command, control, programming, or any other system manipulation and it is only to be used in the same manner as a physical credential. Wiring methods that shall be in accordance with the National Electrical Code, ANSI/NFPA 70 or CSA C22.1-02 – Canadian Electrical Code, Part 1, Safety Standard for Electrical Installations.
UL294 performance level:
| FEATURE | LEVEL |
| Destructive attack | I |
| Line Security | I |
| Endurance | IV |
| Standby power | Per rating of the power supply |
Comply with ULC-S319 Class I
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
