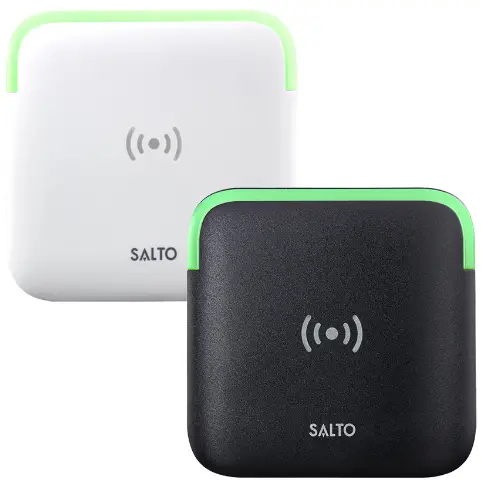

SALTO XS4 Panel Wall Reader
The SALTO panel reader is designed to be integrated behind lift panels, door intercoms, electric switches or turnstiles and gates. It can be installed behind metal plates but needs a window which is necessary for the reader antenna operation. It works in conjunction with SALTO controller

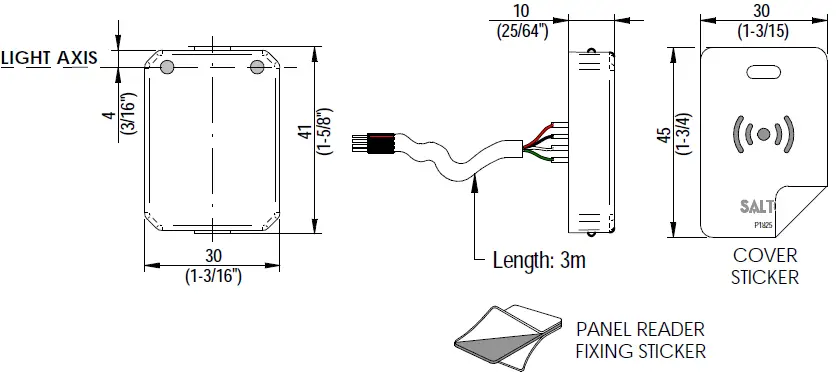

DIMENSIONS

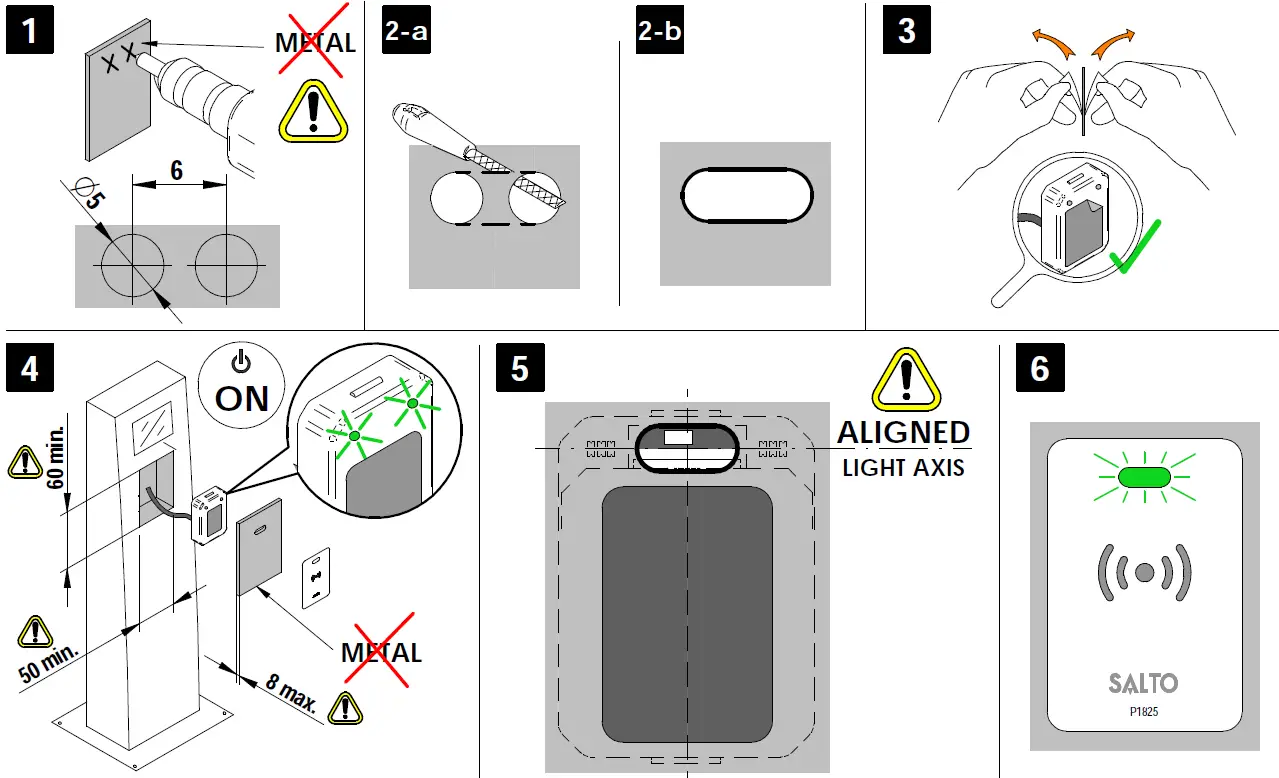

Installation

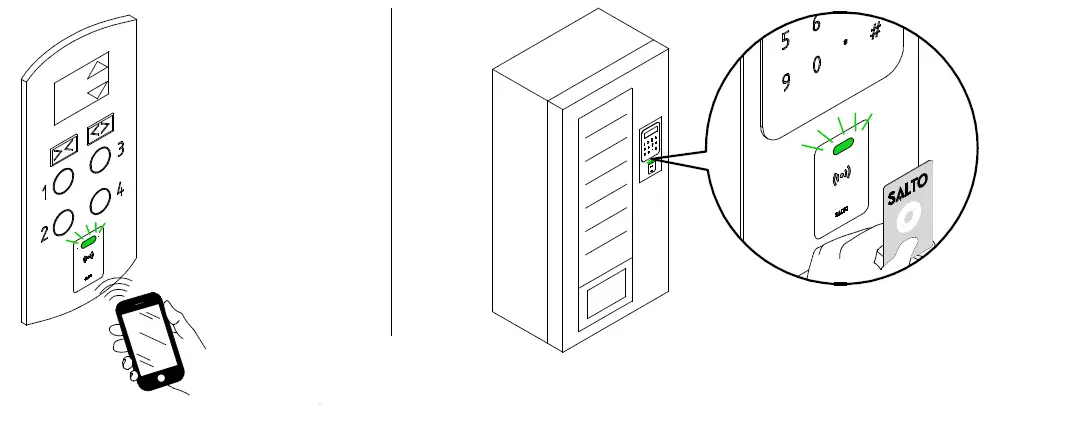

Application
Electrical characteristics
Operation conditions
| Min. | Max. Unit | |
| Temperature WRDP0B | -30 | 70 ⁰C |
| Temperature WRDP0J | -25 | 70 ⁰C |
| Humidity | 35 | 85 % |
RF characteristics
| Min | Cen. | Max. | |
| RFID frequency Bluetooth Smart 2.4 frequency | 13.56 2.445 | 2.4835 | Mhz Ghz |
Cable type and max. distances
| Cable type Reader |
| UTP Cat5e 2 pairs 279ft AWG24 85m |
| UTP Cat5e 4 pairs 853ft AWG24 + 260m SP224861/SP224895 Note2 |
| Twisted pairs 1312ft AWG18 400m |
Power Consumption Note1
| Min | Max | Unit |
| Reader | 150 | mA |
Note 1: Installer must take this data into account to dimension the CU42xx power supply. Panel Reader only for use with the SALTO Control Units. SALTO recommends to use one cable per wall reader
Installation example

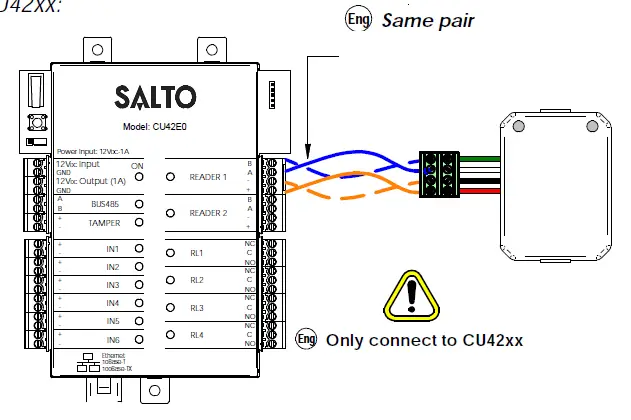

Installation example CU42xx:

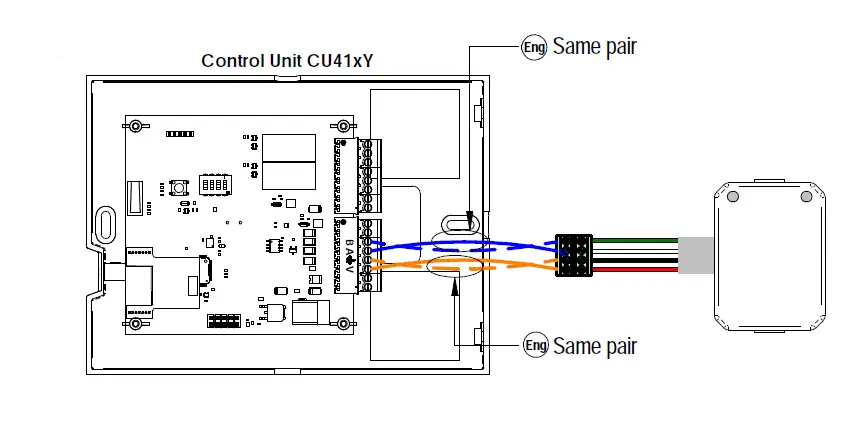

Installation example CU41xY:

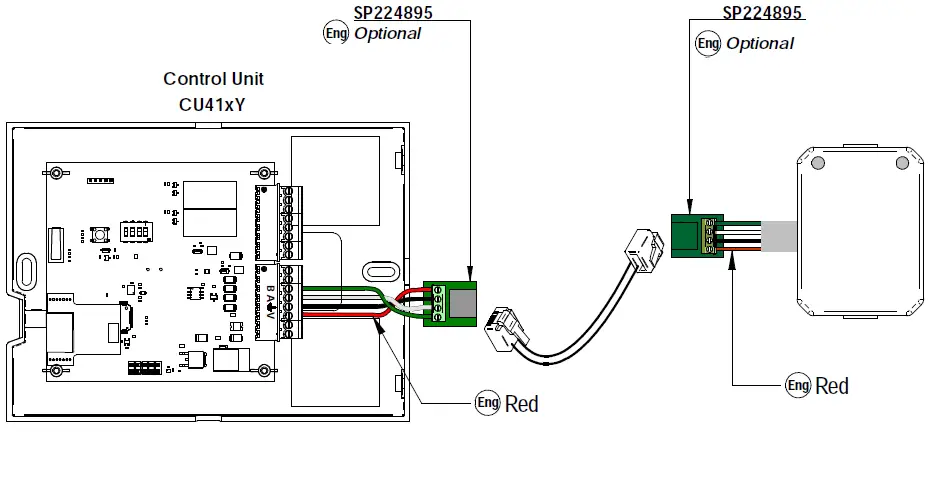

Installation example with RJ45
Installation example CU41xY with RJ45xx
