Shower Wall
Swivel Panel
End Panel
INSTALLATION GUIDE
Swivel Panel
End Panel
INSTALLATION GUIDEIf you install the product in a way that differs from this manual this will void all guarantees. Before installation check that the product meets all your requirements and is not damaged. By proceeding with installation, you accept the condition of the product.The wall plugs supplied with the installation kit are for use in solid walls. Hollow or `stud partition’ walls will require alternative fixings. Please consult your local hardware supplier for the correct type.
No. | Size | Adjustment |

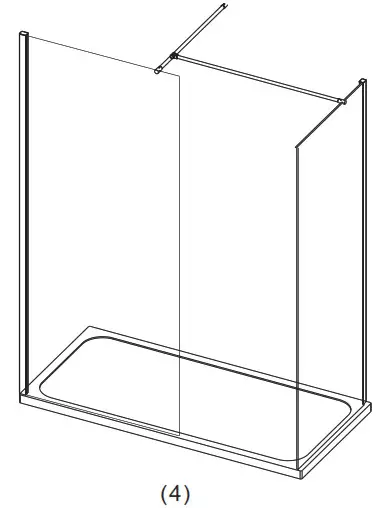

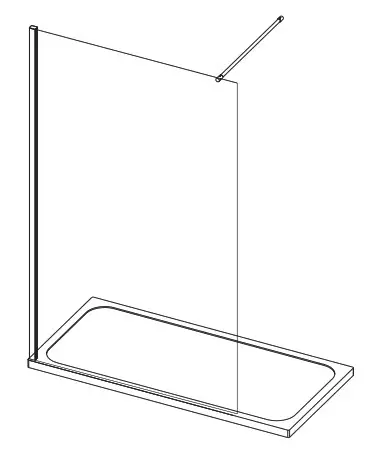

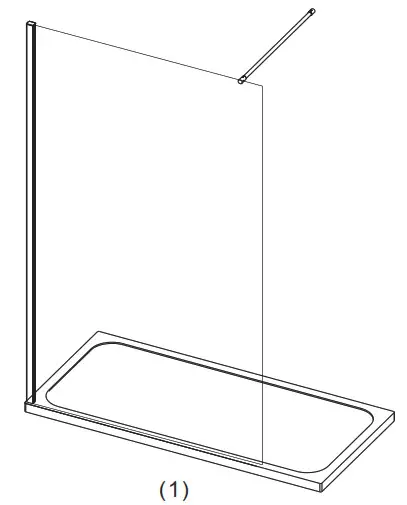

(1)(4) | 800 | 775-790 |
(1)(4) | 900 | 875-890 |
| (1)(4) | 1000 | 975-990 |
(1)(4) | 1100 | 1075-1090 |
(1)(4) | 1200 | 1175-1190 |

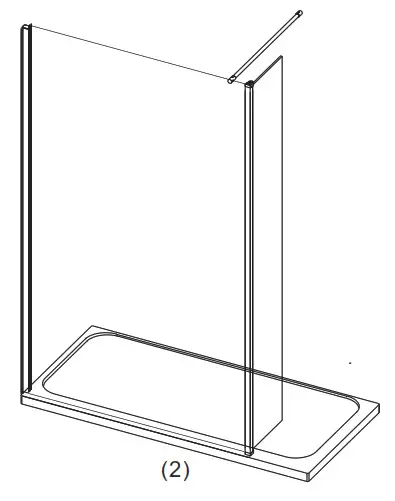

| (2) | 200 | |
| (2) | 300 | |
| (2) | 400 |
Shower Wall

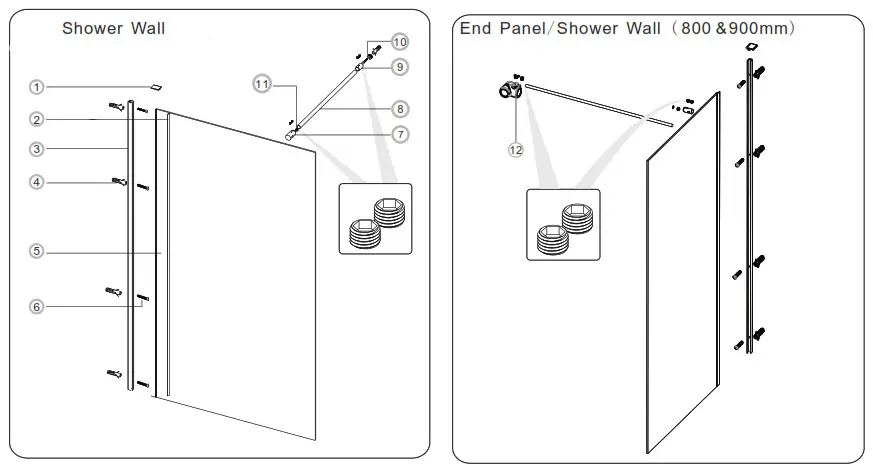

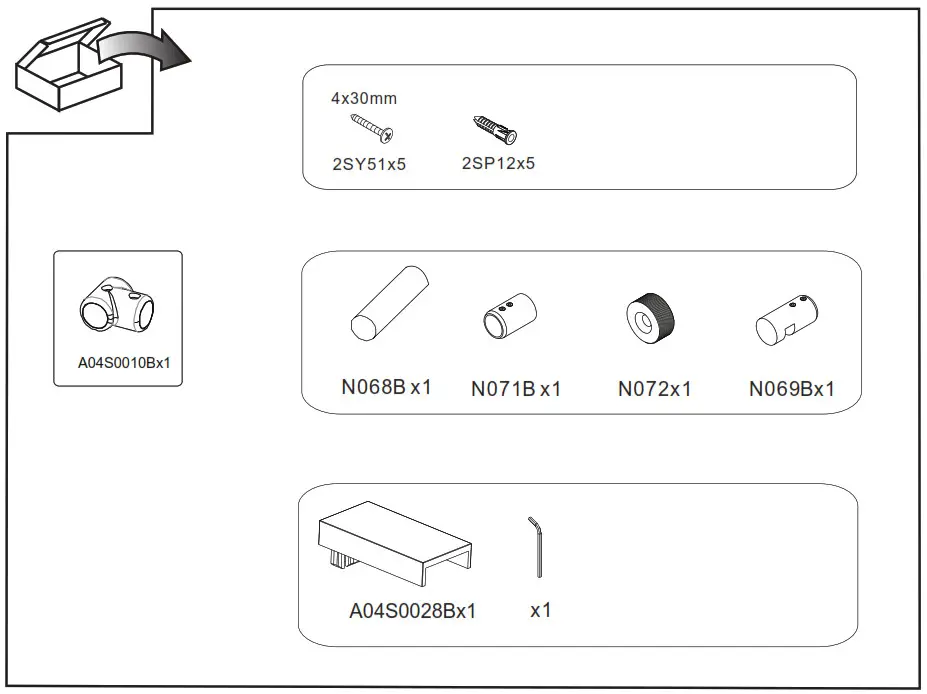

No. | Qty | Part No. | No. | Qty | Part No. |
1 | 1 | A04S0028B | 9 | 1 | SP0N069B |
2 | 1 | A04S0014B | 10 | 1 | SP0N068B |
3 | 1 | A04S0027B | 7 | 1 | SP0N071B |
4 | 5 | SP02SP12 | 8 | 1 | SP0N072 |
| 5 | 3 | A | 11 | 1 | SP0N070 |
| 6 | 5 | SP02SY51 | 12 | 1 | A04S0010B |

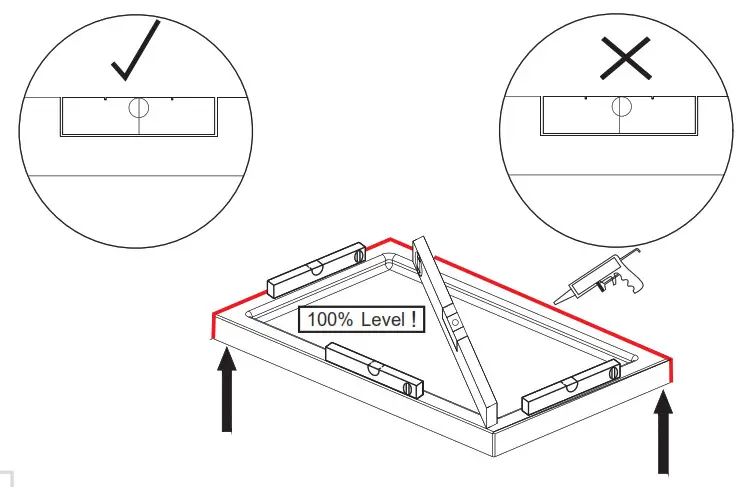

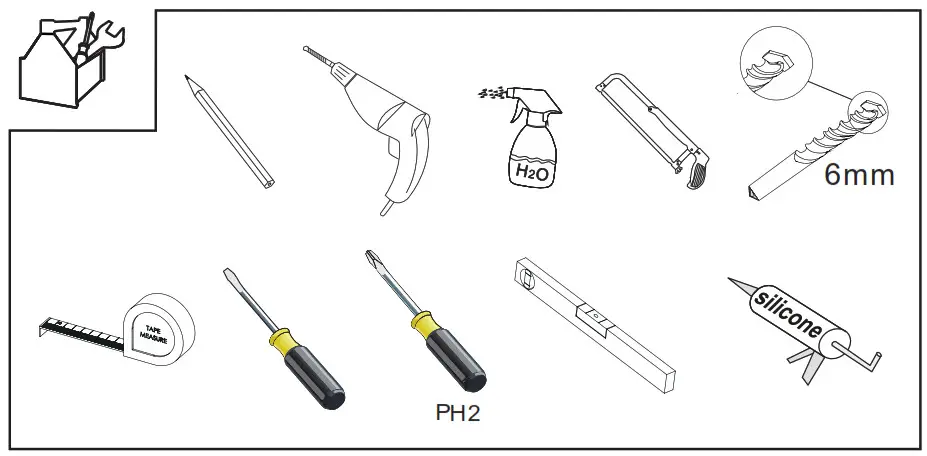

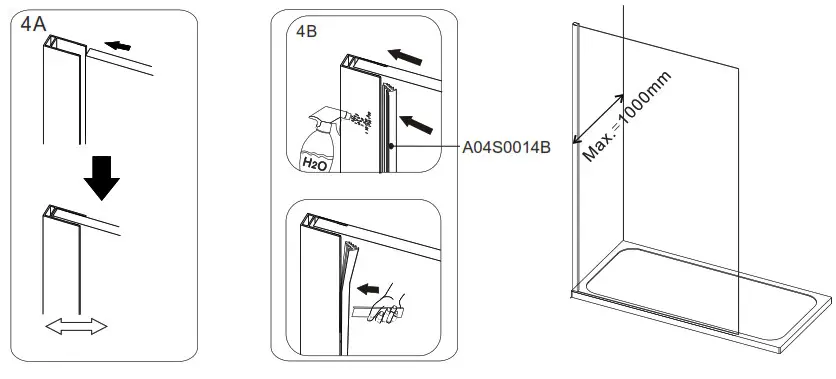

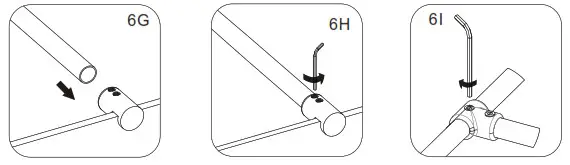

Shower Wall

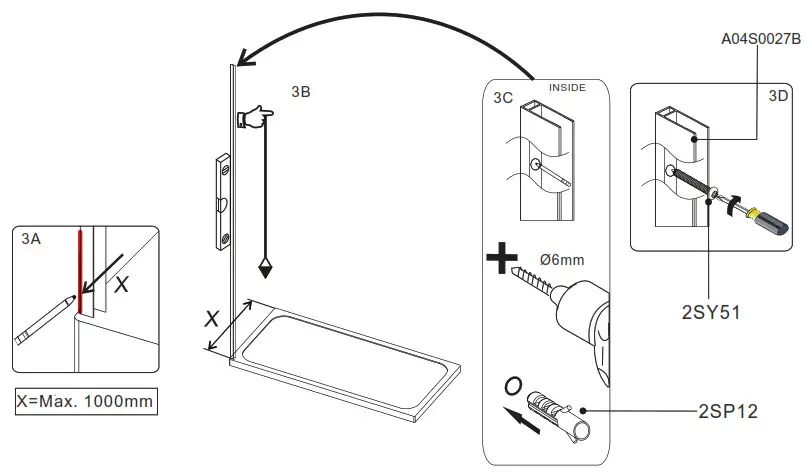

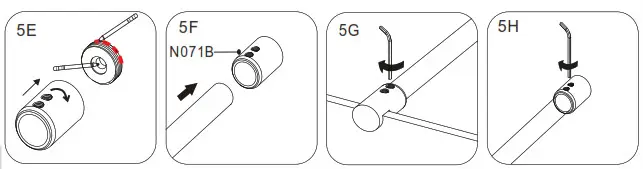

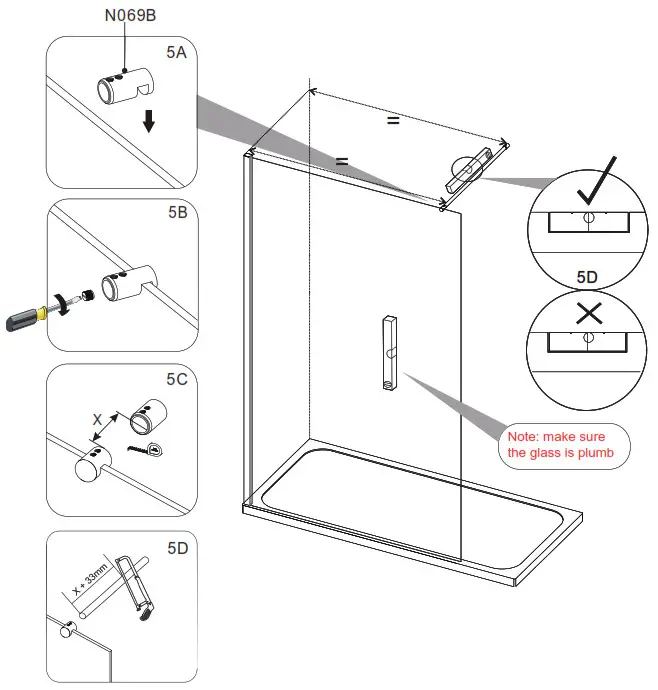

Shower wall

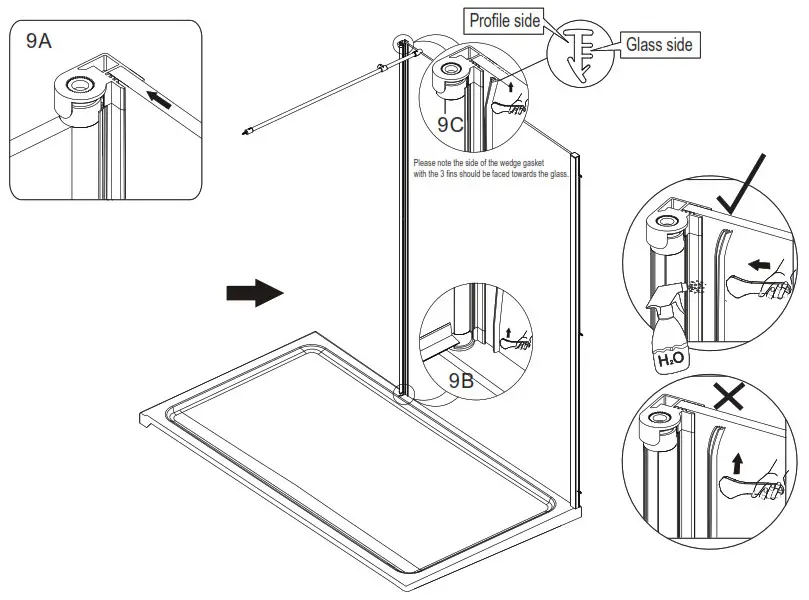

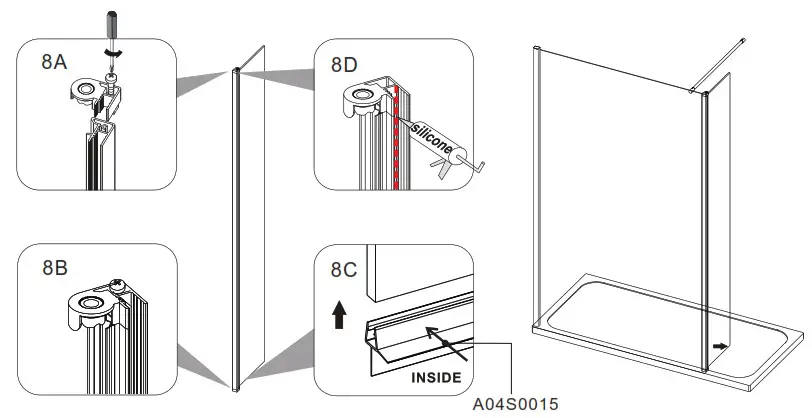

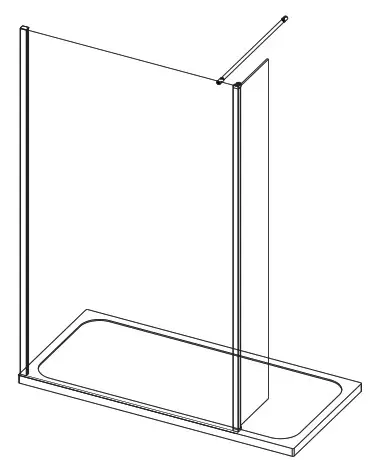

End Panel

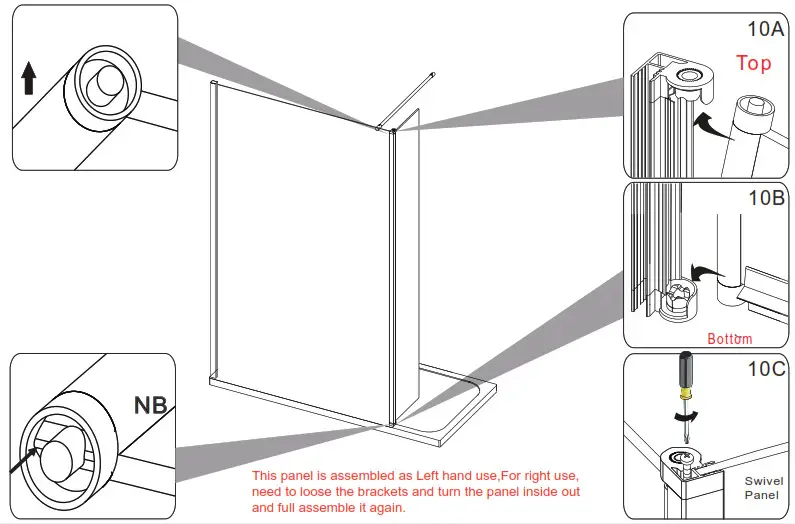

Swivel Panel
Merlyn Industries Ltd (MER13)
Purcellsinch, Kilkenny, IRL.
16
EN 14428
Shower enclosures with aluminum
profiles and safety glass
Cleanability:Pass
Impact resistance/ :Pass
shatter properties
Durability:Pass
To download the Declaration of Performance (DOP) for this product please use the link below. http://merlynshowering.com/aftersales-support/dop-certs/
For further information please contact IRL: 056 7791 555, UK: 08081011429
Merlyn Showering – Merlyn Showering are a leading supplier of contemporary shower enclosures, bath screens, shower trays and accessories.
