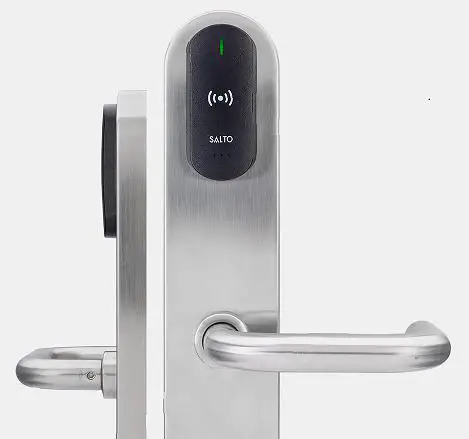

SALTO XS4 Original+ Doors Lock

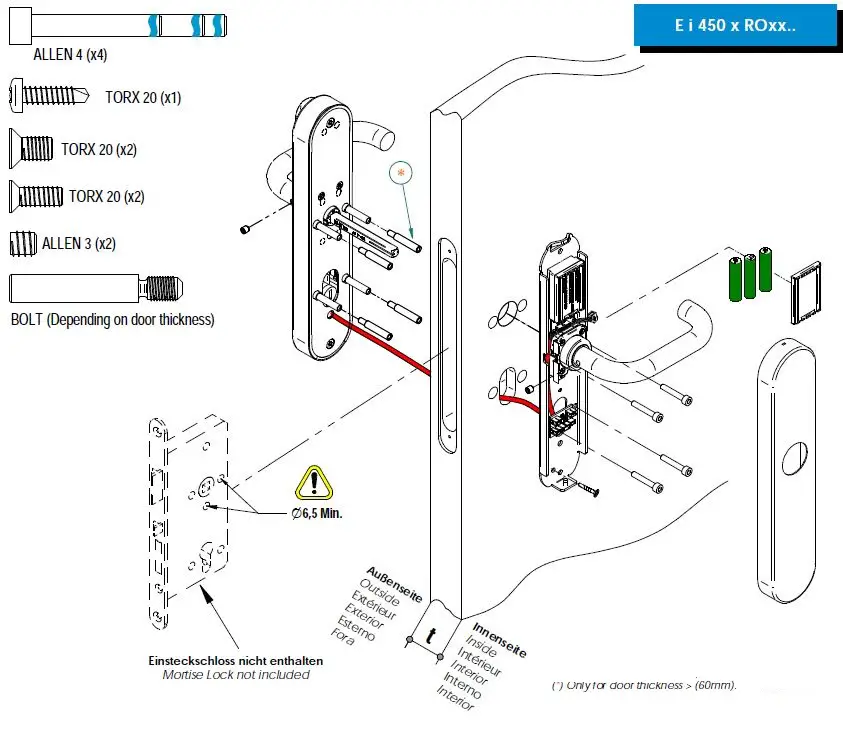

Parts
SALTO recommends the use of a mortise lock, with a maximum 4º pre-turn.
Select handing

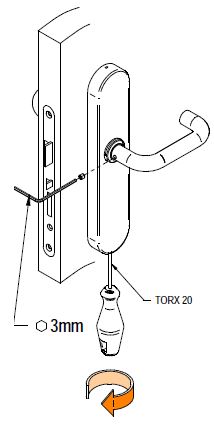

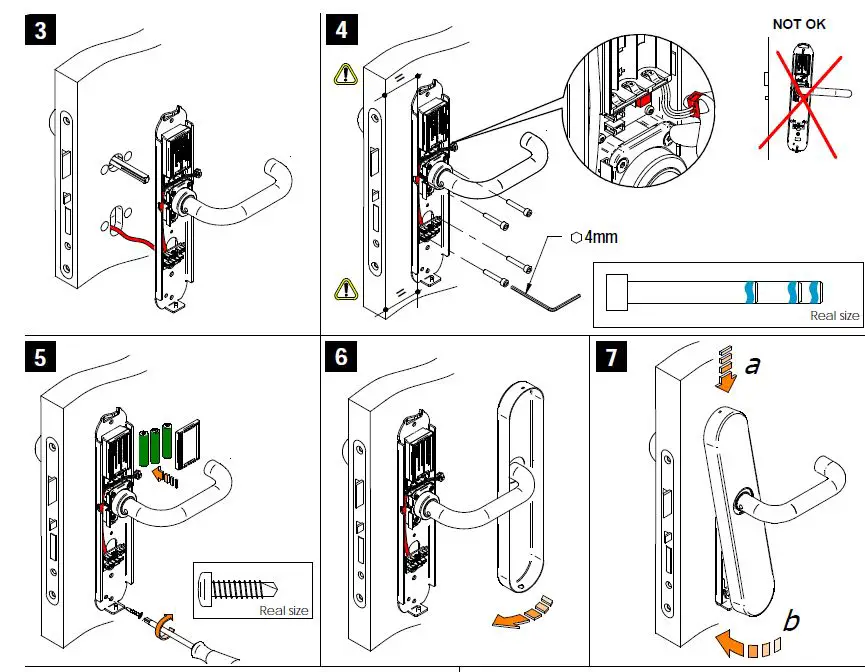

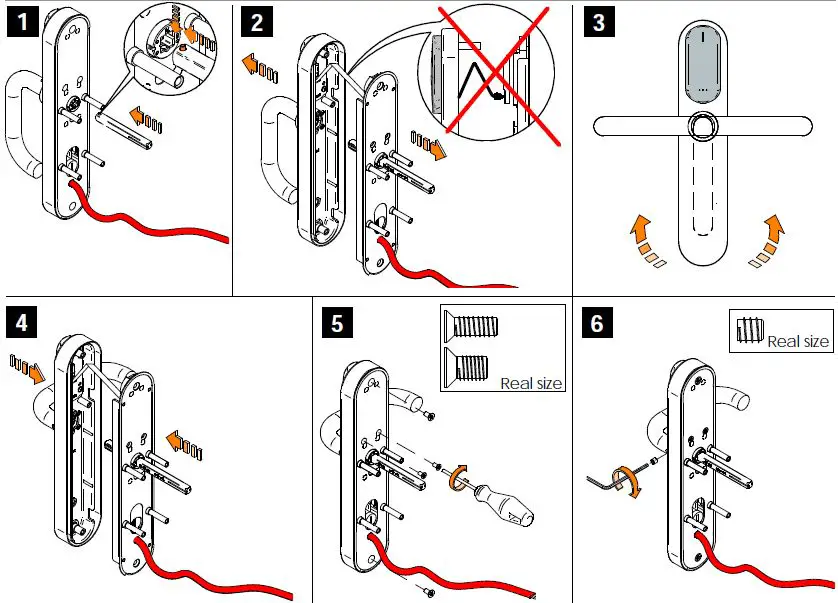

Installation

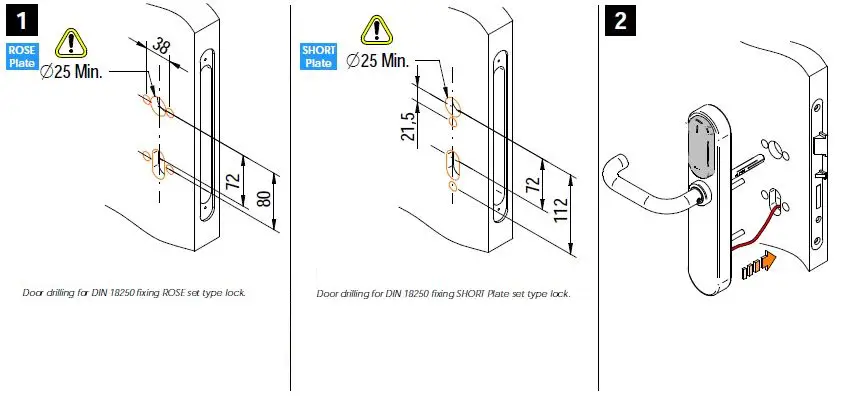

- Door drilling for DIN 18250 fixing ROSE set type lock.
- Door drilling for DIN 18250 fixing SHORT Plate set type lock.
AT THIS POINT DO NOT CLOSE THE DOOR PROGRAM THE LOCK FIRST

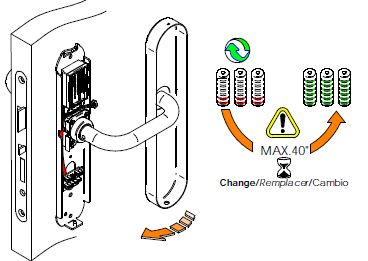

Battery change
