XS4 One Electronic Locks
Installation Guide
| E i 750 xx..series E i 751 xx.. E i 752 xx.. E i 753 xx.. E i 754 xx.. | E i 756 xx.. E i 757 xx.. E i 7P0 xx.. E i 7P1 xx.. E i 7P6 xx.. |
XS4 One Electronic Locks
To be used only with SALTO-compatible escutcheons!
SALTO recommends the use of a mortise lock, with a maximum of 4º pre-turn.
Select handing

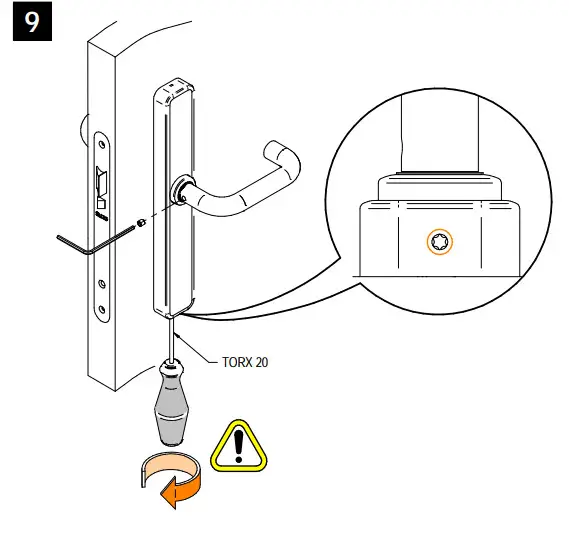

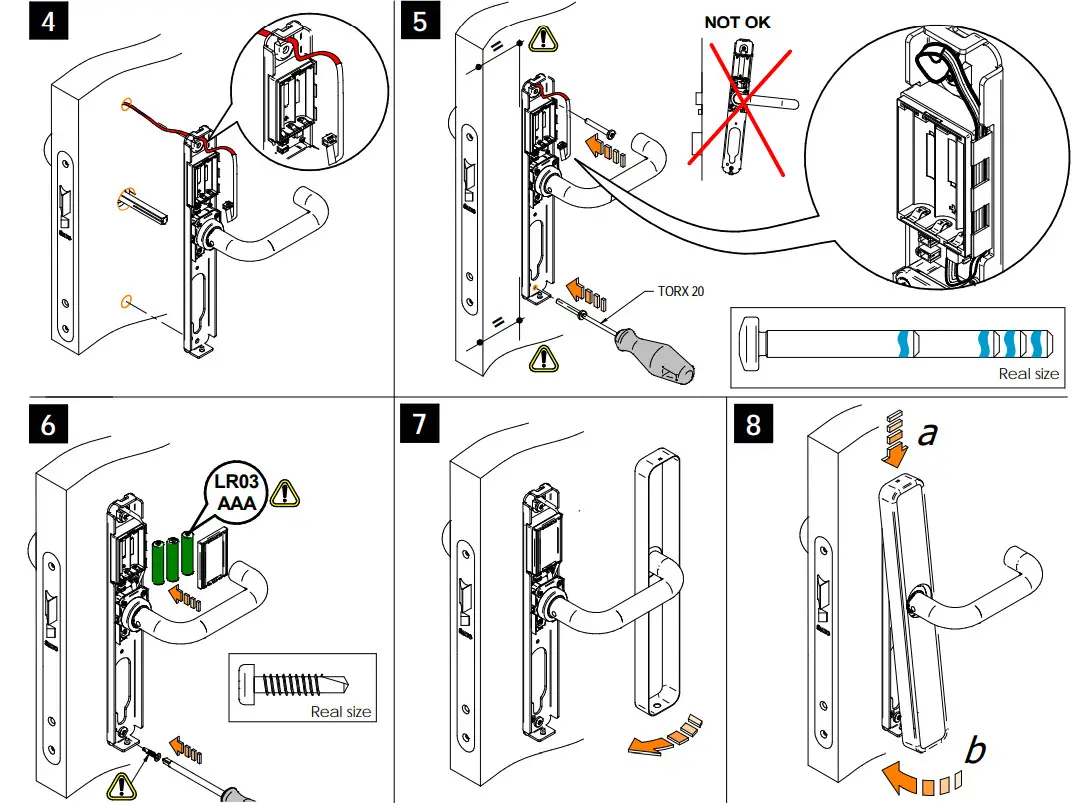

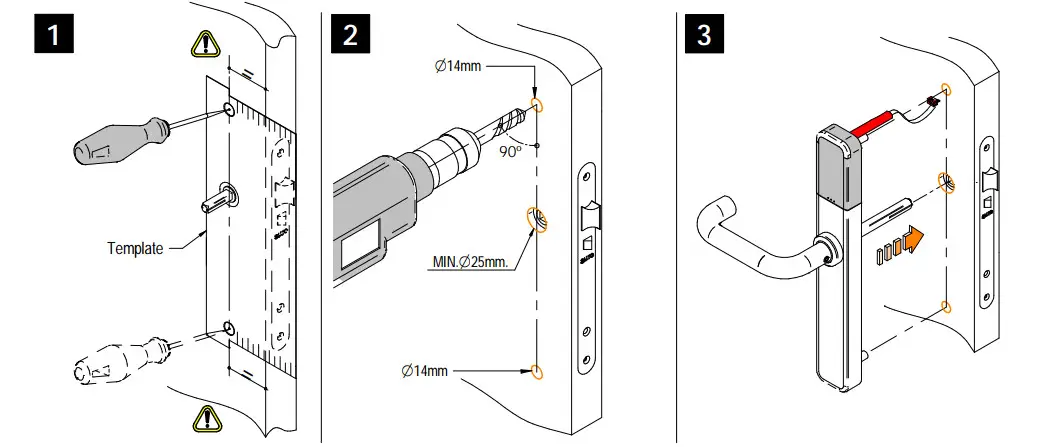

Installation
AT THIS POINT DO NOT CLOSE THE DOOR PROGRAM THE LOCK FIRST

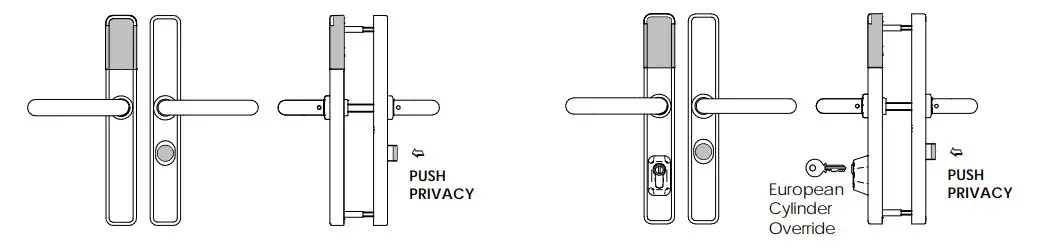

Other models
E i 756 xx.
-Entry lock with privacy/ lockout function
E i 7P6 xx.
-Entry lock with privacy/lockout function and key override
All contents are current at the time of publication.
SALTO Systems S.L. reserves the right to change the availability of any item in this catalog, its design, construction, and/or materials.
XS4 One
