SALTO PL-SAL-EMXXX XS4 Original+ Smart Lock
Installation guide XS4 Original+ Ai6xx…

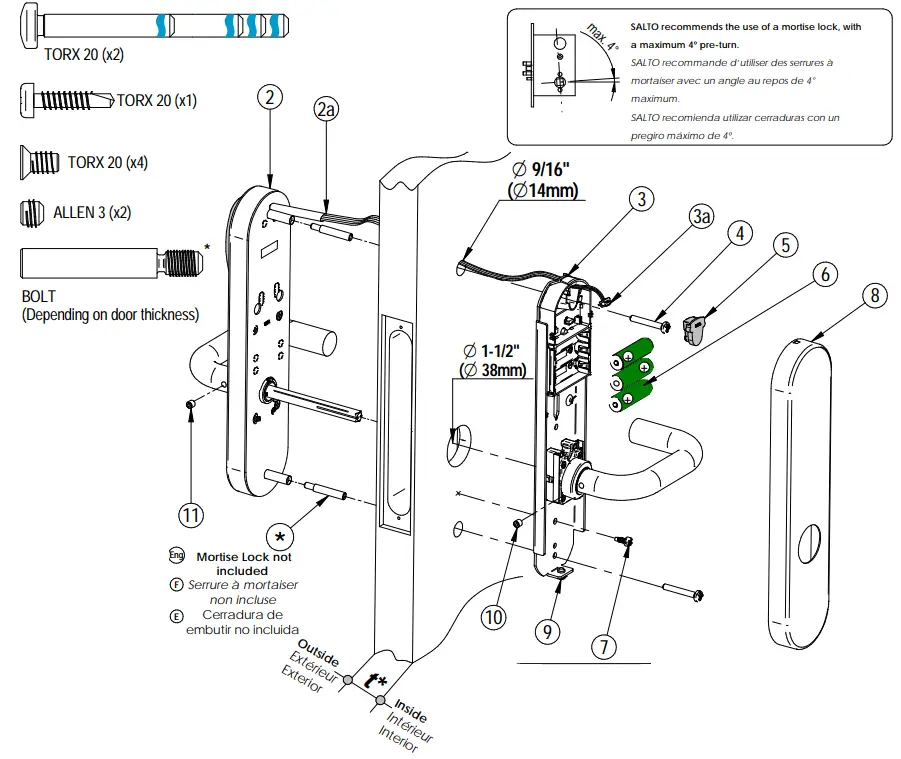

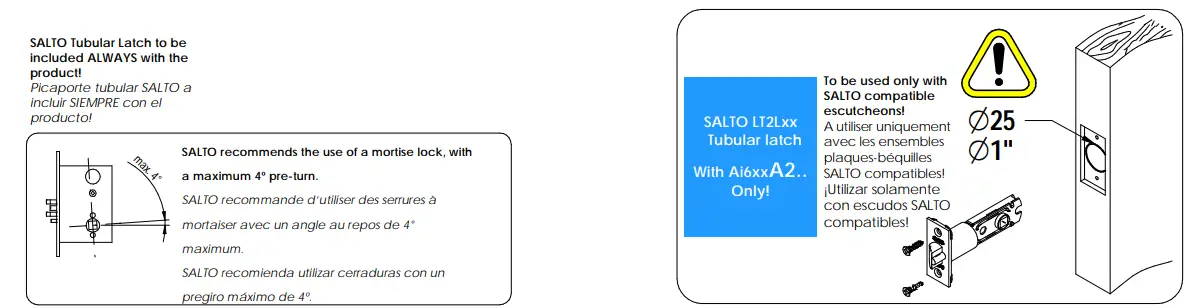

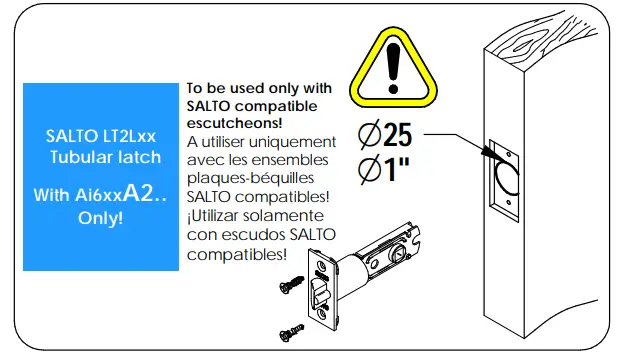

Select handing

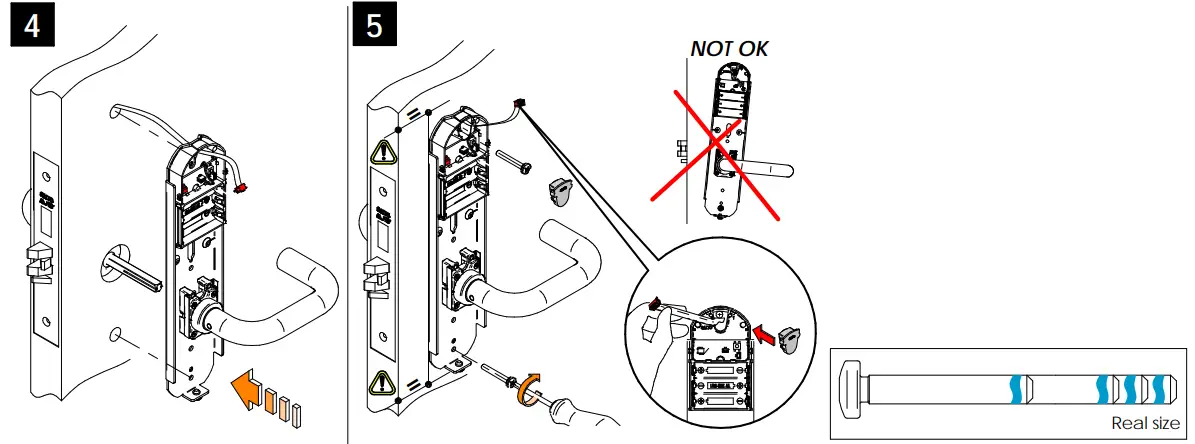

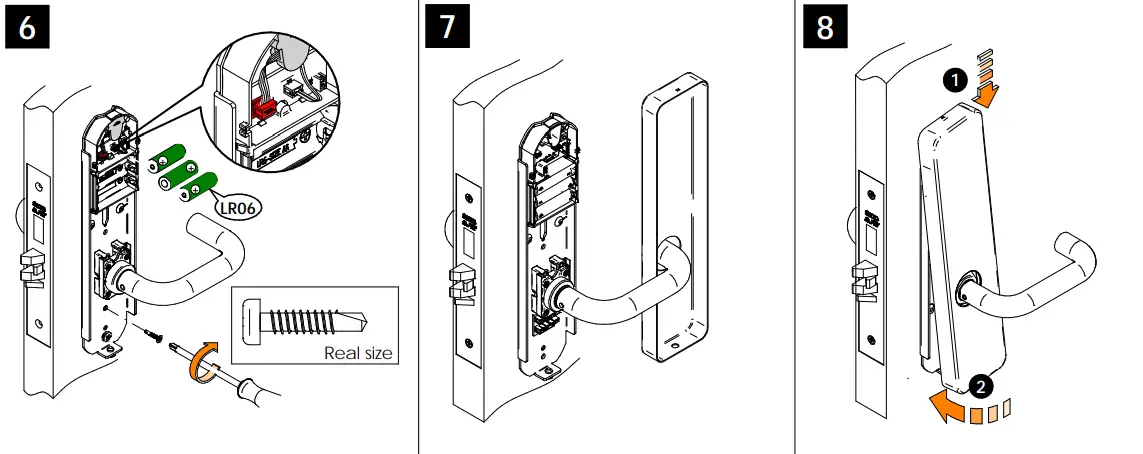

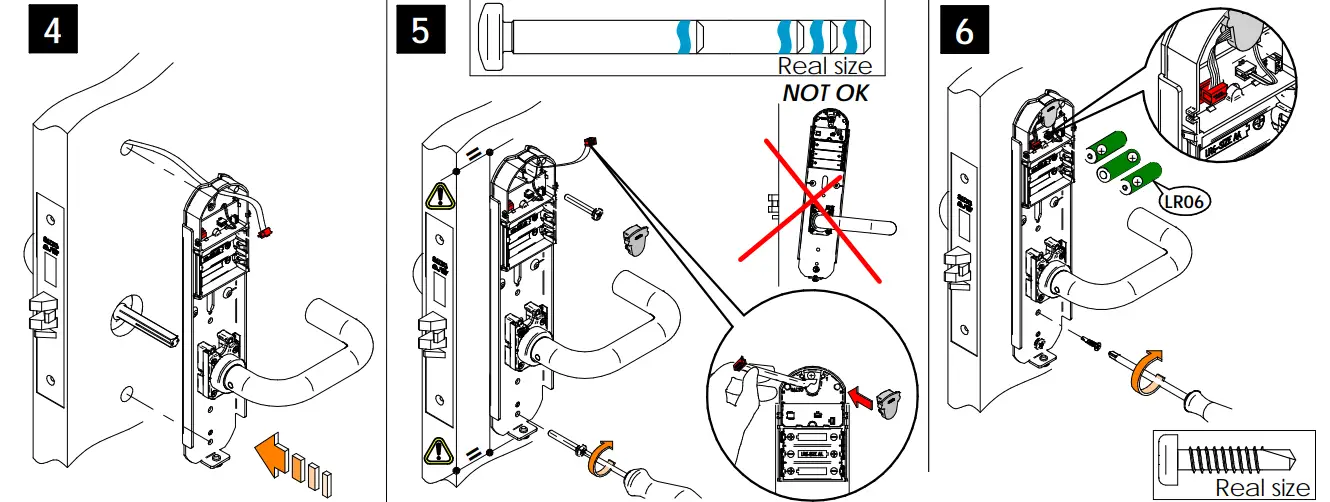

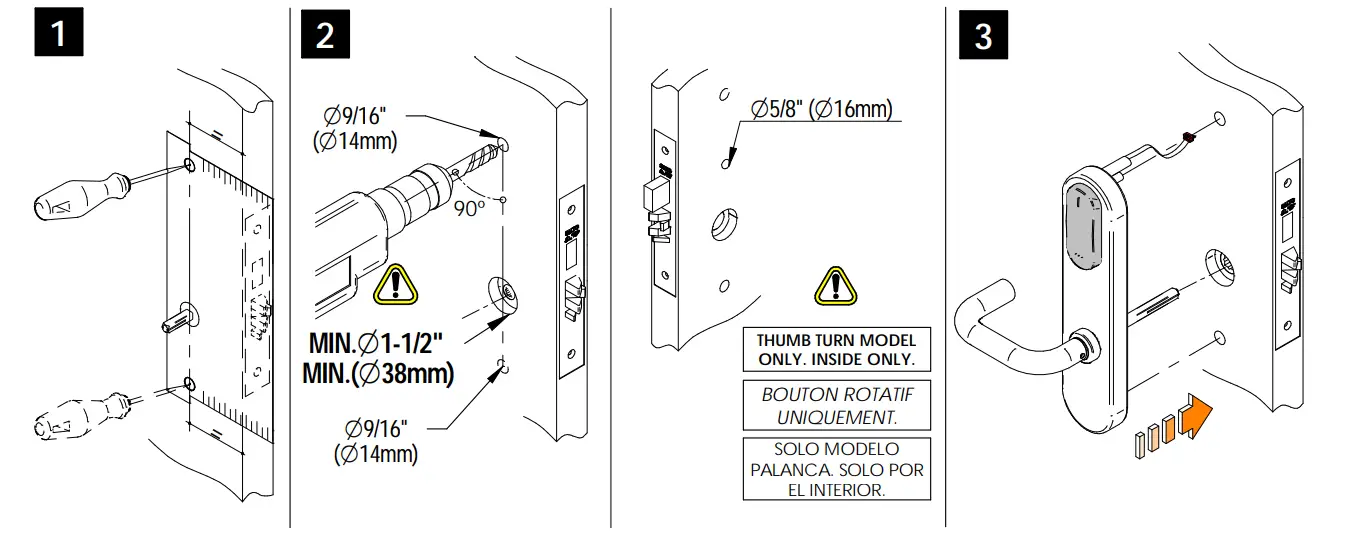

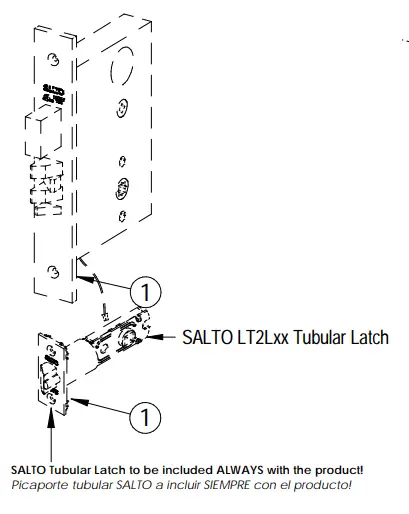

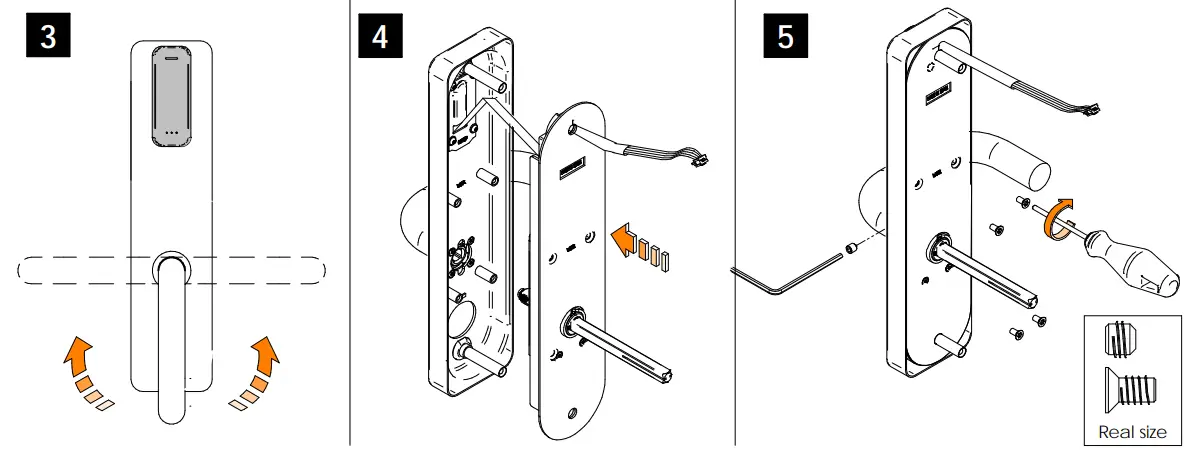

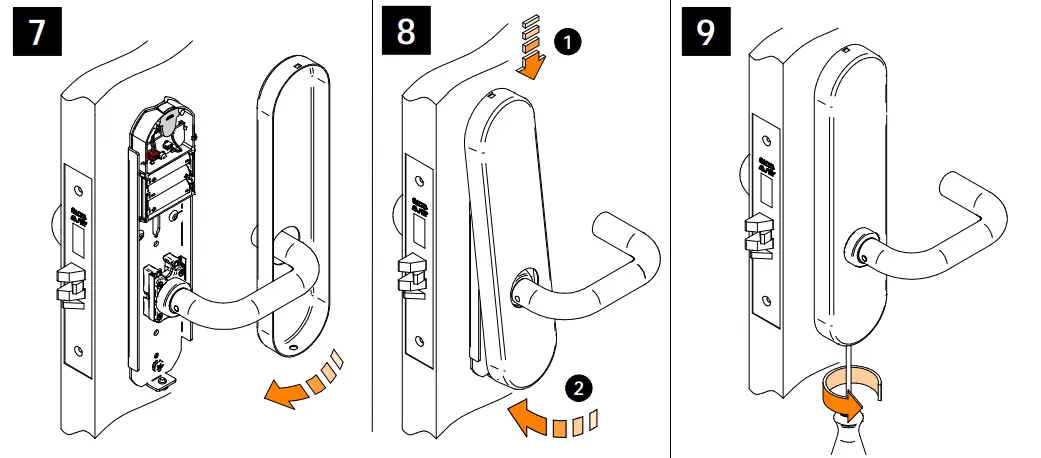

Installation

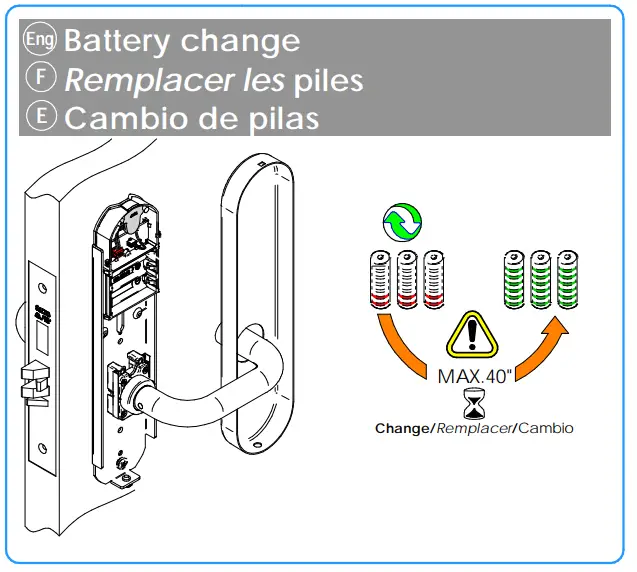

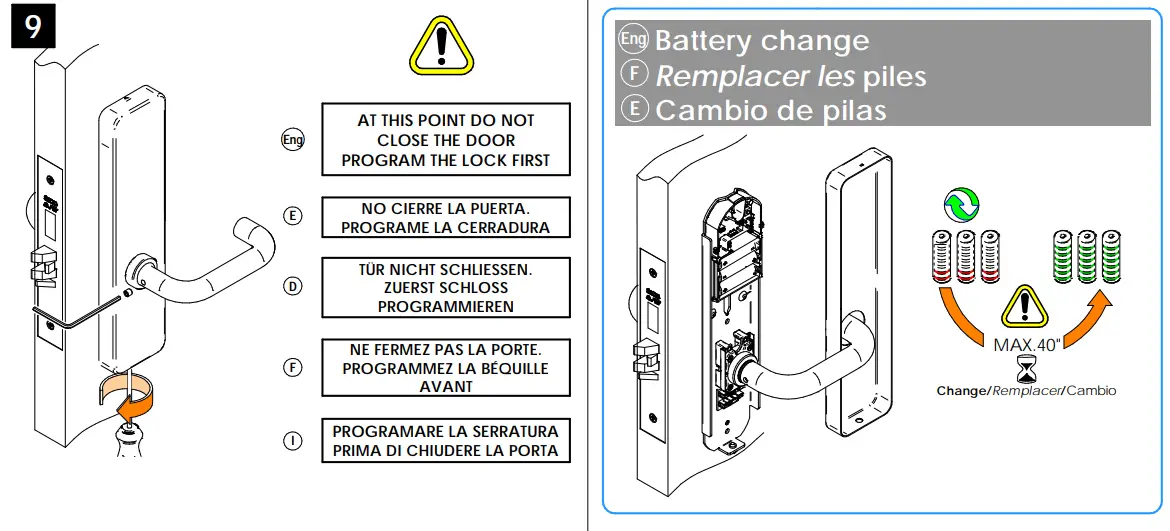

Battery Change

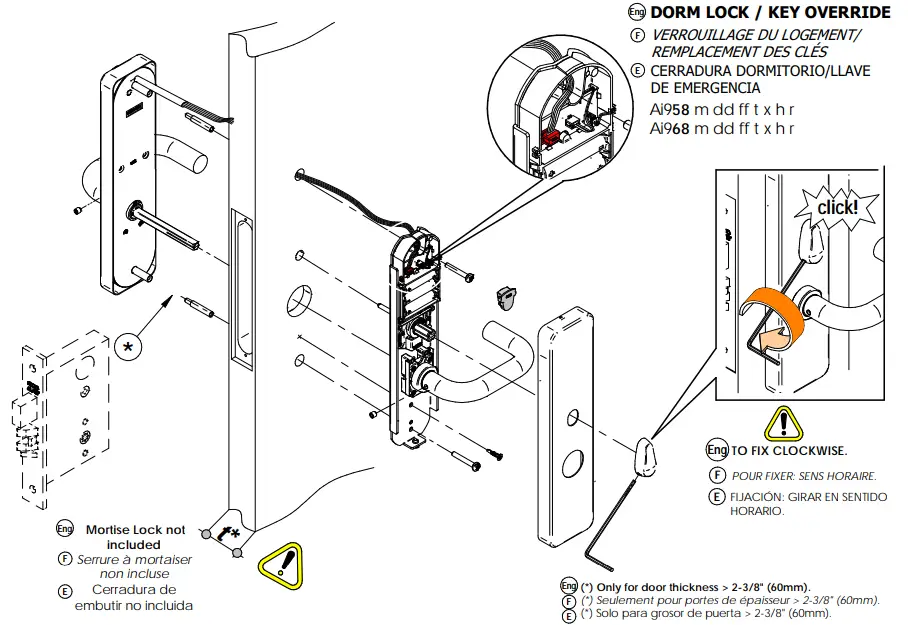

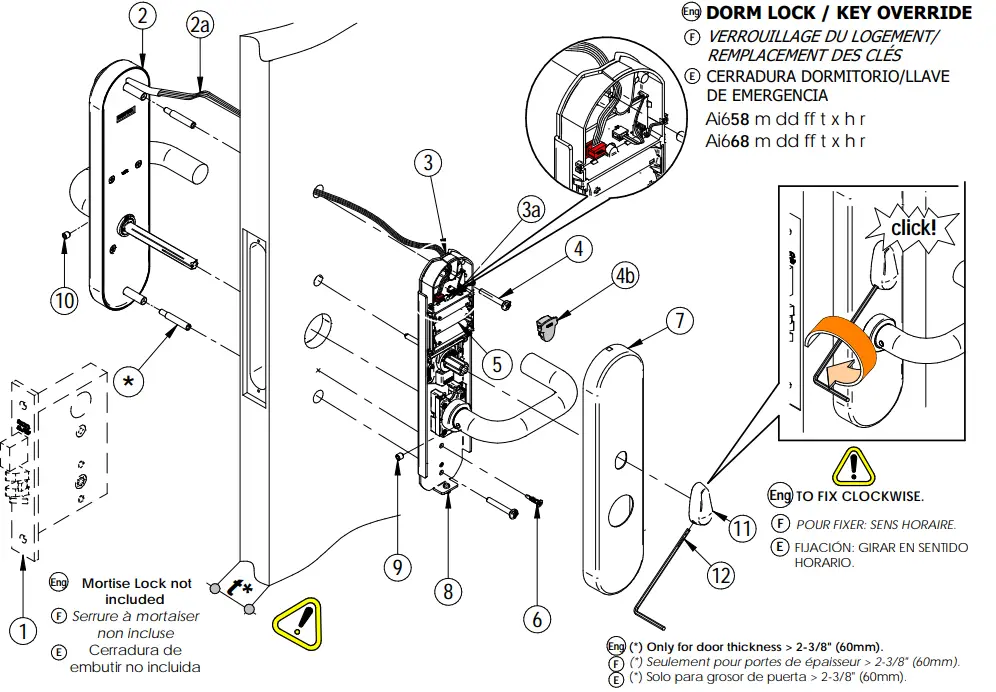

DORM LOCK

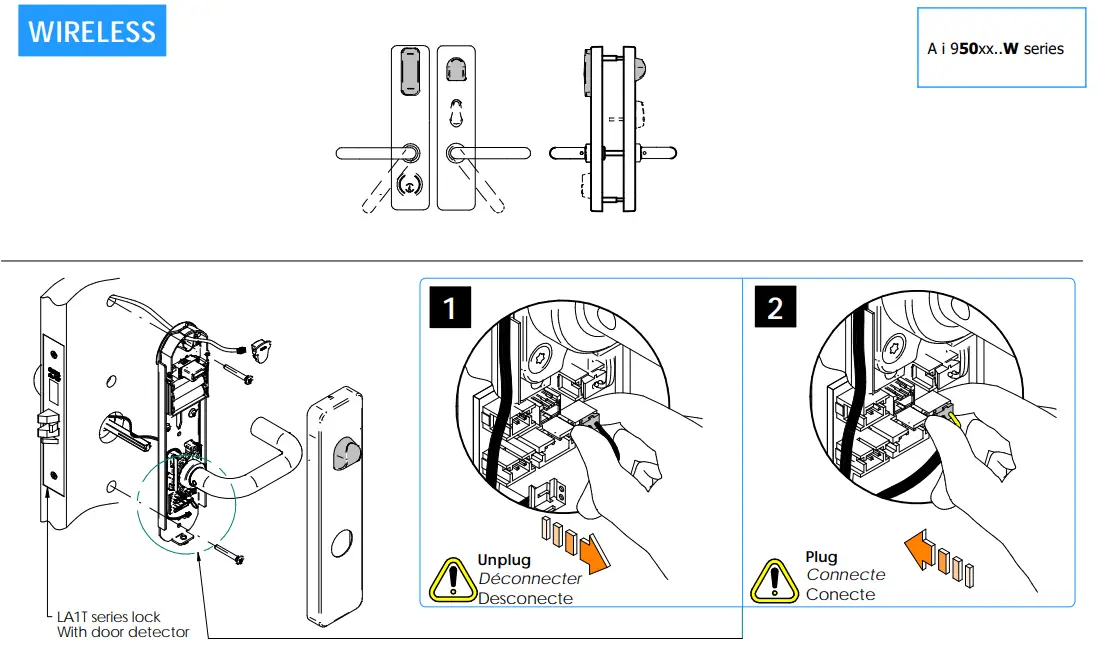

Wireless
Installation guide XS4 One+ Ai9xx…
Select handing

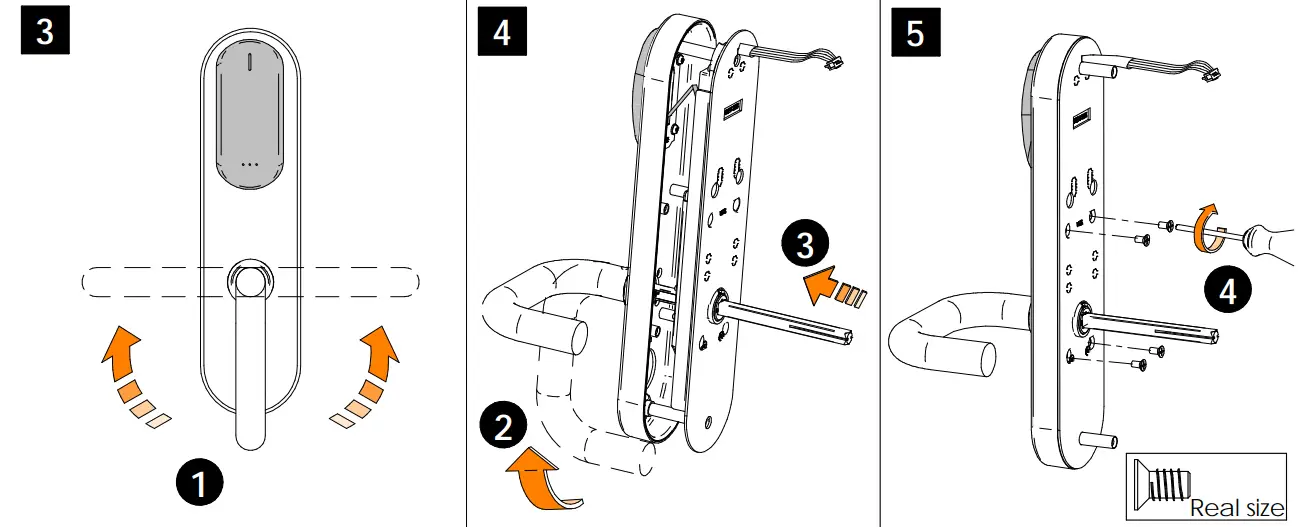

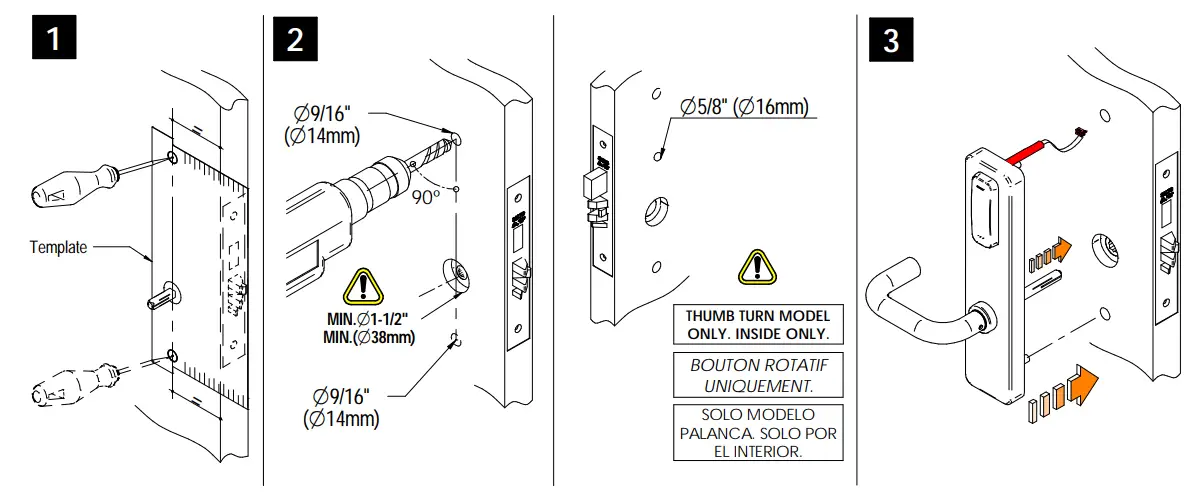

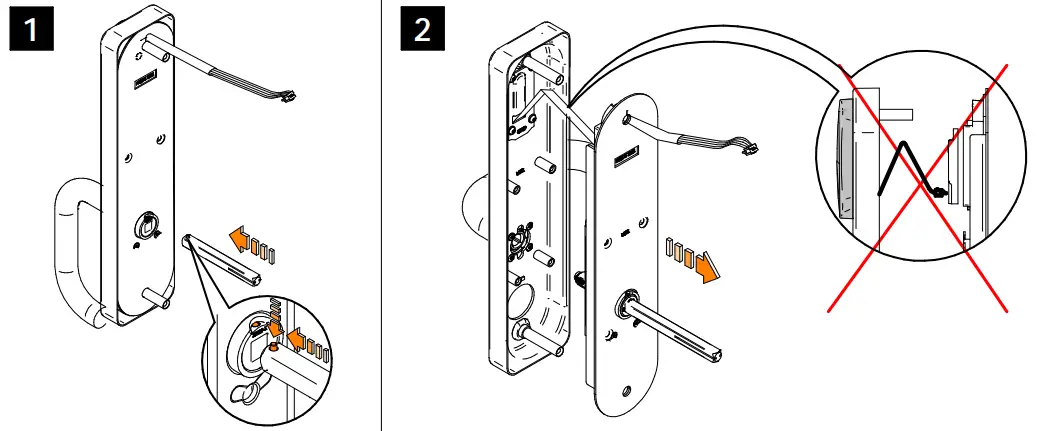

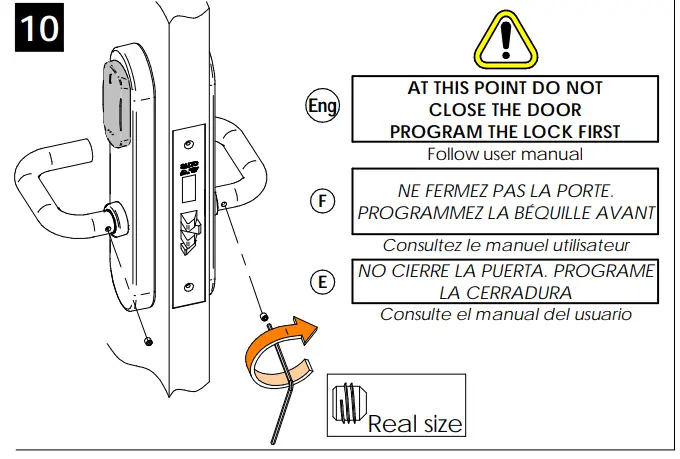

Installation
DORM LOCK / KEY OVERRIDE
WIRELESS
SALTO XS4 Original+ / XS4 One+ Additional Information

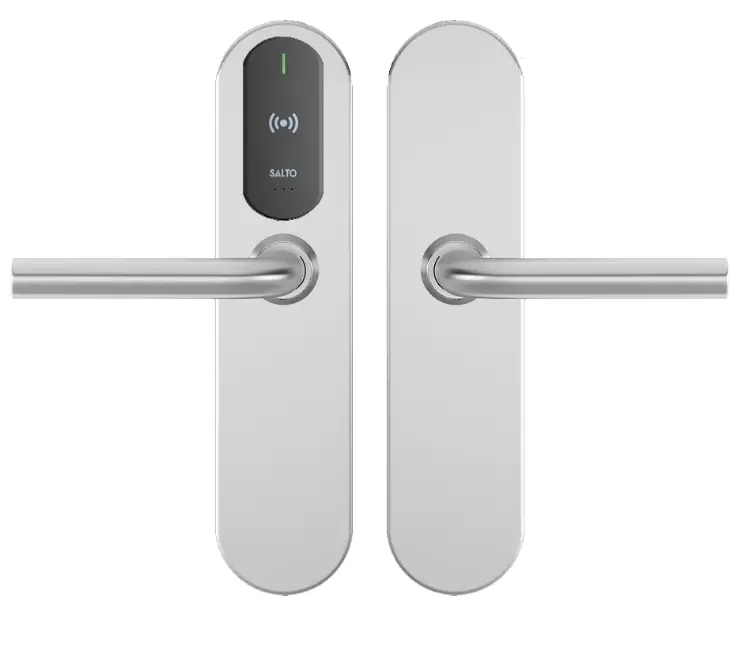

The XS4 Original+ / XS4 One+ product is a universal compatible state-of-the-art electronic escutcheon that brings the smart lock to a new technology level, combining the latest innovation in security, connectivity, and design into a battery-operated access control device.

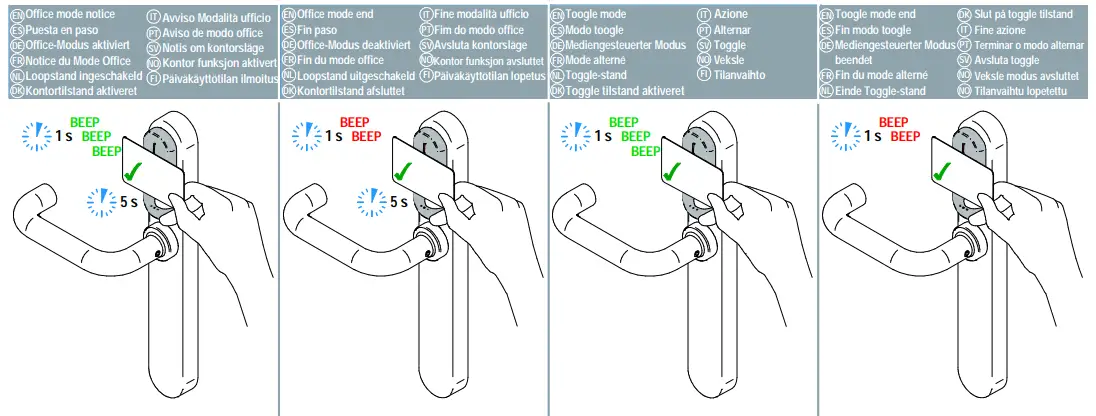

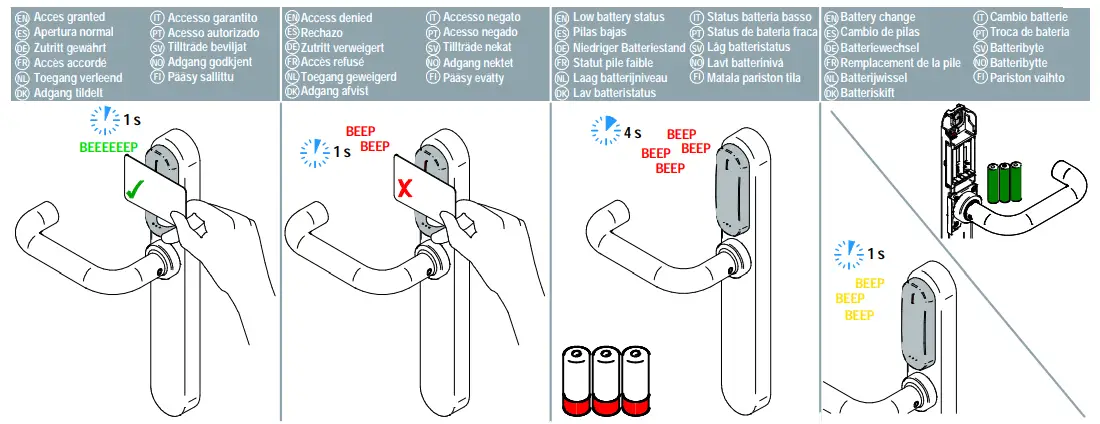

Signalling
ELECTRICAL FEATURES
| OPERATING CONDITIONS | |||
| Min. | Max. | ||
| Temperature (OUTSIDE) | -35ºC | 60ºC | |
| Temperature (INSIDE) | With LR03 Batteries | -5ºC | 50ºC |
| With FR03 batteries | -35ºC | 60ºC | |
| Humidity | 0ºC | 95% (Non-Condensing) | |
SALTO BLUEnet FEATURES
| SALTO BLUEnet FEATURES | |
| Frecuency Range | 2400-2483.5 MHz |
| Standard | Bluetooth 5.2 Compliant |
| Output TX power | +6 dBm |
| Indoor Range | 10-15m * |

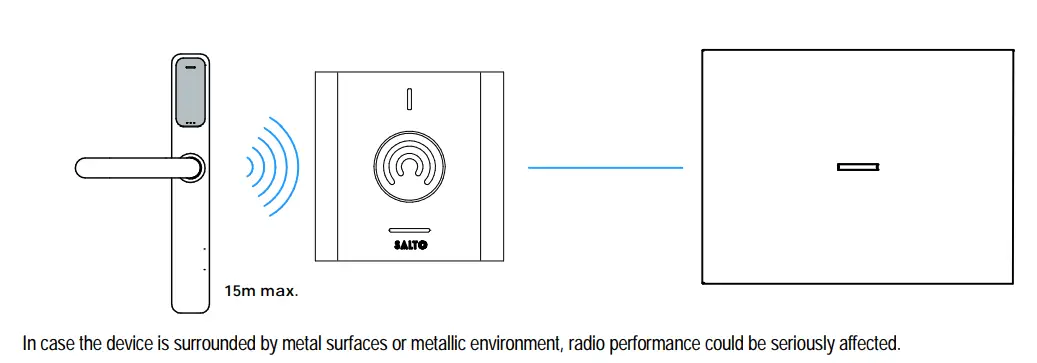

* Depending upon installed environment. To ensure correct operation, do not install the device near a metallic surface.
| RFID CHARACTERISTICS | |
| Central Frecuency | 13,56MHz |
CONFIGURATION
Compliance
PRODUCTS DESCRIPTION
| PRODUCT | TECHNOLOGY | SOFTWARE | |||||||||
|
COMMERCIAL NAME |
MODEL | RFID 13.56 MHz Output max. power | BLUETOOTH SMART 2400–2483.5 MHz Output max. power | IEEE802.15.4 2400–2483.5 MHz Output max. power |
CONTROL |
READER |
BLE MODULE |
RF2 MODULE |
MOTOR | SoC | |
| FUS | BLE Stack | ||||||||||
|
XS4 Original E0102 (A) | W09 | +25 dBm | 0037 | 0132 | |||||||
| W0B | +25 dBm | +8 dBm | 0037 | 0132 | 0136 | ||||||
| W0J | +25 dBm | +8 dBm | 0037 | 0133 | 0136 | ||||||
| W0S | +25 dBm | +2.8 dBm | 0126 | 0132 | – | ||||||
| W09W | +25 dBm | +5 dBm | 0016/0061/0095 | 0132 | 0038/0099 | ||||||
| W0BW | +25 dBm | +8 dBm | +5 dBm | 0016/0095 | 0132/0140 | 0136 | 0038/0099 | ||||
| W0JW | +25 dBm | +8 dBm | +5 dBm | 0016 | 0133 | 0136 | 0038 | ||||
| W08 | +20 dBm | 0037 | 0082 | ||||||||
| W08W | +20 dBm | +5 dBm | 0016/0061 | 0082 | 0038 | ||||||
| XS4 Original with Keypad E1215 (A) | W0BK | +25 dBm | +8 dBm | 0016/0095 | 0132 | 0136 | |||||
| W0JK | +25 dBm | +8 dBm | 0016 | 0133 | 0136 | ||||||
| W0SK | +25 dBm | +2.8 dBm | 0126 | 0132 | – | ||||||
| W0BWK | +25 dBm | +8 dBm | +5 dBm | 0016/0095 | 0132/0140 | 0136 | 0038/0099 | ||||
| W0JWK | +25 dBm | +8 dBm | +5 dBm | 0016 | 0133 | 0136 | 0038 | ||||
| XS4 Original+ E2131 (A) | W40M | +25 dBm | +6 dBm | 0174 | 0179 | 0186 | 0187 | ||||
| W60M | +25 dBm | +6 dBm | 0174 | 0179 | 0186 | 0187 | |||||
| XS4 One+ E2131 (A) | W80M | +25 dBm | +6 dBm | 0174 | 0179 | 0186 | 0187 | ||||
| W60M | +25 dBm | +6 dBm | 0174 | 0179 | 0186 | 0187 | |||||
| XS4 Original i-Button E0127 (B) | W02 | 0023/0024/ 0025 | |||||||||
EU DECLARATION OF CONFORMITY
EN Hereby, SALTO Systems S.L. (Arkotz Kalea (Pol. Lanbarren), 9 – 20180 Oiartzun– Spain), declares that this access control equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (RED) and 2011/65/EU (RoHS). You will be able to find a copy of the original declaration of conformity at the following Internet address: https://www.saltosystems.com/certificate
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
We, SALTO Systems, S.L., hereby declare that the equipment bearing the model number specified above was tested conforming to the applicable FCC Rules. Responsible Party – U.S. Contact Information
Salto Systems Inc. USA. 1780 Corporate Drive, Suite 400. Norcross, GA. 30093. l.[email protected]
ISED COMPLIANCE STATEMENT (2)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. https://www.saltosystems.com/certificate
Legend:
| Remarks: | |
| (1) FCC | Not applicable for models W08, W08W |
| (2) ISED | Not applicable for models W08, W08W |
| (3) MIC | Not applicable for W08, W08W, W40M, W60M, W80M, W02 |
| (4) IMDA | Not applicable for W08, W08W, W40M, W60M, W80M, W02 |
| (5) NCC | Not applicable for models W09, W0S, W09W, W0BW, W0JW, W08, W08W, W0SK, W0BWK, W0JWK, W40M, W60M, W80M, W02 |
Pol. Lanbarren, c/Arkotz nº9, 20180 Oiartzun, Spain.
All contents current at time of publication. SALTO Systems S.L. reserves the right to change availability of any item in this catalog, its design, construction, and/or materials.
SALTO SYSTEMS S.L. www.saltosystems.com
