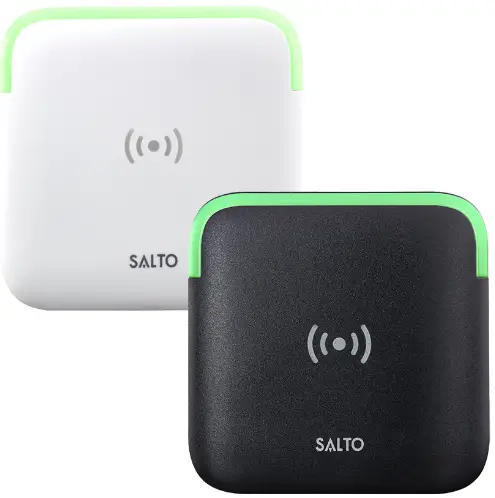

SALTO XS4 2.0 Wall Reader

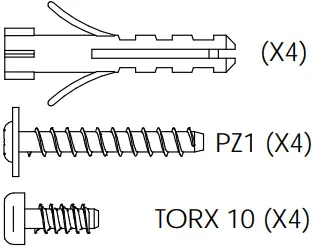

TOOLS

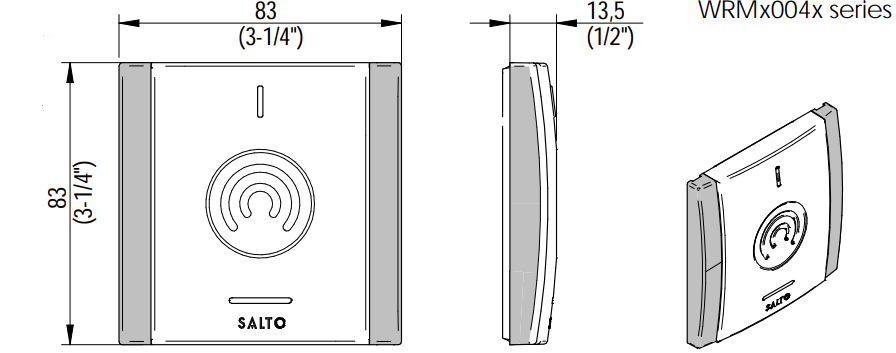

DIMENSION

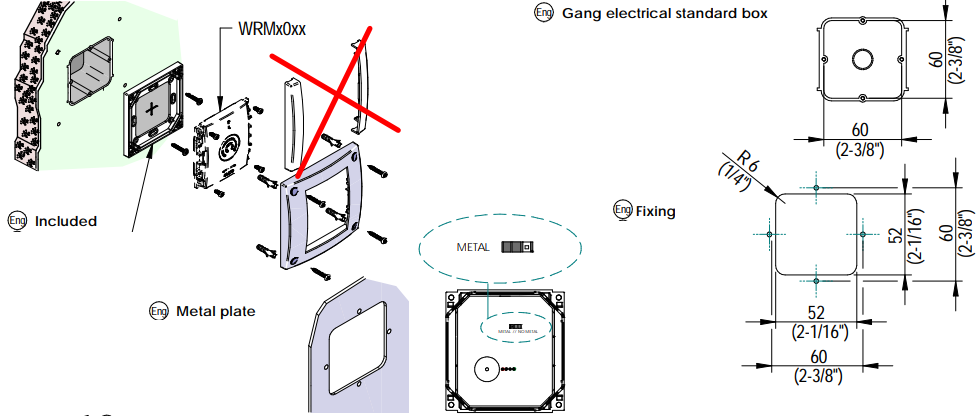

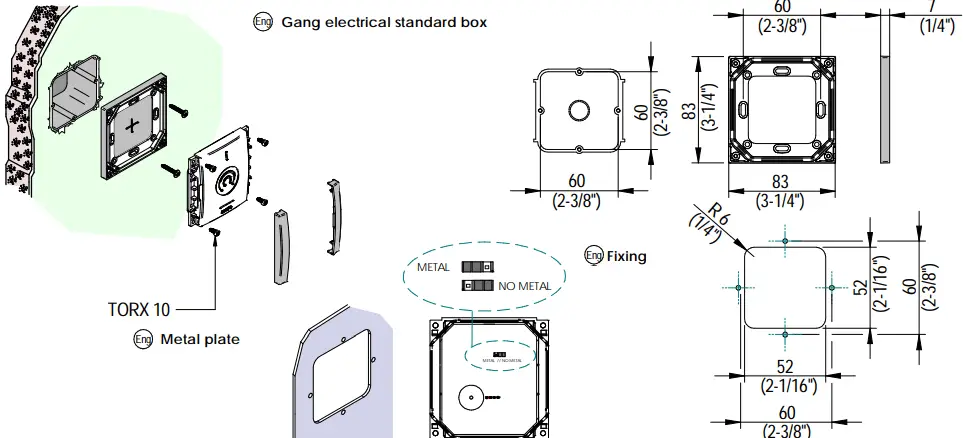

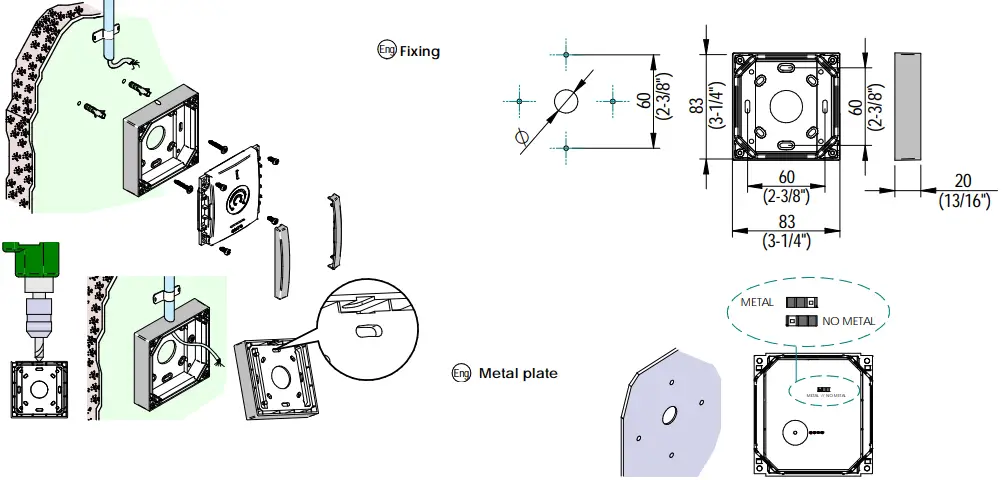

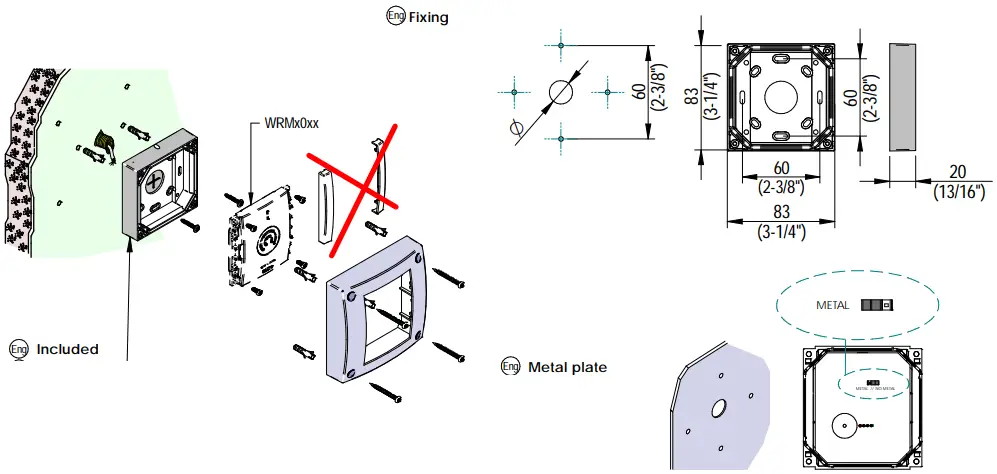

INSTALLATION

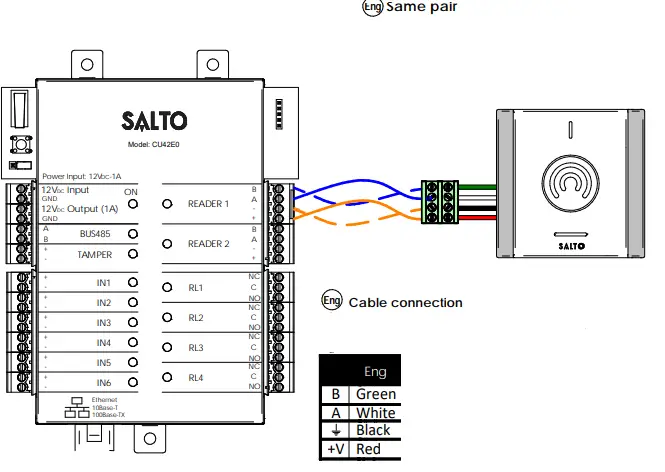

Installation example CU42xx

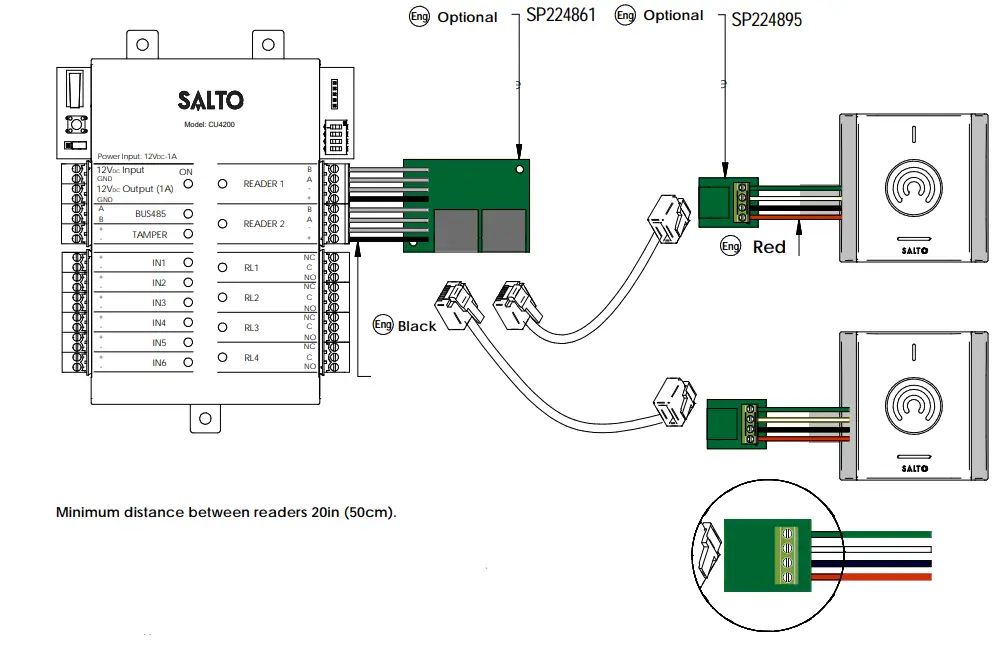

Installation example CU42xx with RJ45

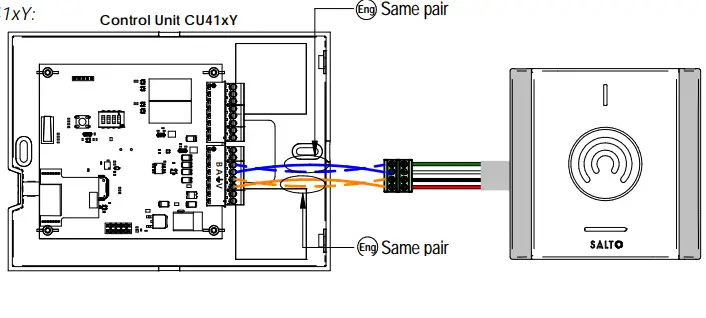

Installation example CU41xY

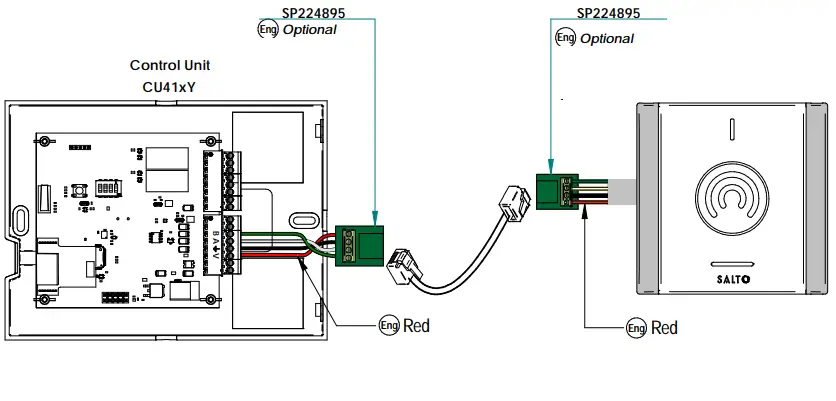

Installation example CU41xY with RJ45xx
Electrical characteristics
Operation conditions & Power Consumption Note 1
| Operation conditions | Power Consumption Note 1 | |||
| Min | Max | Unit | ||
| Temperature ‐35 | 66 | ºC | ||
| Humidity 35 | 85 | % |
Note 1: Installer must take this data into account to dimension the CU42xx power supply SALTO recommends to use one cable per wall reader
RF characteristics
| Min | Cen. | Max | Unit |
| RFID frequency Bluetooth Smart 2.4 frequency | 13.56 2.445 | 2.483 | Mhz Ghz |
Cable type and max. distances
| Cable type Reader |
| UTP Cat5e 2 pairs 100m AWG24 |
| UTP Cat5e 4 pairs 250m AWG24 + SP224861/SP224895 |
| Twisted pairs 400m AWG18 Note 2 |
SIGNALLING
| Signal | Light | Time (sec) | Buzzer | Time (sec) |
| Card Rejection | Red | 1 | High pitched 50/50 | 1 |
| Privacy or emergency status | Red 5x(50/50×3+off300) | 3 | High pitched 5x(50/50×3 + off 300) | 3 |
| Standard opening | Green | 1 | Low pitched | 0,3 |
| Standard locking | Red | 0,5 | Low pitched | 0,2 |
| Open plus office | Green 400/200 | 2,4 | High pitched/Low pitched 400/200 | 2,4 |
| CLR Button | Orange | Cont. | High pitched | Cont. |
| Reset | Orange 50/100 | 450 msg | Low pitched 50/100 | 450 msg |
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any
item in this catalog, its design, construction, and/or materials.
