PYRAMID 12380 Yamaha YZF1000R Thunderace Seat Cowl Fitting Instructions
Kit Includes
- 1X C12380 Moulding
- 1X CPADO210 Seat Pad
- 1X CFK12380 Bracket
- 4X CBOLM60009 M6 X 20mm Bolts
- 10X CWASM60001 M6 Washers
- 2X CBOLM50003 M5x 12mm Bolts
- 4X CWASM50002 M5 Washers
- 6X CNUTM60003 M6 Nyloc Nuts
Remove OEM seat & seat strap.

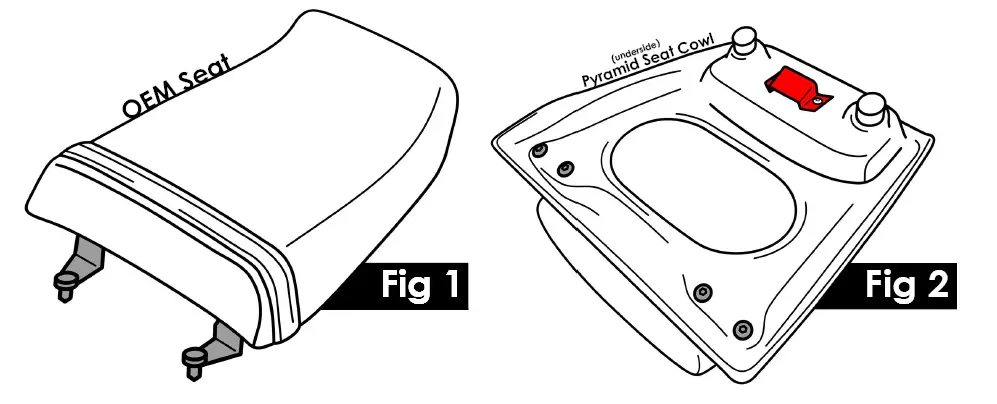

- Remove the locating brackets from the OEM Seat (marked GREY in Fig 1) and refit them onto the Pyramid Seat Cowl (locafion marked GREY in Fig 2). Bolfs are supplied with the Pyramid Seat Cowl to fit these locating brackets.
- Note: The bracket (marked RED in Fig 2) is used to clip the Pyramid Seat Cowl into position at the rear.
- Once the steps above are completed, fit the Pyramid Seat Cowl in the same way as the OEM Seat. Remember to check all fixings periodically.
