QUICK RACK SEAT STAY ADAPTER
ASSEMBLY INSTRUCTIONS

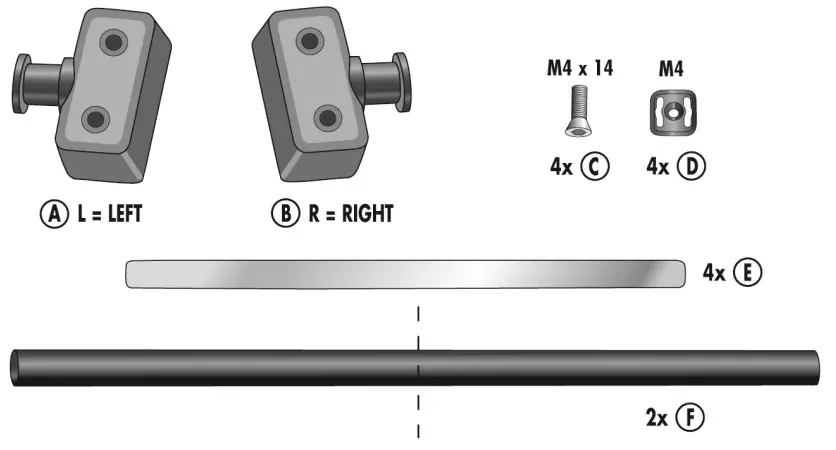

WA149 Rack Seat Stay Adapter

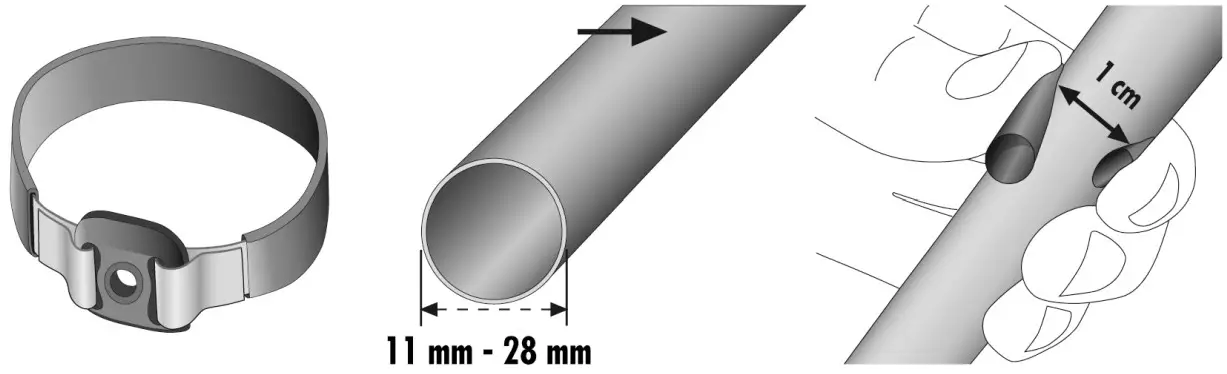

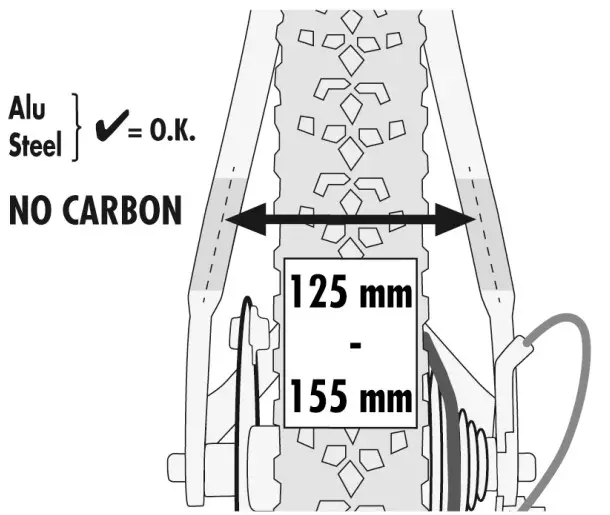

CONFIRM YOUR FRAME IS COMPATIBLE

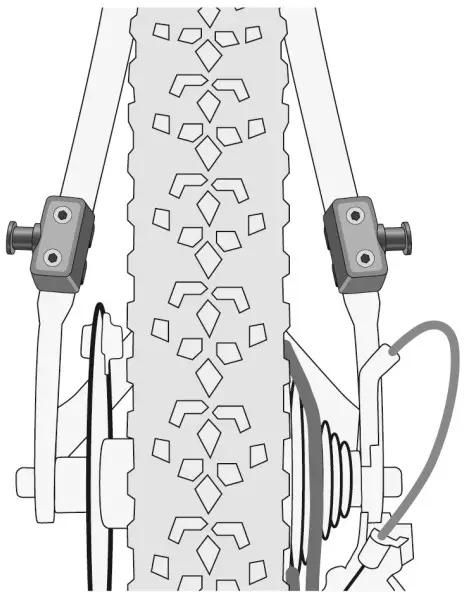

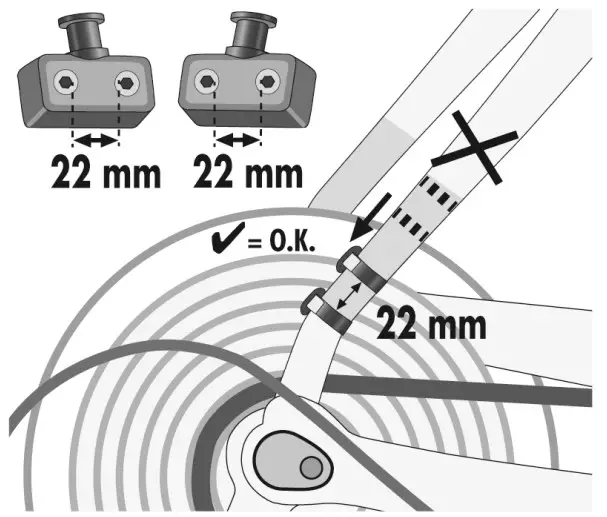

IDEAL BAND CLAMP POSITION
3.1 MEASURE THE DESIRED HEAT-SHRINK LENGTH

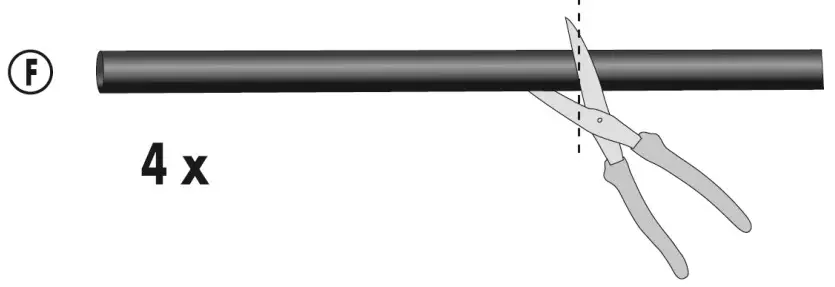

3.2 TRIM HEAT-SHRINK TO LENGTH
3.3 INSERT THE STAINLESS BAND AND CENTER

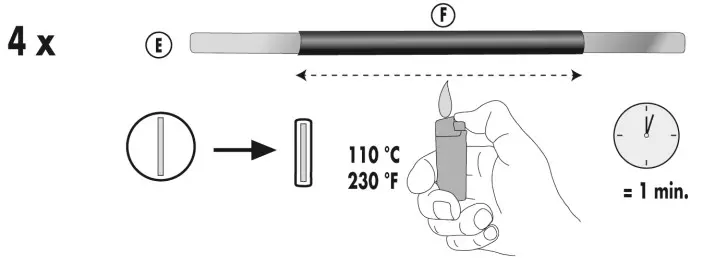

3.4 HEAT TO FIX THE HEAT-SHRINK
OPTIONAL STEPS FOR PERFECT FIT (3.5 -3.6)

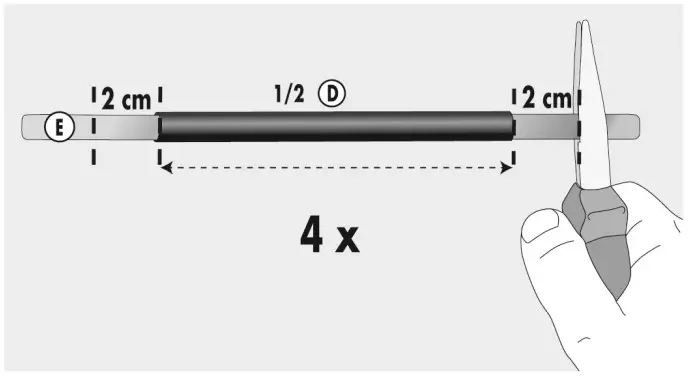

3.5 MEASURE OVERLAP (2(M) AND TRIM TO LENGTH

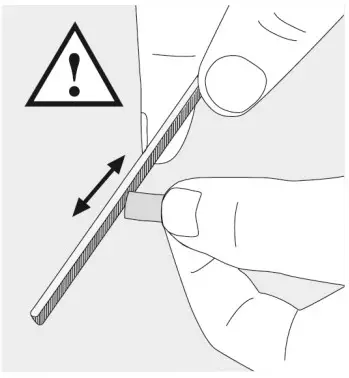

3.6 ROUND SHARP CORNERS

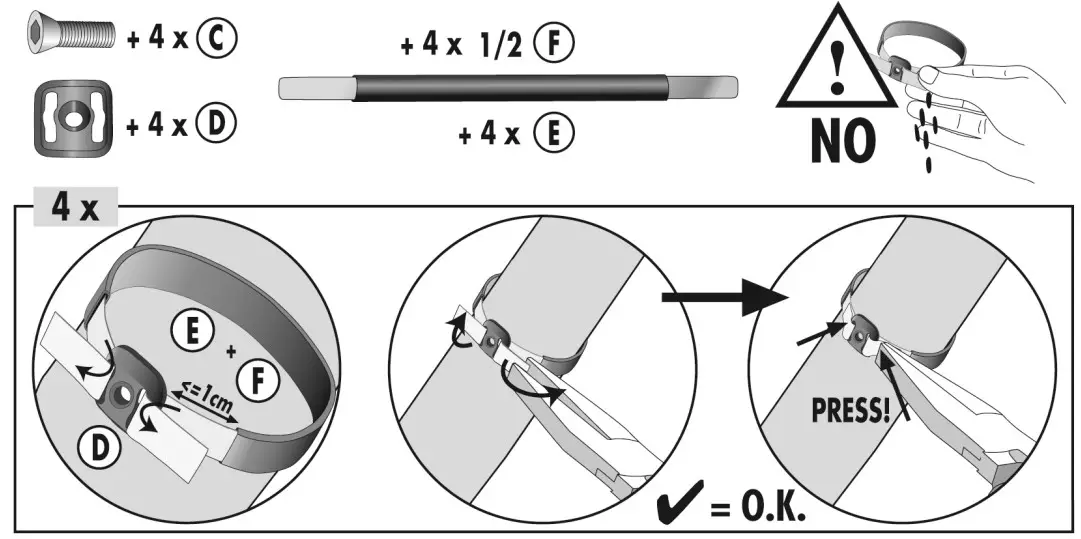

3.7 INSTALL ON TO THE SEAT STAY

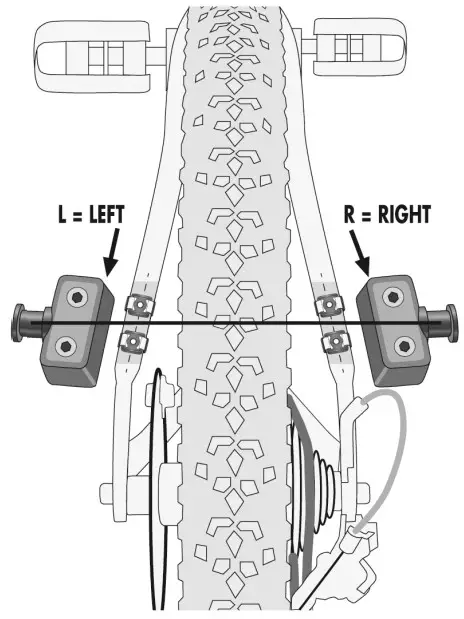

4.1. CONFIRM ADAPTER ORIENTATION

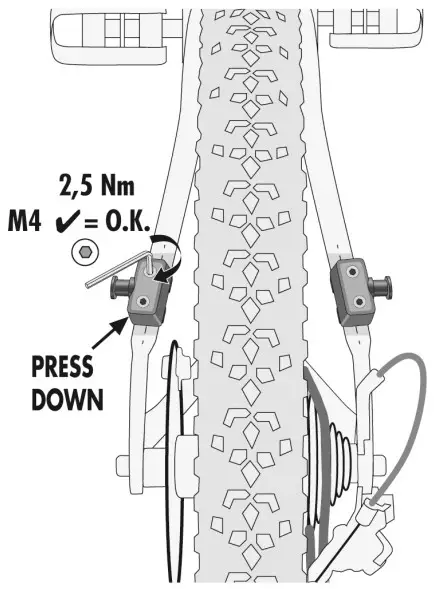

4.2 ADAPTER INSTALLATION WITH CORRECT TORQUE

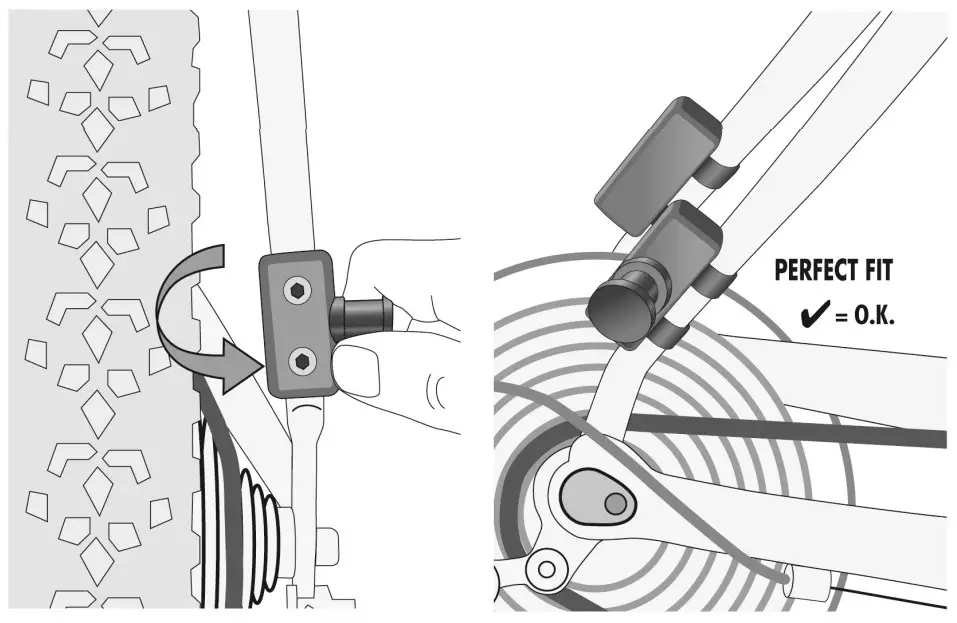

CHECK SECURE HOLD AND POSITION BEFORE RIDING (MIN. EVERY 100KM)
WEITERE INFORMATIONEN:
MORE INFORMATION:
https://youtu.be/dIt1ScUPC-c
vamortiieb.com
WA 149 0722
