BICYCLE FRAME ADAPTER
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
 |  |
SAFETY INSTRUCTIONS
SYMBOLS
| Read the instructions. |
 | Approved in accordance with the relevant directives. |
TECHNICAL DATA
| Size | 62-81 cm |
| Max load | 20 kg |
| Weight | 1 kg |
DESCRIPTION

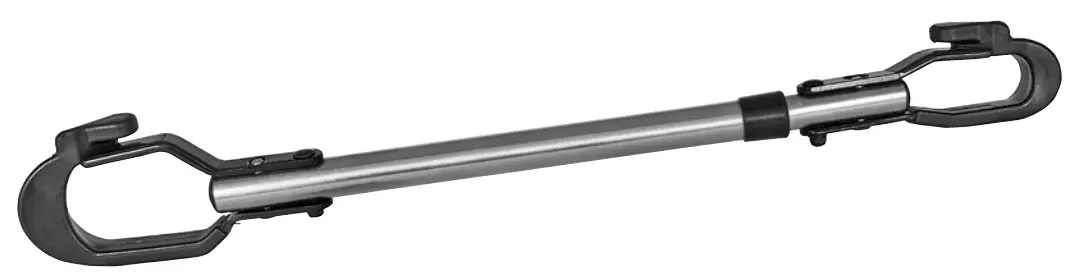

- The product is a bike carrier adapter that fits between the handlebars and saddle post on bikes with special frames in order to transport bikes. The product is used together with bike carriers mounted on the tow bar or back of the car.
FIG. 1
FIG. 2 - Both ends of the product are rubber coated in order not to scratch the bike.
FIG. 3
NOTE: The product is recommended for bikes with open frames (for example traditional women’s bikes) and children’s bikes. FIG. 4
USE
HOW TO USE
- Press the lock buttons [A] to open the end loops.
- Put the large loop [B] around the stem and the small loop [C] around the saddle post.
NOTE:

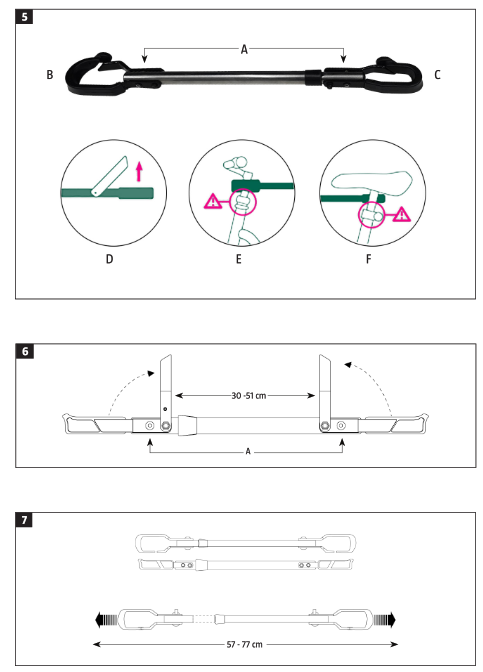

Check that the loops are turned as shown in diagram [D].
Double-check that the stem and saddle post are firmly tightened ([E] and [F]). - Close the loops and check that the lock buttons return to the locked position.
- Load and secure the bike on the bike carrier by means of the adapter. FIG. 5
NOTE
- minimum gap 30 cm
- maximum gap 51 cm FIG. 6
Adjusting the length
The length of the product can be adjusted to the frame size on the bike, up to 77 cm between the saddle post and stem. FIG. 7
NOTE:
- This product cannot be used if the gap between the saddle post and stem exceeds 77 cm.
- Minimum total length 57 cm
- Maximum total length 77 cm
Jula reserves the right to make changes. For the latest version of operating instructions, see www.jula.com
