User Instructions for Bike Carrier
Translation of the original instructions
TECHNICAL DATA
| Length | 680 mm |
| Towbar | Ø 50 mm |
USE
Read the User Instructions carefully before use.

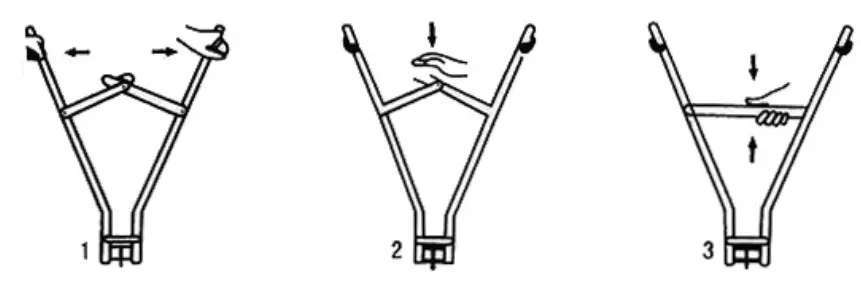

- Place the bike carrier on the towbar. Push apart the bike carrier on both sides.
- Press down the handle

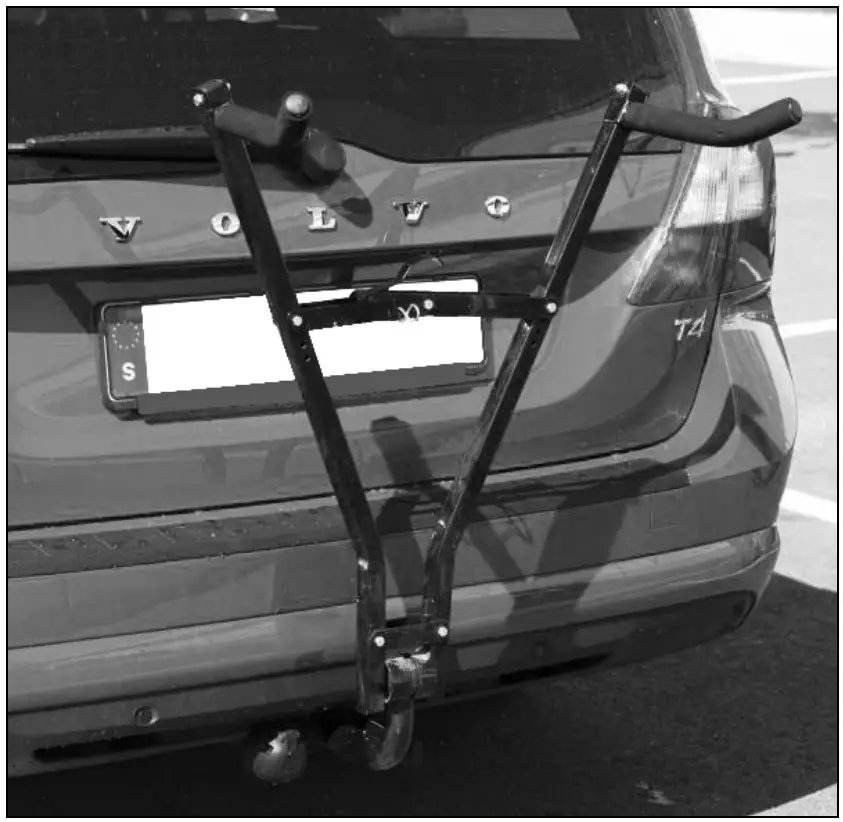

- Insert the locking pin into the holes in the tie bar to secure the bike carrier on the towbar. It is now ready to carry your bike. Remember to secure the bike properly on the bike carrier using e.g. straps.
NOTE! The tie bar with locking mechanism may need to be moved up or down in the bike carrier’s pre-drilled holes, depending on the weight of the load and the design of the towbar.
Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes.
For the latest version of operating instructions, see www.jula.com
Jula – products for home and garden
