HAMRON 016572 Motorcycle Lift
SAFETY INSTRUCTIONS
- Read and make sure you understand the safety instructions and operating instructions before using the product. Failure to do this can result in personal injury and material damage.
- Only persons with sufficient knowledge and experience of this type of machine must use the product. Users who lack experience in the functionality of the product should ask for advice before use.
- Keep children and unauthorised persons away from the work area when the product is in use.
- Never exceed the maximum permitted load – risk of personal injury and/or material damage.
- The product must only be used on a level and non-slip surface with a design basis for the actual load. otherwise the product can tip over and cause personal injury and/or material damage. The area must not be obstructed by other objects.
- Do not move the product when it is loaded.
- Keep children and unauthorised persons away from the work area.
- Always keep your hands and feet away from moving parts.
- Never make any modifications to the product.
- Check at regular intervals that the product is undamaged and working properly.
- Do not use the product if it is damaged, or not working properly.
- The product must not be used to lift persons.
- Never leave a lifted load unsupervised, and make sure that no unauthorised persons can approach the product.
- Make sure that wind or other external factors cannot put stability at risk when using the product.
TECHNICAL DATA
Max load 780 kg
Lifting height 40 cm
Size L43 x W33 x H38 cm
Weight 5 .6 kg
DESCRIPTION

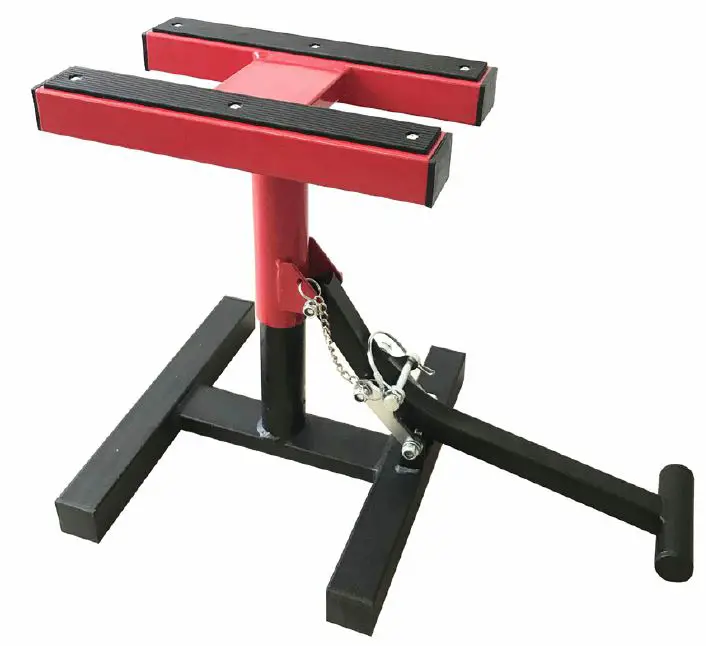

Lifting device/support with platform for motorbike, moped etc. The platform has a foot pedal that can easily lift780 kg 40 cm over the floor.

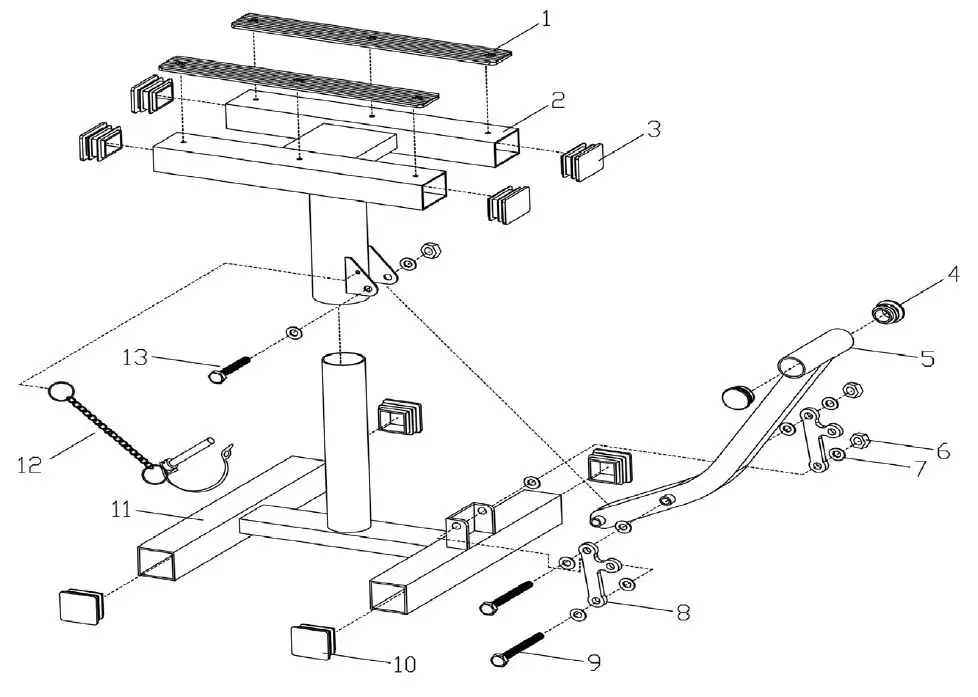

| Pas. | Designation | Qty | |
| 1 | Rubber mat | 2 | |
| 2 | Platform | 1 | |
| 3 | Rectangular cover | 4 | |
| 4 | Round cover | 2 | |
| 5 | Foot board | 1 | |
| 6 | Nut | 3 | |
| 7 | Flat pad | 10 | |
| 8 | Connecting piece | 2 | |
| 9 | Screw MS x70 | 2 | |
| 10 | Square cover | 4 | |
| 11 | Base | 1 | |
| 12 | U-pin | 1 | |
| 13 FIG. | 1 | Screw M8 x55 | 1 |
ASSEMBLY
- Assemble the parts as follows.
Part 1: B-C-pedal arm -C- D
Part 2: B -C-A-C-pedal arm -C-A- C- E Part 3: B -C -A-C-pedal arm -C-A-C- E Part 4: F
FIG. 2
FIG. 3

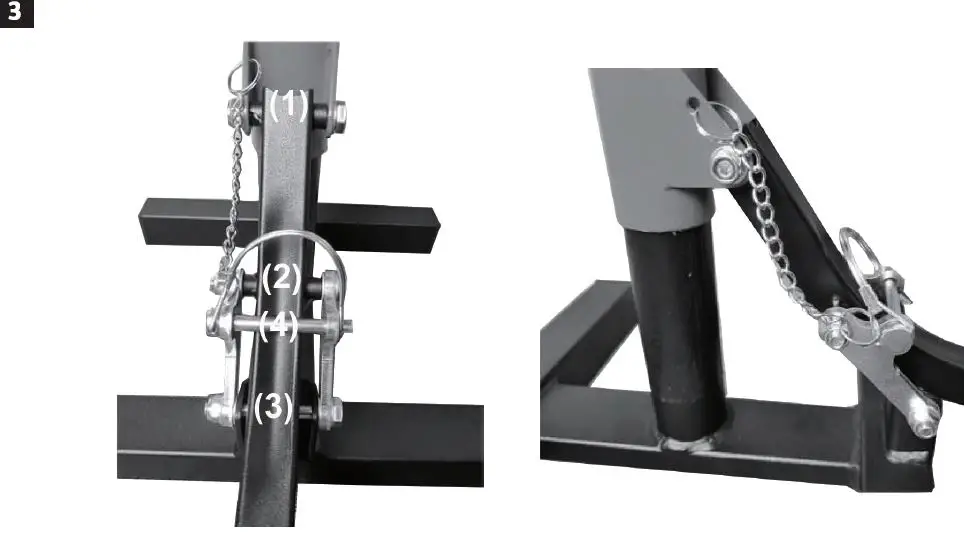

- Pull the arm to the down position and secure it with the safety pin.
FIG. 3
FIG. 4
USE
Lift up and lower the lift platform with the foot pedal. Make sure the load is well balanced and not at risk of falling off.
MAINTENANCE
- Check at regular intervals that the product is undamaged and working properly.
- Lubricate all moving parts when necessary.
- Wipe with a soft cloth and clean if necessary with a mild detergent.
- When the product is not in use it should be stored lowered down in a dry place.
