SALTO XS4 Mullion Wall Reader
Installation guide

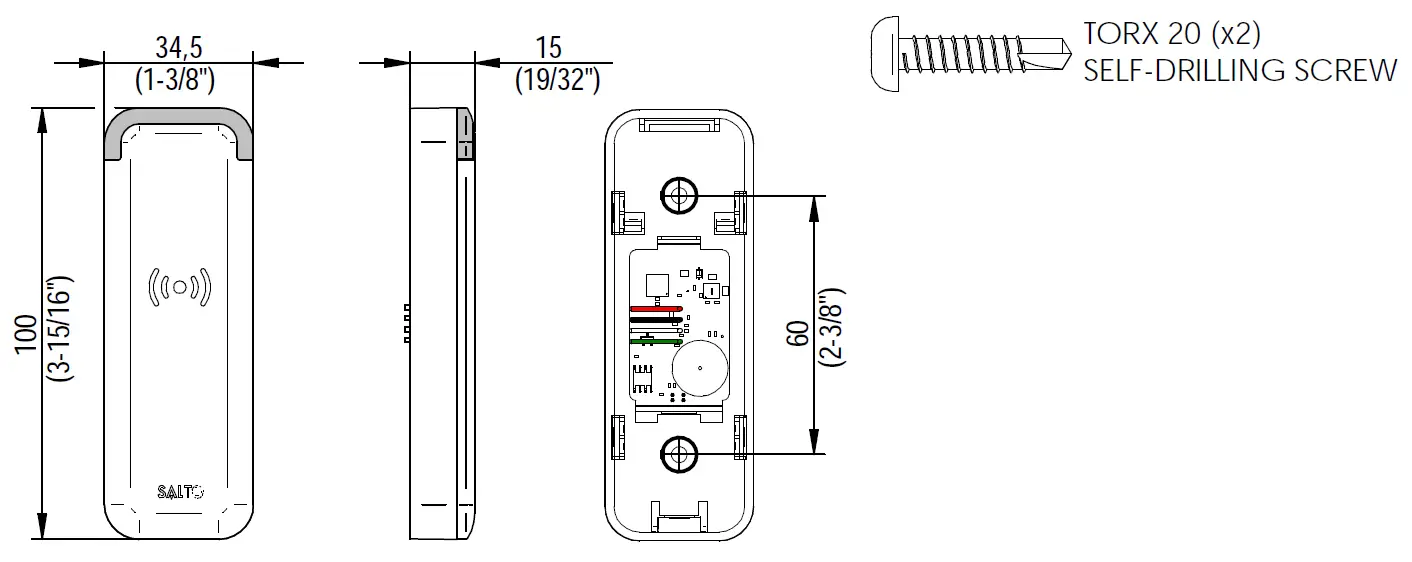

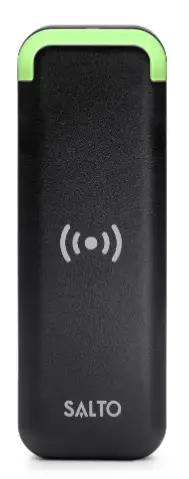

The SALTO slim wall reader for flush mounting has been specially designed to fit lifts, sliding doors or electric gate doors that have a narrow profile frame, and where there is insufficient space to install a standard wall reader.
It works in conjunction with SALTO controllers.

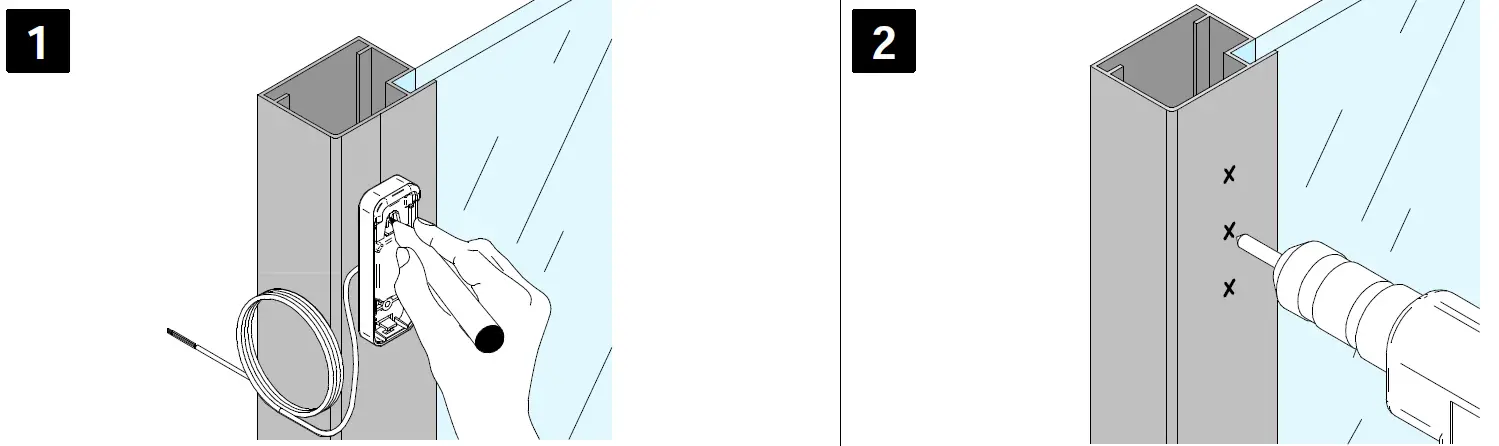

Installation
Electrical characteristics
Operation conditions
| Min. | Max. Unit | |
| Temperature WRDM0B | -30 | 70 ⁰C |
| Temperature WRDM0J | -25 | 70 ⁰C |
| Humidity | 35 | 85 % |
RF characteristics
| Min | Cen. | Max. | ||
| RFID frequency | 13.56 | Mhz | ||
| Bluetooth Smart frequency | 2.4 | 2.445 | 2.4835 | Ghz |
Cable type and max. distances
| Cable type Reader |
| UTP Cat5e 2 pairs 213ft AWG24 65m |
| UTP Cat5e 4 pairs 656ft AWG24 + 200m SP224861/SP224895 Nota2 |
| Pares trenzados 984ft AWG18 300m |
Note: UL tested at 100m at AWG 24.
Power Consumption Note1
| Min | Max | Unit |
| Reader | 195 | mA |
Note 1: Installer must take this data into account to dimension the CU42xx power supply.
Mullion Reader only for use with the SALTO Control Units.
SALTO recommends to use one cable per wall reader.

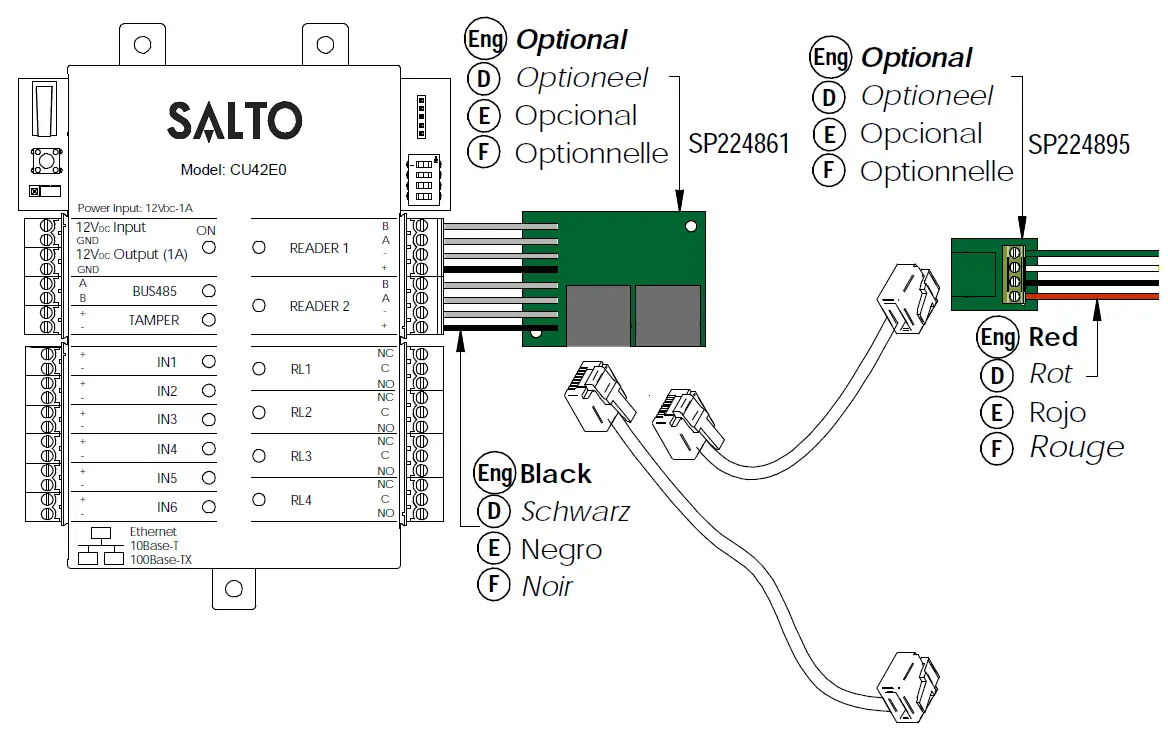

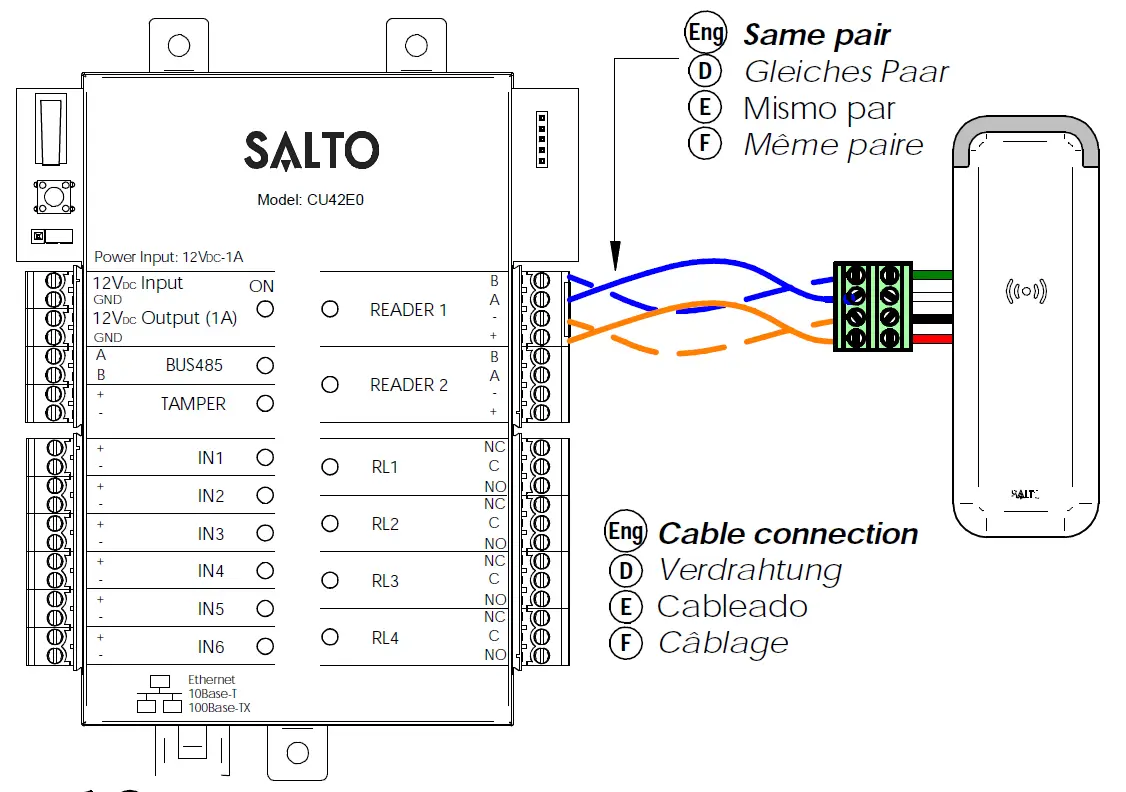

Installation example CU42xx
| B | Green |
| A | White |
| Black | |
| +V | Red |

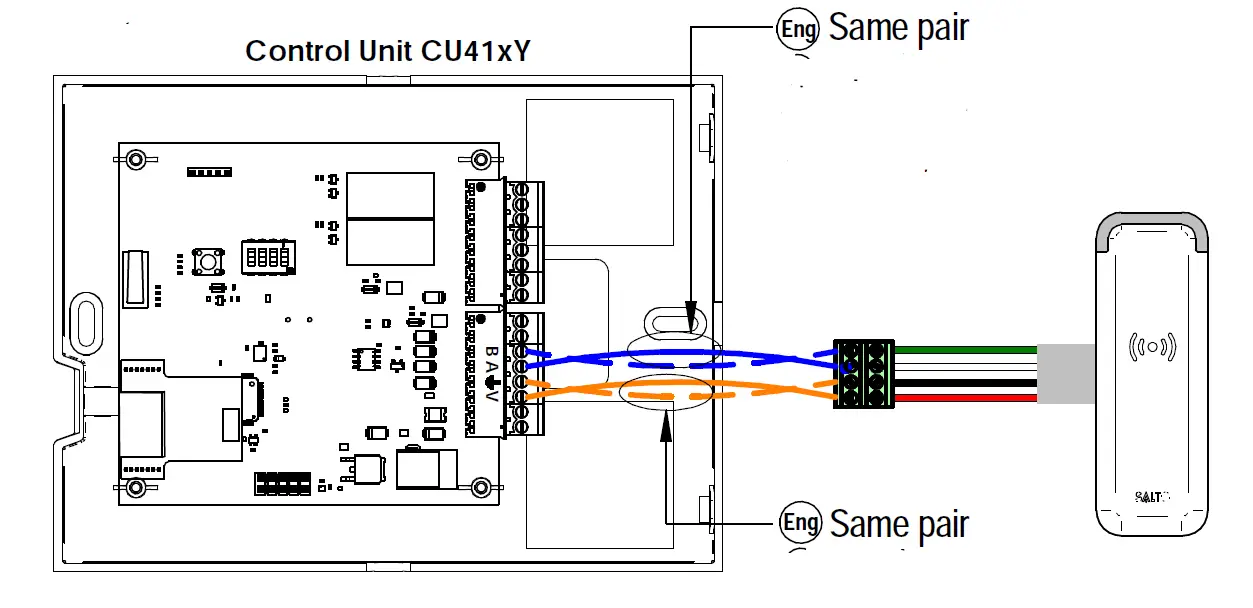

Installation example CU41xY:
Installation example CU42xx with RJ45xx:
Minimum distance between readers 20in (50cm).
Installation example CU41xY with RJ45xx:
