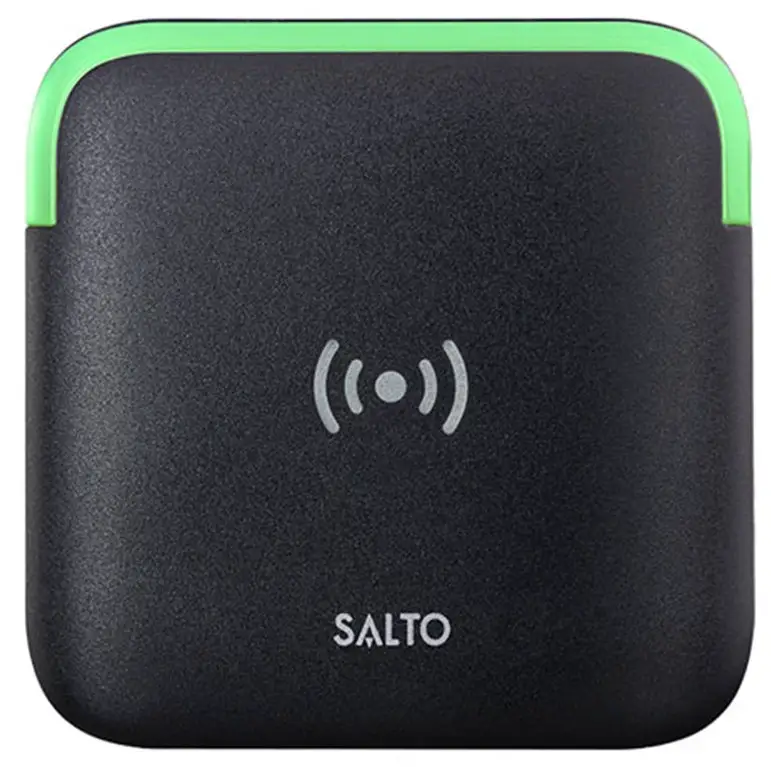

SALTO WRDx0E4x European Wall Reader

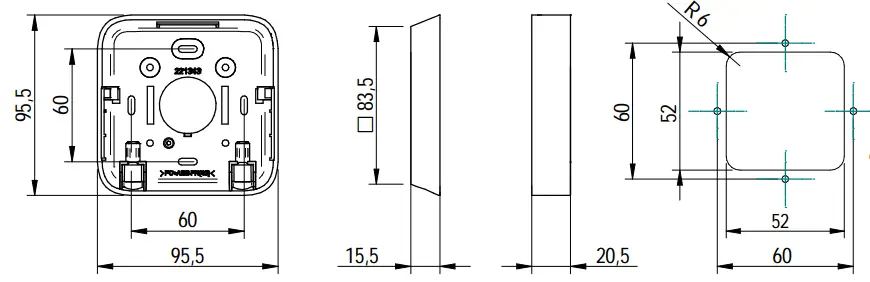

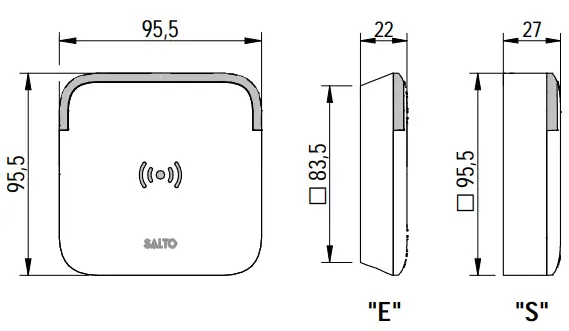

DIMENSION
HARDWARE LIST

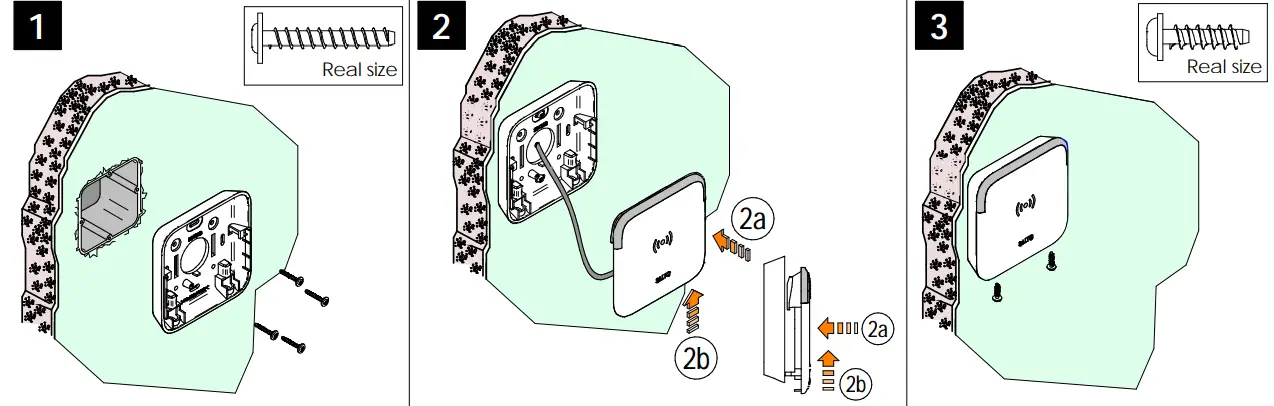

Installation
Gang electrical standard box
UL Statements
Tested by UL with Mifare (DESFIRE, ULTRALIGHT C) and HID iCLASS RFID communication, and with Mobile APP (JustIN Movile version 2.x) through Bluetooth version 4.2. Minimum Operating System version for Android: 4.3 or later and for iOS: 10.0 or later. A means of verification shall be employed by the user to enable access to the wireless electronic device such as a PIN or biometric feature. The wireless electronic device is not capable of command, control, programming, or any other system manipulation and it is only to be used in the same manner as a physical credential. Wiring methods that shall be in accordance with the National Electrical Code, ANSI/NFPA 70 or CSA C22.1-02 – Canadian Electrical Code, Part 1, Safety Standard for Electrical Installations

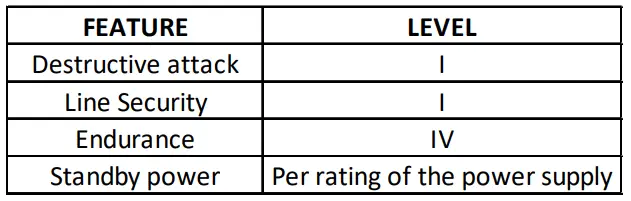

UL294 performance level:
Comply with ULC-S319 Class I
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to ICES-00.
Electrical characteristics
Operation conditions
| Min. Max. Unit | |||
| Temperature | WRD0B – WRD0BK | -35 -31 | +66 °C +150 °F |
| Temperature | WRD0J – WRD0GK – WRD0JK | -25 -13 | +66 °C +150 °F |
| Humidity | 35 | 85 % | |
RF characteristics
| Min | Cen. | Max | Unit | |
| RFID frequency | 13.56 | Mhz | ||
| Bluetooth Smart frequency | 2.4 | 2.445 | 2.483 | Ghz |
Power Consumption Note 1
| Min | Max | Unit |
| Reader | 150 | mA |
| Reader+Keyboard | 250 | mA |
Note 1: Installer must take this data into account to dimension the CU42xx power supply
Readers only for use with the SALTO Control Units.
SALTO recommends to use one cable per wall reader.
Cable type and max. distances
| Cable type Reader Reader +keypad |
| UTP Cat5e 2 pairs 328ft 196ft AWG24 100m 60m |
| UTP Cat5e 4 pairs 820ft 492ft AWG24 + 250m 150m SP224861/SP224895 |
| Twisted pairs 1312ft 918m AWG18 Note 2 400m 280m |

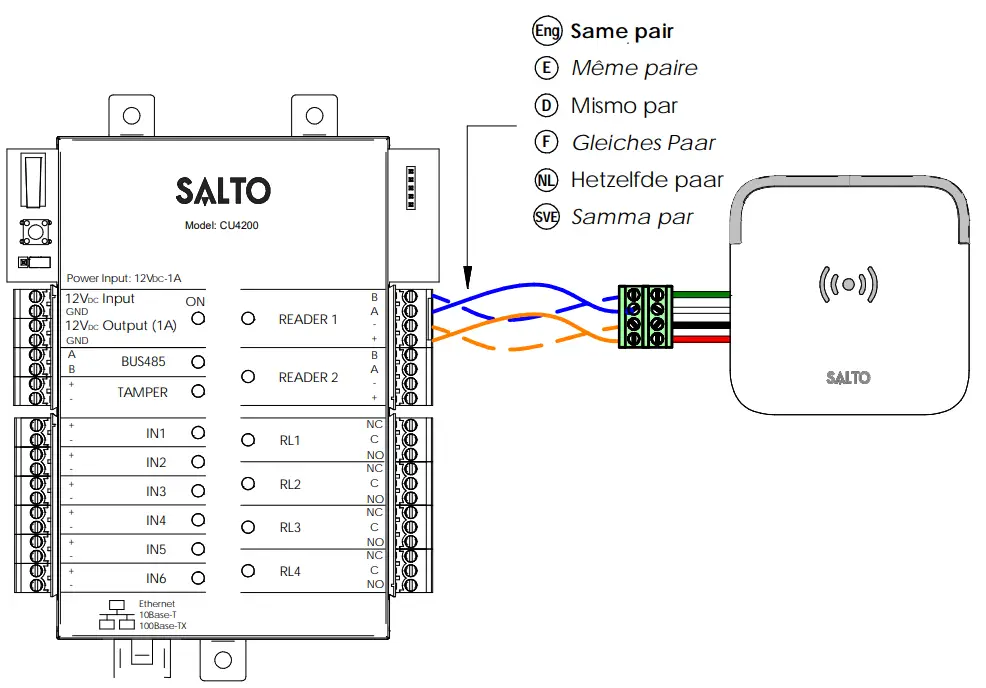

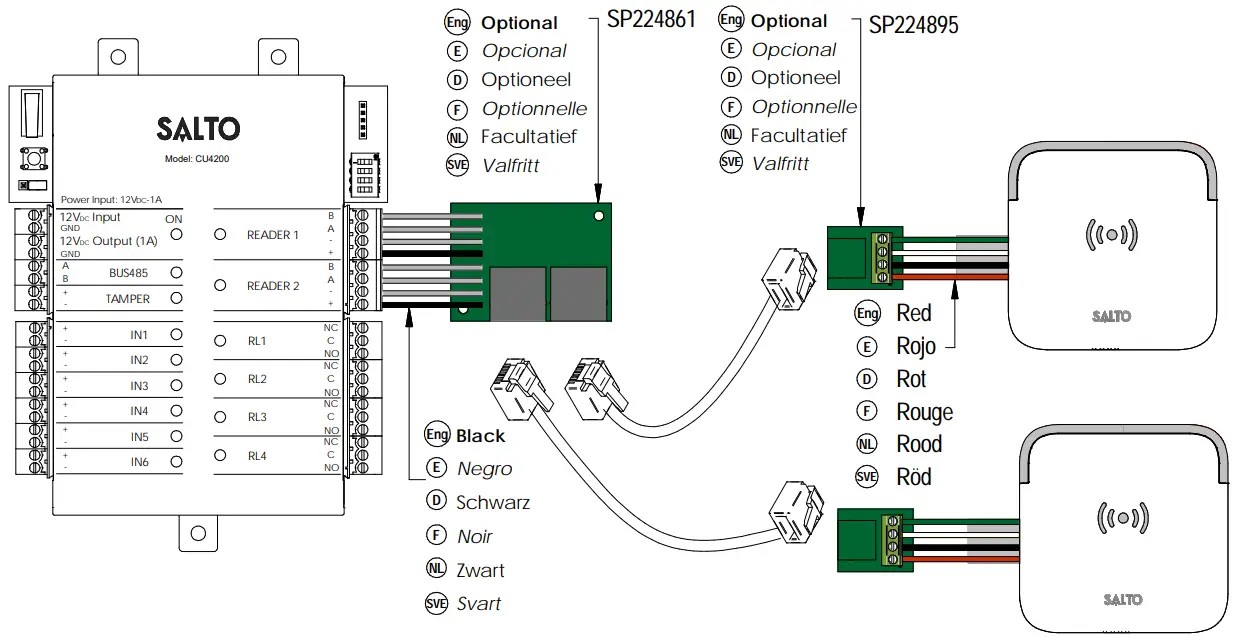

Installation example CU42xx:
Cable connection
| B | Green |
| A | White |
| Black | |
| +V | Red |

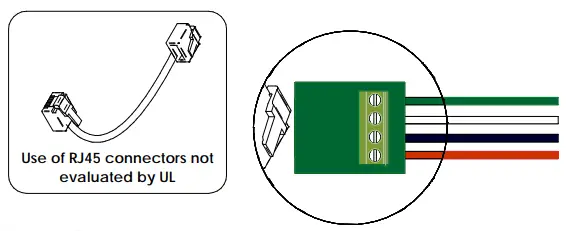

Installation example CU42xx with RJ45

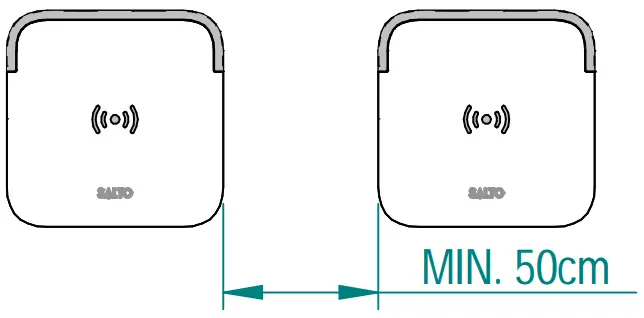

Minimum distance between readers 20in (50cm).

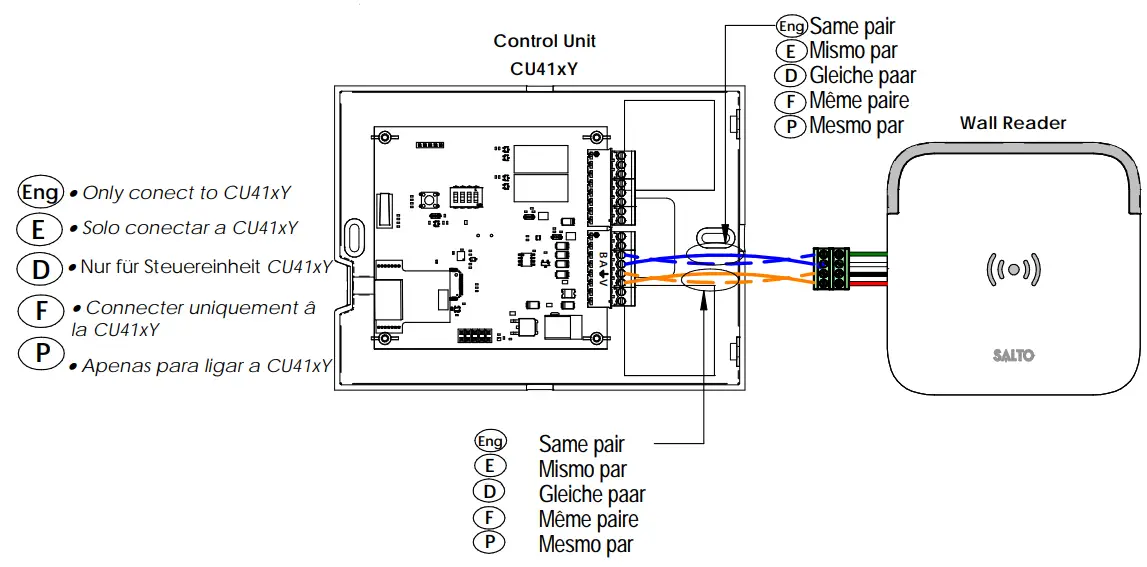

Installation example CU41xY

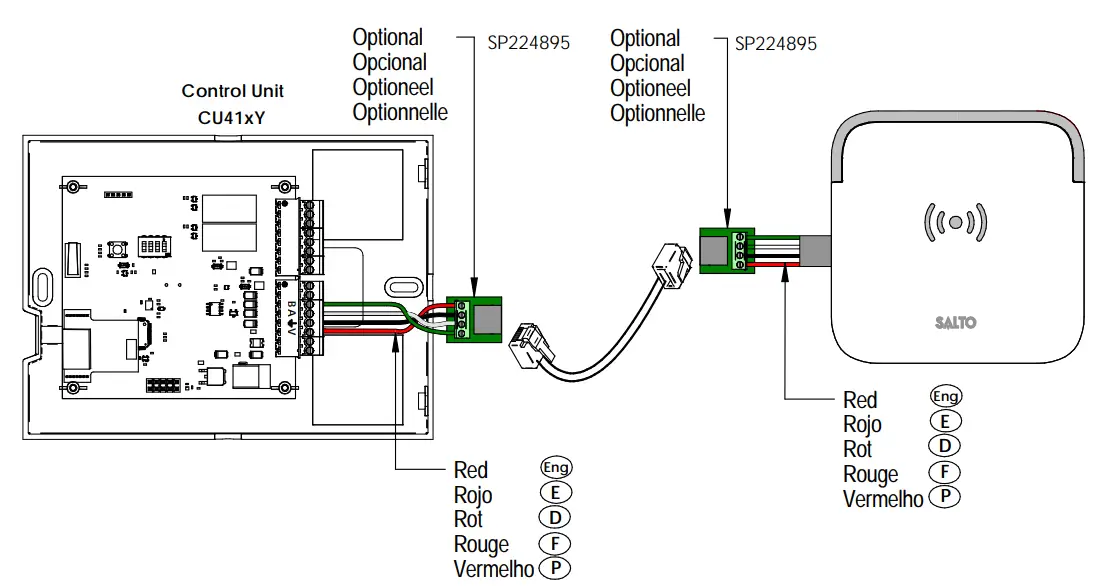

Installation example CU41xY with RJ45
ATTENTION- Information for a good functioning.
SIGNALLING
| Signal | Light | Time (sec) | Buzzer | Time (sec) |
| Card Rejection | Red | 1 | High pitched 50/50 | 1 |
| Privacy or emergency status | Red 5x(50/50×3+off300) | 3 | High pitched 5x(50/50×3 + off 300) | 3 |
| Standard opening | Green | 1 | Low pitched | 0,3 |
| Standard locking | Red | 0,5 | Low pitched | 0,2 |
| Open plus office | Green 400/200 | 2,4 | High pitched/Low pitched 400/200 | 2,4 |
| CLR Button | Orange | Cont. | High pitched | Cont. |
| Reset | Orange 50/100 | 450 msg | Low pitched 50/100 | 450 msg |
All contents current at time of publication.
SALTO Systems S.L. reserves the right to change availability of any item in this catalog, its design, construction, and/or materials.
