Inels WMR3-21 Wall Card Reader
Technical parameters
WMR3-21
| Inputs | |
| Number of control buttons: | 2 |
| RFID readers | |
| Supported frequencies: | 13.56 MHz |
| Card Type: | MIFARE Ultralight, DESFire 2K (EV1), DESFire 4K (EV1) |
| Outputs | |
| Output: | 1x changeover 8 A/AgSnO2 |
| Indication: | two-color LED (red, green) |
| Acustic output: | o-color LED (red, green) piezo-changer |
| Switching voltage: | 230 V A/30 V DC |
| Switching output: | 2000 VA/AC1; 240 W/DC |
| Peak current: | 20 A/<3s |
| Insulation voltage between relay outputs and internal circuits: | 3.75 kV, SELV according to EN 60950 |
| Minimal switched current: | 10 mA/10 V |
| Switching frequency without load: | 300 min-1 |
| Mechanical life: | |
| Installation BUS | BUS |
| Power supply | |
| Supply voltage/tolerance: | 27 V DC, -20/+10 % |
| Dissipated power: | max. 0.5 W |
| Rated current: | 50 mA (at 27 V DC), from BUS |
| Connection | |
| Data: | terminals, 0.5 – 1 mm2 |
| Network: | max. 2.5 mm2 /1.5 mm2 with sleeve |
| Operating conditions | |
| Operating temperature: | -20 to +55 °C |
| Storing temperature: | -30 to +70 °C |
| Protection degree: | IP20 |
| Overvoltage category: | II |
| Pollution degree: | 2 |
| Operation position: | any |
| Installation: | into installation box |
| Dimensions and weight | |
| Dimensions | |
| – plastic: | 85.6 x 85.6 x 42 mm |
| – metal, glass, wood, granite: | 94 x 94 x 36 mm |
| Weight: | 68 g (without frame) |

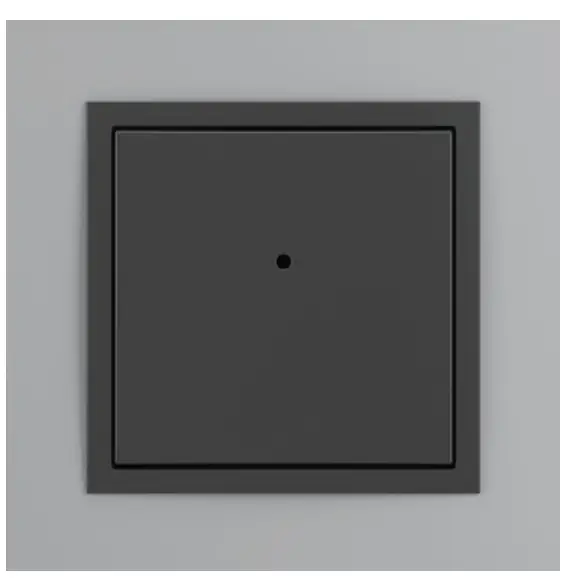

- WMR3-21 is a wall-mounted card reader that is designed for read contactless media (smart cards, key chains, etc.), which are used for controlling access to buildings or their parts.
- With the glass controller WMR3-21 users will appreciate the easy of control using two push buttons, which can be assigned diff erent control functions lighting, shading, scenes, heating, etc.
- WMR3-21 reader can be used to control the security system (locking/ unlocking) access system (opening doors, gates, etc.) or appliances (based on assigned rights).
- WMR3-21 supports RFID media with the carrier frequency of 13.56 MHz. Supported card types MIFARE Ultralight, DESFire 2K (EV1), DESFire 4K (EV1) .
- WMR3-21 is also equipped with 8 A relay output with changeover contact AgSnO2 , by which controlled devices can be switched directly (or any actuator in the system can be set in software iDM3).
- Indication two-color LED in the controller cover can indicate not only the status of controlled appliance, but also the status of any sensor or actuator in the system.
- Wall card reader WMR3-21 is compatible with both types of frames LOGUS90 (85.6 x 85.6 or 94 x 94 mm), therefore you can combine them with double and triple frames and classic products of the series.

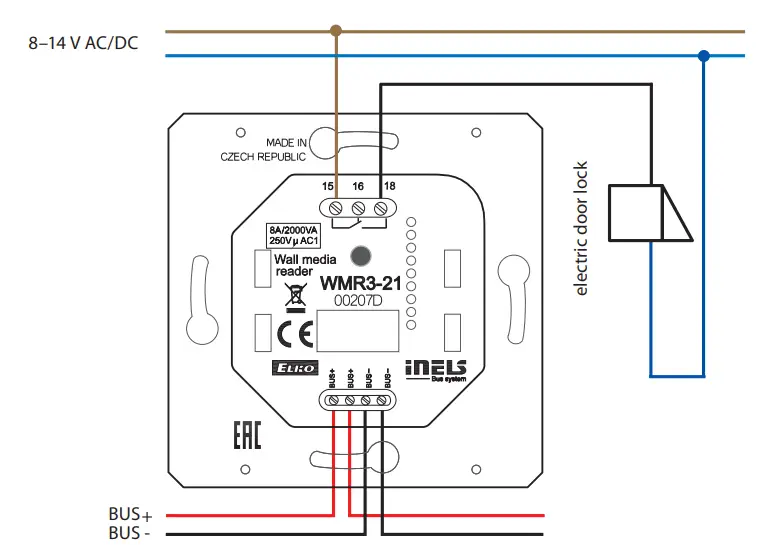

Connection
