TRIKDIS FLEXi SP3 Smart Security System
Safety precautions
Power supply must be unplugged during installation!
The panel is not resistant to vibrations, other mechanical effects, humidity and aggressive chemical environments. The control panel complies with the demands applicable to Class II environmental specification of the EN 50131 standard.
The casings, transformers, batteries and programming equipment used must meet the safety requirements of the EN 60950 standard. The device is powered from a 110-230 V voltage 50-60 Hz frequency power grid through a Class II step-down 40VA transformer that reduces the voltage to 16 – 18 V or from a 16 – 24 V DC power supply unit. A 12 V battery with at least 7 Ah capacity is used as a backup power supply. The current consumption depends on the power of the connected external devices.
Technical Support
- [email protected]
- +370 674 22877
Contacts
- [email protected]
- [email protected] (for orders)
- www.trikdis.com

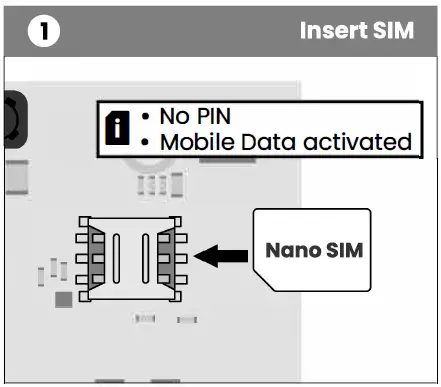

INSERT SIM
CONNECTION

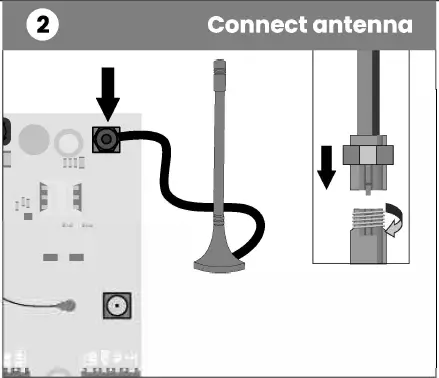

Connect antenna

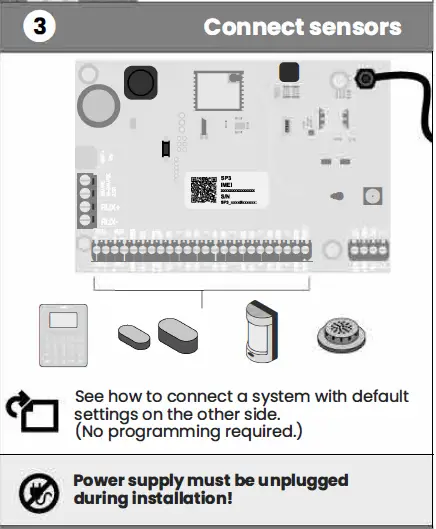

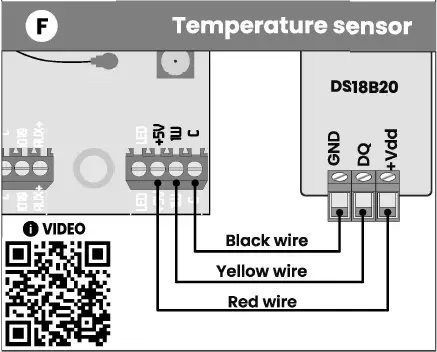

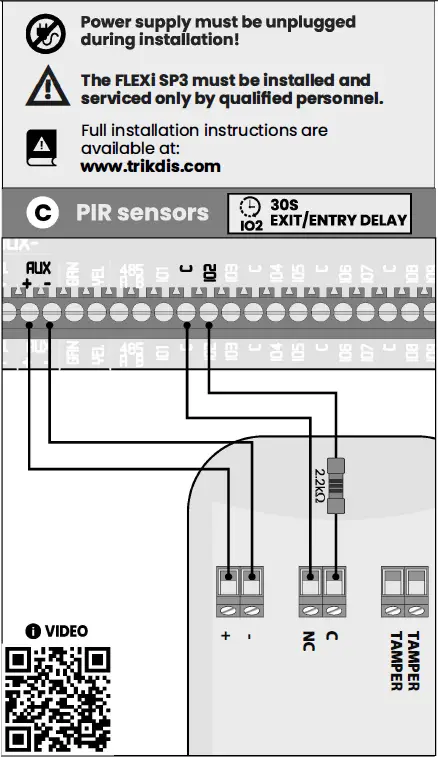

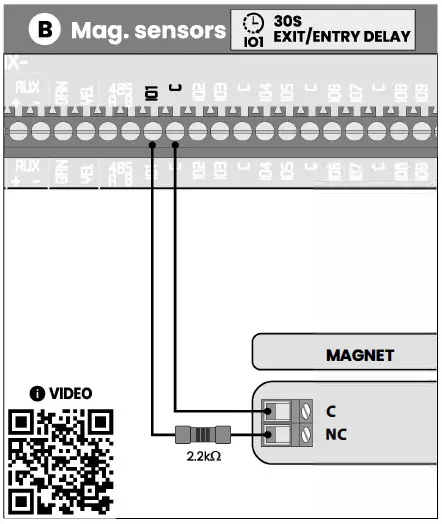

Connect sensors

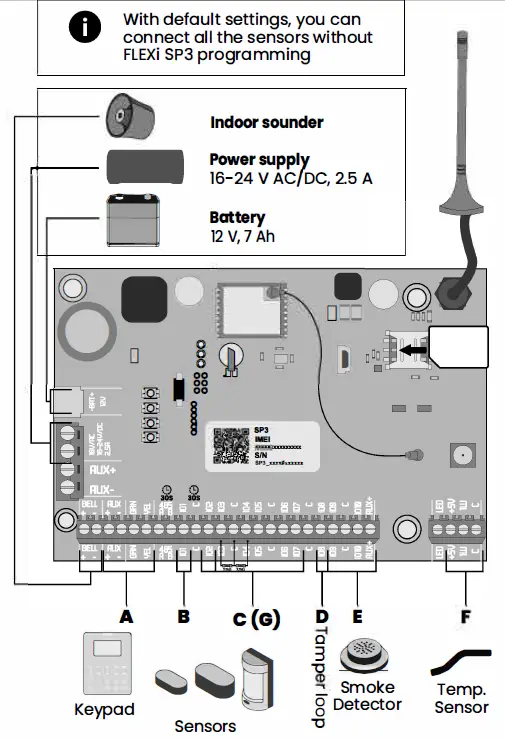

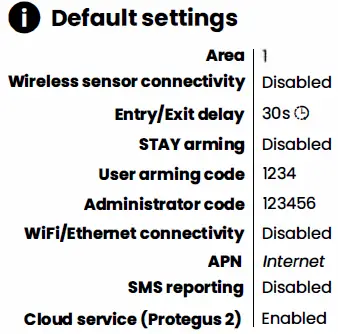

See how to connect a system with default settings on the other side. (No programming required.)
Power supply must be unplugged during installation!

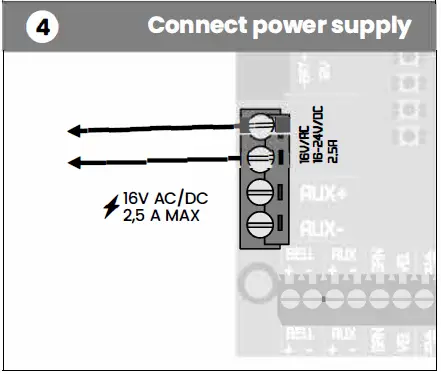

Connect power supply

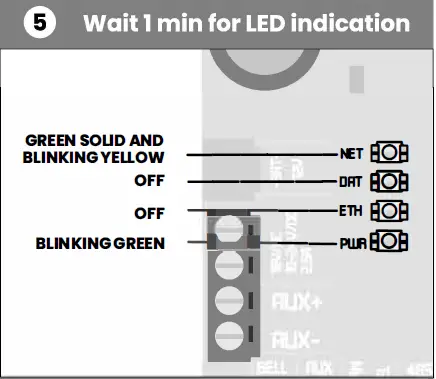

Wait 1 min foe LED indication
Download and install app
Other information

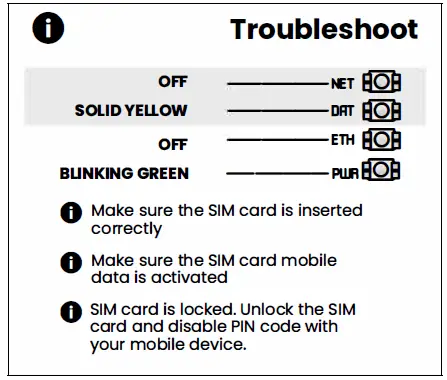

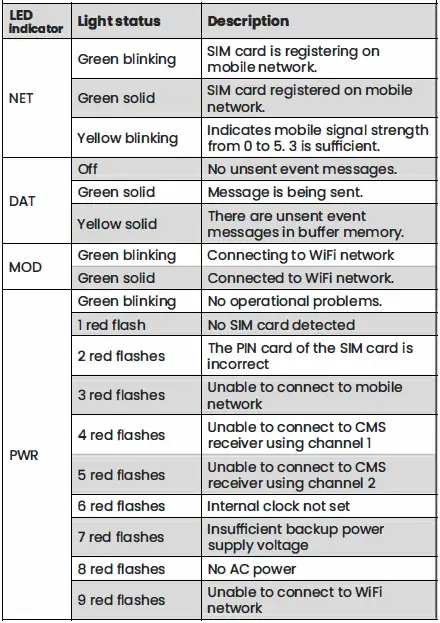

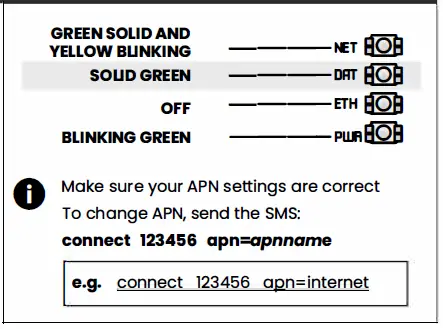

LED indication

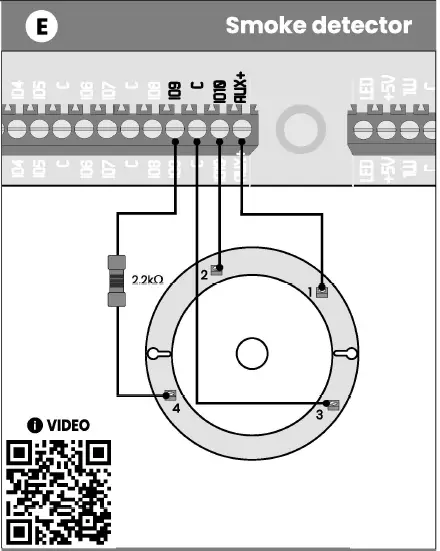

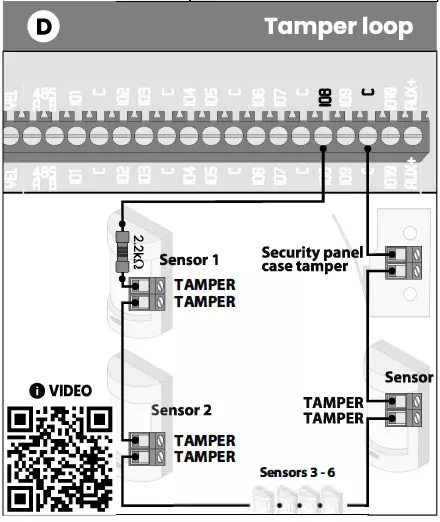

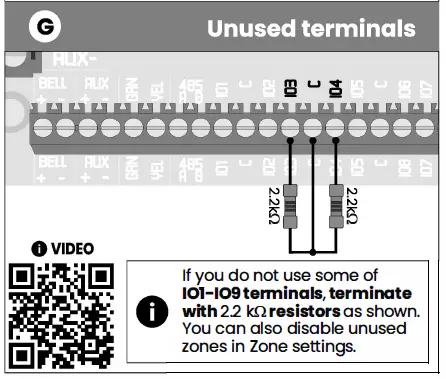

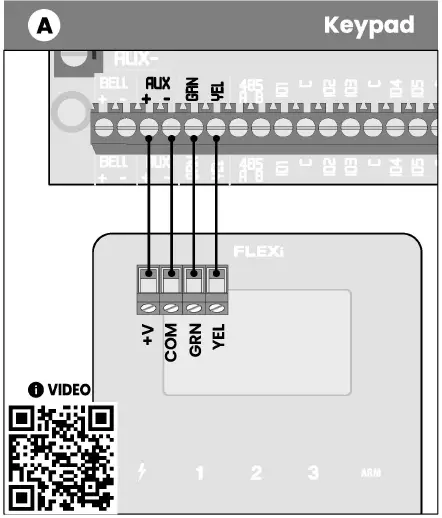

WIRING INSTRUCTION
