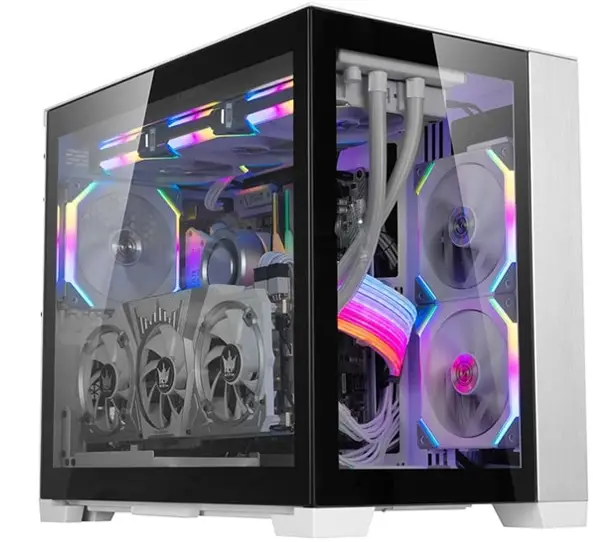

LI O11 Dynamic Mini Tower Case
Installation Guide

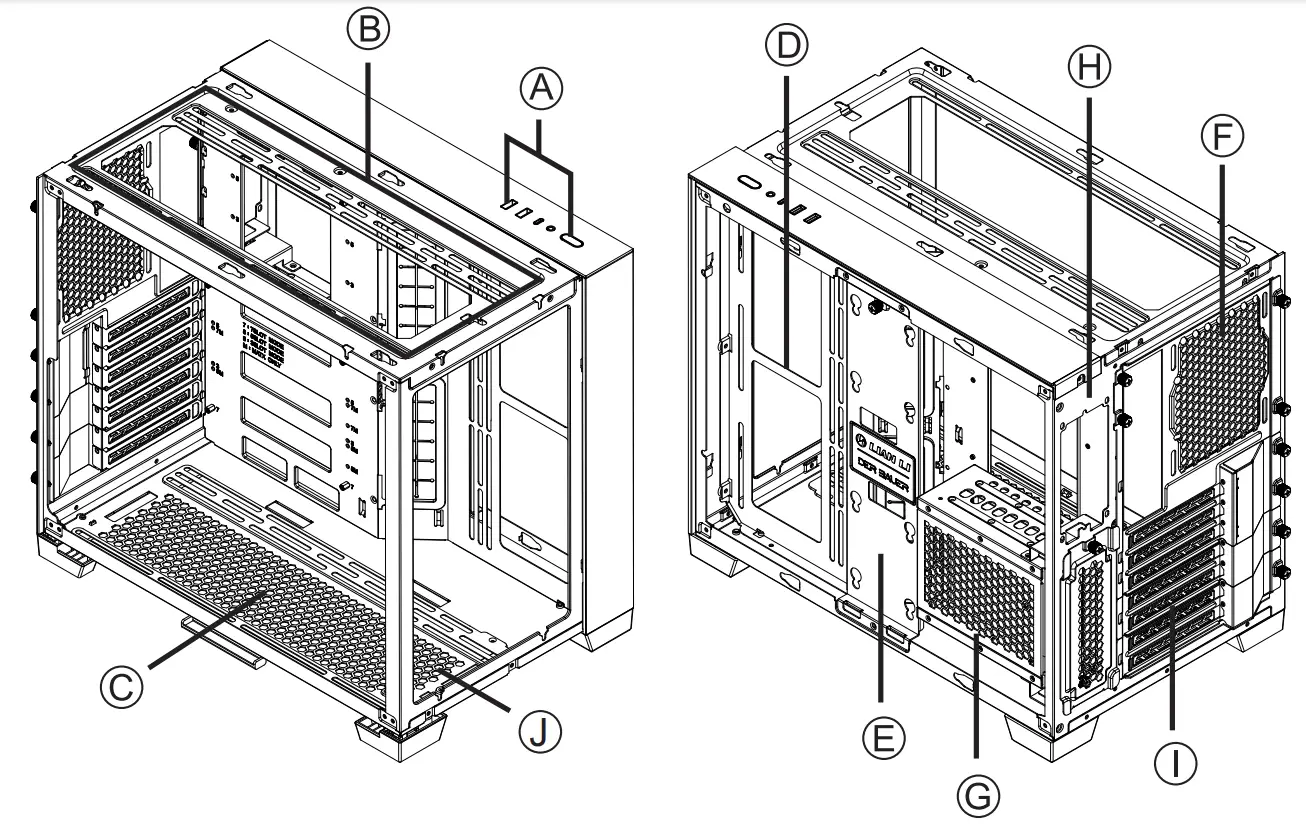

* Case components
A 10 ports: 1 x AUDIO / Microphone Combo Jack, 2 x USB 3.0, 1 x USB 3.1 Type C,Power Button

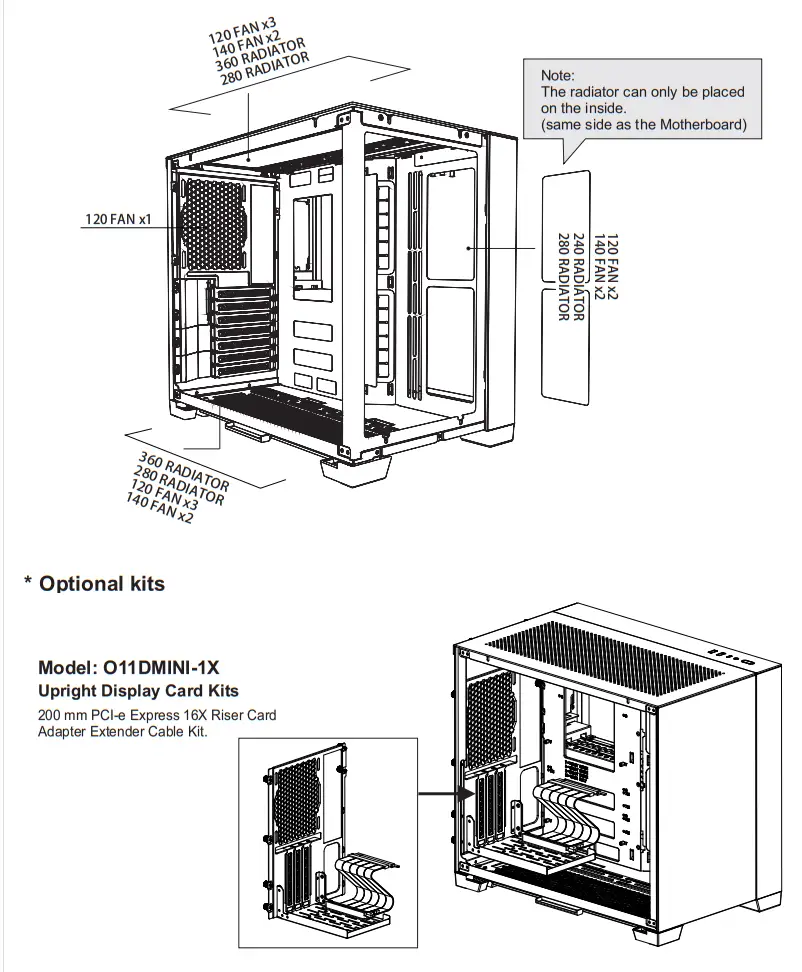

B Supporting 120 mm fan x 3 or 140 mm fan x 2 or 360 mm radiator x 1 or 280 mm radiator x 1
C Supporting 120 mm fan x 3 or 140 mm fan x 2 or 360 mm radiator x 1 or 280 mm radiator x 1
D Supporting 120 mm fan x 2 or 140 mm fan x 2 or 240 mm radiator x 1 or 280 mm radiator x 1
E Removable SSD tray: Supporting 2.5″ SSD x 2
F Supporting 120 mm fan x 1

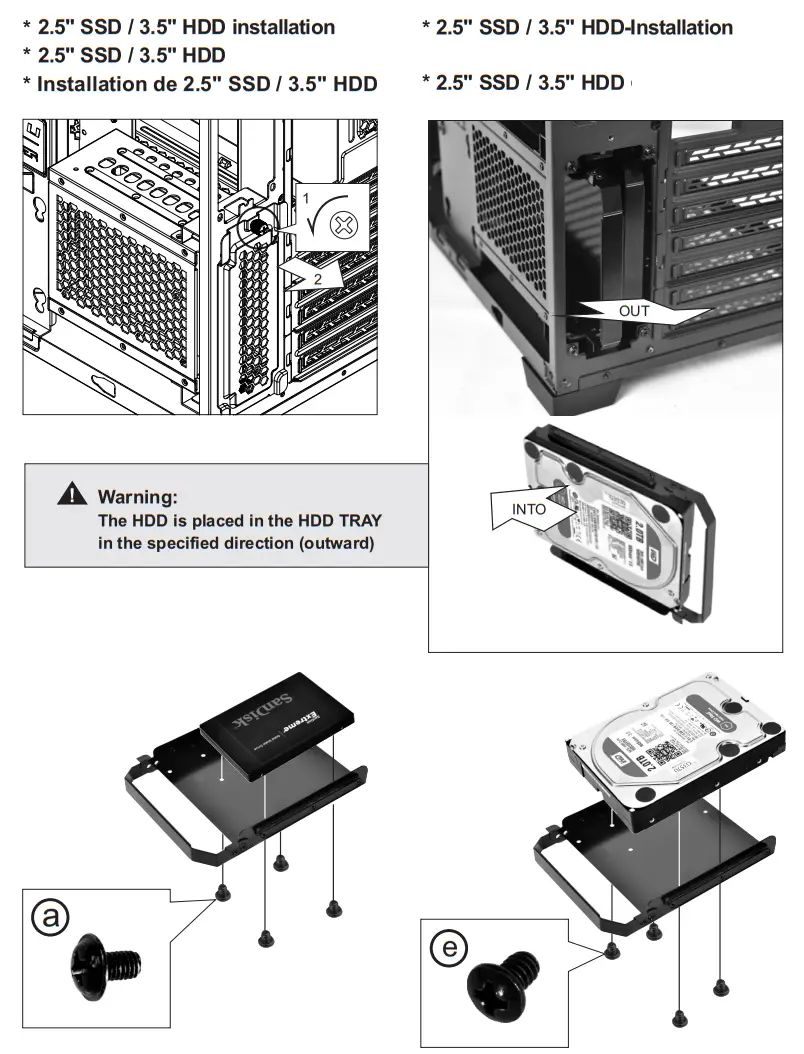

G Removable HDD tray: Supporting 3.5″ HDD x 2 or 2.5″ SSD x 2
H SFX tray: Supporting SFX or SFX-L PSU x 1

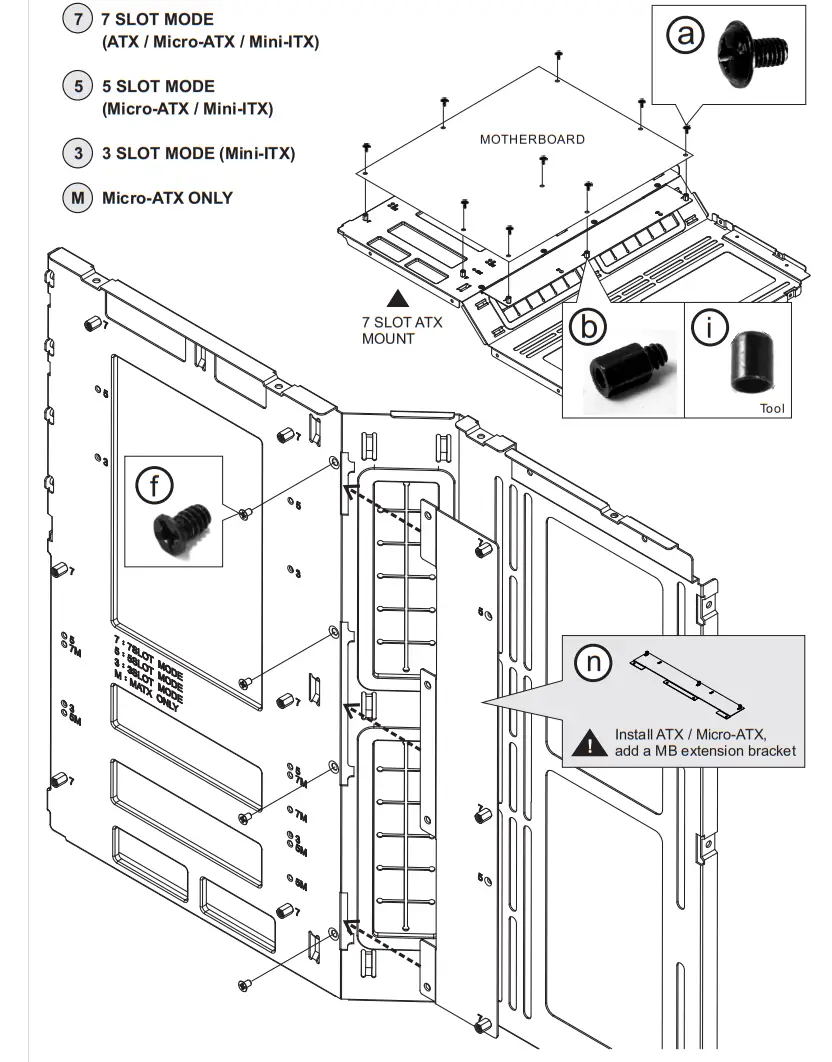

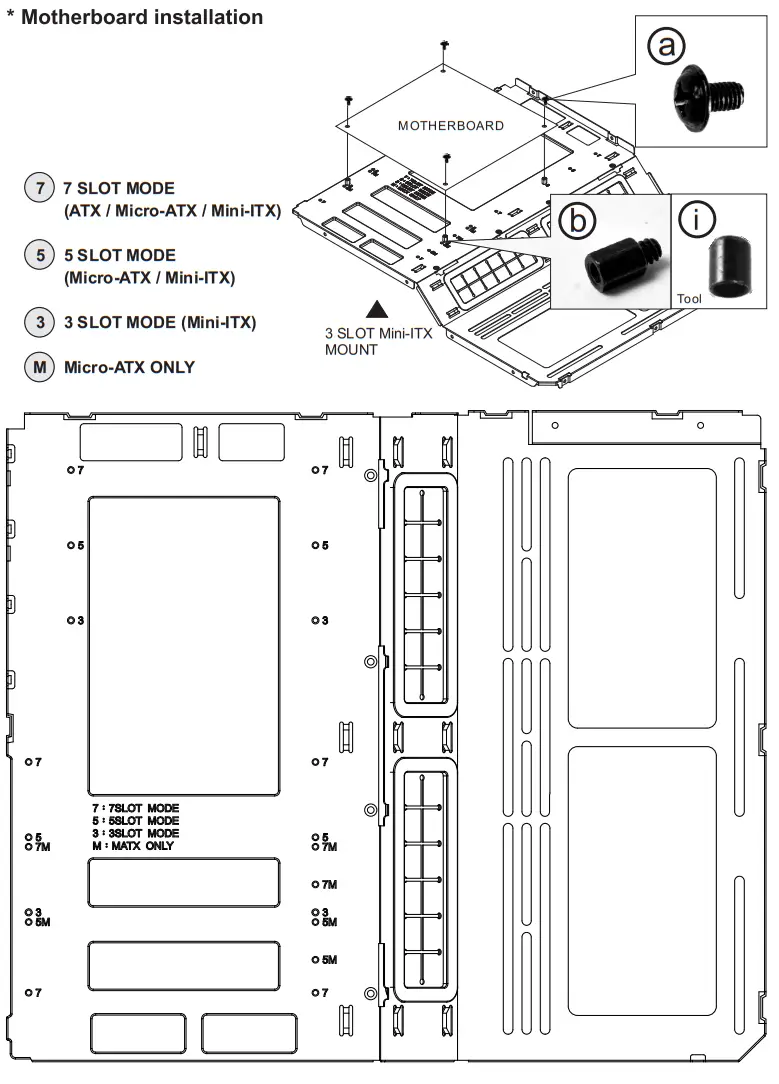

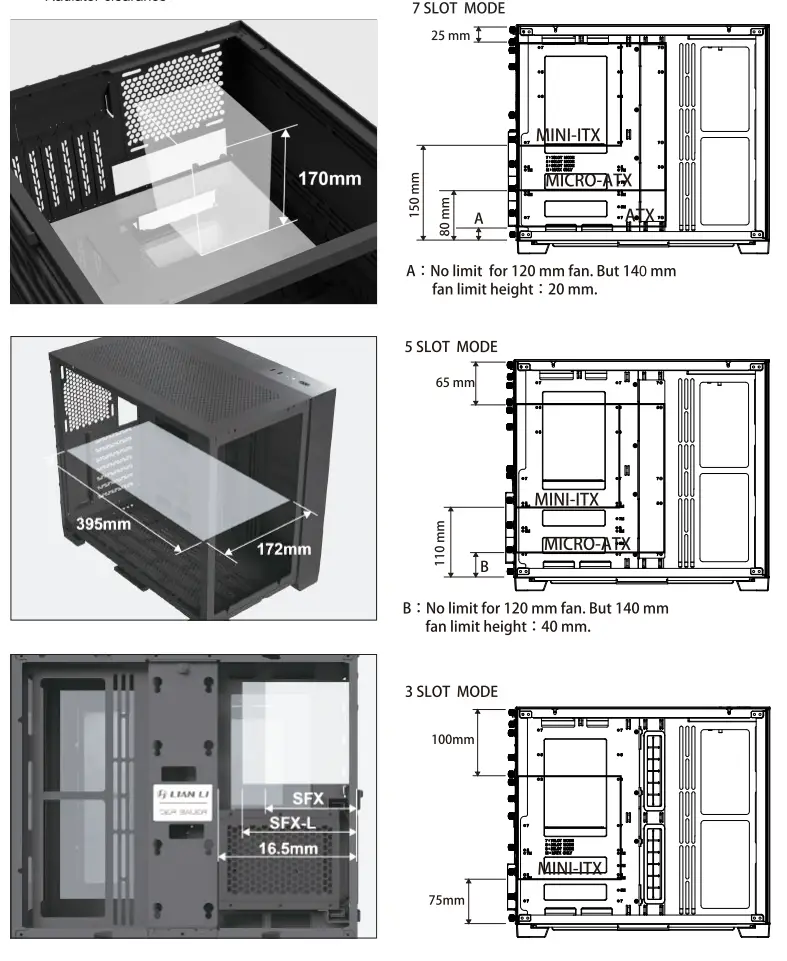

I Redefine modularity: 7.5.3 PCI slots mode

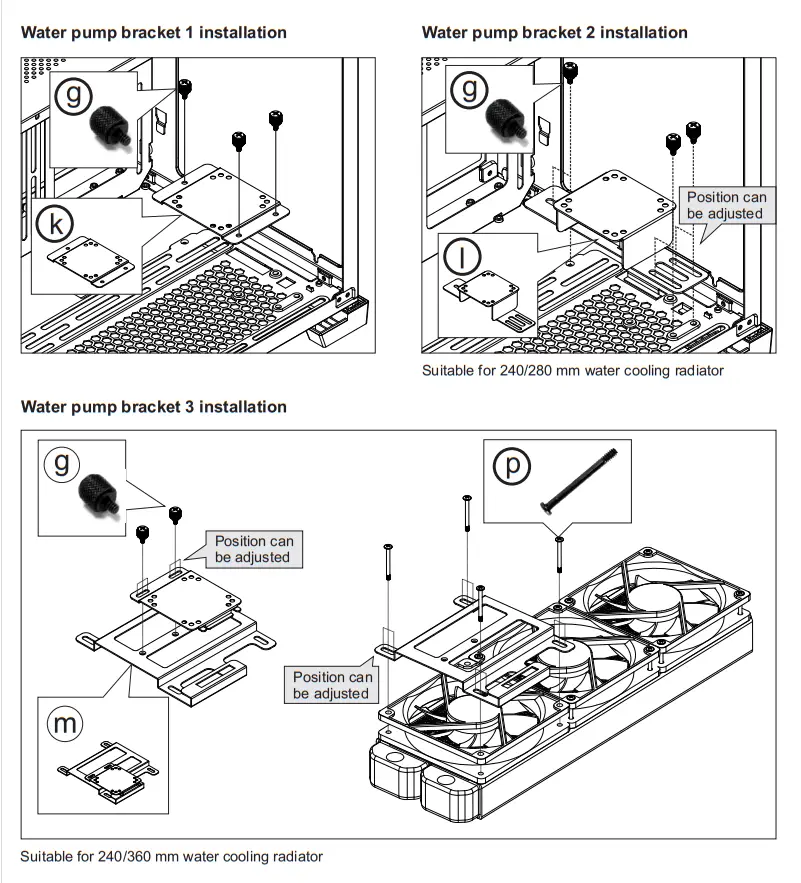

J Water pump bracket mounting holes

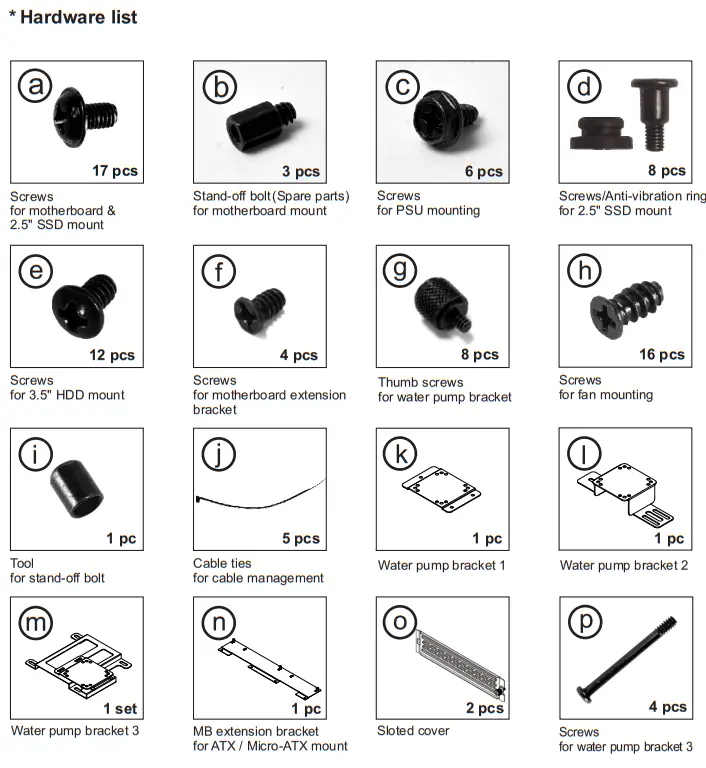

Exceeded quantity are spare parts

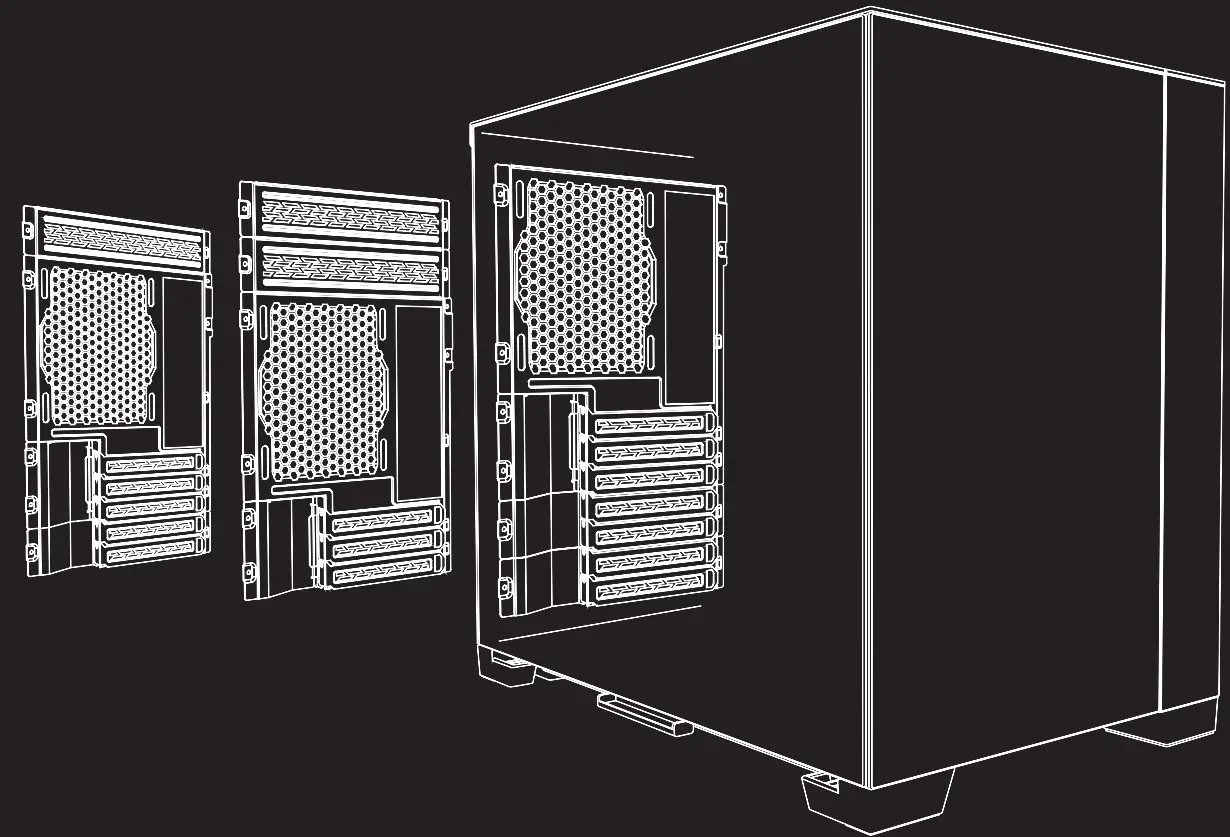

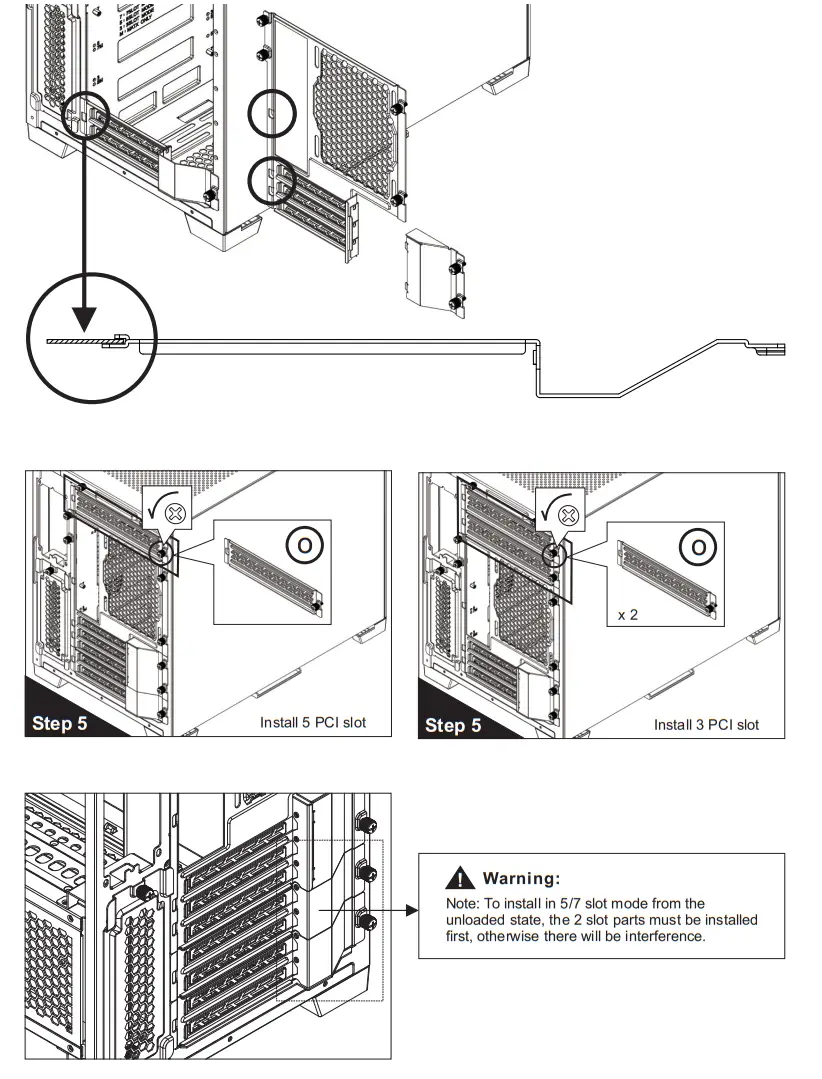

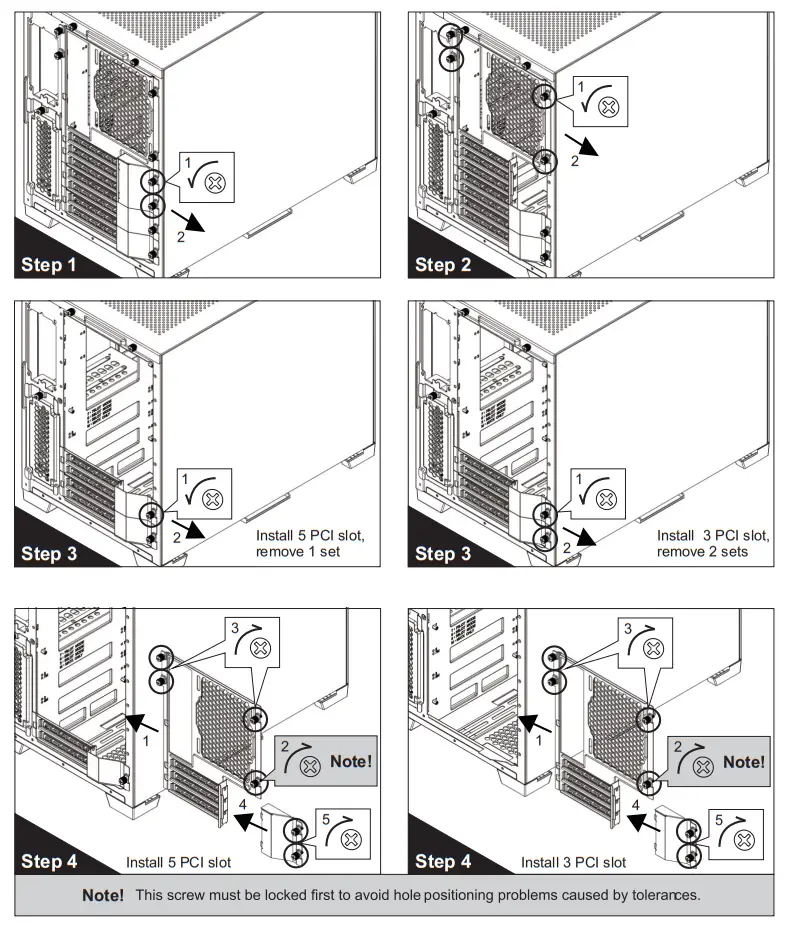

* Redefine modularity: 5 / 3 PCI slot mode
