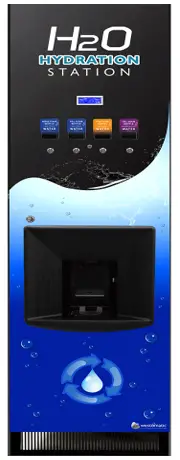

HYDRATION STATION Ultimate Water Bottle Refill System
Installation Guide

HYDRATION STATION Ultimate Water Bottle Refill System

INSTALLATION & MAINTENANCE GUIDE

Welcome
TO YOUR NEW H20
WE KNOW YOU’RE EXCITED SO LETS GET GOING!

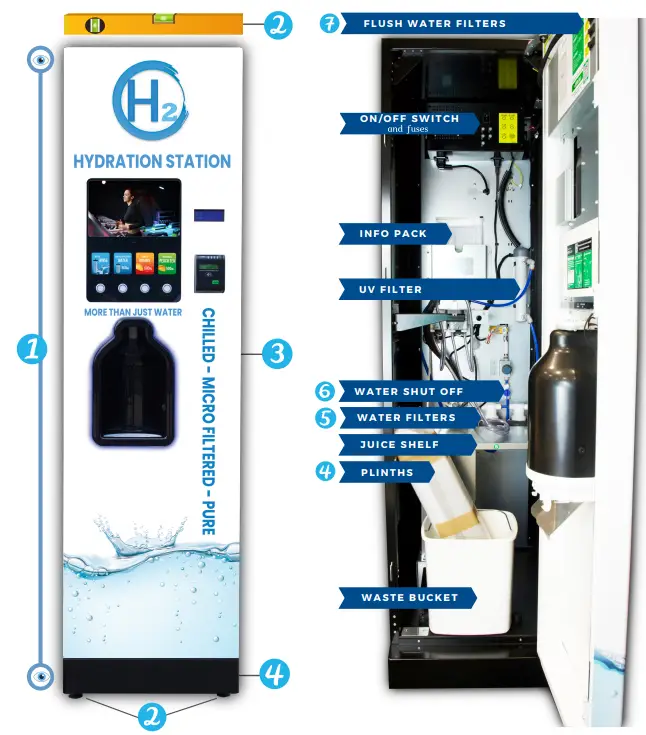

INITIAL CHECK LIST

1. CHECK FOR DAMAGE
   Report any issues
2. LEVEL UP
   Using the adjustable feet and a spirit level make sure the machine is lapel.

3. CONNECT WATER
   Connect mains water to the back of the machine
4. ATTACH PLINTHS
   Detachable for easy maneuuering / moue into position
5. INSTALL WATER FILTER(S)
   (if not already installed)
6. TURN WATER SHUT OFF VALVE ON
7. FLUSH WATER FILTERS
   Flush buttons located on inside of door

AND YOU’RE ALL SET
SCAN OR CODE FOR HELP

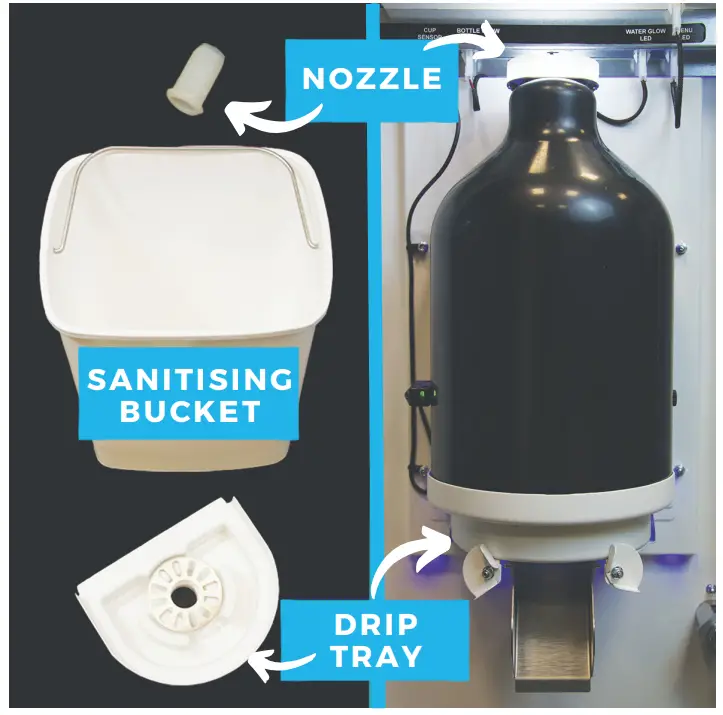

DAILY CLEANING PROCEDURE.

WIPE CLEAN ALL CONTACT PARTS
Remove hygiene parts and replace with spare set

1. NOZZLE – TWIST AND PULL
2. DRIP TRAY – TWIST CLIPS & PULL
3. BUCKET – PULL AND LIFT
4. CHECK JUICE LEVEL (IF APPLICABLE)

6-MONTH MAINTENANCE

Your Service Technician will need to do the following every 6 months:

• SANITISE WATER (& JUICE) LINES
• REPLACE UV LAMP
• REPLACE WATER FILTER
• CLEAN LINES WITH AQUA DOSA

SCAN ME
FOR CLEANING & MAINTENANCE GUIDEShttps://www.support.westomatic.com/h20-azure-service/

USER GUIDE
4 SIMPLE STEPS

1. PLACE BOTTLE IN DISPENSE AREA
2. HOVER FINGER OVER BUTTON TO SELECT A DRINK
3. ALLOW MACHINE TO DISPENSE DRINK
4. REMOVE BOTTLE FROM MACHINE AND ENJOY

TROUBLESHOOTING GUIDE

MACHINE ISN’T DETECTING BOTTLE
– Clean the sensor in dispense area.
– If the issue persists, sensor may need adjusting by engineer.
WASTE BUCKET FULL
– Remove waste bucket and empty. Ensure weighted pipe is placed back in the bucket.
ERROR CODE 14
– Button Failure.
– Call-out required by engineer.
CHILLER NOT DISPENSING COLD WATER
– Check Fuses
– If issue persists contact engineer
SOUND AND VIDEO ADJUSTMENTS
– Scan QR for instructions on using the screen
JUICE NOT FLOWING
– Check there is still juice in the box.
– Clean dispense nozzle to ensure there is no blockage.
– Press flush buttons to flush pipes until juice running smoothly again.

CONTACT
Units 7-8 Block 4 Forde Court, Forde Road
Brunel Industrial Estate, Newton Abbot, Devon, TQ12 4BT
