Freezeless
IOWA® Yard Hydrant
Model Y34 & Y1

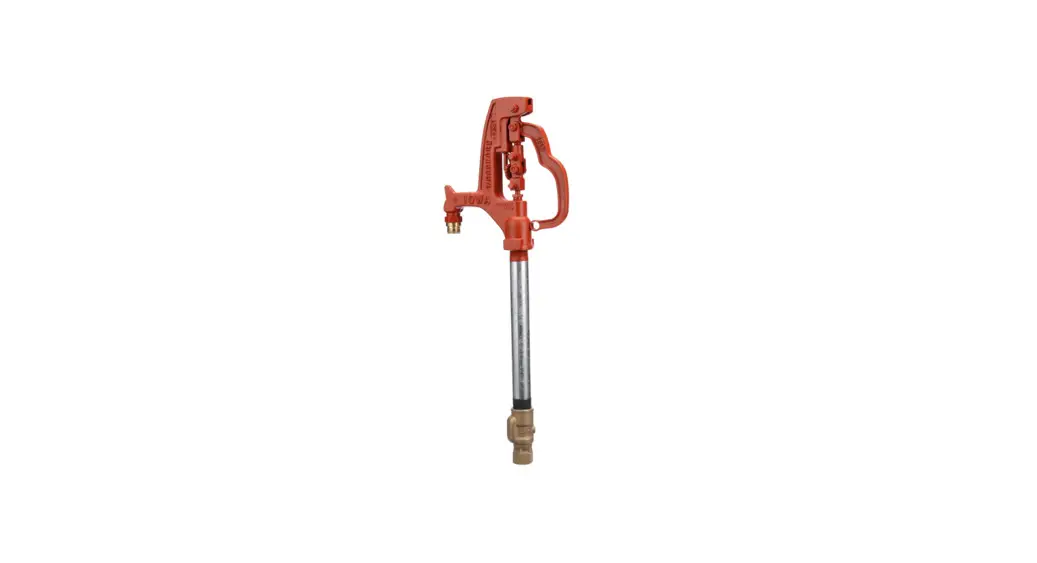

Y34-2 IOWA Yard Hydrant

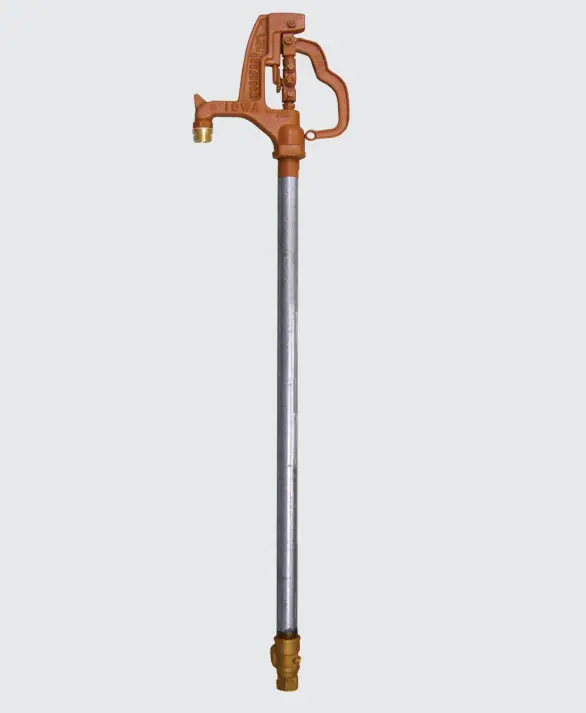

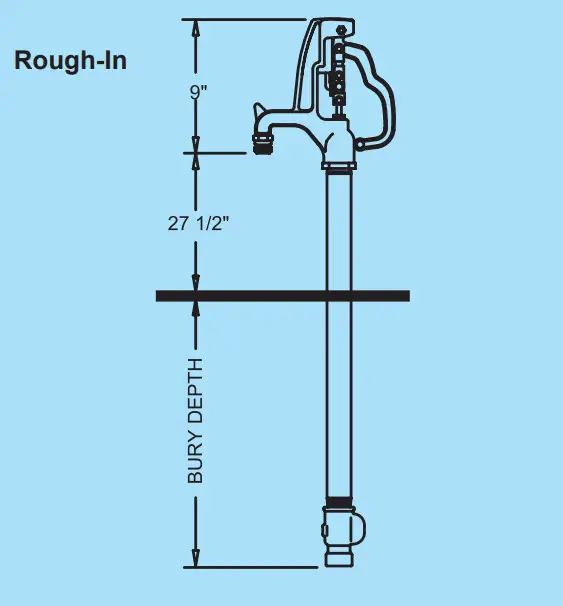

Rough-In
When ordering, specify model and bury depth.
| ITEM | PART# | DESCRIPTION |
| RK-Y34HA | Repair Kit Y34 Head Assembly – Head Casting #106 (Includes Items 1, 3-16) Repaces Part 15003 | |
| RK-Y1HA | Repair Kit Y1 Head Assembly – Head Casting #105 (Includes Items 2, 3-16) Repaces Part 15001 | |
| 1 | 15004 | Y34 Head with 3/4” Nozzle – Head Casting #106 |
| 2 | 15002 | Y1 Head with 3/4” Nozzle – Head Casting #105 |
| 3 | 10100 | Packing Nut |
| 4 | 10101 | Packing |
| 5 | 10102 | Packing Support Washer |
| 6 | 10104 | Brass Rod Stem |
| 7 | 10011 | Reducing Coupling |
| 8 | 10206 | Hex Nut (3) |
| 9 | 10009 | Upper Link |
| 10 | 15007 | Lower Link (Includes Item 11) |
| 11 | 10019 | Set Screw (2) |
| 12 | 15008 | Cam & Clevis Assembly |
| 13 | 10020 | Link Bolt (2) |
| 14 | 10021 | Lever Bolt |
| 15 | 10008 | Lever |
| 16 | 10004 | 3/4” Brass Hose Nozzle (Standard) |
| 17 | 10007 | 1” Brass Hose Nozzle (Optional) |
| 18 | 10105 | Y34 Plunger |
| 19 | 10018 | Y34 Valve Body (3/4” NPT Inlet) |
| 20 | 10106 | Y1 Plunger |
| 21 | 10017 | Y1 Valve Body (1” NPT Inlet) |
| 22 | Y34 & Y1 | OPERATING PIPE (Bury Depth & Length) |
| 10023 | 1’ Bury (35 ½” Long) | |
| 10024 | 2’ Bury (47 ½” Long) | |
| 10025 | 3’ Bury (59 ½” Long) | |
| 10026 | 4’ Bury (71 ½” Long) | |
| 10027 | 5’ Bury (83 ½” Long) | |
| 10028 | 6’ Bury (95 ½” Long) | |
| 10029 | 7’ Bury (107 ½” Long) | |
| 10030 | 8’ Bury (119 ½” Long) | |
| 10089 | 9’ Bury (131 ½” Long) | |
| 10090 | 10’ Bury (143 ½” Long) | |
| RK-Y34 | Repair Kit (Includes Items 3-6 & 18) Head Casting #106 | |
| RK-Y1 | Repair Kit (Includes Items 3-6 & 20) Head Casting #105 | |
| RK-YHL | Repair Kit (Includes Items 8-14) |
