Freezeless Sanitary
Heated Yard Hydrants
Model H34
RK-H34 Freezeless Sanitary Heated Yard Hydrants
The Model H34 is a sanitary, frost proof yard hydrant.
When the hydrant is shut off, all water is contained in the hydrant and piping system, instead of draining into the sub-soil. The thermostatically controlled heating element keeps the water in the hydrant from freezing even at temperatures down to 20 degrees below zero. An ASSE 1052 approved Model 50HF Backflow Preventer protects the hose connection from backflow contamination in freezing and non-freezing conditions.
The H34 is easy to install, since its connection to the piping system only extends one foot below finished grade. All preventative maintenance procedures and repairs can be completed from the top of unit, without removing hydrant from the source piping.
SPECIFICATIONS:
Hydrant is 1057 Approved
MODEL 50HF BACKFLOW PREVENTER
Patent Information: http://www.woodfordmfg.com/Woodford/patents/
- ASSE 1052 Approved
- Listed by IAPMO
- Field Testable
- Two Independent Check Valves
- Drains automatically when hose is removed
- No spray back
FEATURES:
Heater Element: Thermostatically controlled 65 watt, 120 volt, 60 cycle, low watt density heating element.
Electrical Cord: H34 includes 3 cord H34-C12 includes 12 cord H34-C25 includes 25 cord
Construction: Brass head and heater cap
Casing: 1 Galvanized steel pipe
Male Inlet: 1 NPT Outlet Nozzle: 3/4 male hose thread
Conduit Fitting: 1/2″ NPT female
Handle: Polycarbonate wheel handle Optional: Metal Handle
Max Pressure – 125 p.s.i.
Max Temperature – 120° F
Shipping Weight: 13 lbs each
Patent Pending
For Installation / Troubleshooting Instructions go to www.woodfordmfg.com or call 1-800-621-6032

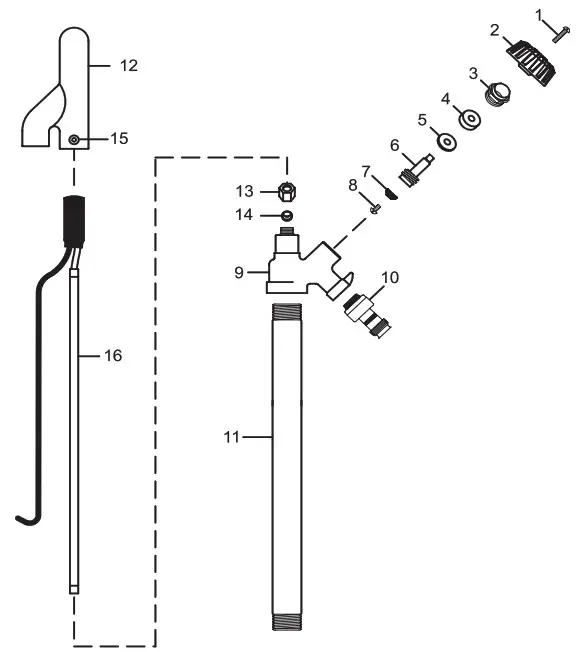

MODEL H34 PARTS LIST
| ITEM | PART# | DESCRIPTION |
| 1 | 30002 | Handle Screw |
| 2 | 30233 | Wheel Handle |
| 3 | 30107 | Packing Nut |
| 4 | 30247 | EPDM Packing |
| 5 | 30105 | Packing Washer |
| 6 | 30104 | Operating Stem |
| 7 | 30008 | Washer |
| 8 | 30009 | Washer Screw |
| 9 | 10542 | H34 Head |
| 10 | 50HF-BR | 50HF Backflow Preventer – Brass |
| 11 | 10610 | 1” Pipe Casing |
| 12 | 10541 | H34 Heater Cover |
| 13 | 10544 | Compression Nut |
| 14 | 10545 | Compression Sleeve |
| 15 | 10546 | Set Screw (2) |
| 16 | 10543 | H34 Heater Assembly – includes 3’ Cord |
| 16a | 10599 | H34 Heater Assembly – includes 12’ Cord |
| 16b | 10560 | H34 Heater Assembly – includes 25’ Cord |
| RK-H34 | Repair Kit (Includes Items 1-8) | |
| RK-HTR | Repair Kit (Includes Items 13-16) |

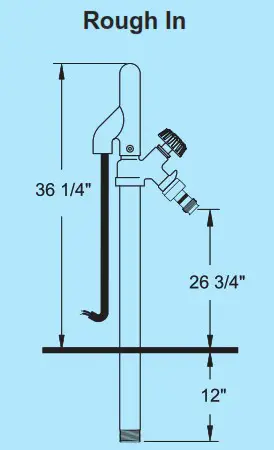

Installation example to meet local and state electrical codes
