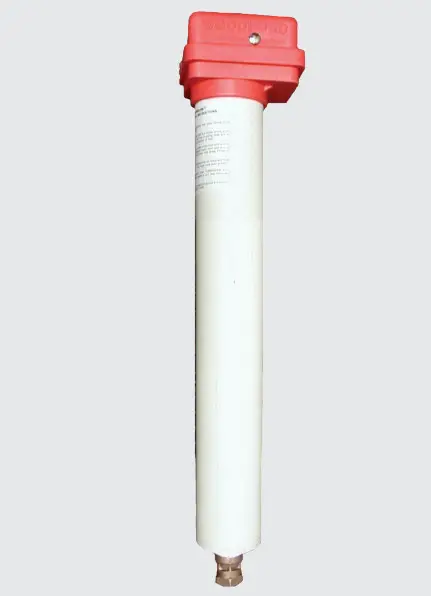

RK-TL-4H Freezeless Sanitary Water Connector
Installation Guide

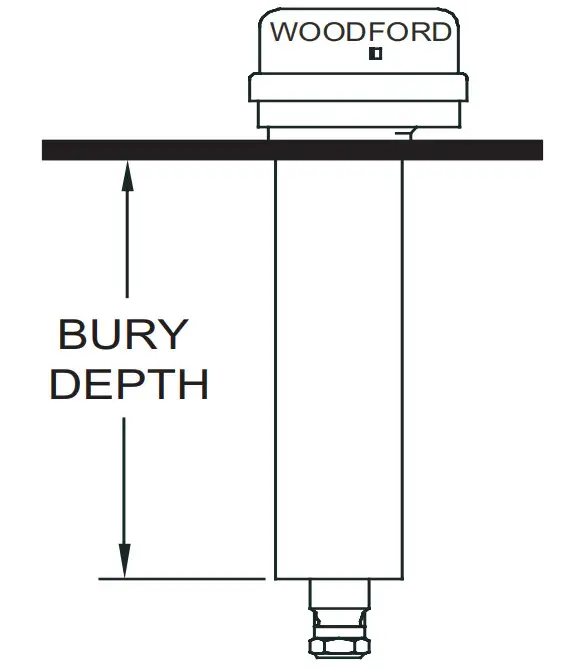

Rough-In Dimensions
RK-TL-4H Freezeless Sanitary Water Connector

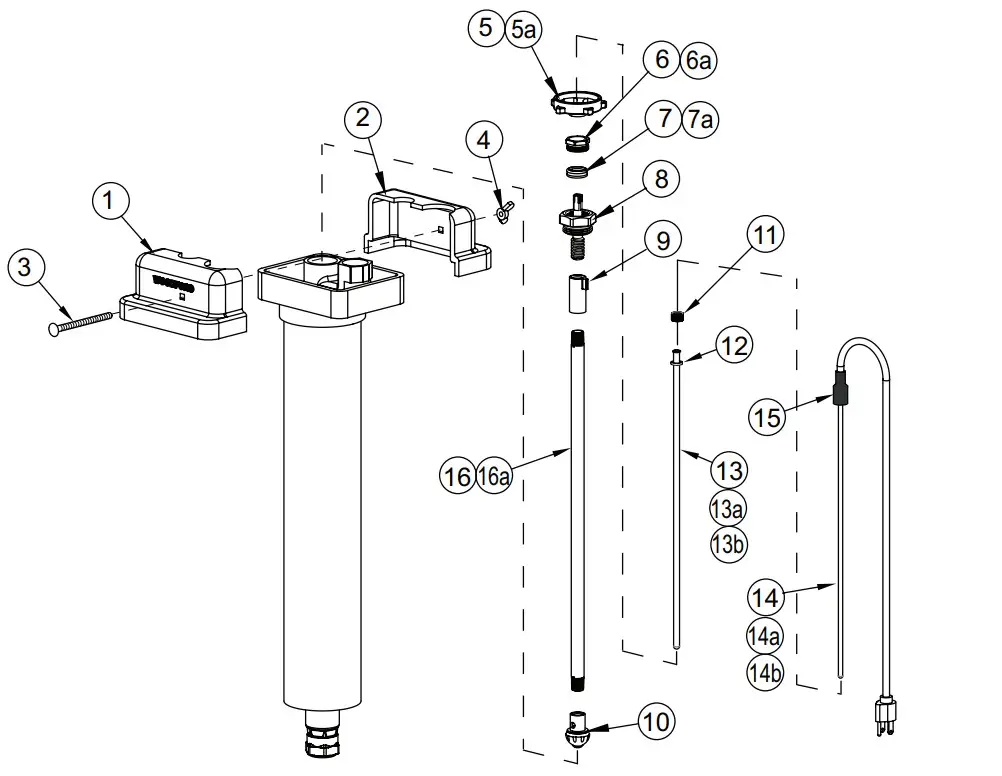

THERMALINE PARTS LIST
| ITEM | PART# | DESCRIPTION |
| 1 | 80055 | Cover, Woodford |
| 2 | 80056 | Cover, Thermaline |
| 3 | 80073 | Carriage Bolt |
| 4 | 80068 | Wing Nut |
| 5 | 80014 | Handle (Brass) |
| *5a | 80013 | Handle (Brass) (For units sold before 6/1/2011) |
| 6 | 80017 | Packing Nut |
| *6a | 80005 | Packing Nut (For units sold before 6/1/2011) |
| 7 | 30247 | Packing |
| *7a | 80008 | Packing (For units sold before 6/1/2011) |
| 8 | 85064 | Head Nut Assembly |
| 9 | 80066 | Yoke Nut |
| 10 | 85015 | Combination Valve Assembly |
| **11 | 80062 | Heater Well Thumb Nut |
| 12 | 80063 | Heater Well Washer |
| **13 | 85001 | 1′ Heater Well Assembly (Includes Item 12) Standard on 1′ – 2’ Hydrants |
| **13a | 85002 | 2′ Heater Well Assembly (Includes Item 12) Standard on 3′ – 6′ Hydrants |
| **13b | 85004 | 4′ Heater Well Assembly (Includes Item 12) Optional on 6′ hydrants and standard on 7′-8′ hydrants |
| **14 | 85061 | 1′ Heater Assembly (Includes Item 15) Standard on 1′ – 2’ Hydrants |
| **14a | 85062 | 2′ Heater Assembly (Includes Item 15) Standard on 3′ – 6′ Hydrants |
| **14b | 85065 | 4′ Heater Assembly (Includes Item 15) Optional on 6′ hydrants and standard on 7′-8′ hydrants |
| 15 | 80061 | Heater Cover |
| RK-THERM | Repair Kit (Includes Items 5-12) | |
| OPERATING PIPE (For Brass Head) | ||
| 16 | 80081 | 1’ Bury (11-1/8” long) |
| 80082 | 2’ Bury (23-1/8” long) | |
| 80083 | 3’ Bury (35-1/8” long) | |
| 80084 | 4’ Bury (47-1/8” long) | |
| 80085 | 5’ Bury (59-1/8” long) | |
| 80086 | 6’ Bury (71-1/8” long) | |
| 80087 | 7’ Bury (83-1/8” long) | |
| 80088 | 8’ Bury (95-1/8” long) | |
| OPERATING PIPE (For Cast Iron Head) | ||
| 16a | 80031 | 1’ Bury (9-3/8” long) |
| 80032 | 2’ Bury (21-3/8” long) | |
| 80033 | 3’ Bury (33-3/8” long) | |
| 80034 | 4’ Bury (45-3/8” long) | |
| 80035 | 5’ Bury (57-3/8” long) | |
| 80036 | 6’ Bury (69-3/8” long) | |
| 80037 | 7’ Bury (81-3/8” long) | |
NOTES:
* Parts 5a, 6a & 7a cannot be used with 85064 Head Nut Assembly.
** Old style heaters originally used in Thermalines with cast iron covers are replaced by items 11, 13 and 14.
