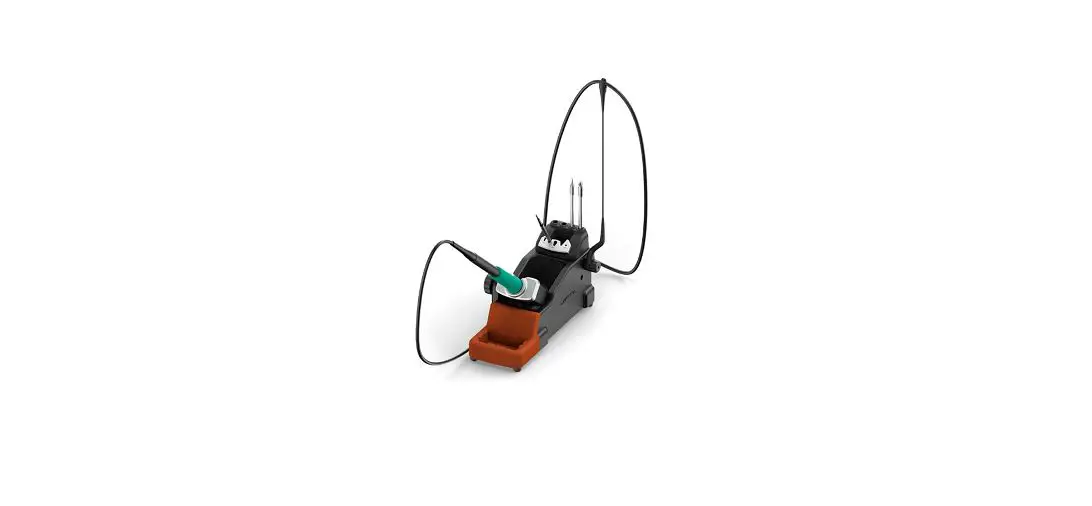

H2994 Tool Holders for Compact Stations

Product Information: Tool Holders for Compact Stations

The Tool Holders for Compact Stations are available in four
different references: H2994 for CDB & CDS, H4706 for CA and CF,
H4720 for CS, and H4719 for CP. The package dimensions are 111 x 81
x 41 mm (4.37 x 3.19 x 1.61 in) and the product complies with CE
standards ESD Safe. The product comes with a manual and a 2-year
warranty that covers manufacturing defects, including the
replacement of defective parts and labor. The warranty does not
cover product wear or misuse. The product should not be thrown in
the garbage and must be returned to an authorized recycling
facility at the end of its life.

Product Usage: Changing the Tool Holder

Before changing the tool holder, turn the station off and allow
the equipment to cool down. Then follow the steps below:

1. Remove the locking knob (1) and separate the holder from the
   station. Then remove the connection screw (2).
2. Pull the tool holder gently until the connector comes out.
3. Place the new tool holder following the same steps
   conversely.

Before carrying out maintenance, always unplug the tool. Allow
the equipment to cool down. Be sure that the power supply is
disconnected before changing any spare part.

INSTRUCTION MANUAL
H2994, H4706, H4720, H4719
Tool Holders for Compact Stations

This manual corresponds to the following references:
0012994 H2994 for CDB & CDS 0014706 H4706 for CA and CF 0014720 H4720 for CS 0014719 H4719 for CP
Packing List
The following items are included:

Tool Holder…………….. 1 unit according to purchased reference

Manual ………………….. 1 unit Ref. 0028656

Replacement

Before carrying out maintenance, always unplug the tool. Allow the equipment to cool down. Be sure that the power supply is disconnected before changing any spare part.

2

Changing the Tool Holder

Turn the station off and allow the equipment to cool down.

Remove the locking knob (1) and separate the holder from the station. Then remove the connection screw (2).

Connection Screw

max. 15 mm

Locking
Knob 1

2

Pull the tool holder gently until the connector comes out.
Connector Tool Holder

Place the new tool holder following the same steps conversely. 3

Specifications

H2994, H4706, H4720, H4719 Tool Holders for Compact Stations Ref.: 0012994 H2994 for CDB & CDS Ref.: 0014706 H4706 for CA and CF Ref.: 0014720 H4720 for CS Ref.: 0014719 H4719 for CP

– Package Dimensions: (L x W x H)

111 x 81 x 41 mm 4.37 x 3.19 x 1.61 in

Complies with CE standards ESD Safe

Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
This product should not be thrown in the garbage. In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.

0028656-291122
