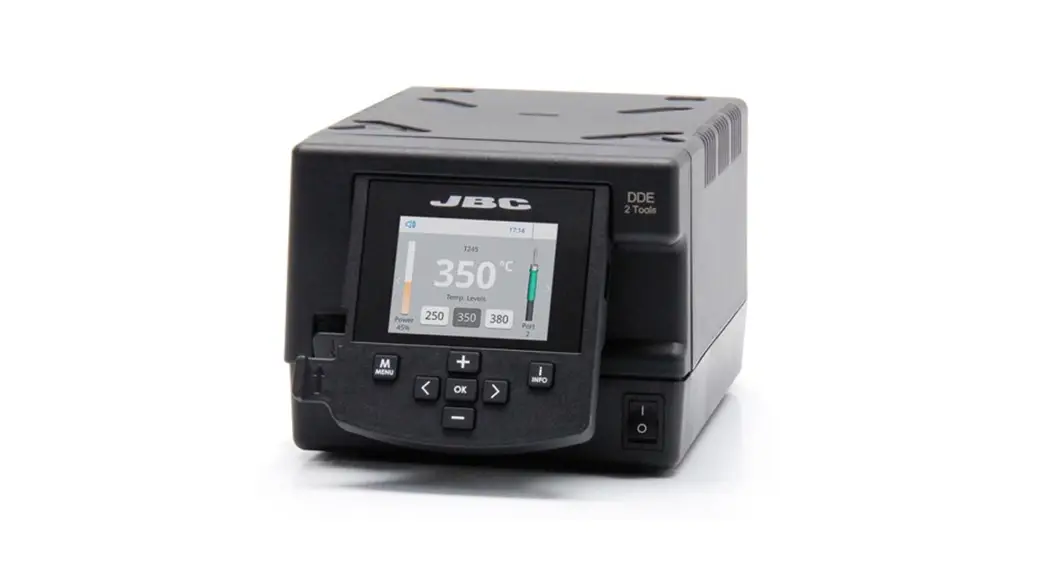

DDE-9C 2 Tool Control Unit
Product Information: DDE 2-Tool Control Unit
The DDE 2-Tool Control Unit is a modular soldering and
desoldering system that can be used with up to two tools and one
module + one pedal for each tool (peripheral module for each tool
needed). It comes with a 2.8 color TFT screen that can be tilted
for easy reading, a USB-A connector, a main switch, a power socket,
and an RJ12 connector for the robot system. The DDE is compatible
with a range of tools, peripherals, and cartridges such as ADS,
DNS, APS, AMS, ATS, HTS, DSS, DRS, C210, C245, C250, C120, C420,
C360, C560, and P405.
The DDE offers an intuitive user interface that provides quick
access to station parameters. It has an advanced functionality that
provides detailed graphics of tip temperature and power delivery in
real-time during solder joint formation for analysis purposes. It
also allows remote management of the whole soldering process in
real-time via JBC Net.
Product Usage Instructions
Packing List:
- 2-Tool Control Unit – 1 unit
- Power Cord – 1 unit Ref. 0024077 (100V), 0023717 (120V),
0024080 (230V) - Manual – 1 unit Ref. 0029145
Connection Example:
Refer to the user manual for a detailed connection example.
Compatibility:
Select the equipment that best suits your soldering or
desoldering needs.
DDE Work Screen:
The DDE offers quick access to station parameters, tool
parameters, hours worked in each cycle, peripheral links with the
station ports, counters, and station parameter restoration to
default values. Troubleshooting is also available on the product
page at www.jbctools.com.
Advanced Functionalities:
The DDE provides detailed graphics of tip temperature and power
delivery in real-time during solder joint formation for analysis
purposes. It also allows remote management of the whole soldering
process in real-time via JBC Net. For more information, see
www.jbctools.com/webmanager.html.
Peripheral Set Up:
- After connecting the module, enter the Peripherals Menu and
select the port you want to join with the module. - Select the module from the list of peripheral connections.
Remember your first connection is denoted as a, the second being b,
etc. (e.g. MNE_a, MNE_b, … ).
INSTRUCTION MANUAL
DDE
2-Tool Control Unit
This manual corresponds to the following reference:
DDE-9C (100V) DDE-1C (120 V) DDE-2C (230 V)
Packing List
The following items are included:
2-Tool Control Unit ……………….. 1 unit
Features
Power Cord ……………….. 1 unit Ref. 0024077 (100V)
0023717 (120V) 0024080 (230V)
Manual ………………………….1 unit Ref. 0029145
DDE work simultaneously with up to 2 tools and 1 module + 1 pedal for each tool (peripheral modul for each tool needed).
2,8″ Color TFT screen Tilt the display for easy reading
2
USB-A connector Main Switch
Connection Example
DDE 2-Tool Control Unit
Stand Cable Ref. 0024227
T245 General Purpose Handle
Equipotential connection
USB-B connector
Power Socket RJ12 connector for Robot system
Stand Cable Ref. 0024227
DR560 Desoldering Iron
ADS Stand for T210 & T245 Handles
Module Cable Ref. 0024228
DRS Stand for DR560 Desoldering
Iron
Suction Filter Ref. 0821830
MSE Electric Desoldering Module for DDE & DME
To another Peripheral To Pedal P005
3
Compatibility
Select the equipment that best suit your soldering or desoldering needs.
Control Unit
DDE
Modular System
Stand
Tool
ADS
DNS APS AMS ATS HTS DSS DRS
T210 T245 T470 T210N T245N AP250 AM120 PA120 AT420 HT420 DS360 DR560
Peripherals
Cartridge MSE / MVE
Range
MNE
C210
C245
C210 C245 C250
C120
C420
C360 C560
P405
4
DDE Work Screen
DDE offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105
Status Bar
Power Indicator
Displayed if Temperature Levels are Activated
19:29
T245
350ºC Temp levels
Power 250 350 380 Port
45%
1
Tool in use
Station Information Change Port
Menu Options
Set the station parameters
Set the tool parameters
Display the hours worked in each cycle
Station
Set the peripheral links with the station ports
Peripherals
Tools
Counters
Restore station parameters to default values
Reset
Troubleshooting Station troubleshooting available on the product page at www.jbctools.com
5
Advanced Functionalities
It provides detailed graphics of tip temperature and power delivery in real time during solder joint formation for analysis purposes. This helps you decide how to adjust your process or which tip to use to obtain the best quality soldering.
Graphics
Get greater quality and control in your production.
JBC Net Manage your whole soldering process remotely in real time.
For more information see www.jbctools.com/webmanager.html.
Update
Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the file downloaded to the station.
System Notifications
The following icons will be displayed on the screen’s status bar.
USB flash drive is connected.
Station software update. Press INFO to start the process.
Station is controlled by a PC.
Warning. Press INFO for failure description.
Station is controlled by a robot. downloaded to the station.
Error. Press INFO for failure description, the type of error and how to proceed.
Peripheral Set Up
1. After connecting the module, enter the Peripherals Menu and select the port which you want to join with the module.
2. Select the module from the list of peripheral connections. Remember your first connection is denoted as “a”, the second being “b”, etc. (e.g. MNE_a, MNE_b, … ).
3. Press Menu or Back to save changes.
6
19:29
Peripherals
Pedal Module
Port 1-T470
Module MNE_a
None None
None
Operation
The JBC Most Efficient Soldering System
Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the soldering quality. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip.
1. Work
2. Sleep
3. Hibernation
Long period in the stand
When the tool is lifted from the stand the tip will heat up to the selected temperature.
When the tool is in the stand, the temperature falls to the preset Sleep temperature.
After longer periods of inactivity, the power is cut off and the tool cools down to room temperature.
19:29
T245
350ºC Temp levels
Power 250 350 380 Port
45%
1
T245
Sleep
Tool in the stand Actual Temp. 180º Delay to hibernation: 29:30
19:29
Port 1
19:29 T245
Hibernation
Actual Temp. 25ºC
Port 1
Tools Menu: · Adjust temperature limits and
cartridge. · Set temperature levels.
Tools Menu: · Set Sleep temperature. · Set Sleep delay.
(from 0 to 9 min or no Sleep)
Tools Menu: · Set Hibernation delay.
(from 0 to 60 min or no hibernation)
7
USB Connector
Download the latest software from our website to improve your soldering station at www.jbctools.com/software.html.
JBC Web Manager Lite www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using JBCs Web Manager Lite. Note: Data can be exported to another PC.
Cable USB A-B USB Hub
JBC Web Manager
8
any JBC station
Manager Settings Change settings for a group of JBC stations at the same time.
Register Settings Create graphs of the soldering process in real time showing power and temperature data.
Maintenance
Before carrying out maintenance or storage, always allow the equipment to cool.
– Clean the station screen with a glass cleaner or a damp cloth.
– Use a damp cloth to clean the casing and the tool. Alcohol can only be used to clean the metal parts.
Clean periodically
– Periodically check that the metal parts of the tool and stand are clean so that the station can detect the tool’s status.
– Maintain the tip surface clean and tinned prior to storage in order to avoid tip oxidation. Rusty and dirty surfaces reduce heat transfer to the solder joint.
– Periodically check all cables and tubes.
– Replace a blown fuse as follows:
1. Pull off the fuse holder and remove the fuse. If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder and replace it in the station.
Fuse
Fuse Holder
Fuse holder
– Replace any defective or damaged pieces. Use original JBC spare parts only. – Repairs should only be performed by a JBC authorized technical service.
9
Safety
It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. – Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. – The power cord must be plugged into approved bases. Be sure that it is properly grounded before use. When unplugging it, hold the plug, not the wire. – Do not work on electrically live parts. – The tool should be placed in the stand when not in use in order to activate the sleep mode. The soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the station is turned off. Handle with care, including when adjusting the stand position. – Do not leave the appliance unattended when it is on. – Do not cover the ventilation grills. Heat can cause inflammable products to ignite. – Avoid flux coming into contact with skin or eyes to prevent irritation. – Be careful with the fumes produced when soldering. – Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working to avoid personal harm. – Utmost care must be taken with liquid tin waste which can cause burns. – This appliance can be used by children over the age of eight and also persons with reduced physical, sensory or mental capabilities or lack of experience provided that they have been given adequate supervision or instruction concerning the use of the appliance and understand the hazards involved. Children must not play with the appliance. – Maintenance must not be carried out by children unless supervised.
10
Notes
11
Notes
12
Notes
13
Notes
14
Specifications
DDE 2-Tool Control Unit
Ref.: DDE-9C 100V 50/60Hz. Input fuse: T5A. Output: 23.5V Ref.: DDE-1C 120V 50/60Hz. Input fuse: T4A. Output: 23.5V Ref.: DDE-2C 230V 50/60Hz. Input fuse: T2A. Output: 23.5V
– Output Peak Power: – Temperature Range: – Idle Temp. Stability (still air): – Temp Accuracy: – Temp Adjustment: – Tip to Ground Voltage/Resistance:
– Ambient Operating Temp: – Connections:
– Control Unit Dimensions/Weight: (L x W x H)
150W per tool 90 – 450 °C / 190 – 840 °F ±1.5ºC / ±3ºF / Meets and exceed IPC J-STD-001F ±3% (using reference cartridge) ±50ºC / ±90ºF Through station menu setting Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F 10 – 50 ºC / 50 – 122 ºF USB-A / USB-B / Peripherals connectors RJ12 connector for Robot 148 x 232 x 120 mm / 3.82 kg 5.8 x 9.1 x 4.7 in / 8.41 lb
– Total Package:
258 x 328 x 208 mm / 4.3 kg 10.15 x 12.9 x 8.1 in / 9.5 lb
Complies with CE standards. ESD safe.
15
Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase.
This product should not be thrown in the garbage. In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
0029145 – 2311 22
JBC Soldering and Rework equipment for electronics
