FSS-26T Dynamic Flat Trumpet Siren Fire
Alarm Resources Datasheet
FSS-26T Dynamic Flat Trumpet Siren Fire Alarm Resources
- Wall or ceiling mount
- 6 dip-switch selectable sounds
- 125dB sound output
- Impact resistant housing
- Low profile design
- Patented design
- Bi-directional mounting bracket
- Waterproof housing
- Designer white housing
- FSS-26T: 3.34”(W) x 3.34”(L) x 2.16” (D)

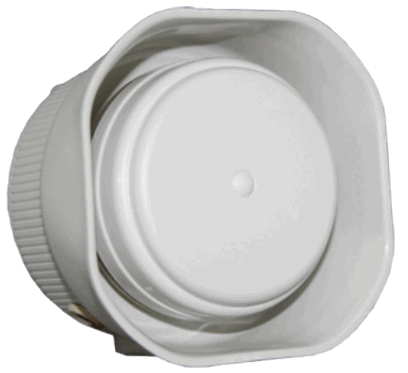

The FSS-26T siren is extremely loud and surprisingly small. It is almost half the size of standard 15 watt trumpet sirens and puts out 125dB.
This little screamer is almost as powerful as a big 30 watt horn. However, the FSS-26T is not a high pitched piezo. It does utilize a unique patented reverse trumpet technology to generate the loudest sound blast. In addition, there is a six dip-switch selectable siren sound option.
These sounds can be set individually or programmed sequentially. The FSS-26T is an indoor/outdoor design with a reversible mounting bracket.
Multiple Tones:
- Yelp
- Ray Gun Warble
- European
- Slow Whoop
- Pulsing Buzzer
- Ray Gun Yowl

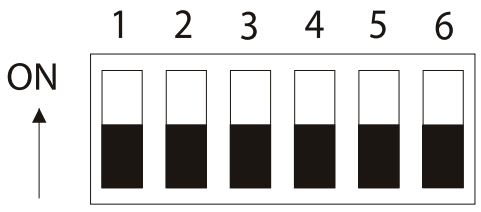

Select the tone by setting the dip-switch to On.

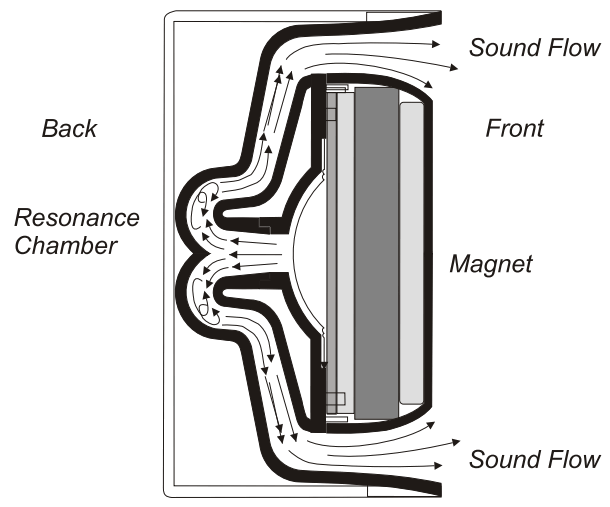

| Dynamic Flat Trumpet Design | Bi-directional Mounting Bracket |
 |  |
Specifications
| Model Number | Rated Power (VDC) | Rated Current (Amps) | Multi-Tones (Selectable) | Sound Ouput (dBA/lft) | Installation Type | Housing Color | Operating Temperature Range |
| FSS-26T | 12 | 1. | 6 | 125 | Indoor/Outdoor | White | 14°F – 122°F -10°C – 50°C |
Potter Electric Signal Co., LLC
St. Louis, MO Cust Service: 866-240-1870
Tech Support: 866-956-1211 Canada 888-882-1833
www.pottersignal.com
PRINTED IN USA
MKT. #8850062 – REV B
