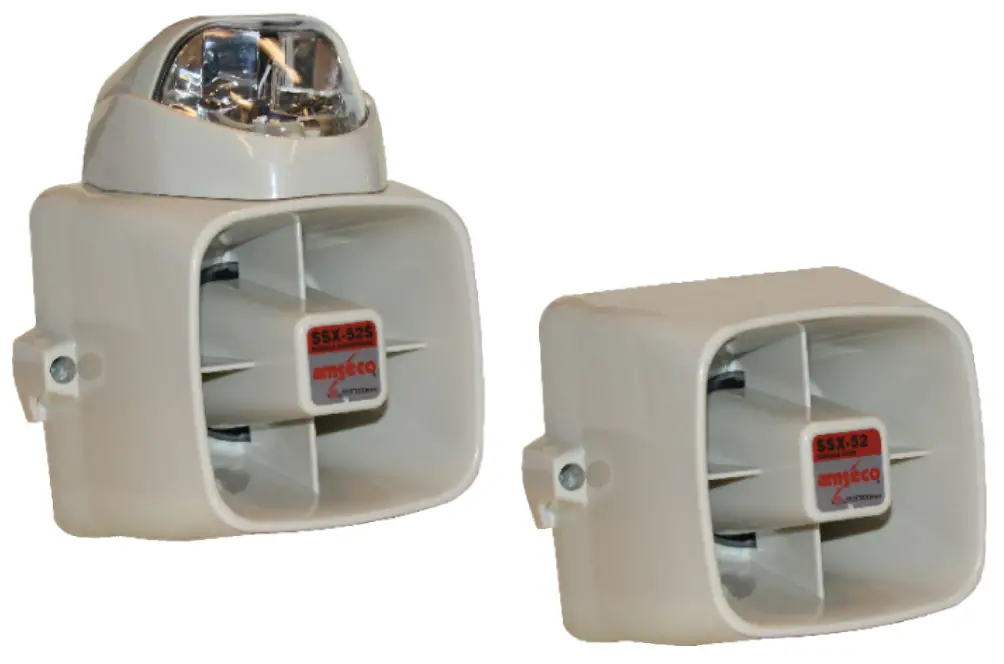

POTTER SSX-52 SERIES Durable Siren-Siren Strobe
- Self-Contained /Indoor/Outdoor Siren and Siren/Strobe
- Sturdy aluminum back plate
- Strong polycarbonate housing
- Dual tamper protection
- 115dB sound output
- Warble sound output
- Mounts directly to wall or 4” square back box
- Strobe consists of colored mirror and lens
- Available strobe colors: Amber, blue, clear, red

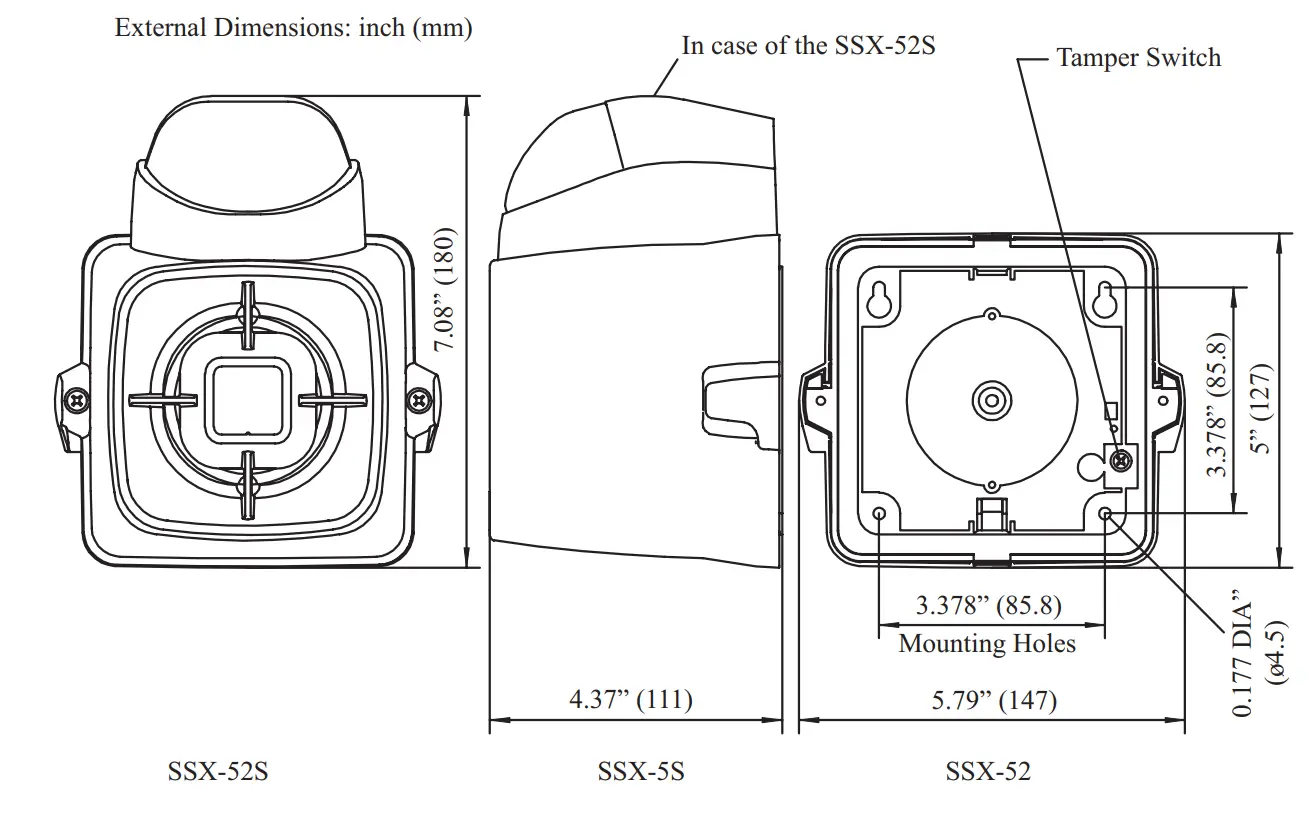

Dimensions: inches (mm)
| Model Number | Stock Number | Rated Voltage | Current Draw | Operating Voltage Range | Strobe Specifications | Speaker Specifications | Operating Temperature Range | |||
| Lens Color | Strobe Candela Rating on Axis | Flash Rate | Sound Output | Tamper Contact Capacity | ||||||
| SSX-52 | 4150024 | 6 -12 VDC | 620 mA Max. | 4.8 – 14.4 VDC | – | – | – | 115dBA | 0.3A @ 12V DC | -4°F to 149°F -20°C to 65°C |
| SSX-52SA | 4150025 | 12 VDC | 748 mA Max. | 9.6 – 14.4 VDC | Amber | 2.03 Min. | 20 – 100 times/min. | |||
| SSX-52SB | 4150026 | Blue | 1.80 Min. | |||||||
| SSX-52SC | 4150027 | Clear | 3.08 Min. | |||||||
| SSX-52SR | 4150028 | Red | .75 Min. | |||||||
