Siren Indoor Wireless Siren

WIRELESS INDOOR SIREN
Is a part of the U-Prox security alarm system User manual Manufacturer: Integrated Technical Vision Ltd.
Vasyl Lypkivsky str. 1, 03035, Kyiv, UkraineU-Prox Siren – is a wireless indoor siren designed for alarm notiﬁcation when the wireless detectors of U-Prox control panel are triggered.
It is installed indoors to scare off intruders and warns the users about the danger.
The device has contacts for connecting the arming information LED and external reed switch.

https://u-prox.systems/Installer
U-Prox Installer

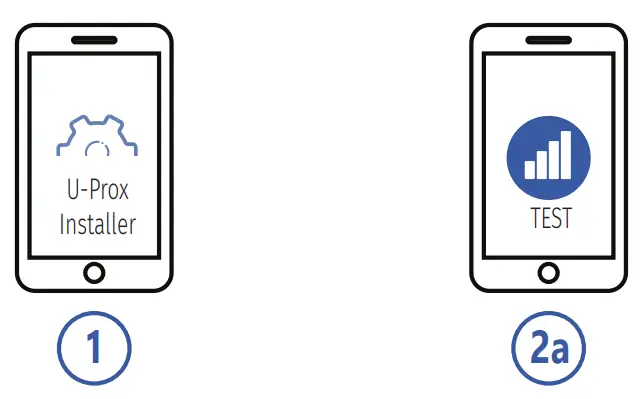

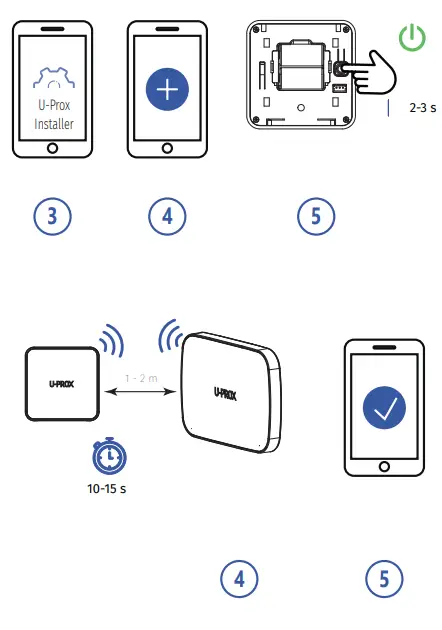

The device is connected to the control panel and is conﬁgured with the U-Prox Installer mobile application.
Functional parts of the device (see picture)

1. Device case	6. On/off button

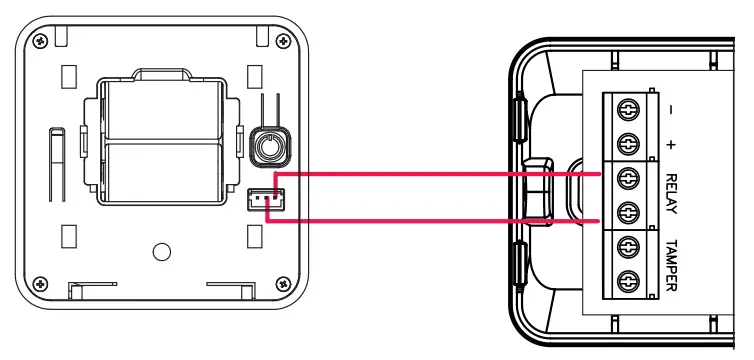

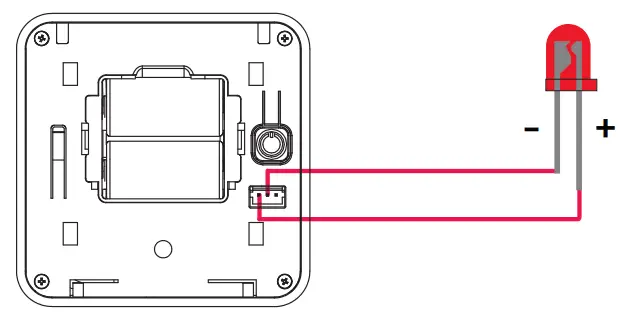

2. Light indicator	7. . Connector for reed switch and LED: LD contact (+ LED) GND contact (earth) DC contact (reed switch)
3. Resonator openings	8. Reed switch
4. Batteries	9. LED
5. Tamper

TECHNICAL SPECIFICATIONS

Sound pressure level at 1 m	at least 85 dB
Delay	no more than 10 seconds
Volume levels	3, adjustable
Light indication	built-in or external indicator, adjustable
Power	3V, two CR123A lithium batteries included
Service life of battery	up to 5 years
Radio frequency	ISM-band wireless interface with several channels
Radio frequency	ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight); Russian Federation: 868.0 to 868.2 MHz,bandwidth 100kHz, 10 mW max., up to 3200m (in line of sight)
Communication	Secure two way communication, sabotage detection, key – 256 bits
Operating temperature range	-10°C to +55°C
Dtimensions & weight	84.5 x 84.5 x 24.3 mm & 134 grams
Case colour	white, black

COMPLETE SET

U-Prox Siren;
Two CR123A batteries (pre-installed);
Quick start guide

CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date. If the device operates incorrectly, please contact [email protected] at ﬁrst, maybe it can be solved remotely.
