WIRELESS INDOOR SIREN
Is a part of the U-Proxy security alarm system
User manual
Manufacturer: Integrated Technical Vision Ltd.
Vasyli Lypkivsky str. 1, 03035, Kyiv, Ukraine
Siren Security Alarm System
U-Proxy Siren – is a wireless indoor siren designed for alarm notification when the wireless detectors of U-Prox control panel are triggered.
It is installed indoors to scare off intruders and warns the users about the danger.
The device has contacts for connecting the arming information LED and external reed switch.
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
https://u-prox.systems/Installer

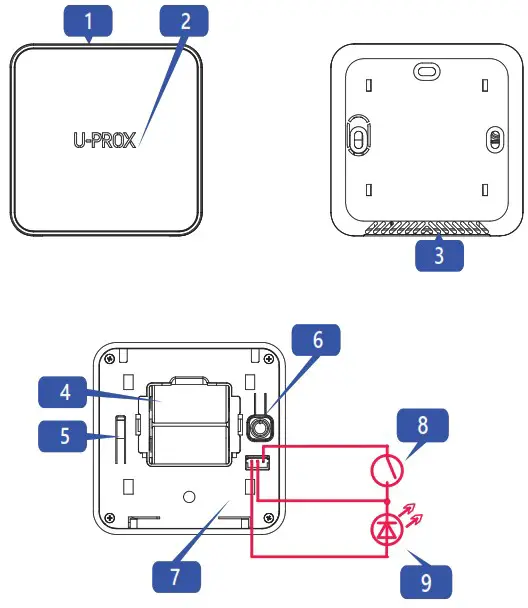

Functional parts of the device (see picture)
- Device case
- Light indicator
- Resonator openings
- Batteries
- Tamper
- On/off button
- Connector for reed switch and LED:
LD contact (+ LED)
GND contact (earth)
DC contact (reed switch) - Reed switch
- LED
TECHNICAL SPECIFICATIONS
| Sound pressure level at 1 m | at least 85 dB |
| Delay | no more than 10 seconds |
| Volume levels | 3, adjustable |
| Light indication | built-in or external indicator, adjustable |
| Power | 3V, two CR123A lithium batteries included |
| Service life of battery | up to 5 years |
| Radio frequency | ISM-band wireless interface with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight) | |
| Communication | Secure two way communication, sabotage detection, key – 256 bits |
| Dtimensions & weight | -10°C to +55°C |
| Operating temperature range | 84.5 x 84.5 x 24.3 mm & 134 grams |
| Case colour | white, black |
COMPLETE SET
- U-Prox Siren; 2. Two CR123A batteries (pre-installed);
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.

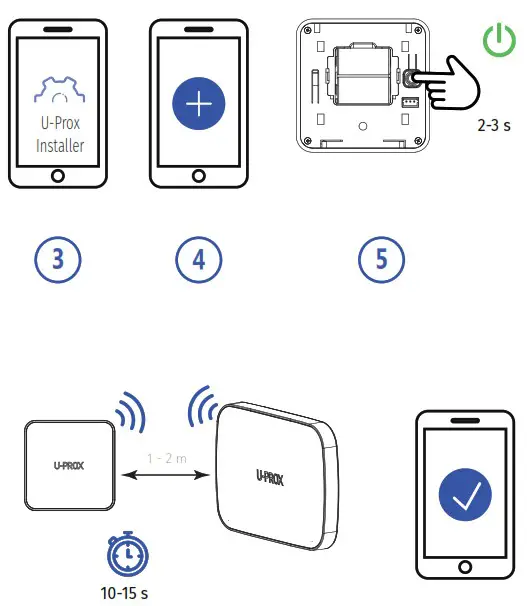

REGISTRATION

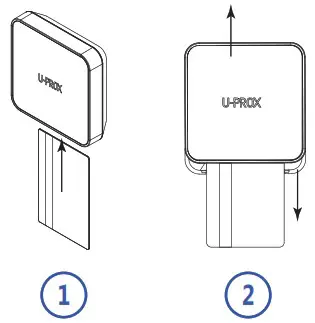

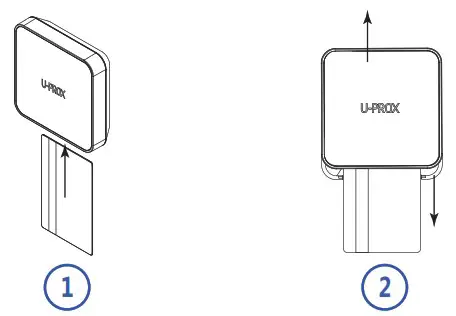

Use a plastic card to open the device

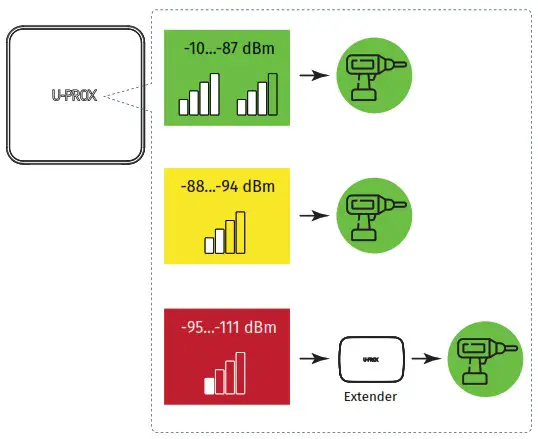

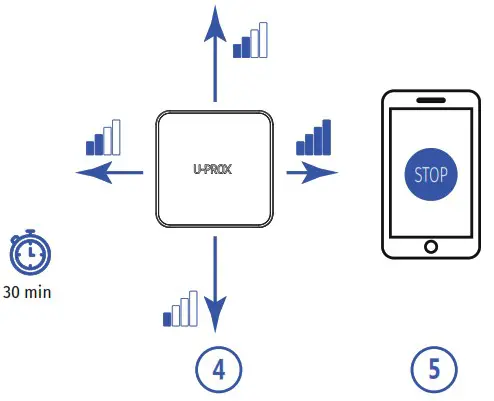

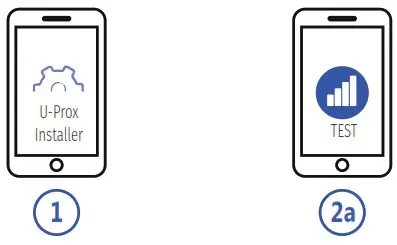

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB
INDICATION IN RANGE TEST MODE

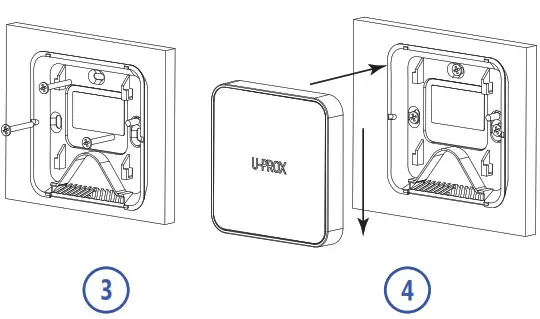

INSTALLATION

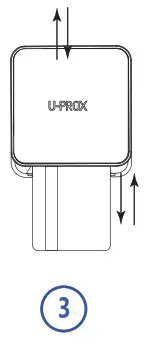

Use a plastic card to open the device

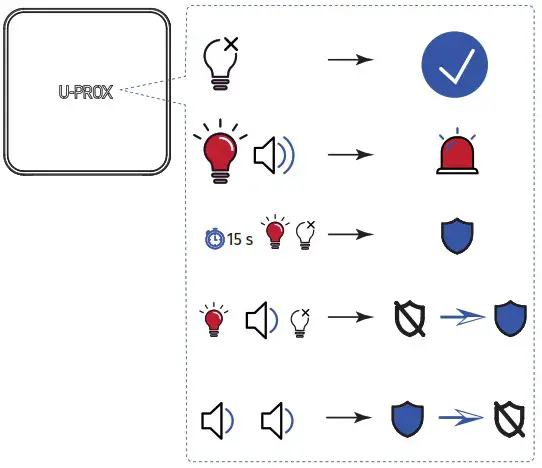

INDICATION

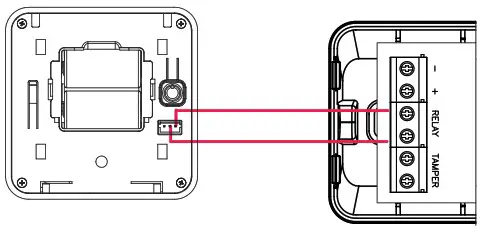

AN EXTERNAL LED CONNECTION
AN EXTERNAL SENSOR CONNECTION
NC – normal closed
