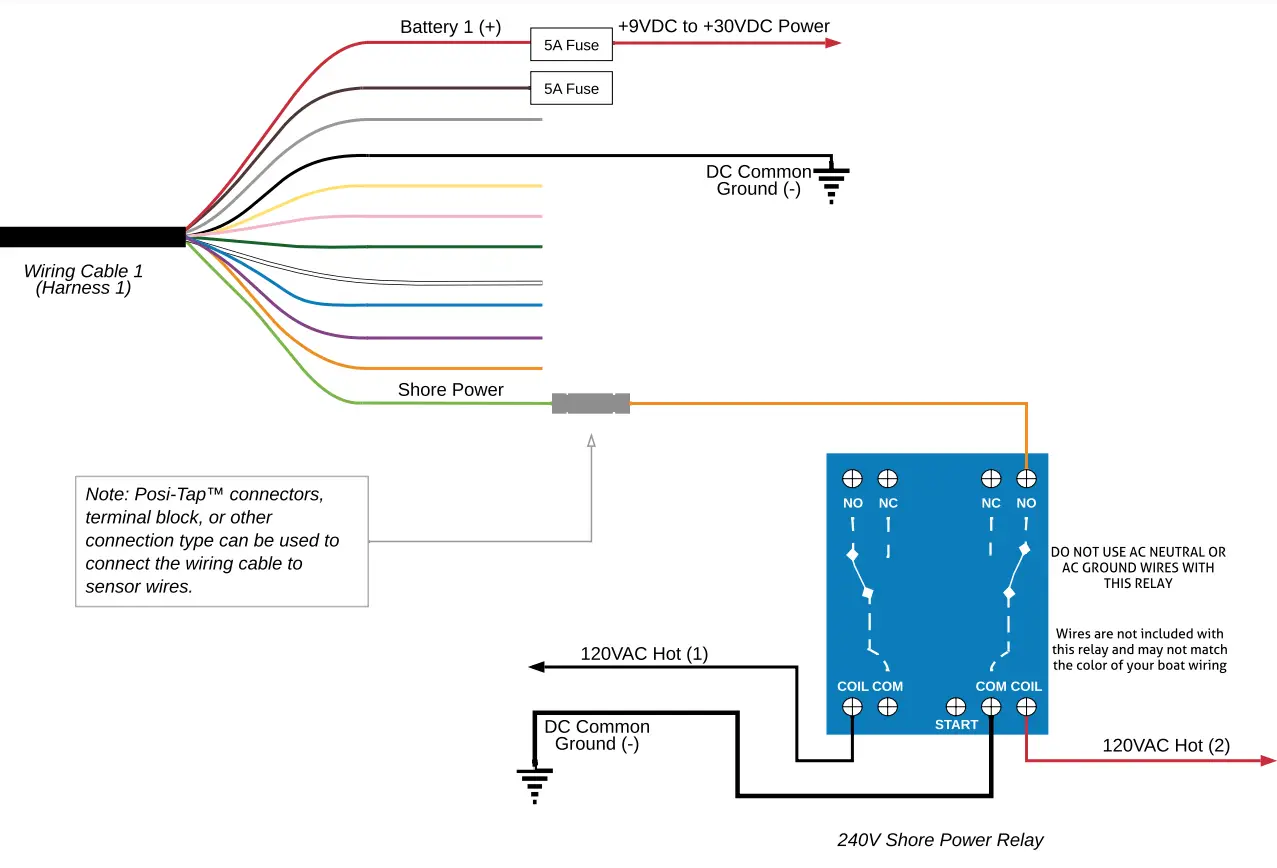

240V Shore Power Relay Wiring Diagram
For Siren 3 Series Devices
Installation Instructions:
- Ensure AC power is off
- Connect a wire from the Normally Open input on the relay to the Shore Power (light green) on Wiring Cable 1.
- Connect a wire from the COM input on the relay to DC Common Ground.
- Connect a wire from the first COIL input to the first leg of 120VAC power.
- Connect a wire from the second COIL input to the second leg of 120VAC power.
Product SKU: SM-ACC-ACRE-240
