U-prox Uprox-030 Wireless Indoor Siren User Manual (+ PDF)

U-Prox Siren – is a wireless indoor siren designed for alarm notiﬁcation when the wireless detectors of the U-Prox control panel are triggered. It is installed indoors to scare off intruders and warns the users about the danger. The device has contacts for connecting the arming information LED and external reed switch.

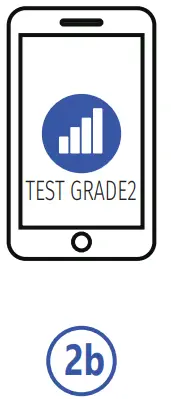

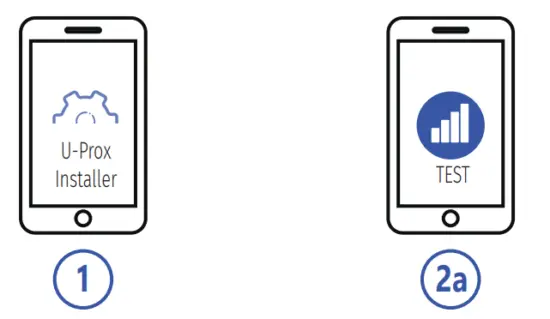

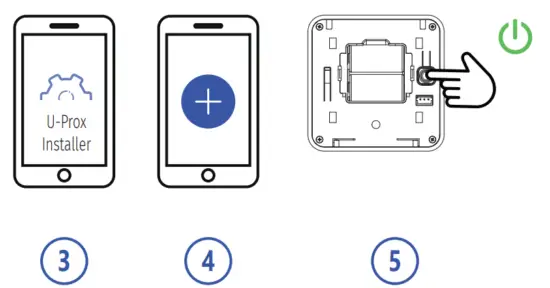

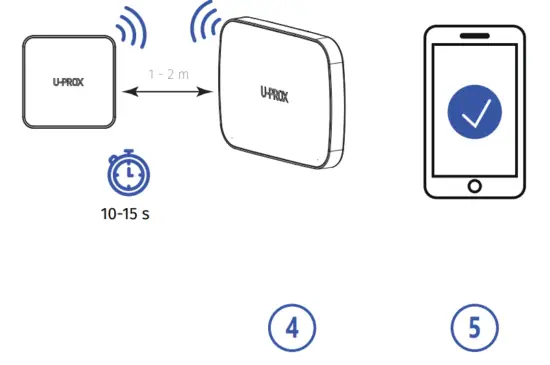

The device is connected to the control panel and is conﬁgured with the U-Prox Installer mobile application.

https://u-prox.systems/Installer

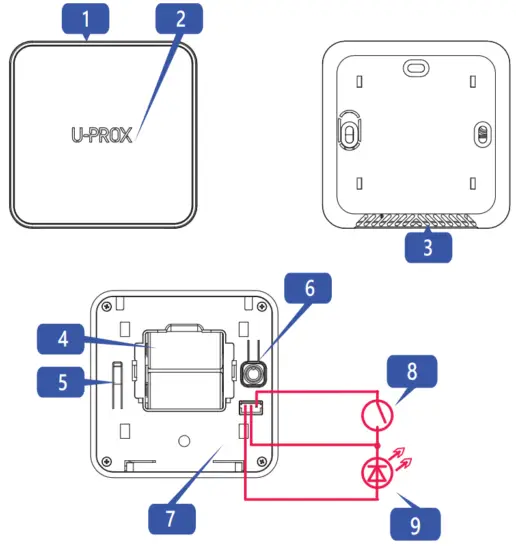

Functional parts of the device (see picture)

Device case
Light indicator
Resonator openings
Batteries
Tamper
On/off button

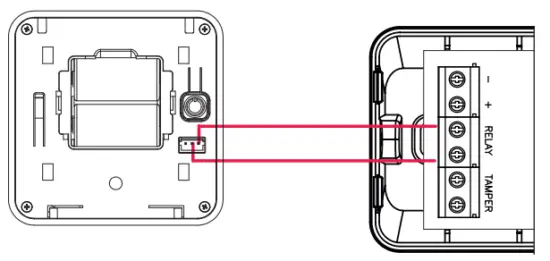

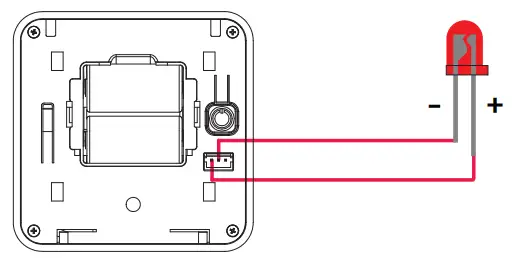

Connector for reed switch and LED:
LD contact (+ LED)
GND contact (earth)
DC contact (reed switch)
Reed switch
LED

TECHNICAL SPECIFICATIONS

Sound pressure level at 1 m	at least 85 dB
Delay	no more than 10 seconds
Volume levels	3, adjustable
Light indication	built-in or external indicator, adjustable
Power	13″, two CR123A lithium batteries included
The service life of the battery	up to 5 years
Radiofrequency	ISM-band wireless interface with several channels
Radiofrequency	ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight)
Communication	secure two-way communication, sabotage detection, key – 256 bits
Operating temperature range	-10°C to +55°C
Dimensions & weight	84.5 x 84.5 x 24.3 mm & 134 grams
Case color	white, black

COMPLETE SET

U-Prox Siren;
Two CR123A batteries (pre-installed);
Quick start guide

CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS

WARRANTY

Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date. If the device operates incorrectly, please contact [email protected]
at ﬁrst, maybe it can be solved remotely.
