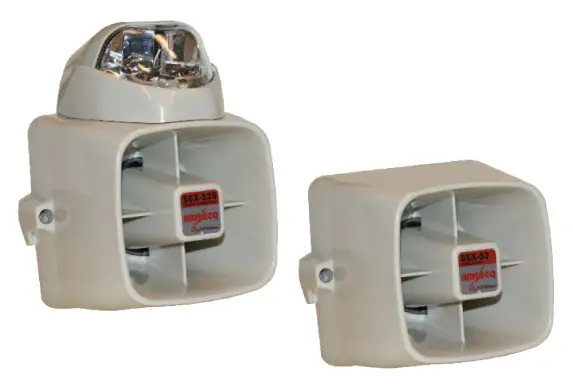

POTTER SSX-82 Series 127dB Durable Siren or Siren Strobe Owner’s Manual
- Self-Contained /Indoor/Outdoor Siren and Siren/Strobe
- Sturdy aluminum back plate
- Strong polycarbonate housing
- Dual tamper protection
- Dual tone (steady and warble)
- 120dB @ 1 meter sound output (steady and warble)
- Mounts directly to wall or 4” square back box
- Strobe consists of colored mirror and lens
- Available strobe colors: Amber, blue, clear, red
The SSX-82 is a durable indoor/outdoor self-contained siren that is a more powerful version of the SSX-52. The full featured siren consists of a single tone that delivers a steady and warble sound output, 120dB @ 1 meter output siren driver, and a dual action reed plunger for cover and rear protection. The SSX-82 is provided with a strong polycarbonate housing and a sturdy aluminum back plate to prevent warping and cracking. The SSX-82 comes completely assembled and ready for installation.

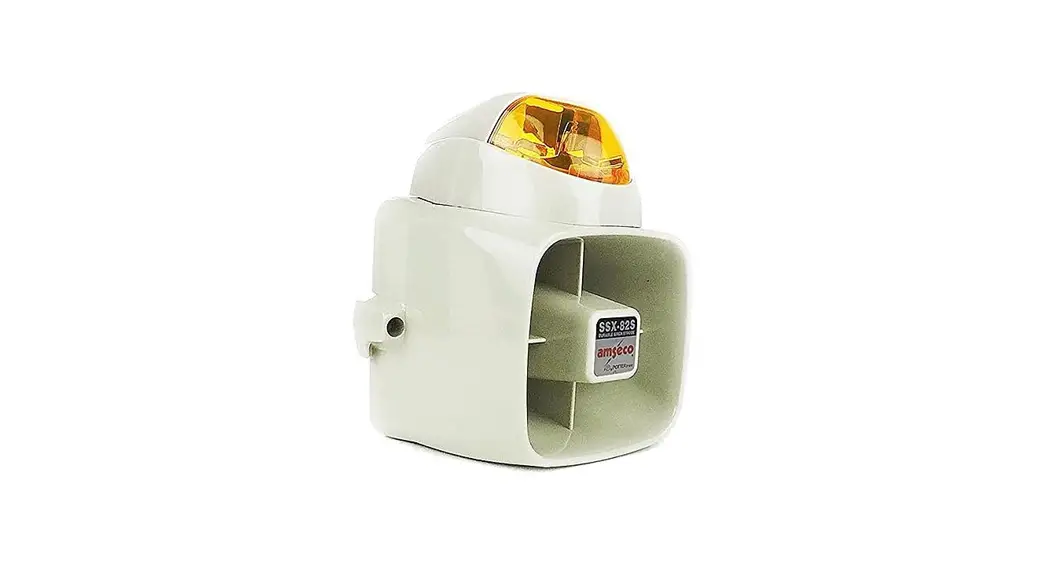

The SSX-82S Siren-Strobe is also available. It includes all the great SSX-82 features with the addition of a colored strobe. The strobe uses a colored mirror and lens to ensure that the color can be easily distinguished, and is available in amber, blue, clear, or red.
The SSX-82/82S excels in noisy areas such as warehouses, loading docks, print shops, busy production floors, or for indoor/outdoor applications where high quality and high output warning is required.

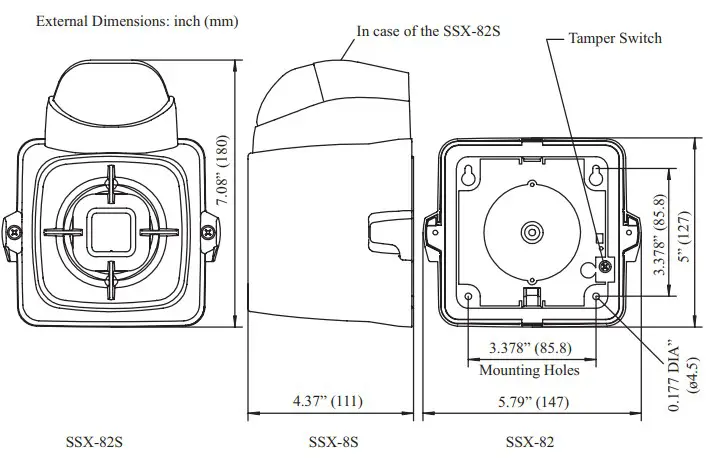

Dimensions inches (mm)
| Model Number | Stock Number | Rated Voltage | Current Draw | Operating Voltage Range | Strobe Specifications | Speaker Specifications | Operating Temperature Range | |||
| Lens Color | Strobe Candela Rating on Axis | Flash Rate | Sound Output | Tamper Contact Capacity | ||||||
| SSX-82 | 4150032 | 12 VDC | 1.20 A Max. (typical) | 4.8 – 14.4 VDC | – | – | – | 120dBA | 0.3A @ 12V DC | -4°F to 149°F-20°C to 65°C |
| SSX-82SA | 4150033 | 12 VDC | 1.31 A Max. (typical | 9.6 – 14.4 VDC | Amber | 2.03 Min. | 20 -100times/min. | |||
| SSX-82SB | 4150034 | Blue | 1.80 Min. | |||||||
| SSX-82SC | 4150035 | Clear | 3.08 Min. | |||||||
| SSX-82SR | 4150036 | Red | .75 Min. | |||||||
