POTTER CSL24W Series Colored Wall Mount Strobe Fire Alarm Resources
Introduction
- Available strobe colors: amber, blue, green, or red
- UL Listed for wall mounting
- Screw terminal capacity up to AWG12

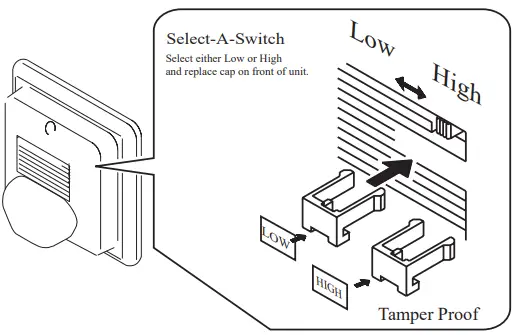

- Selectable candela output
- NFPA/ANSI compliant
- Polarized strobes with wide operating voltage range using fi ltered or unfi ltered FWR input voltage
- Designed for use in non-sleeping areas
- Minimum one fl ash per second (1 Hz)
- Synchronization requires Sync Module (SMD10-3A)
- Available in red or white housing
- All models mount to a 4” or single gang back box

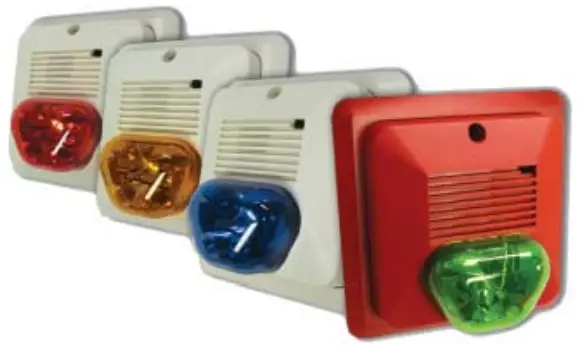

The Amseco Colored Strobe utilizes a patented design that produces a true color output. The CSL24W offers a slim-line look with a stylish rounded strobe. The CSL24W colored strobes are listed for indoor wall mount applications. The terminal strips allow for various wire sizes and provide a simple connection of one or multiple devices.
These strobes are used in various applications such as Mass Notification, Severe Weather Warning, Machine Operation, Industrial Detection Systems, Access Control and many, many more. These devices are UL listed for general signaling (UL 1638) and comply with the requirements for signaling of the hearing impaired (UL 1971). The bodies of the strobes are available in red or white.
Ordering Information
Model Number | Stock Number | Strobe Color | Housing Color | Input Voltage | Strobe Candela | Mounting Type | Light Output | Flash Rate (times/min.) | Temperature Operating Range |
CSL24W-AW | 4800010 | Amber | White | Regulated 24V DC/ FWR | 75 / 145 | Wall Mount | Low / High | 60 | 32°F – 120°F (0°C – 49°C) |
| CSL24W-BW | 4800012 | Blue | 40 / 79 | ||||||
| CSL24W-GW* | 4800014 | Green | 79 / 154 | ||||||
CSL24W-RW | 4800016 | Red | 35 / 68 | ||||||
| CSL24W-AR* | 4800009 | Amber | Red | 75 / 145 | |||||
CSL24W-BR* | 4800011 | Blue | 40 / 79 | ||||||
CSL24W-GR* | 4800013 | Green | 79 / 154 | ||||||
| CSL24W-RR* | 4800015 | Red | 35 / 68 |
* Contact Potter before ordering
Engineering Specifi cations
The Amseco CSL24W colored strobe/horn shall be provided for visual notification. The device shall have a universal mounting plate and connect to a single gang, double gang, four inch square or octagon box. The devices shall be UL listed for General Signaling and shall comply with light output requirements of UL 1971 for spacing. The colored strobes shall have a minimum light output of 15 cd. The reflective mirror shall be the same color as the lens to produce a true color of amber, red, blue or green. The strobe shall operate between 16 and 33 VDC regulated or full wave rectified. The strobe shall flash a minimum of once a second continuously at 16 VDC.

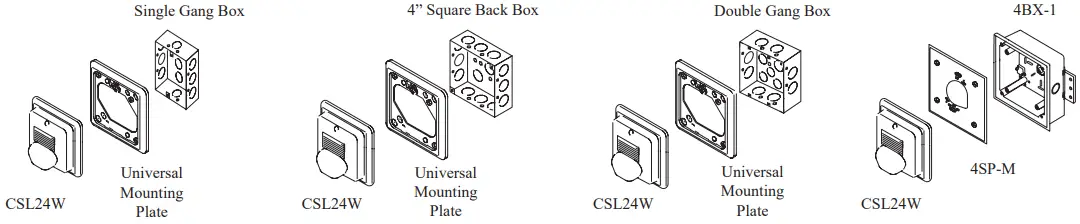

Installation

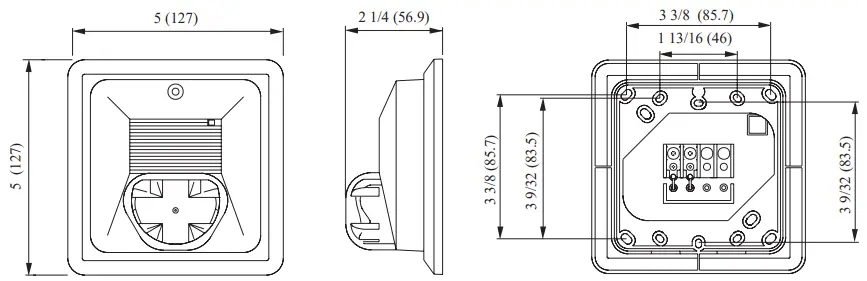

Dimensions: inches (mm)

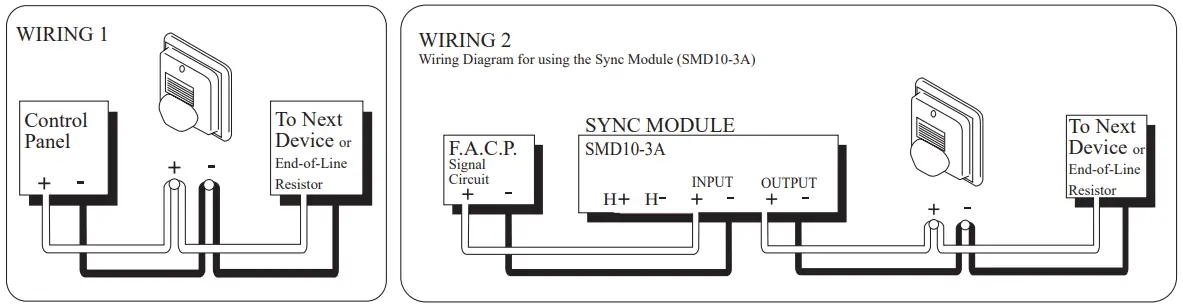

Wiring Diagram
| Under ULC 525/526 | ULC Current at 24V DC (mA) |
| 15cd | 99 |
| 30cd | 129 |
| Strobe Light Specifications | Max. RMS Operating Current | |
| Regulated 24V DC | Regulated 24V FWR | |
| Low | 83 | 120 |
| High | 128 | 175 |

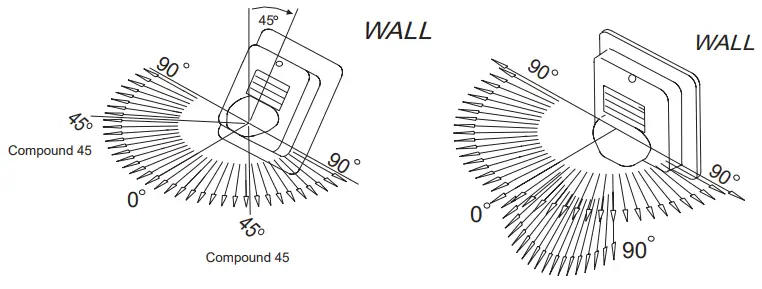

| Light Output Dispersion | Light Output on Axis (cd) | |
| Low | High | |
| Amber | 75 | 145 |
| Blue | 40 | 79 |
| Green | 79 | 154 |
| Red | 35 | 68 |
