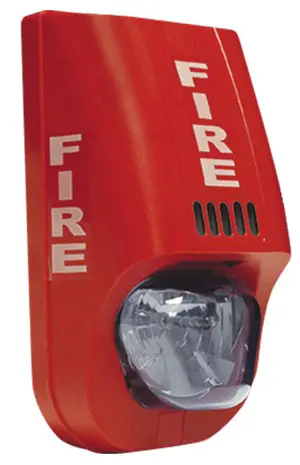

SHB/SLB24-75
INDOOR/OUTDOOR STROBE/
HORN/STROBE COMBINATION
SHB/SLB24-75 Indoor Outdoor Strobe Horn Strobe Combination Fire Alarm
- Unit by itself is UL Listed for outdoor use
- Low current consumption
- Wide operating voltage range
- AWG #12-18 lead wire connection
- Clear lens only
- Synchronization requires the SMD10-3A Sync Module
- Capable synchronization with other Amseco strobes
- Mounts to SBX-1 outdoor box or SBP-1 plastic mounting plate
- Available in red and gray housing
Amseco’s SHB/SLB indoor and outdoor strobe and horn/strobes are designed to provide audible and/or visible signals for fire and burglar alarm protection systems and notification signals for the purpose of life safety and protection. They meet or exceed NFPA/ANSI Standards. The unit by itself is approved as an outdoor appliance under UL 1638 (strobe) and UL 464 (horn). The SHB/SLB24-75 Series operates on 24V system panels having an output voltage of either DC or FWR between 16-33V. These audible/ visual signals can be connected either independently or in unison. It can be synchronized by using the Amseco Sync Module SMD10-3A. The horn for the SHB24 can be silenced while the strobe remains flashing. The SLB24-75 Series is a high performance, high intensity, solid state, indoor/outdoor, 24V DC strobe.
Ordering Information
| Model Number | Input Voltage | Operating Voltage | Strobe Output (cd) | Installation | Flash Rate ange | Mounting Type | Sync Module | Operating Temperature Range |
| SHB24-75C | Regulated 24V DC/ FWR | 16-33 VDC 16-33 VFWR | 75 | Indoor (Fire/ADA) | 60 times min . | Wall | SMDIO-3A (-35°C _ 66.3c) | -31°F – 150°F |
| SLB24-75C | Indoor/outdoor (General) |
Engineering Specifications
The indoor/outdoor audible and visual alarm indicating appliance shall be Amseco model SHB24-75 or equivalent device. The indoor/outdoor visual alarm indicating appliance shall be Amseco model SLB24-75 or equivalent device. The horn/strobe shall be listed under UL 1971 Standard for signaling devices for the hearing impaired and shall be approved for fire protective service. The horn/strobe and strobe shall be listed in compliance with UL 1638 Visual Appliance Private Mode Emergency and General Utility for use in indoor/outdoor applications. The candela ouptut shall be field 75cd intensity output. The signaling strobe shall operate on 24V DC from a non-coded, regulated DC supply or full-wave rectified, unfiltered supply. The horn may operate on 24V DC coded system. The strobe shall be designed to produce one signal flash per second with continuously applied minimum voltage. The strobe/horn may have a SPC-1 universal back mounting plate, capable of wall mounting to a SBX-1 weather-proof back box. When strobe synchronization is required, the strobe/horn shall be compatible with the Amseco SMD10-3A (daisy chain) or other source of Amseco sync protocol. Audible and visual signaling devices shall be installed in accordance with current NFPA guidelines.

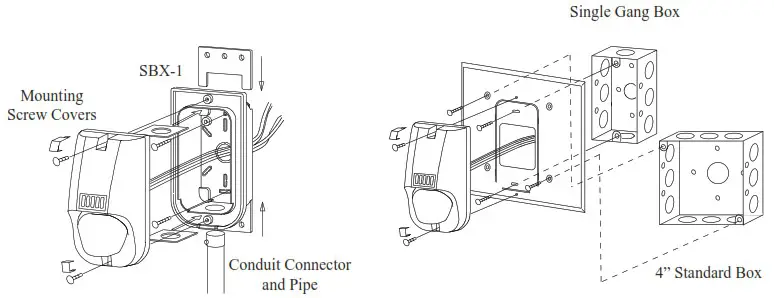

Installation

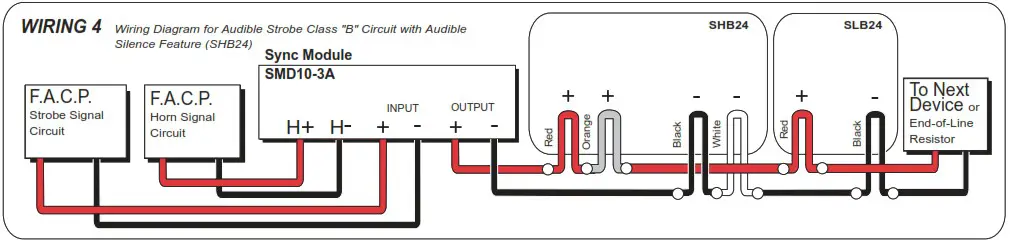

Wiring Diagram

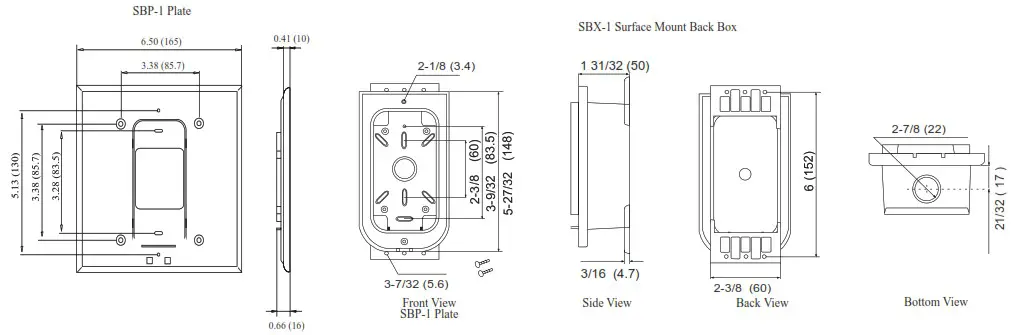

Dimensions: inches (mm)
Specifications
| Under CAN/ ULC 525/526 | ULC Current (mA) | |
| 24V DC | 24V FWR | |
| SHB24-75 | 144 | 185 |
| SLB24-75 | 110 | 155 |
| Maximum RMS OperatingCurrent (mA) | Mininnun Sound Output (dBA @ IO ftper UL 464) | Light Output on Axis (cd) | |||||
| SHB24-75 | Regulated 24V IX | Regulated 24V FWR | Non- Tempora l | Temporal | 16V | 33V | |
| Hom | 36 | 34 | 83 | 79 | 104 | 118 | |
| Horn and Strobe | 195 (typica l 145) | 254 (typical 204) | |||||
| Strobe | 175 | 239 | – | – | |||
| SLB24-75 | |||||||
| Strobe | 167 | 223 | – | – | |||
Potter Electric Signal Company • 2081 Craig Road, St. Louis, MO, 63146-4161 • Phone: 800-325-3936/Canada 888-882-1833
• www.amseco-kai.com
PRINTED IN USA
MKT. #8850019 – REV B 9/07
