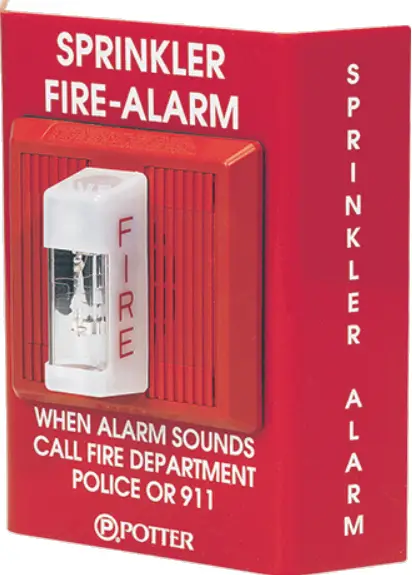

POTTER SASH Series Sprinkler Alarm Strobe Horn/Sign Combination Owner’s Manual
Features
UL Listed Strobe Horn
- Dimensions: 9-1/4″ h x 10″ w x 4″ d
- Voltages Available: SASH-24 (24VDC) SASH-120 (120VAC)
- Environment: Indoor or Outdoor use
Weatherproof backbox is included with both models - Termination: Separate terminals for horn and strobe
- Finish: Red with white lettering
SASH-24 Stock No. 1000555
SASH-120 Stock No. 1000560
Specification
The SASH series is a multitone horn/strobe combination designed for use as an audio visual indication for automatic sprinkler systems.
It can be installed in conjunction with or in place of water motor gongs.
| Strobe Intensity, dBA, and Current Ratings | ||||||
| Model | SASH-24 Input Current | SASH-120 Input Current | Typical Anechoic dBA at 10 ft. | |||
| Tone | Amps at 24V DC | Amps at 115V AC | At Nominal Input Voltage | |||
| HI | STD | HI | STD | HI | STD | |
| Horn | 0.038 | 0.024 | 0.050 | 0.040 | 99 | 93 |
| Bell | 0.019 | 0.012 | 0.040 | 0.038 | 92 | 87 |
| March Time Horn | 0.038 | 0.024 | 0.050 | 0.040 | 99 | 93 |
| Code-3 Horn | 0.038 | 0.024 | 0.050 | 0.040 | 99 | 93 |
| Code-3 Tone | 0.027 | 0.016 | 0.042 | 0.038 | 95 | 90 |
| Slow Whoop | 0.047 | 0.025 | 0.050 | 0.040 | 99 | 94 |
| Siren | 0.034 | 0.022 | 0.045 | 0.040 | 98 | 93 |
| Hi/Lo | 0.020 | 0.013 | 0.041 | 0.039 | 93 | 88 |
| Strobe Candela | 75 | 15 | ||||
| Strobe Current (If the strobe and audible operate on the same circuit, add the strobe current to the tone current.) | 0.102 | 0.060 | ||||

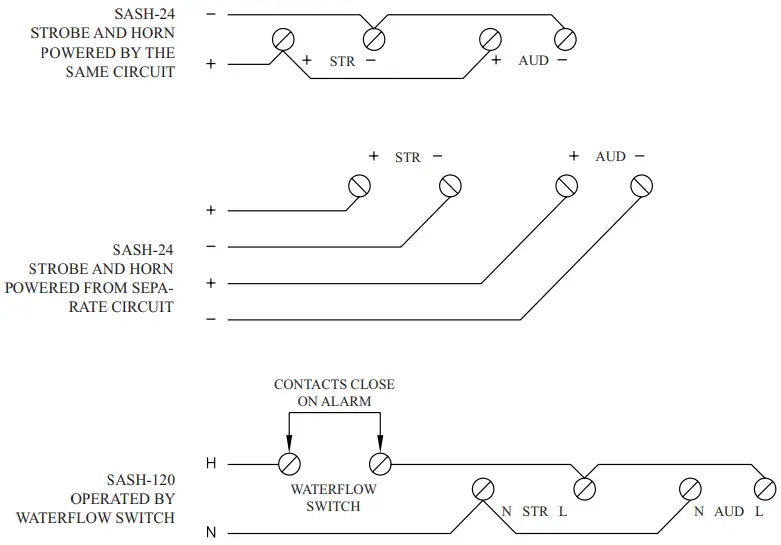

Wiring Information
