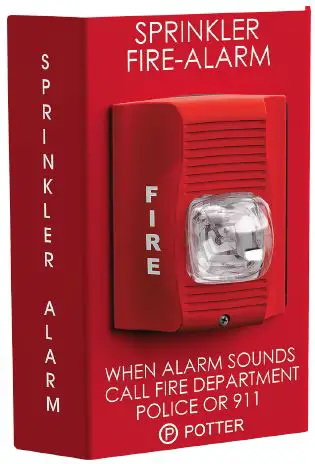

POTTER SASH-120 Sprinkler Alarm Select-A-Strobe Horn Sign Combination
Features
- Assembled in the USA
- Weatherproof back box included
- Multiple audible settings
- Multiple Candela settings
- Horn/Strobe is: UL and CSFM listed, MEA Approved
Description
The SASH 120 is a multitone strobe/horn combination designed for use as an audio-visual indication for automatic sprinkler systems. It can be installed in conjunction with or in place of water motor gongs.

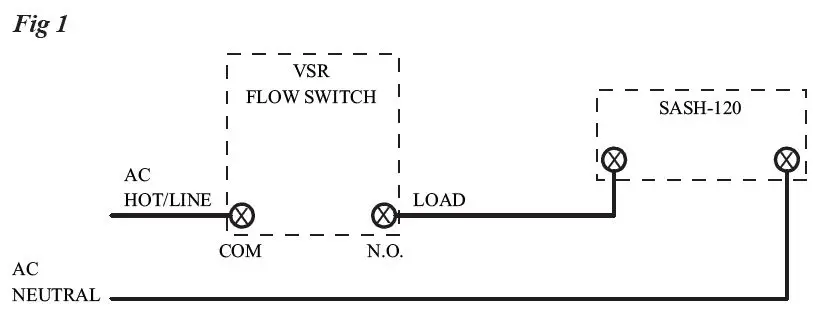

Wiring Information
See horn/strobe installation instructions included with the product for complete wiring information.
Technical Specifications
| Candela Settings | 135, 150, 177, 185 |
| Dimensions | 10 3/4” h x 9” w x 4 1/2” d |
| Environment | Indoor or Outdoor use (-40°F to 151°F) A weatherproof backbox is included |
| Finish | Red with white lettering |
| Strobe Flash Rate | 1 per second |
| Termination | Wire leads |
| Voltages Available | 120 VAC |
Ordering Information
| Model | Description | Stock No. |
| SASH-120 | Sprinkler Alarm Select-A-Strobe/ Horn®/Sign Combination | 1000761 |
