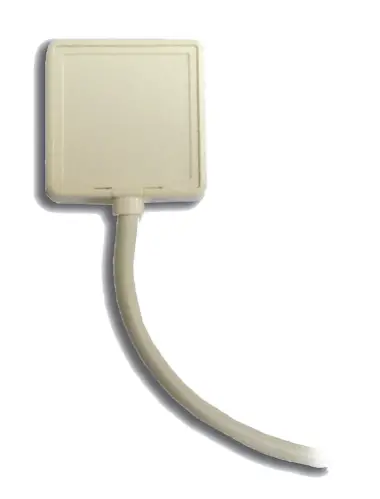

POTTER GSC-20N Glass Shock Sensor
Introduction
- Detects physical shock on glass
- Direct replacement for foil
- Covers 10 ft. radius
- Mounts with supplied double-sided tape
- Available in white
- Self-generating power on alarm
Application
The GSC-20N Glass Shock Sensor is designed to detect physical shock on glass. This device is designed to detect any unauthorized entry through any glass door or window. The GSC-20N is a direct replacement for foil alarms.

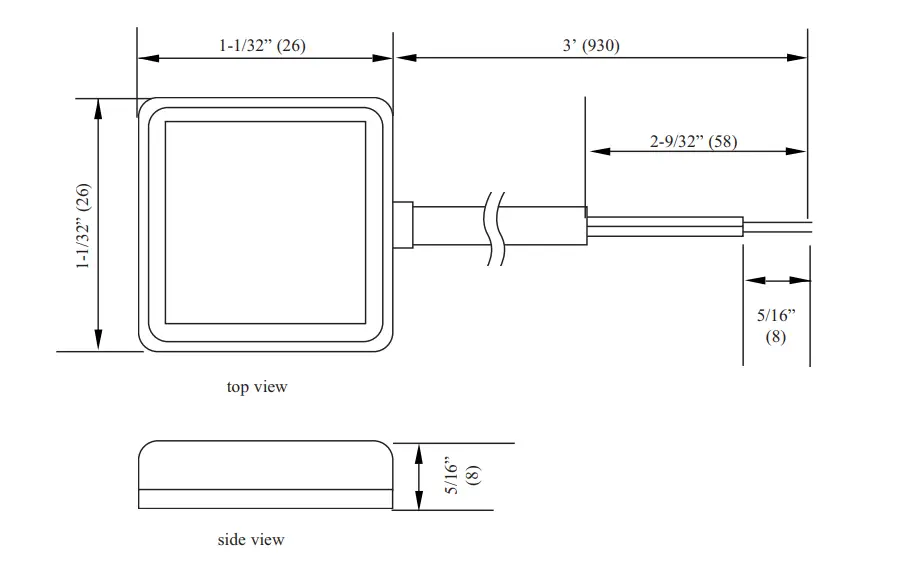

Dimensions
Specifications
| Model | Stock Number | Resistance | Max. Loop Current | Latch Time in Alarm | Lead | Mounting Method | Operating Temperature Range | |
| GSC-20N | 4340003 | Typical (N.C.) 16 ohm max. | Alarm (Open) 1 meg ohm min. | 40 ma | 1 second | 22 AWG 2 conductor 3 ft. length | Self adhesive tape | 14°F to 122°F (-10°C to 50°C) |
