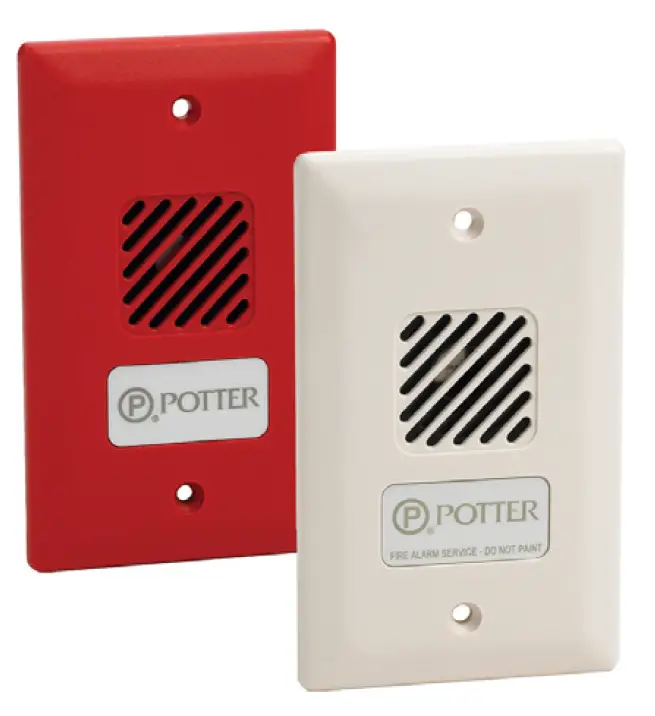

POTTER MH-120 AC Low Current Remote Mini Horn Fire Alarm
Feature
- Piezo Sounder for Fire Alarm Indoor applications
- Low current and High Sound Output
- UL listed
- Wide range operating temperature -4°F to +140°F
- Ideal for Residential or Commercial application
- 6 3/4″ wire leads for Easy field wiring
- Available in red or white
- FIRE decal included
Potter’s MH-120 is an inexpensive alternative for a low current 120 volt AC piezo Remote Signaling Device that is ideally suited for hotels, motels, apartments, institutional and residential fire alarm systems where a dependable alarm signal is required. The MH-120 is comprised of a single gang size ABS plastic plate and a 120 VAC piezo horn. The horn emits a high dB output with a very small current draw. The MH-120 is available in red and white and mounts on a single gang box. Leads are provided for quick connection to the wiring circuit.

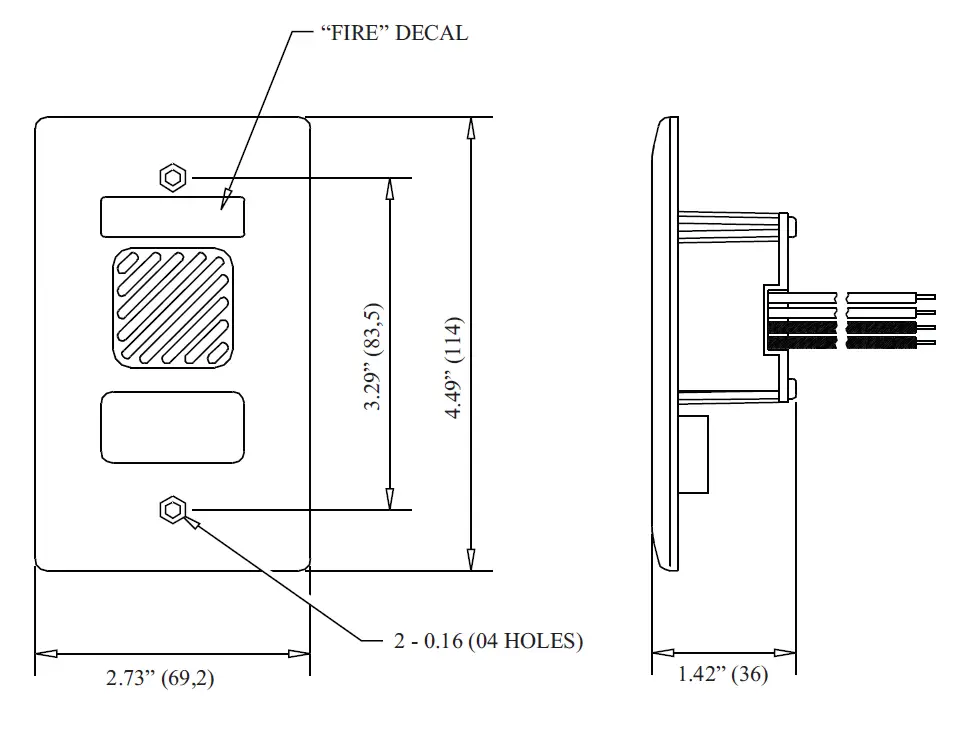

Dimensions
Specifications
| Rated Voltage | 120VAC | |
| Rated Current | 15mA | |
| Sound Level | UL Spherical Measurement | 82dBA |
| Indoor Measurement | 97dBA | |
| Operating Temperature Range | -20°C to 60°C (-4°F to +140°F) | |
| Plate | Plastics (polyethylene terephthelate | |
| Color selection: red/white | ||
| Weight | 2.2 oz. (63g) | |
| Wire Length | 6-3/4″ | |
| Mounting Type | Wall or ceiling mount | |
Potter Electric Signal Co., LLC • St. Louis, MO • Cust Service: 866-240-1870 • Tech Support:866-956-1211• Canada 888-882-1833 • www.pottersignal.com
